Allen-Bradley AC Drive 160-BA10NSF1 - 5 HP Variable RPM
Allen-Bradley AC Drive 160-BA10NSF1 - 5 HP Variable RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 160-BA10NSF1
Stock #: Stock # 0626-01639
Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 160-BA10NSF1
- Product Type: Analog Signal Follower Variable Frequency Drive
- Series: C
- Firmware (FRN): 7.06
- Motor Rating: 3.73 kW / 5 HP
- Input Voltage: 380 to 460 V, 3 Phase
- Input Current: 12.2 A
- Input Frequency: 50 / 60 Hz
- Input VA: 9700
- Output Voltage: 380 to 460 V, 3 Phase
- Output Current: 10.5 A
- Output Frequency: 0 to 240 Hz
- Operating Ambient Temp: 0 to 50 C
- Short Circuit Current: 100 KA
- Enclosure Rating: IP20
- Serial Number: 4TAC8SM7 03335
Product Description

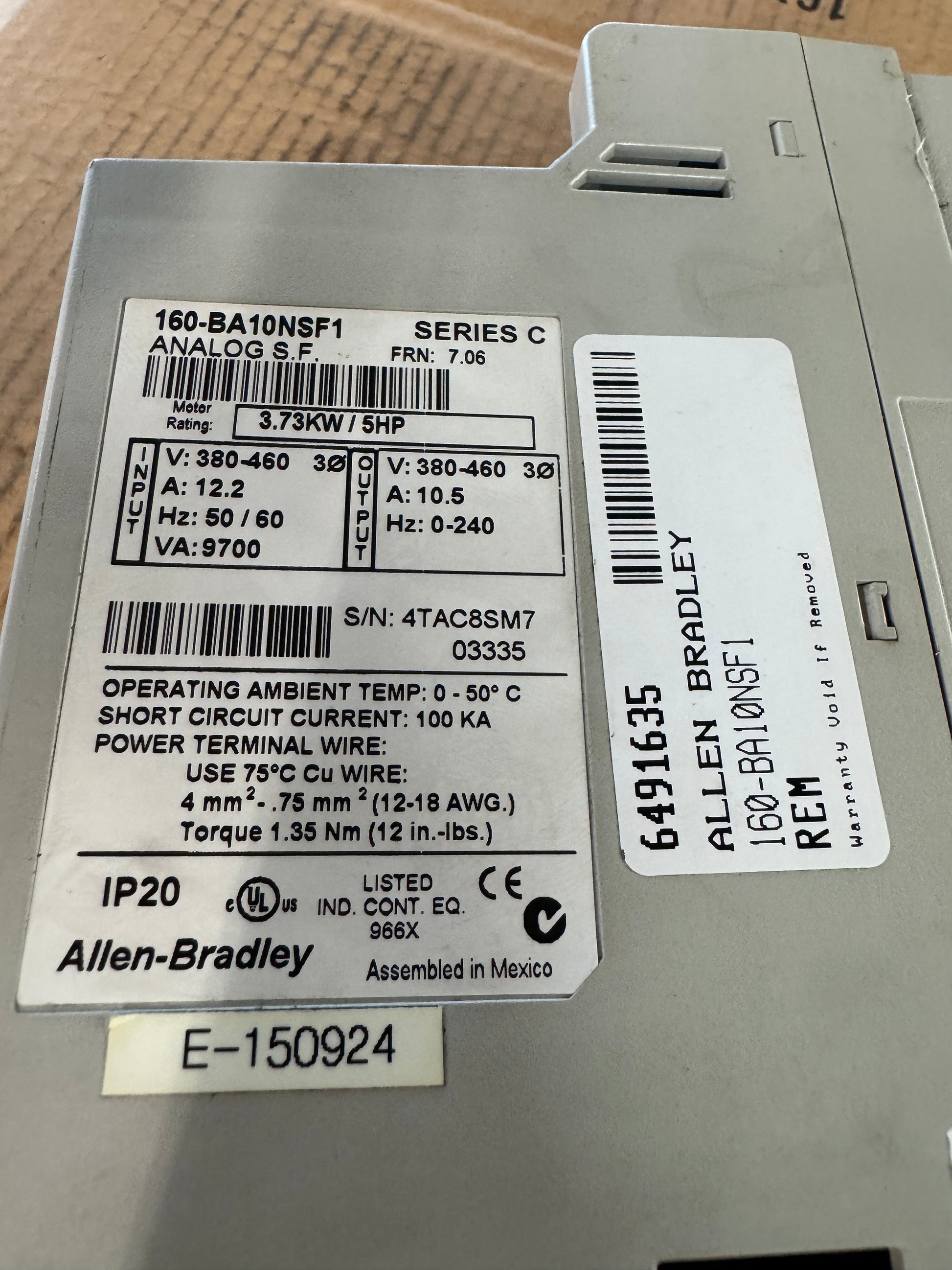

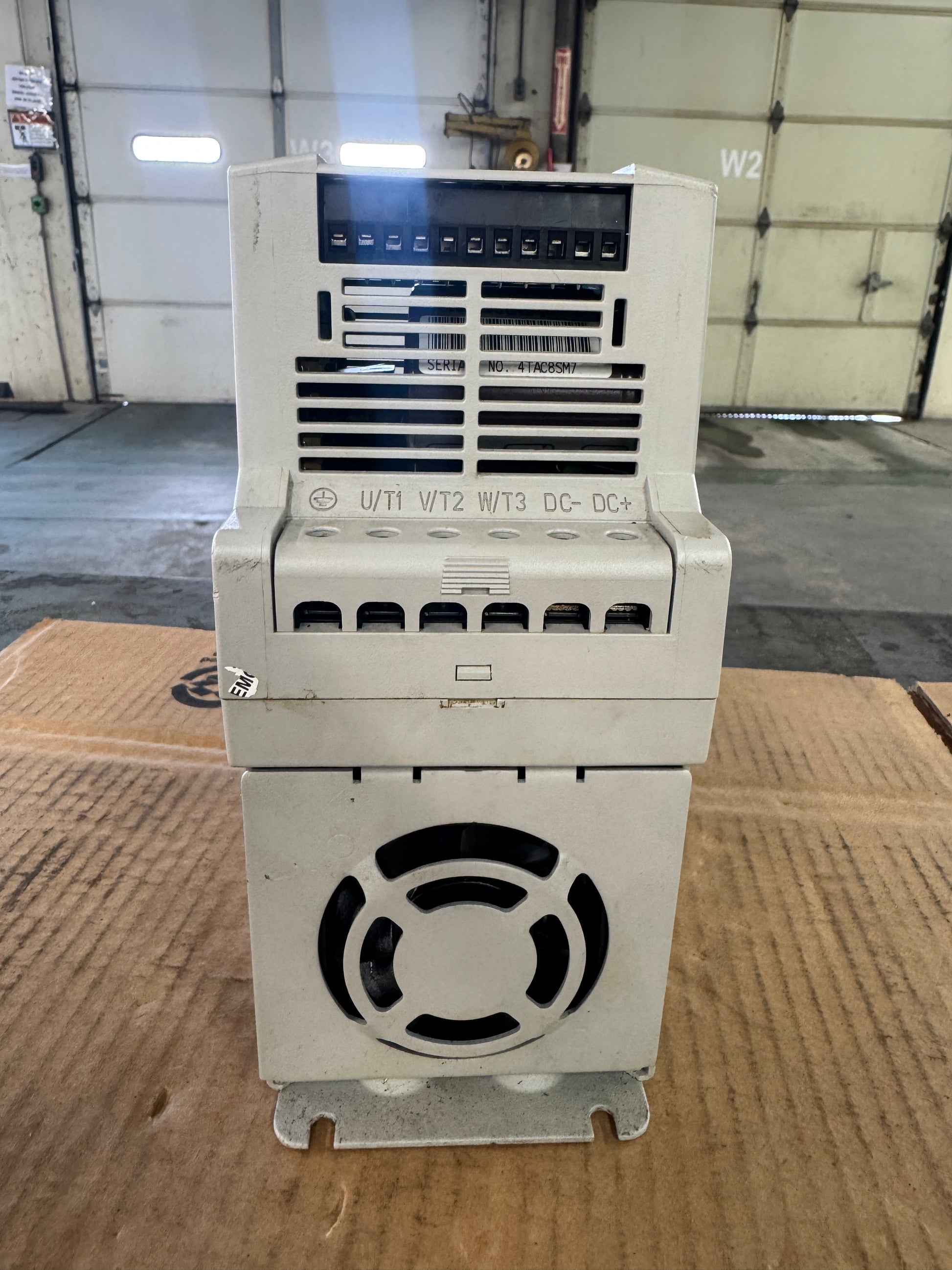

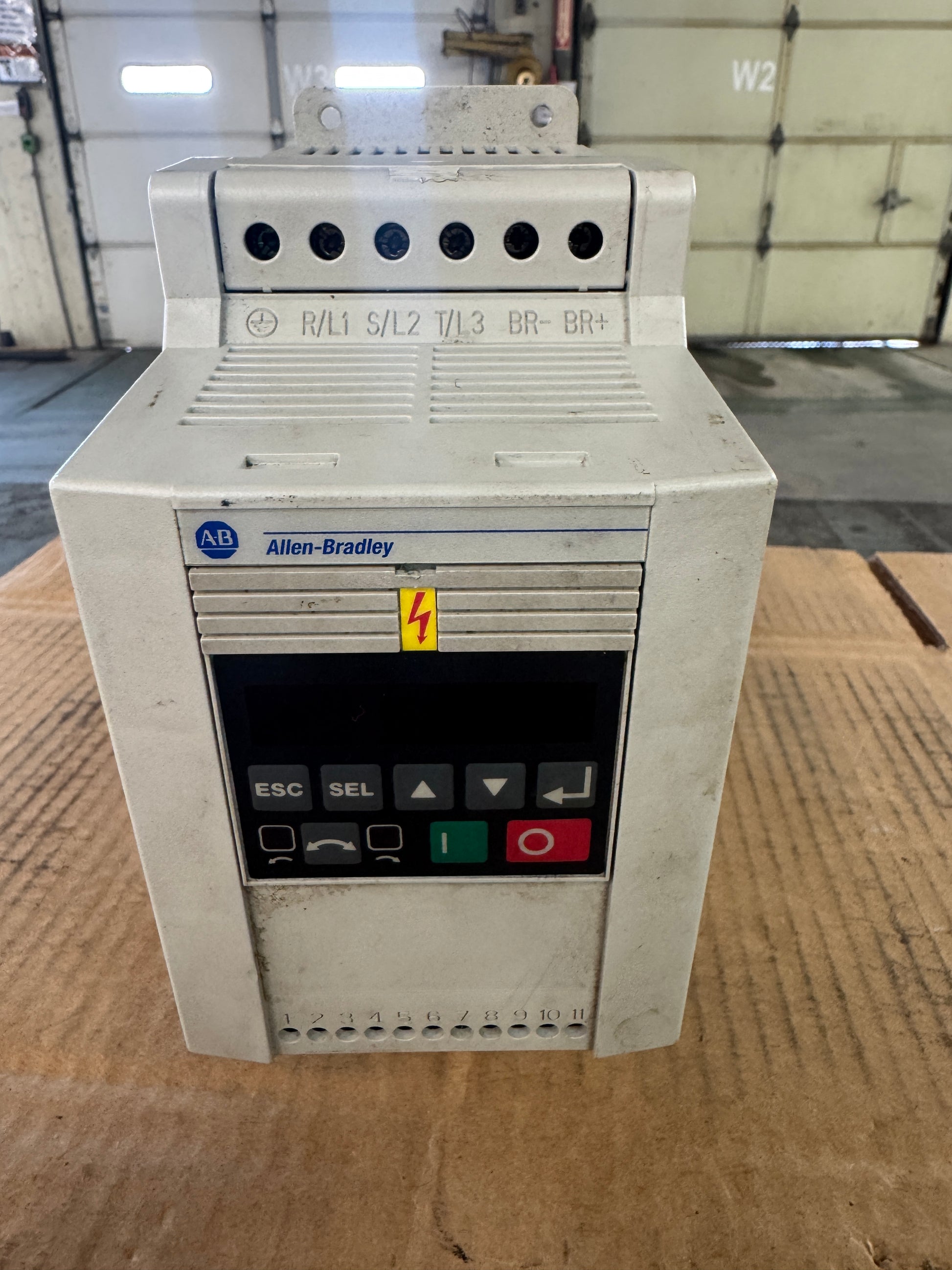

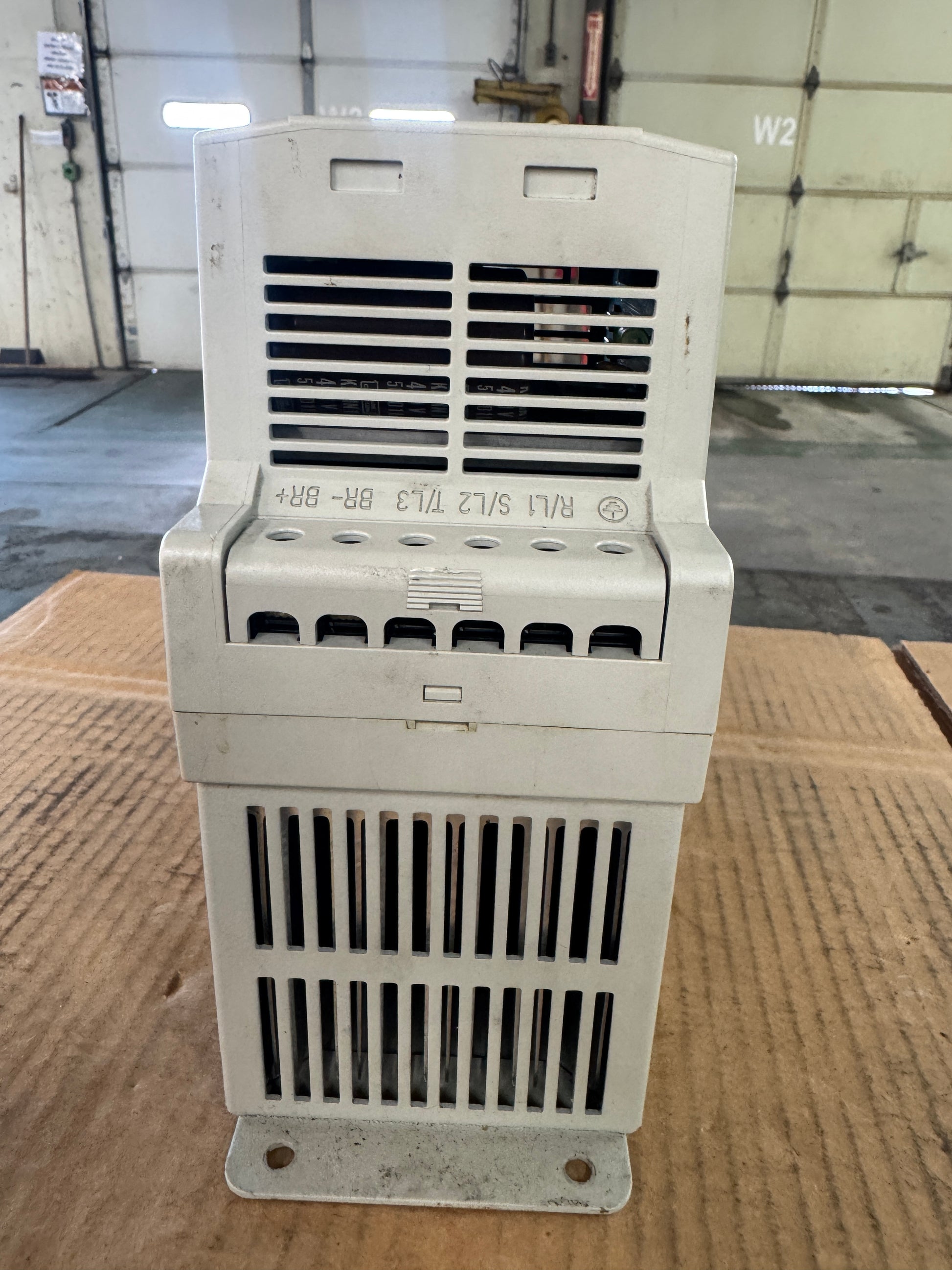

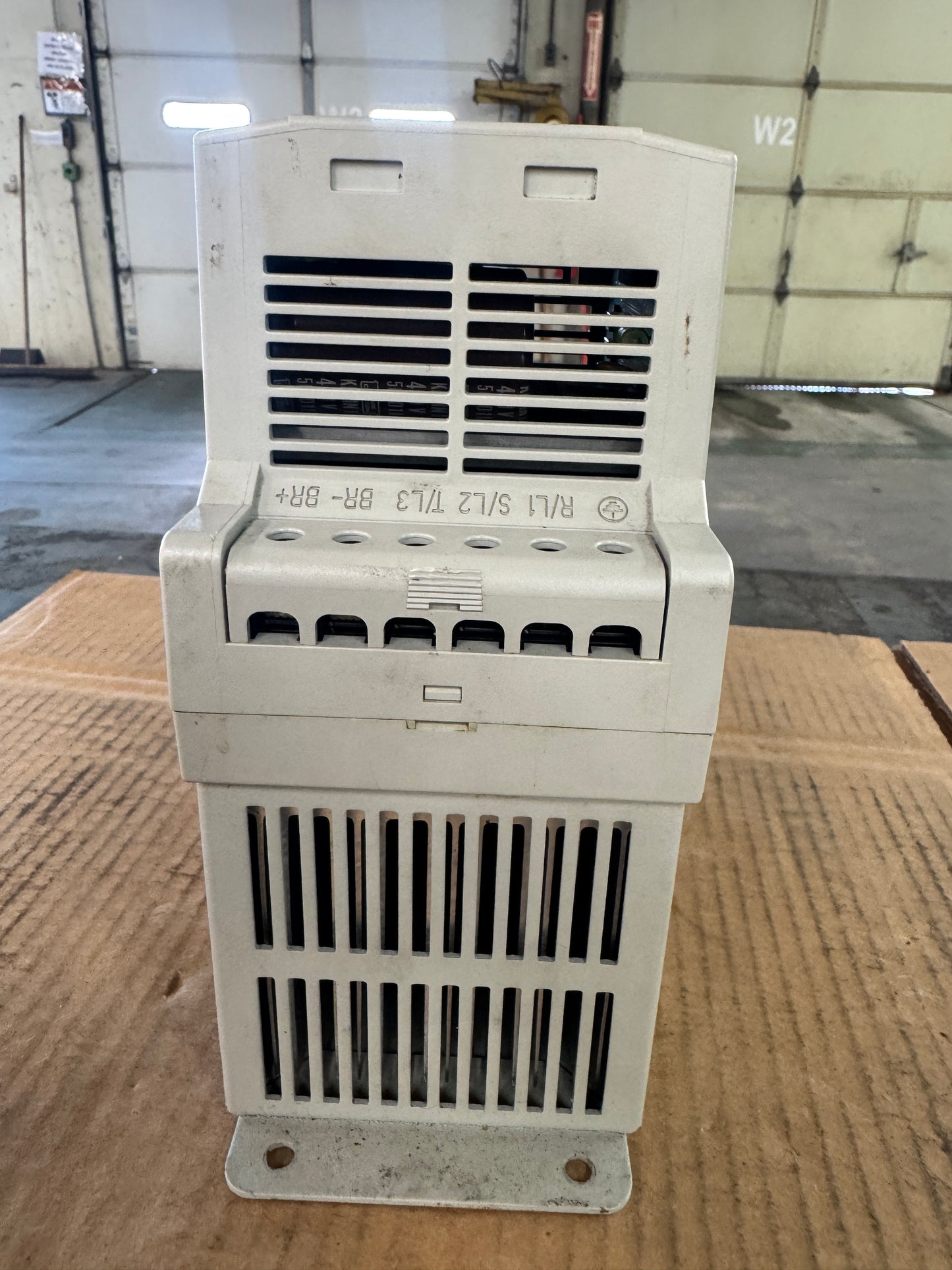

Allen-Bradley 160-BA10NSF1 is a Series C variable frequency drive from the 160 SSC drive family, identified on the nameplate as an Analog Signal Follower with firmware revision FRN 7.06. It carries a motor rating of 3.73 kW / 5 HP and runs on a 380 to 460 V three phase input at 50 / 60 Hz, drawing 12.2 A input with a 9700 VA rating. Output is 380 to 460 V three phase at 10.5 A across an adjustable 0 to 240 Hz range. The unit is rated IP20 with a 100 KA short circuit current rating and a 0 to 50 C operating ambient temperature range. Power terminals are marked R/L1, S/L2, T/L3, BR-, and BR+ on the line side and U/T1, V/T2, W/T3, DC-, and DC+ on the motor side, and the front panel includes the integral keypad with ESC, SEL, and directional keys. Serial number 4TAC8SM7 03335 is visible on the nameplate. Buyers matching an exact Allen-Bradley 160 series catalog number for replacement, spare inventory, or maintenance sourcing can use the MPN and visible nameplate data to confirm fit against their existing equipment.
Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
