Allen-Bradley AC Drive 22A-D8P7N104 - 5 HP Variable RPM 01648
Allen-Bradley AC Drive 22A-D8P7N104 - 5 HP Variable RPM 01648
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 22A-D8P7N104
Stock #: Stock # 0626-01648
Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 22A-D8P7N104
- Product Type: PowerFlex 4 AC Drive (VFD)
- Series: Series A
- Motor Rating: 3.7 kW / 5.0 HP
- Input: 3 Phase, 380 to 480V, 48 to 63 Hz
- Input AC Voltage Range: 342 to 528V
- Input Amps: 9.0
- Output: 3 Phase, 0 to 240 Hz
- Output AC Voltage Range: 0 to 460V
- Continuous Amps: 8.7
- 60 Sec Overload Amps: 13.05
- Enclosure Rating: IP20 / UL Open Type with top cover removed, IP30 / NEMA 1 / UL Type 1 with top cover and optional conduit box kit
- Short Circuit Current: 100 kA

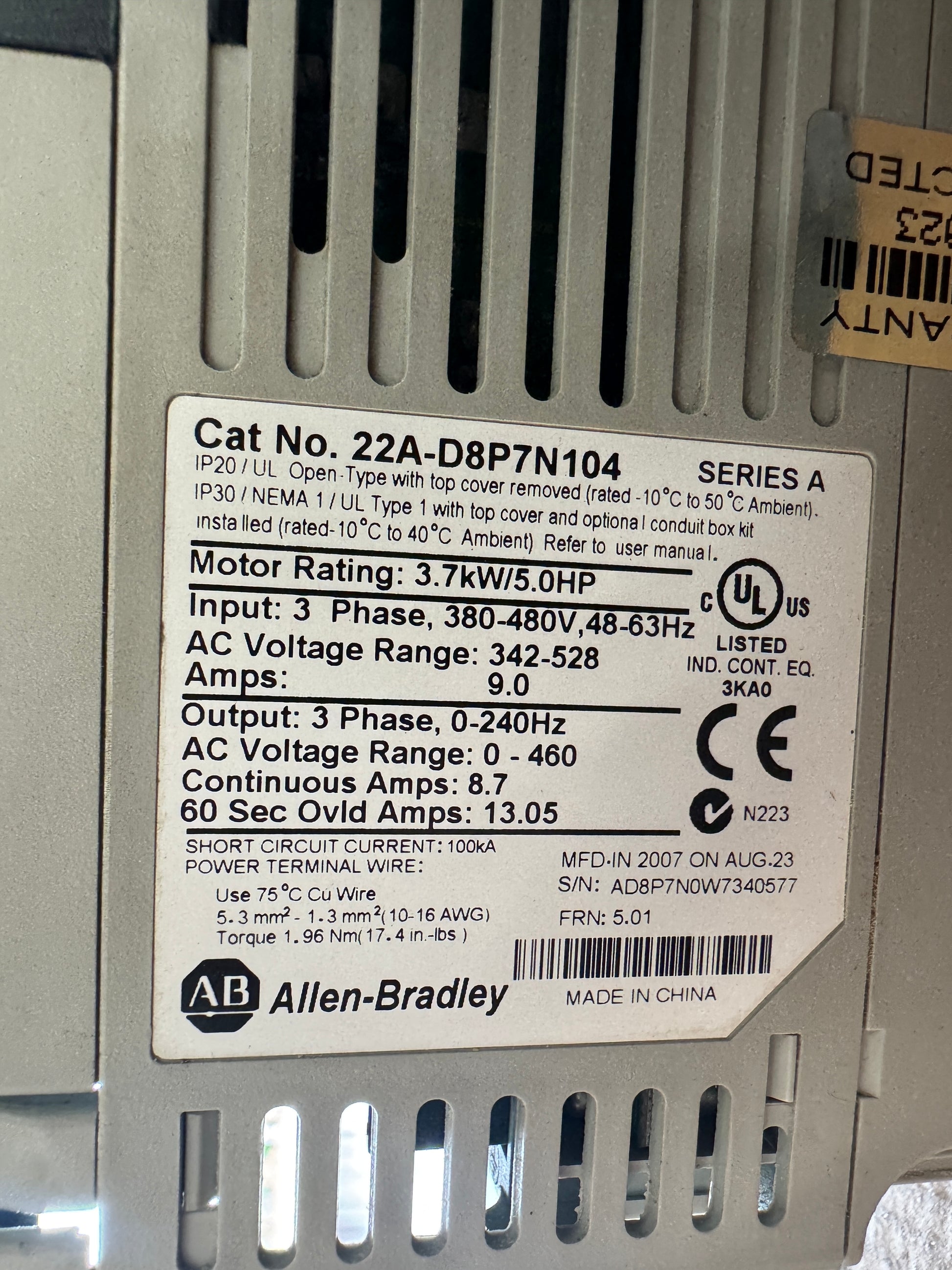

- Serial Number: AD8P7N0W7340577
- Firmware Revision: FRN 5.01
Product Description
Allen-Bradley catalog number 22A-D8P7N104 is a PowerFlex 4 variable frequency drive from the Series A family, rated for a 3.7 kW / 5.0 HP motor. It accepts a 3 phase input of 380 to 480V at 48 to 63 Hz, with an AC voltage range of 342 to 528V and 9.0 input amps. Output is 3 phase, 0 to 240 Hz across a 0 to 460V range, with 8.7 continuous amps and a 13.05 amp 60 second overload rating.
This unit carries serial number AD8P7N0W7340577 and firmware revision FRN 5.01. The enclosure is rated IP20 / UL Open Type with the top cover removed, and IP30 / NEMA 1 / UL Type 1 with the top cover and optional conduit box kit installed. Buyers matching an exact Allen-Bradley PowerFlex 4 catalog number for replacement, spare inventory, or maintenance sourcing can use the visible MPN and nameplate data to confirm the fit against their existing equipment.
Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
