Allen-Bradley AC Drive VFD 22A-D4P0N104 - 2 HP Variable RPM
Allen-Bradley AC Drive VFD 22A-D4P0N104 - 2 HP Variable RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 22A-D4P0N104
Stock #: Stock # 0626-01624

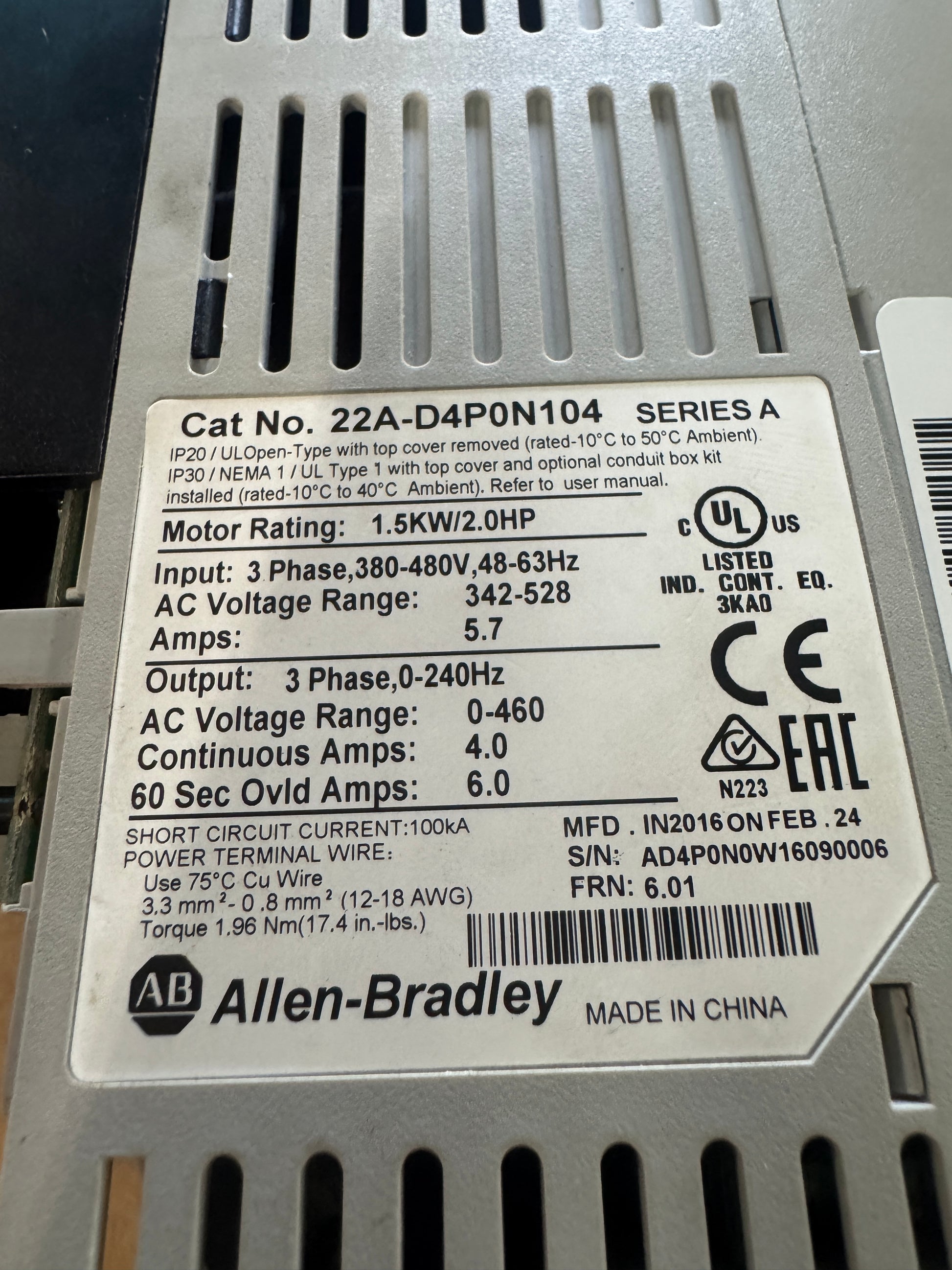

Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 22A-D4P0N104
- Series: A
- Product Type: AC Drive VFD
- Motor Rating: 1.5 KW / 2.0 HP
- Input: 3 Phase, 380 to 480V, 48 to 63Hz
- Input AC Voltage Range: 342 to 528V
- Input Amps: 5.7
- Output: 3 Phase, 0 to 240Hz
- Output AC Voltage Range: 0 to 460V
- Continuous Amps: 4.0
- 60 Sec Overload Amps: 6.0
- Short Circuit Current: 100kA
- Enclosure Rating: IP20 / UL Open Type with top cover removed, IP30 / NEMA 1 / UL Type 1 with top cover and optional conduit box kit installed
- FRN: 6.01
- Serial Number: AD4P0N0W16090006
Product Description
This Allen-Bradley PowerFlex 4 class AC drive carries catalog number 22A-D4P0N104, Series A, and is rated for a 1.5 KW / 2.0 HP motor. It accepts 3 phase input at 380 to 480V, 48 to 63Hz, with an AC voltage range of 342 to 528V and 5.7 input amps. Output is 3 phase, 0 to 240Hz, across a 0 to 460V range, with 4.0 continuous amps and 6.0 amps for 60 second overload.

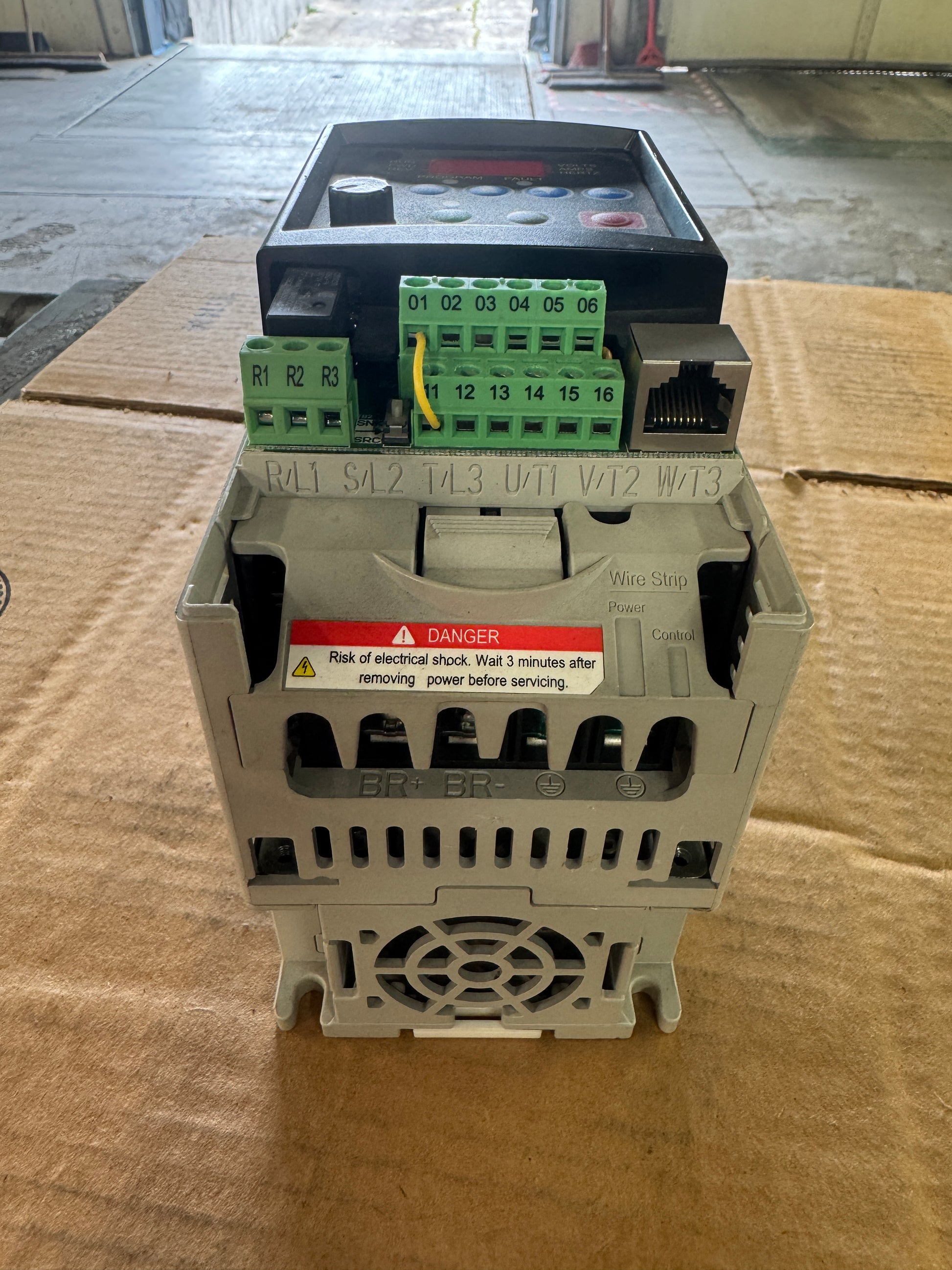

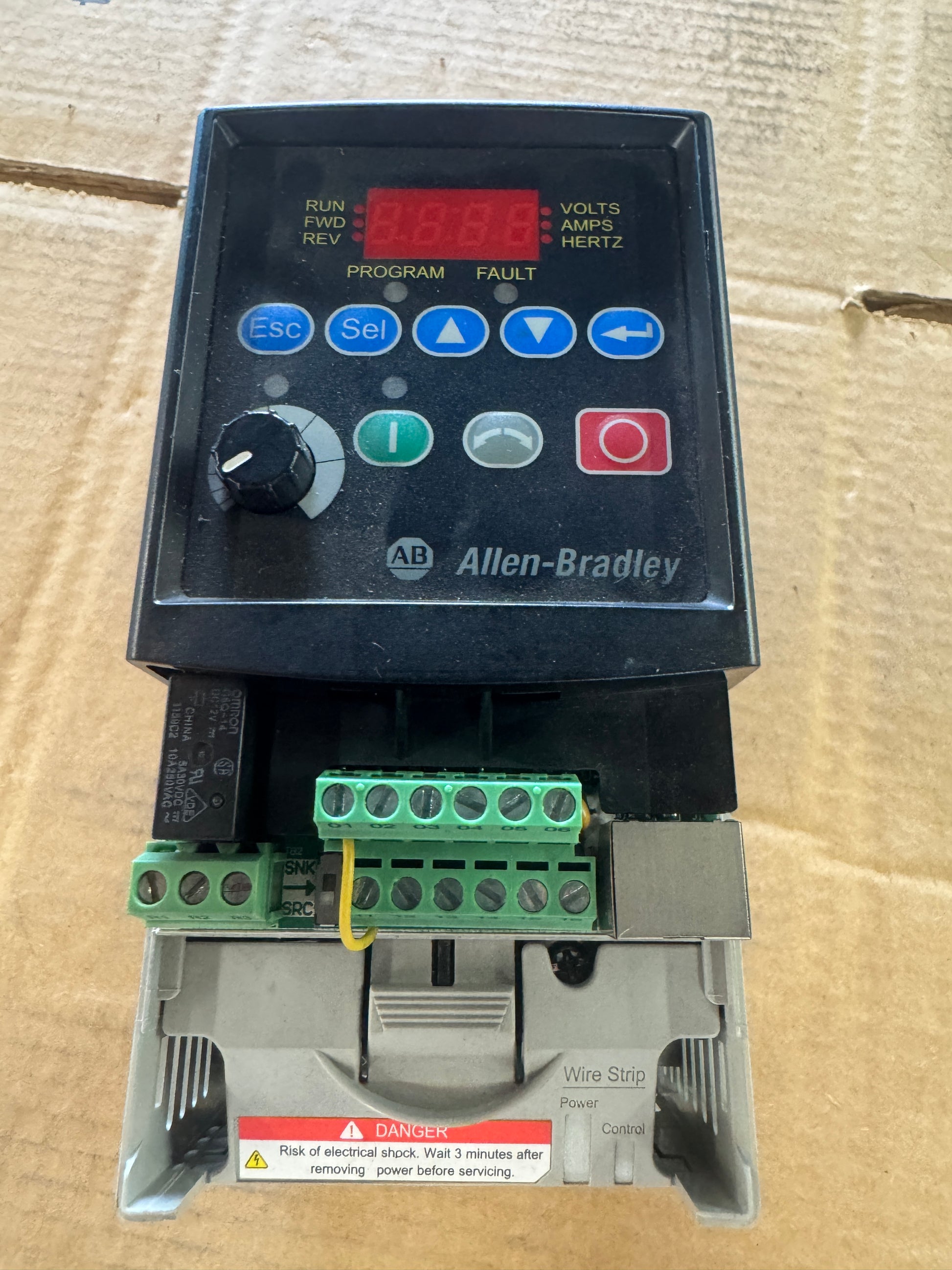

The unit includes an integral keypad with display, potentiometer, and start, reverse, and stop controls, plus removable terminal blocks and an RJ connector for communication. It carries a short circuit current rating of 100kA and an enclosure rating of IP20 / UL Open Type, or IP30 / NEMA 1 / UL Type 1 with the top cover and optional conduit box kit installed. Buyers matching an exact Allen-Bradley catalog number for replacement or spare inventory can use the MPN 22A-D4P0N104 and serial number AD4P0N0W16090006 to confirm the part against existing equipment.
Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
