Allen-Bradley AC Drive VFD 22A-D4P0N104 - 2 HP Variable RPM 01625

$349.00 USD

Sale Sold out

ConditionSurplus - Untested MPN22A-D4P0N104 Stock #Stock # 0626-01625

Photos reflect current condition. Items differing from description may be eligible for return or refund — see our condition guide.

Shipping Estimate

Estimated package weight: 5.0 lbs

Select your state above for a shipping estimate.

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Product Specifications

Manufacturer: Allen-Bradley
MPN / Model: 22A-D4P0N104
Product Type: PowerFlex 4 AC Drive (VFD)
Series: A
Motor Rating: 1.5 kW / 2.0 HP
Input: 3 Phase, 380 to 480V, 48 to 63 Hz
Input AC Voltage Range: 342 to 528V
Input Amps: 5.7
Output: 3 Phase, 0 to 240 Hz
Output AC Voltage Range: 0 to 460V
Continuous Output Amps: 4.0
60 Sec Overload Amps: 6.0
Short Circuit Current Rating: 100 kA
Enclosure Rating: IP20 / UL Open Type (IP30 / NEMA 1 / UL Type 1 with optional conduit box kit)
Serial Number: AD4P0N0W9420701
FRN: 5.01

Product Description

This Allen-Bradley PowerFlex 4 variable frequency drive is identified by catalog number 22A-D4P0N104, Series A, and carries a motor rating of 1.5 kW / 2.0 HP. The drive accepts a 3 phase input of 380 to 480V at 48 to 63 Hz, with an input AC voltage range of 342 to 528V and 5.7 input amps.

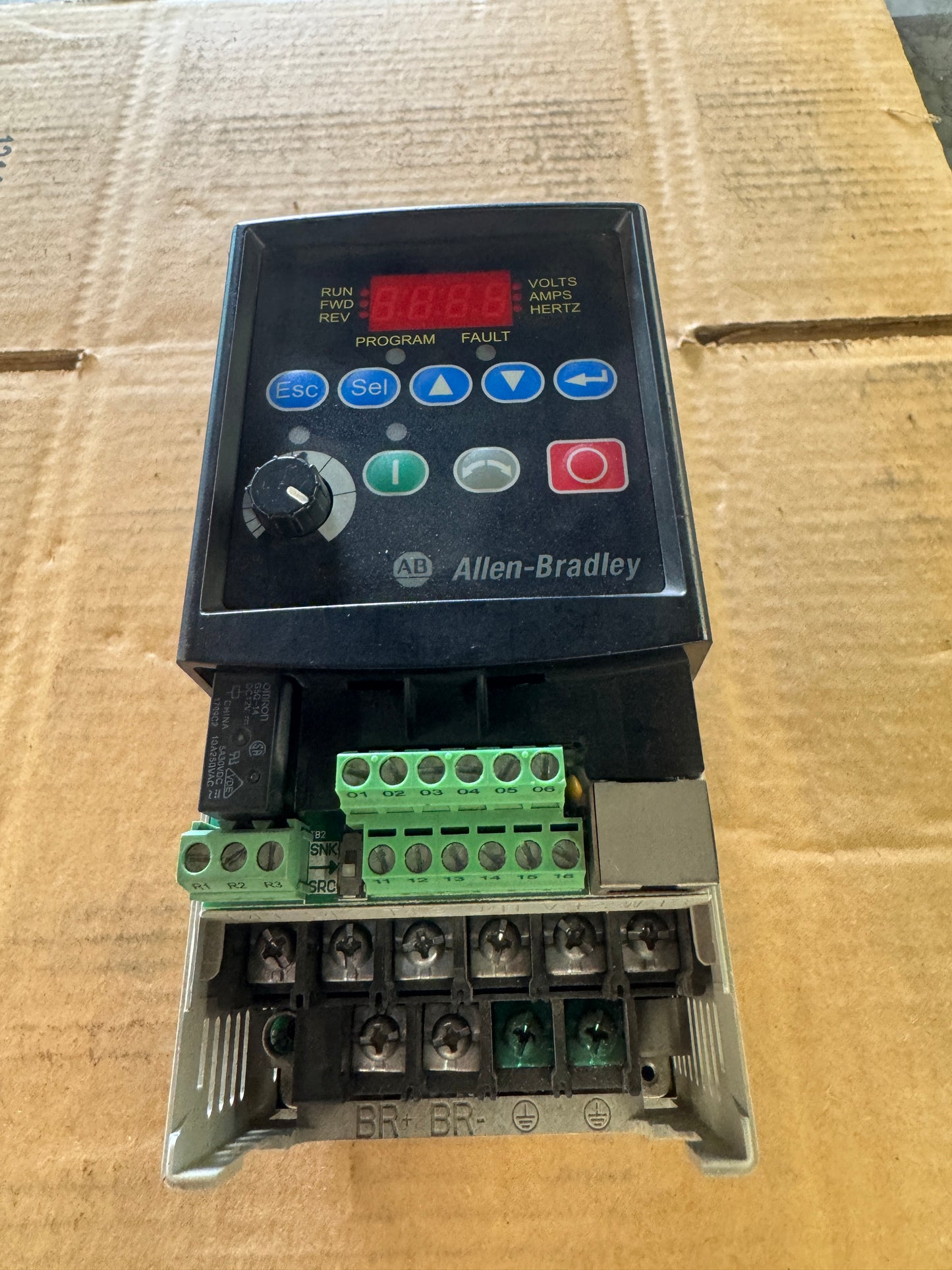

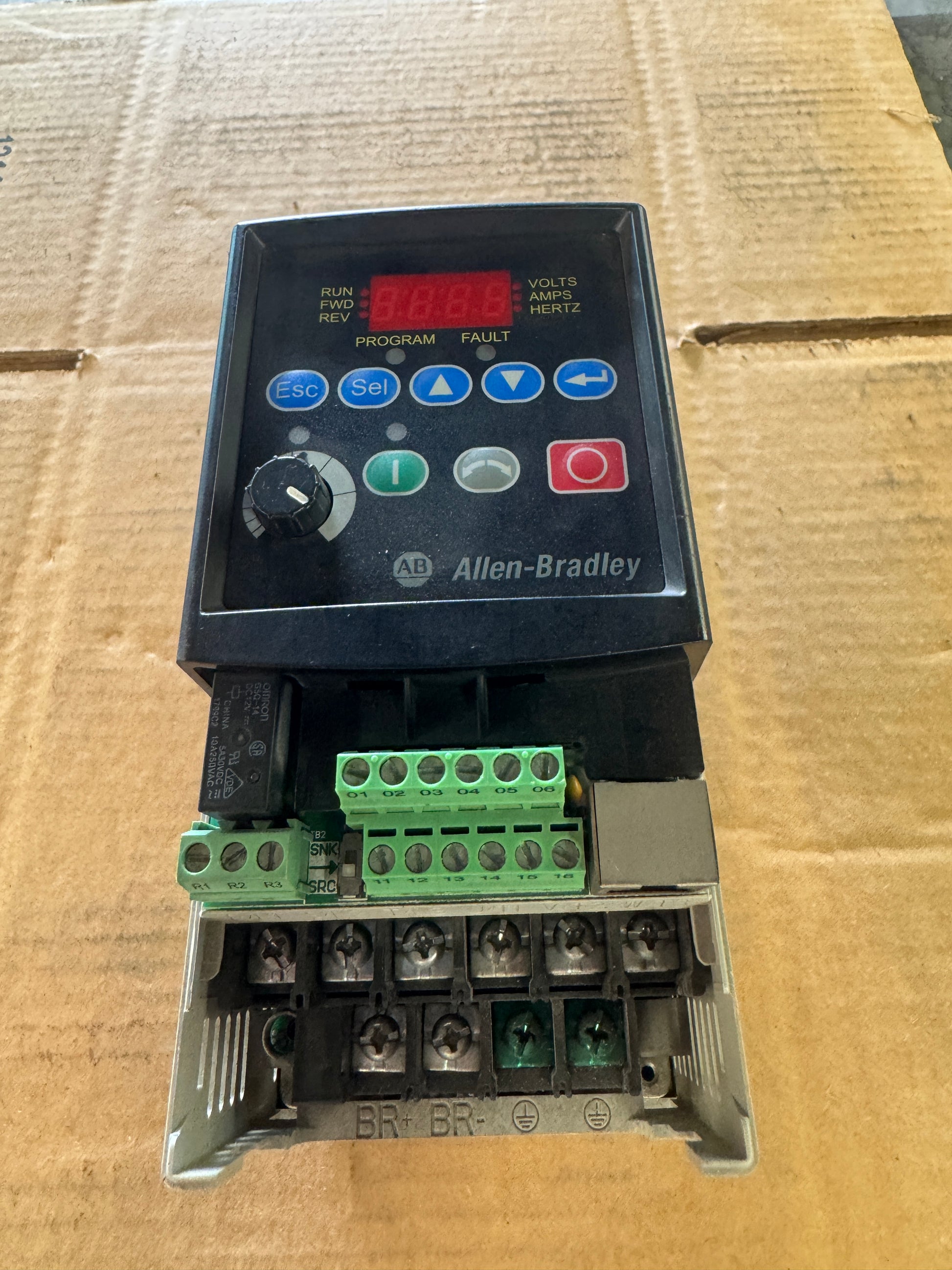

Output is 3 phase, 0 to 240 Hz, across an AC voltage range of 0 to 460V, rated at 4.0 continuous amps and 6.0 amps for 60 second overload. The unit carries a 100 kA short circuit current rating and is rated IP20 / UL Open Type, or IP30 / NEMA 1 / UL Type 1 with the optional conduit box kit installed. The integral keypad includes a display, directional and program keys, a speed potentiometer, and Start, Reverse, and Stop controls.

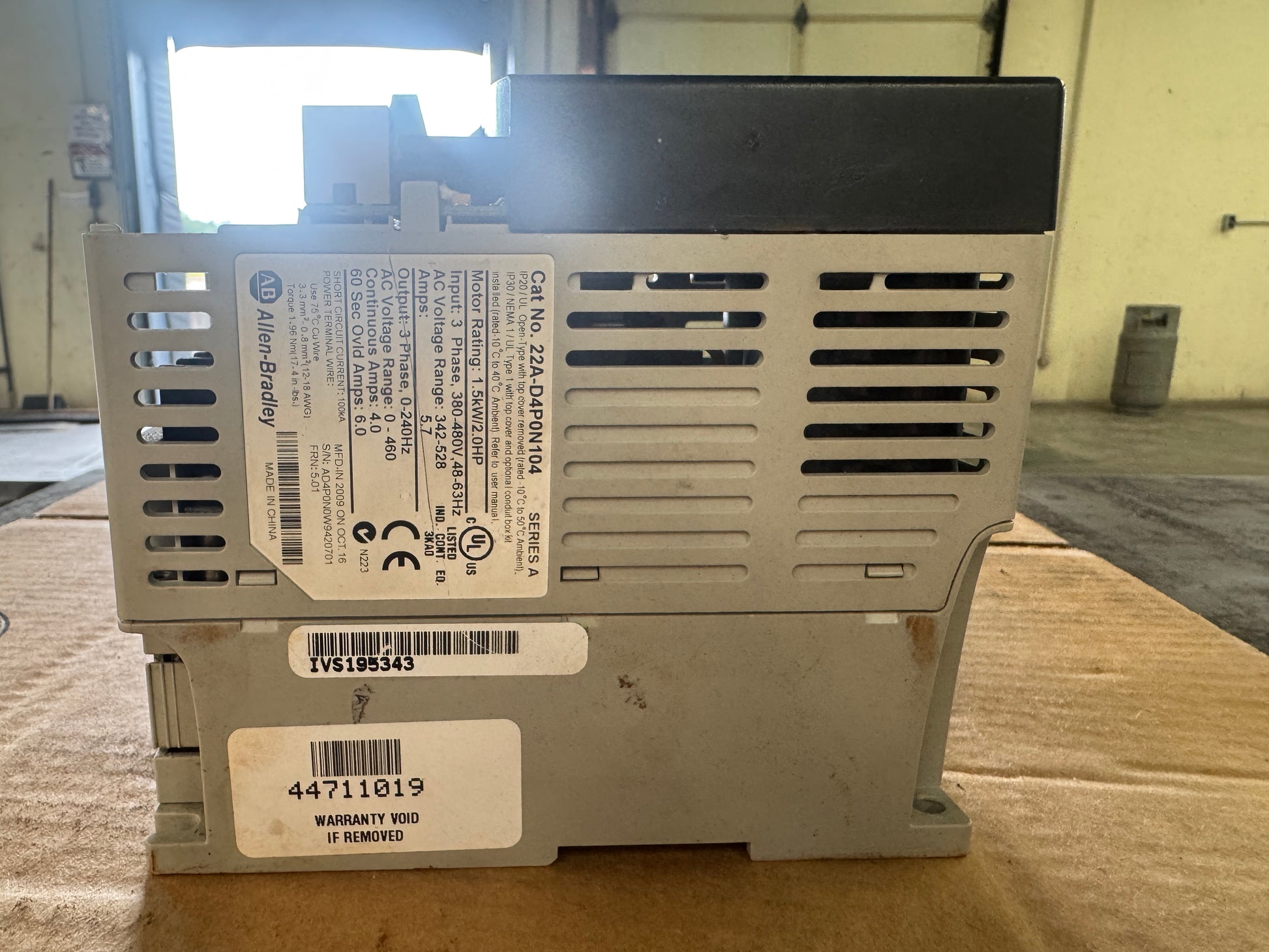

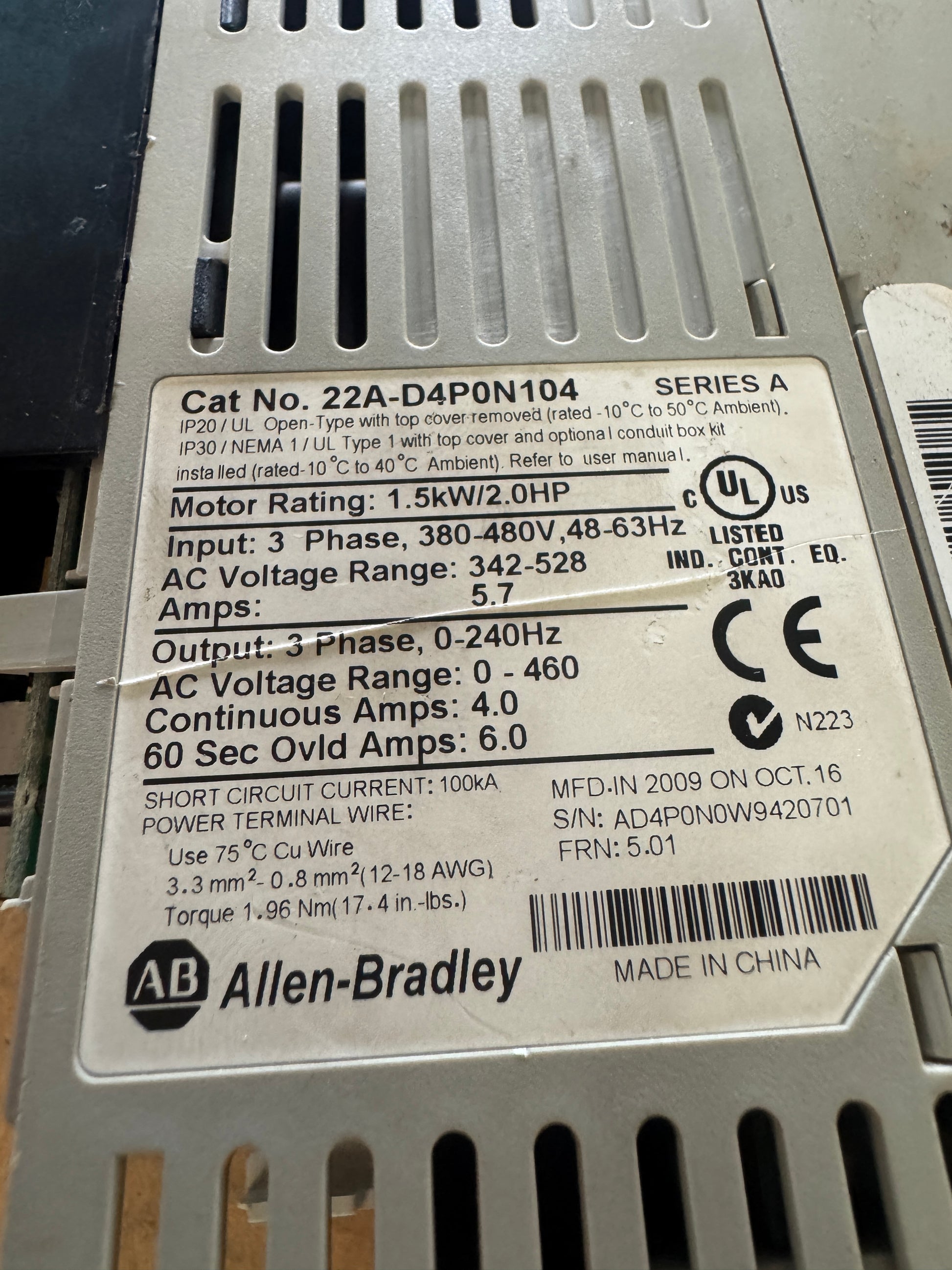

Confirmed identifiers include serial number AD4P0N0W9420701 and FRN 5.01. Buyers matching an exact Allen-Bradley catalog number for replacement, spare inventory, or maintenance sourcing can use the MPN and visible nameplate data to compare this drive to existing equipment.

Stock # 0526-01625

Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
