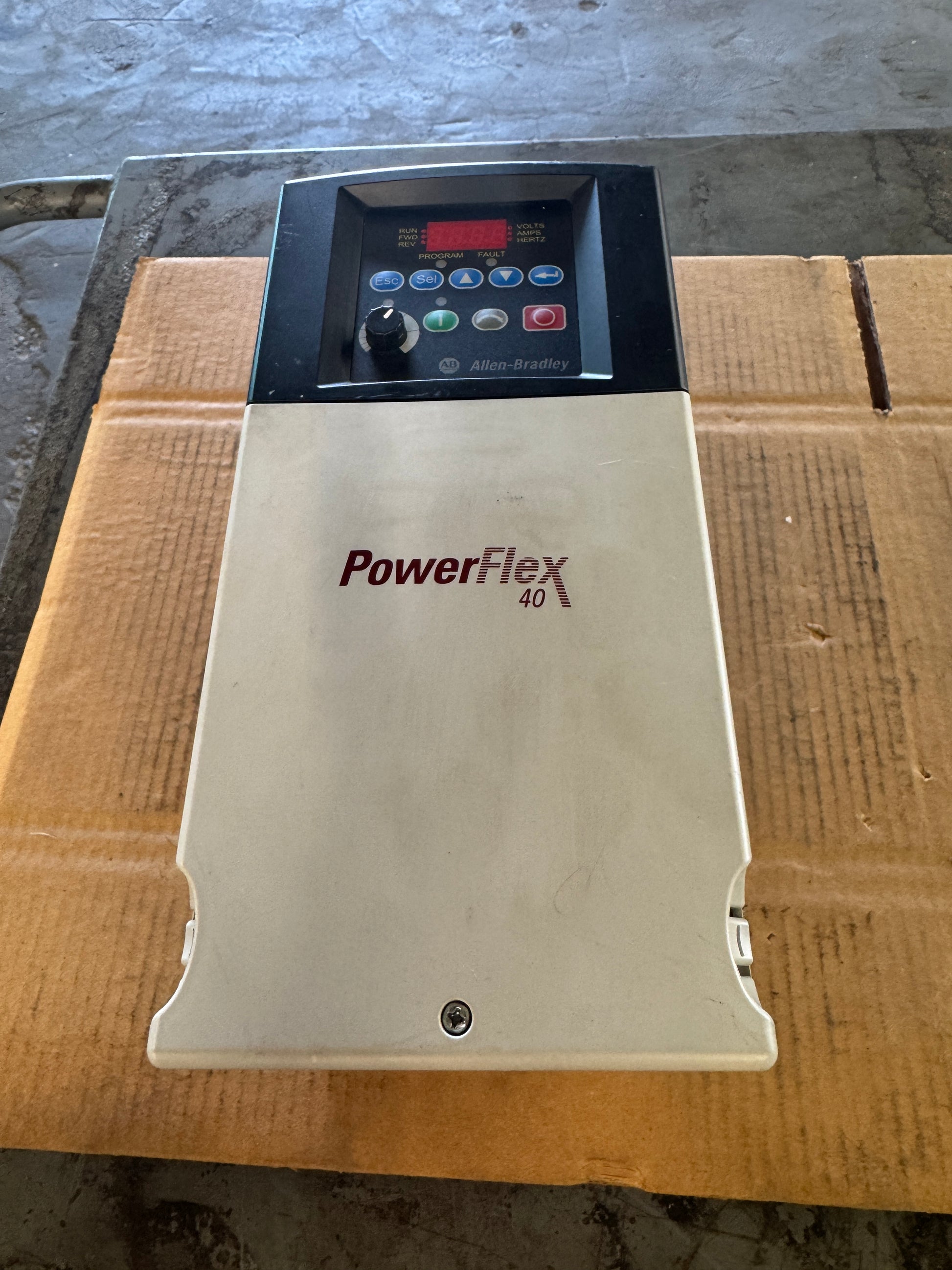

Allen-Bradley AC Drive VFD 22B-D017N104 - 10 HP Variable RPM

$749.00 USD

Sale Sold out

ConditionSurplus - Untested MPN22B-D017N104 Stock #Stock # 0626-01643

Photos reflect current condition. Items differing from description may be eligible for return or refund — see our condition guide.

Shipping Estimate

Estimated package weight: 15.0 lbs

Select your state above for a shipping estimate.

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Product Specifications

Manufacturer: Allen-Bradley
MPN / Model: 22B-D017N104
Product Type: PowerFlex 40 AC Drive (VFD)
Series: A
Motor Rating: 7.5 kW / 10.0 HP
Input: 3 Phase, 380 to 480V, 48 to 63 Hz
Input AC Voltage Range: 342 to 528
Input Amps: 18.4
Output: 3 Phase, 0 to 400 Hz
Output AC Voltage Range: 0 to 460
Continuous Amps: 17.0
60 Sec Overload Amps: 25.5
Short Circuit Current: 100 kA
Enclosure: IP20 / UL Open Type (IP30 / NEMA 1 / UL Type 1 with top cover and optional conduit box kit)
Serial Number: BD017N0W0430112
Firmware (FRN): 6.02
Date of Manufacture: October 22, 2010
Country of Origin: China

Product Description

This Allen-Bradley PowerFlex 40 variable frequency drive is identified by catalog number 22B-D017N104, Series A, and carries a motor rating of 7.5 kW / 10.0 HP. It accepts a 3 phase input of 380 to 480V at 48 to 63 Hz and delivers a 3 phase output of 0 to 400 Hz with a continuous output rating of 17.0 amps and a 60 second overload rating of 25.5 amps.

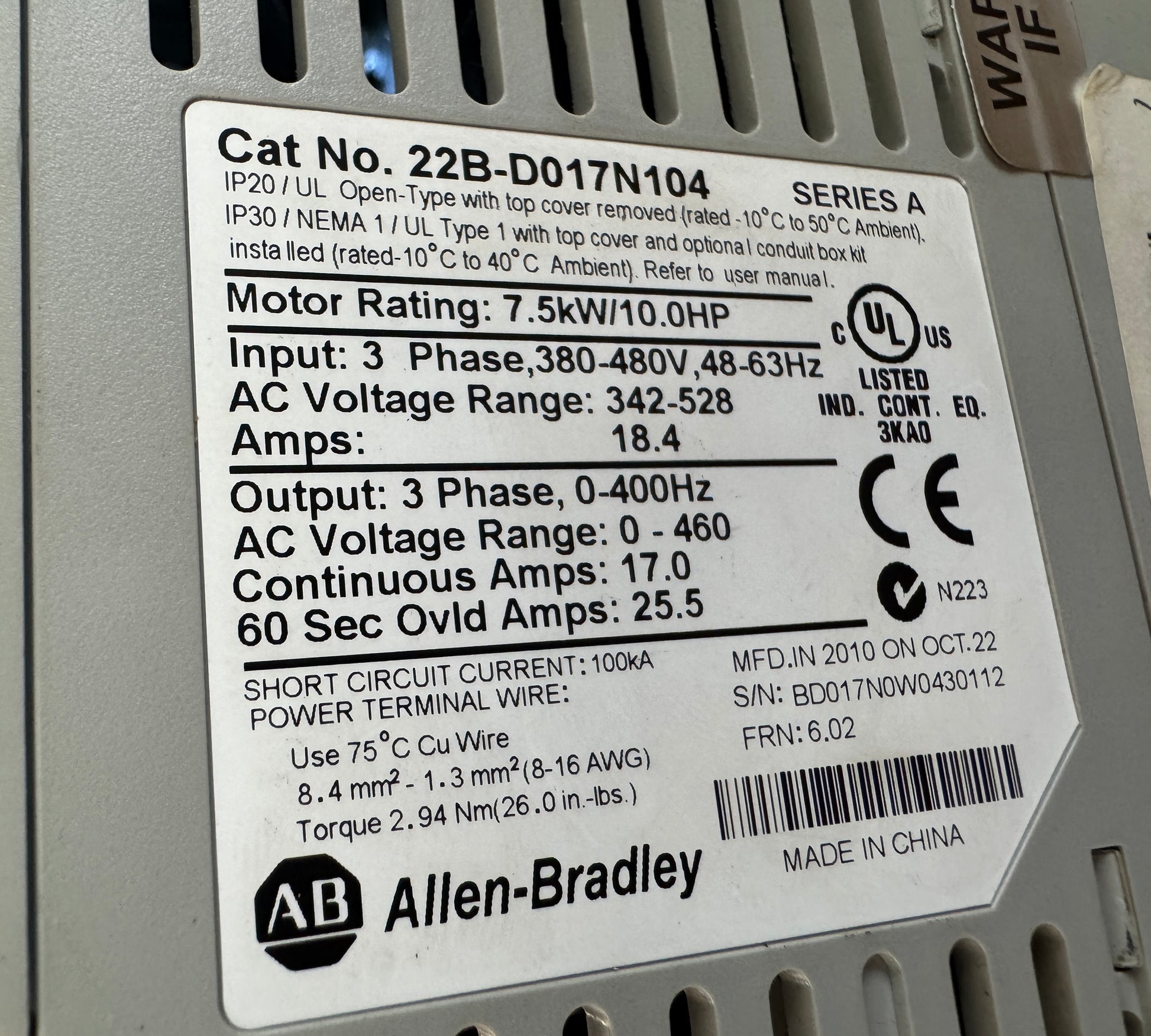

Buyers matching the exact Allen-Bradley catalog number for replacement, spare inventory, or maintenance sourcing can confirm the unit by the visible nameplate data, including serial number BD017N0W0430112, firmware revision 6.02, and a manufacture date of October 22, 2010. The drive is configured for IP20 / UL Open Type installation and supports IP30 / NEMA 1 / UL Type 1 with the top cover and optional conduit box kit installed.

This is a used surplus unit sold as is and untested. Use the exact MPN and visible labeling to compare it against your existing equipment or purchasing requirements.

Stock # 0526-01643

Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
