Allen-Bradley AC Output Module 1771-ODD 120V AC
Allen-Bradley AC Output Module 1771-ODD 120V AC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

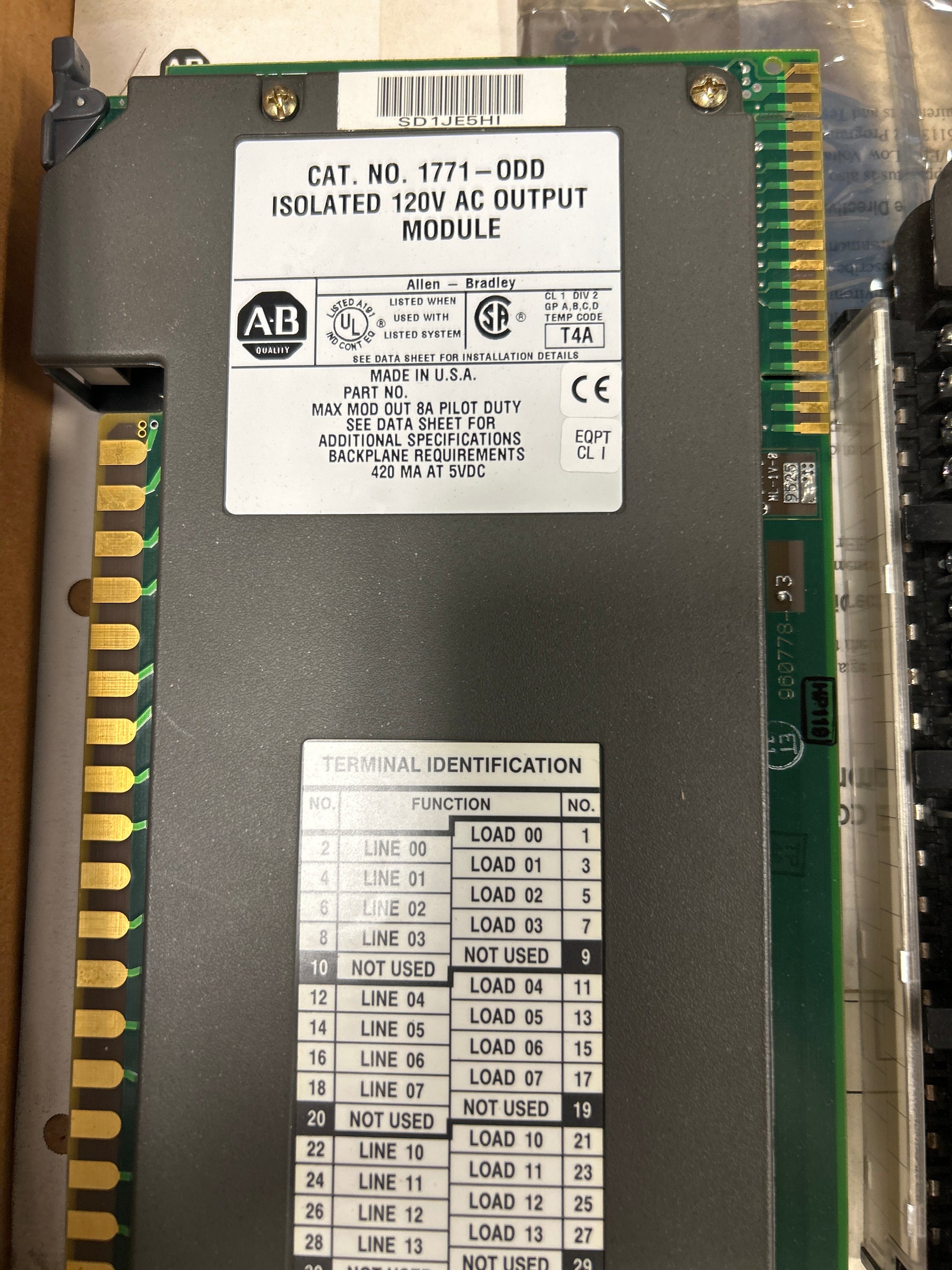

The Allen-Bradley 1771-ODD is an isolated 120V AC output module designed for use in PLC-5 and 1771 I/O chassis systems. Cat. No. 1771-ODD, this module provides 16 isolated output points arranged in groups, with a maximum module output of 8A pilot duty and a backplane current draw of 420 mA at 5 VDC. The isolated architecture allows each output group to reference separate AC line sources, making it suitable for applications requiring electrical isolation between output circuits.

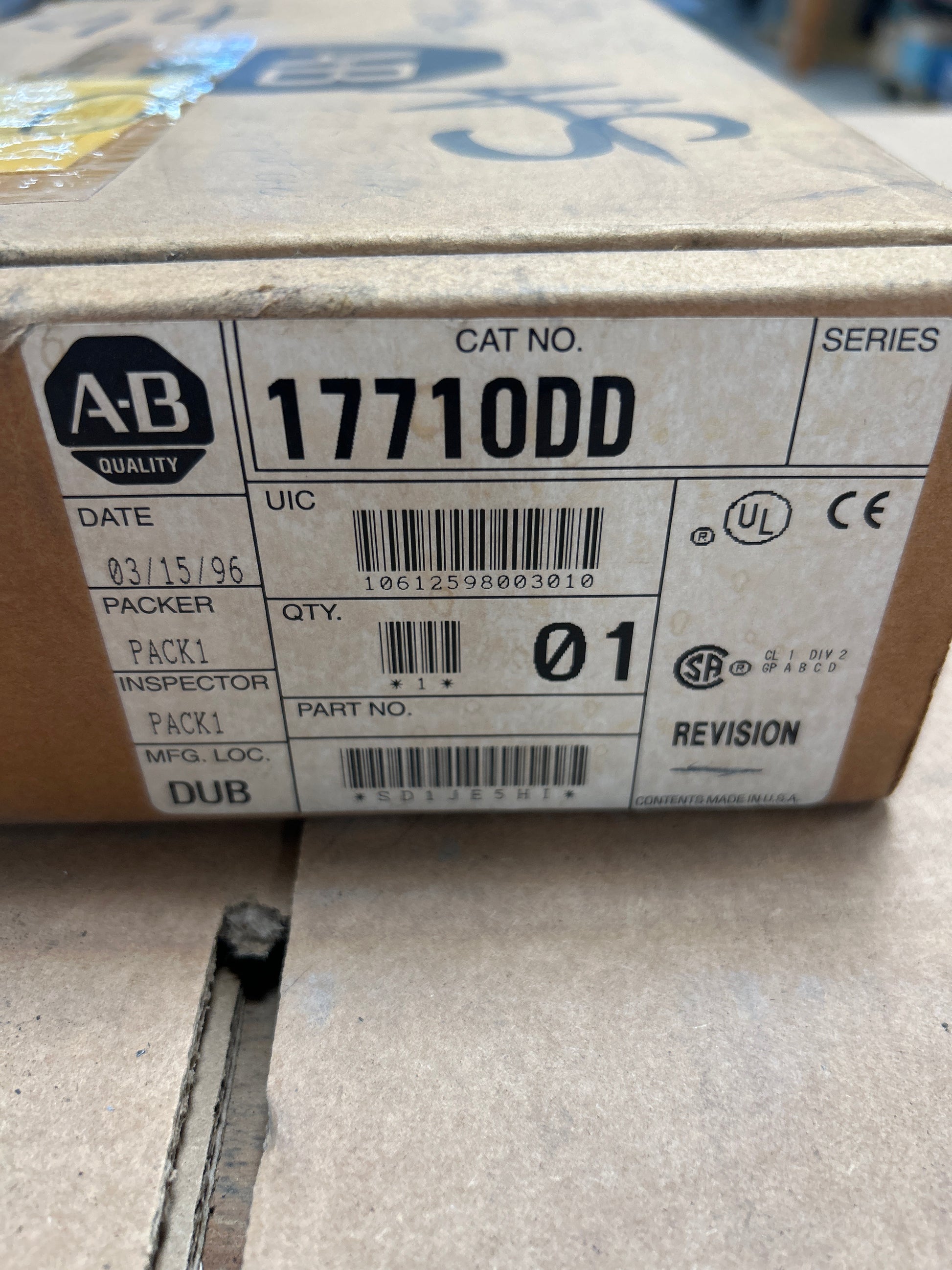

The module carries UL listing (File No. AI01), CSA certification (Class I, Division 2, Groups A, B, C, D), and CE marking. Temperature Code T4A is noted on the nameplate. Manufacturing location is listed as DUB, with a date code of 03/15/96. Made in the U.S.A. per the nameplate.

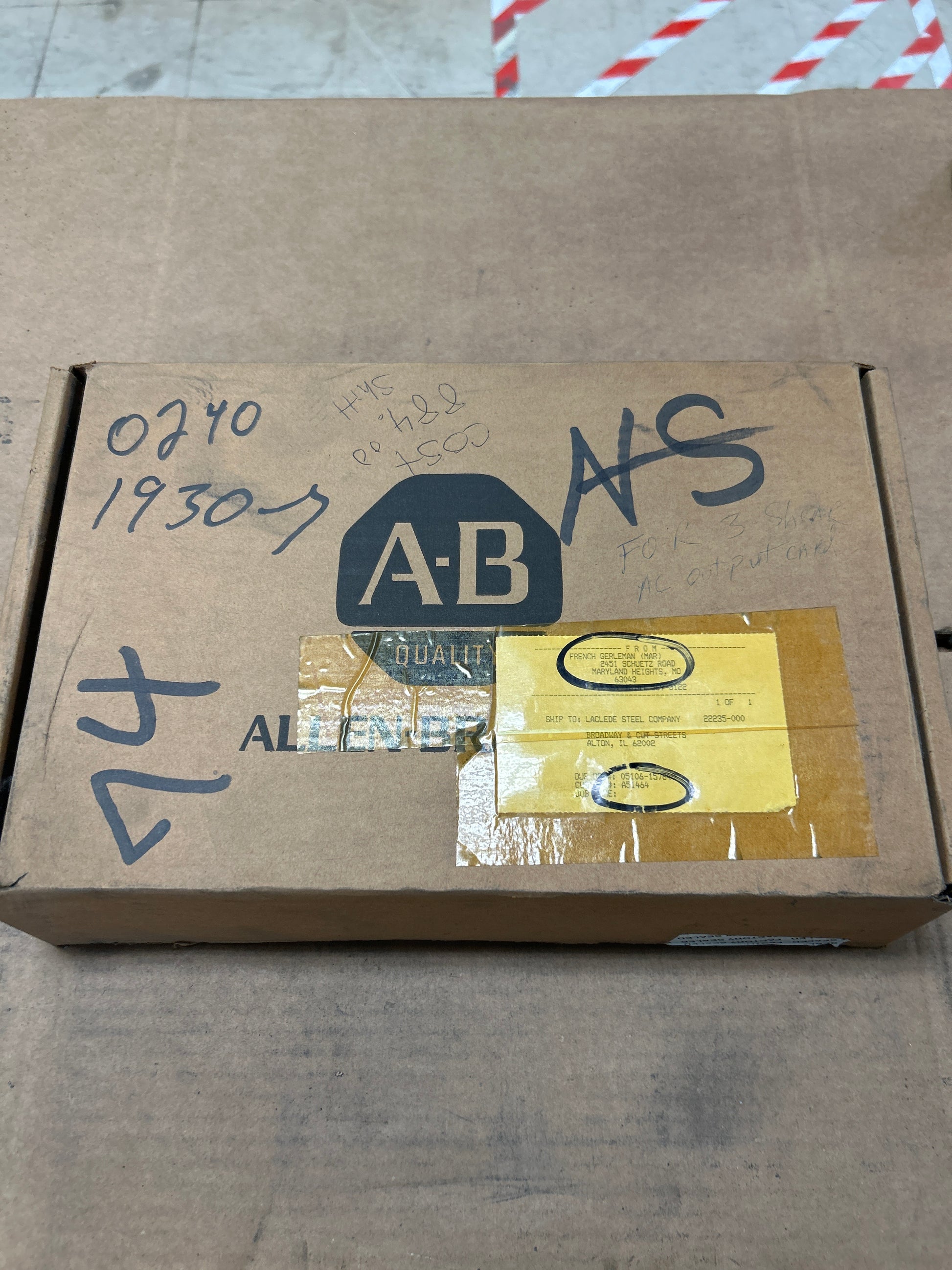

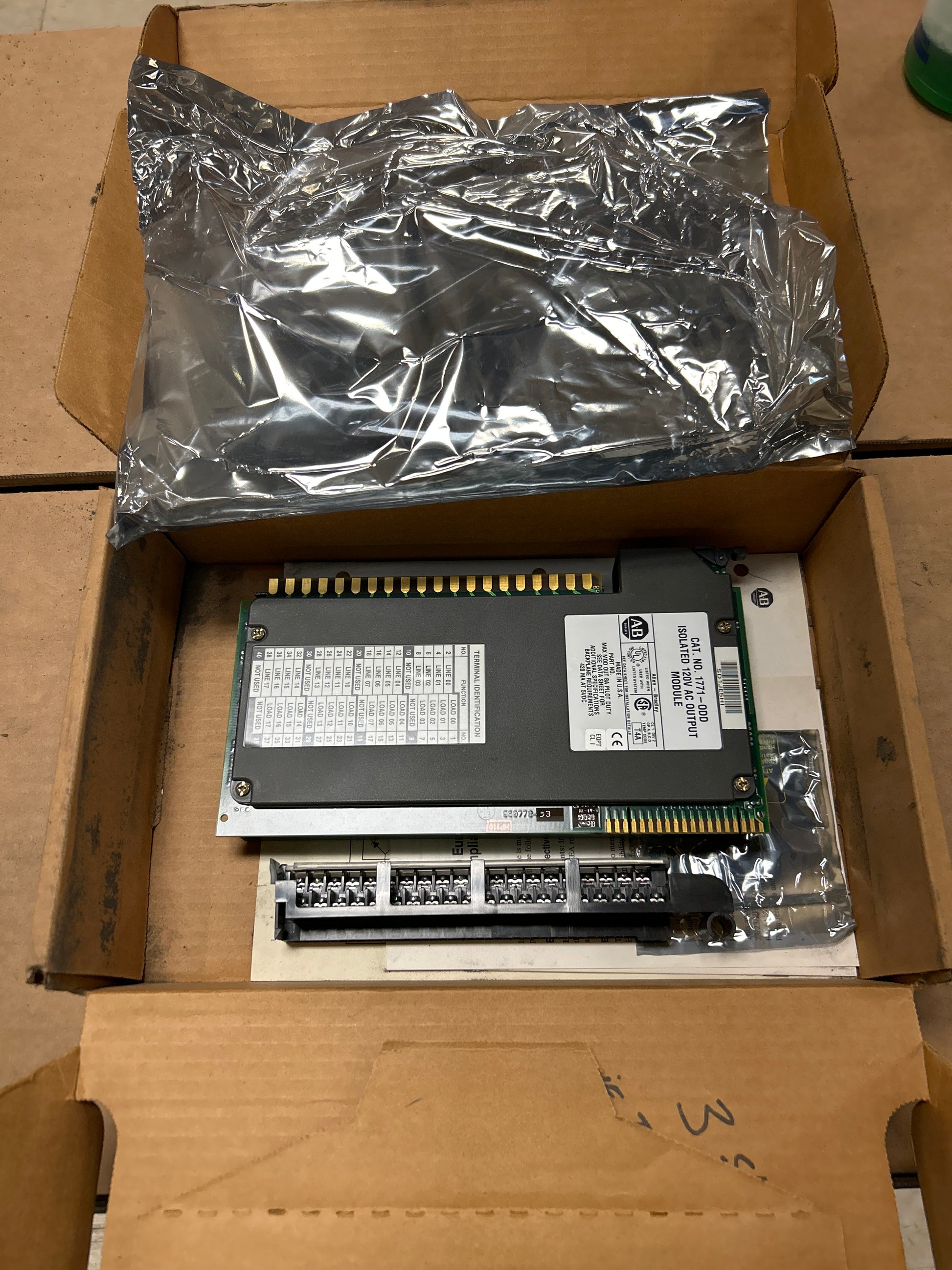

This unit ships in the original Allen-Bradley cardboard box with the module inside an ESD static shielding bag. A wiring arm / terminal strip is included and visible in the box. The box shows external handwriting and label markings consistent with prior warehouse or plant storage. Series field on the box label is blank. Part number field on the module nameplate is blank; the Cat. No. 1771-ODD is the primary market identifier confirmed on both the module nameplate and the box label.
Certifications visible: UL, CSA (CL 1 DIV 2 GP A B C D), CE. Country of origin: U.S.A.
Stock # 0526-02462
