Allen-Bradley 1388-AV20 120V AC In, 150V DC Out DC Servo Controller
Allen-Bradley 1388-AV20 120V AC In, 150V DC Out DC Servo Controller
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

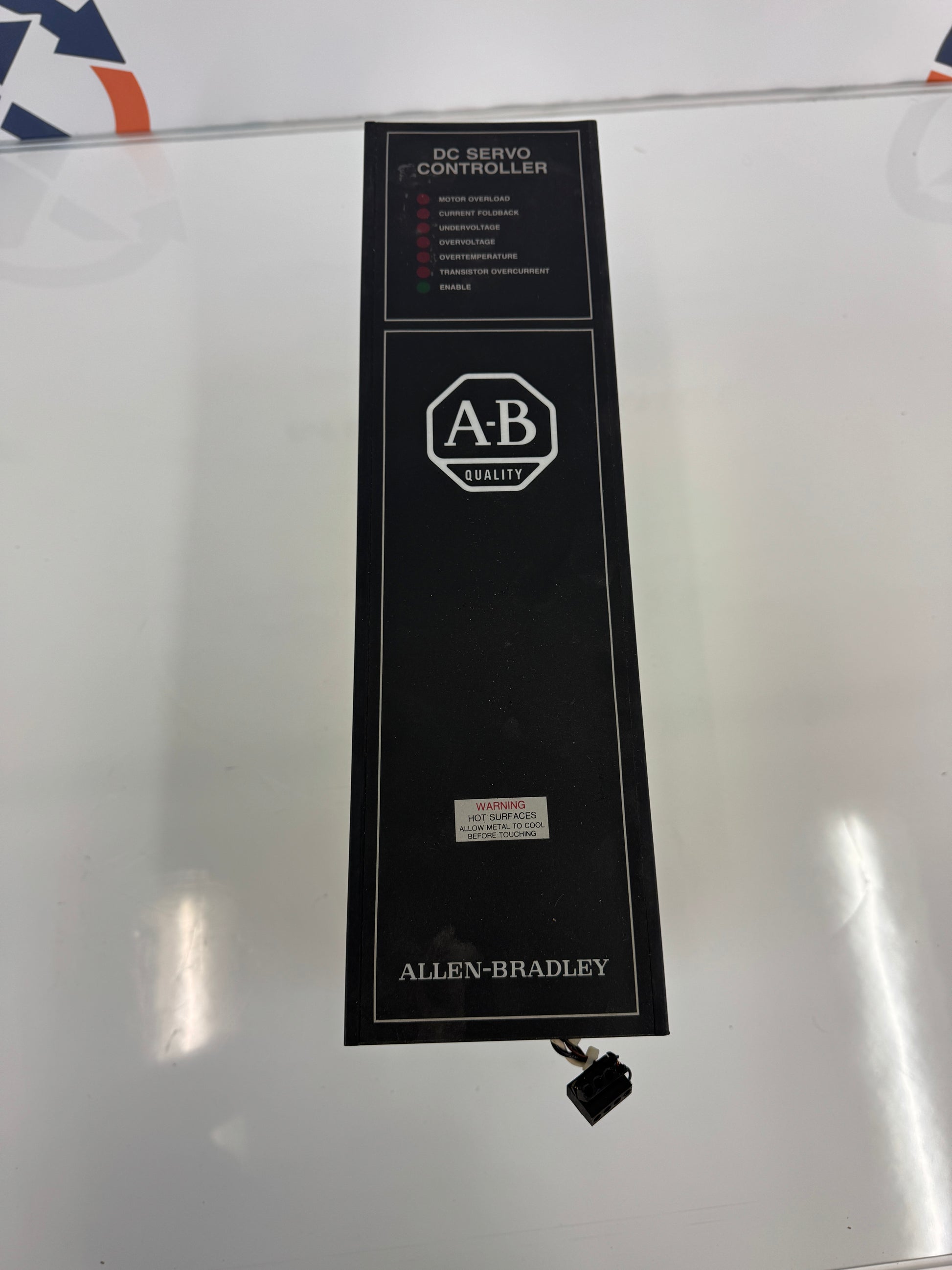

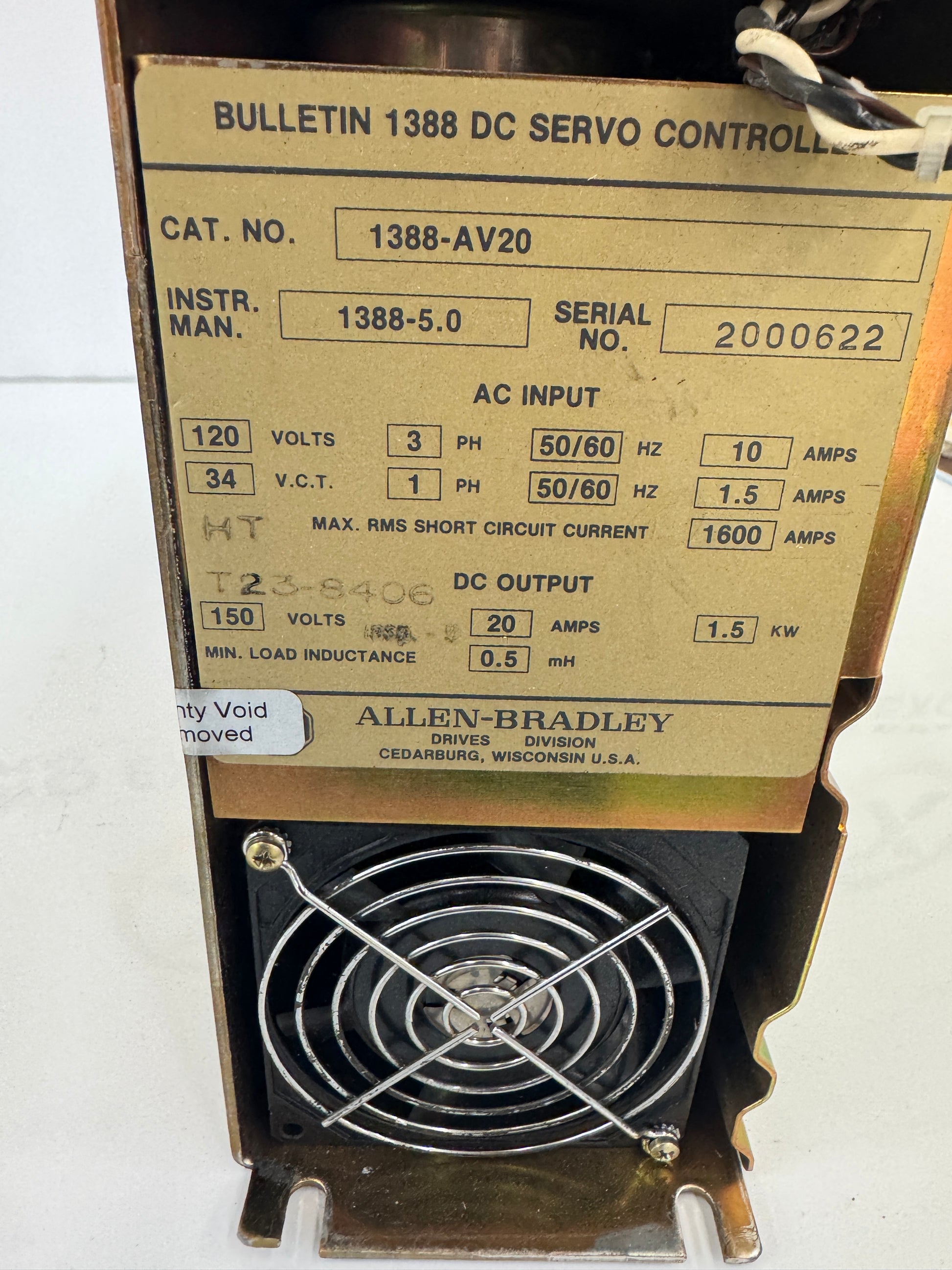

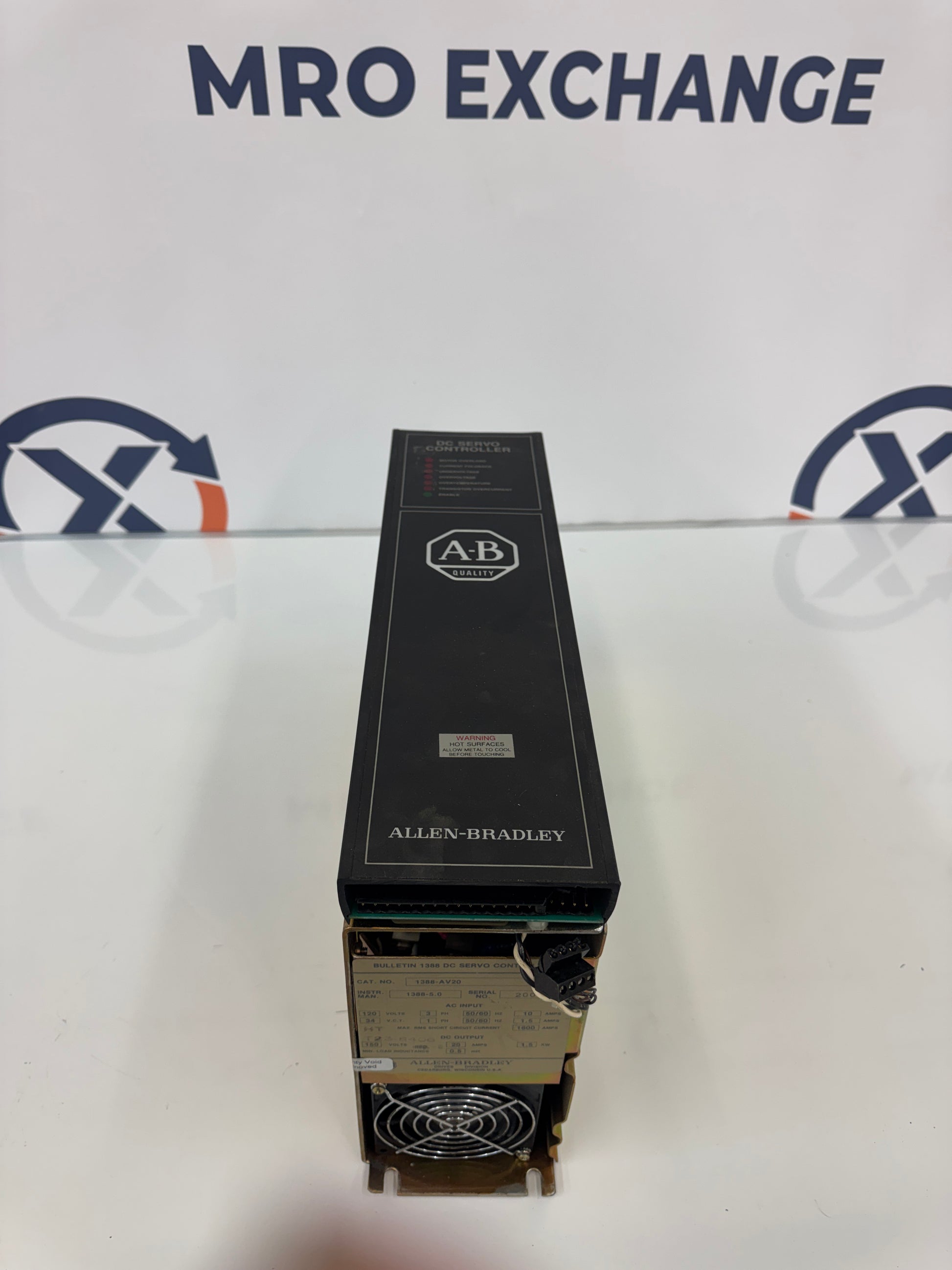

The Allen Bradley 1388-AV20 is a Bulletin 1388 DC Servo Controller from the Drives Division in Cedarburg, Wisconsin. The catalog number on the nameplate reads 1388-AV20, with instruction manual reference 1388-5.0 and serial number 2000622. This open frame controller accepts a 120 volt, 3 phase, 50/60 Hz AC input rated at 10 amps, with a separate 34 volt VCT control transformer input at 1 phase, 50/60 Hz, 1.5 amps. Maximum RMS short circuit current is rated at 1600 amps. DC output is 150 volts at 20 amps continuous, delivering 1.5 kW of continuous power, with a minimum load inductance specification of 0.5 mH. The unit is built on power semiconductor technology and includes a complete PWM servo amplifier section, shunt regulator and power bus regeneration circuit, MOV protected input, line and DB contactor, RMS armature thermal overload detection, and an internal dynamic braking resistor. A tachometer voltage input range of 3 to 135 volts DC supports velocity feedback closure. An integrated cooling fan is mounted at the base of the chassis. The 1388 family is commonly found on legacy CNC machine tools, packaging equipment, and industrial automation lines that drive permanent magnet DC servo motors. This MPN has been discontinued by the manufacturer, making surplus stock of the 1388-AV20 a sourcing path for installed base maintenance. Markings include the original gold rating plate with full nameplate data intact.
Stock # 0226-077
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
