Allen-Bradley 1791DS-IB12 CompactBlock DeviceNet Safety I/O Module 24V DC
Allen-Bradley 1791DS-IB12 CompactBlock DeviceNet Safety I/O Module 24V DC
Share
Couldn't load pickup availability
✓ 30-day returns on every item — return policy
30-day returns on every item. Photos reflect the actual item’s current condition — see our return policy and condition guide.
Shipping Estimate
⚡ Same-day shipping available — order by 11 am CT ($100 add-on at checkout)
✓ Free domestic UPS Ground shipping — applied automatically at checkout.
- Same-Day Available
- Real support team
- Secure checkout
Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 1791DS-IB12
- Product Type: DeviceNet Safety CompactBlock I/O Module
- Series: A
- Version: 03
- DIR Number: 10000041928
- Serial Number: SV3BL4BI
- Date Code: 2013/10/16
- Safety Inputs: 12 inputs, 24V DC, 6 mA per point
- Test Outputs: 4 outputs, 24V DC, 0.7A max per point
- DeviceNet Power: 24V DC, 100 mA
- Power Class: All power and I/O Class 2 supply only
- Certifications: UL Listed (Ind. Cont. Eq. for Haz. Loc., 71TM), UL Listed (SRCD 16XG), CE, TUV Rheinland FS type approved
- Hazardous Location: Class I Div. 2 Groups A, B, C, D; Class I Zone 2 Group IIC; Temp. Code T4
- Country of Origin: China
- Condition: Surplus - Untested
Product Description

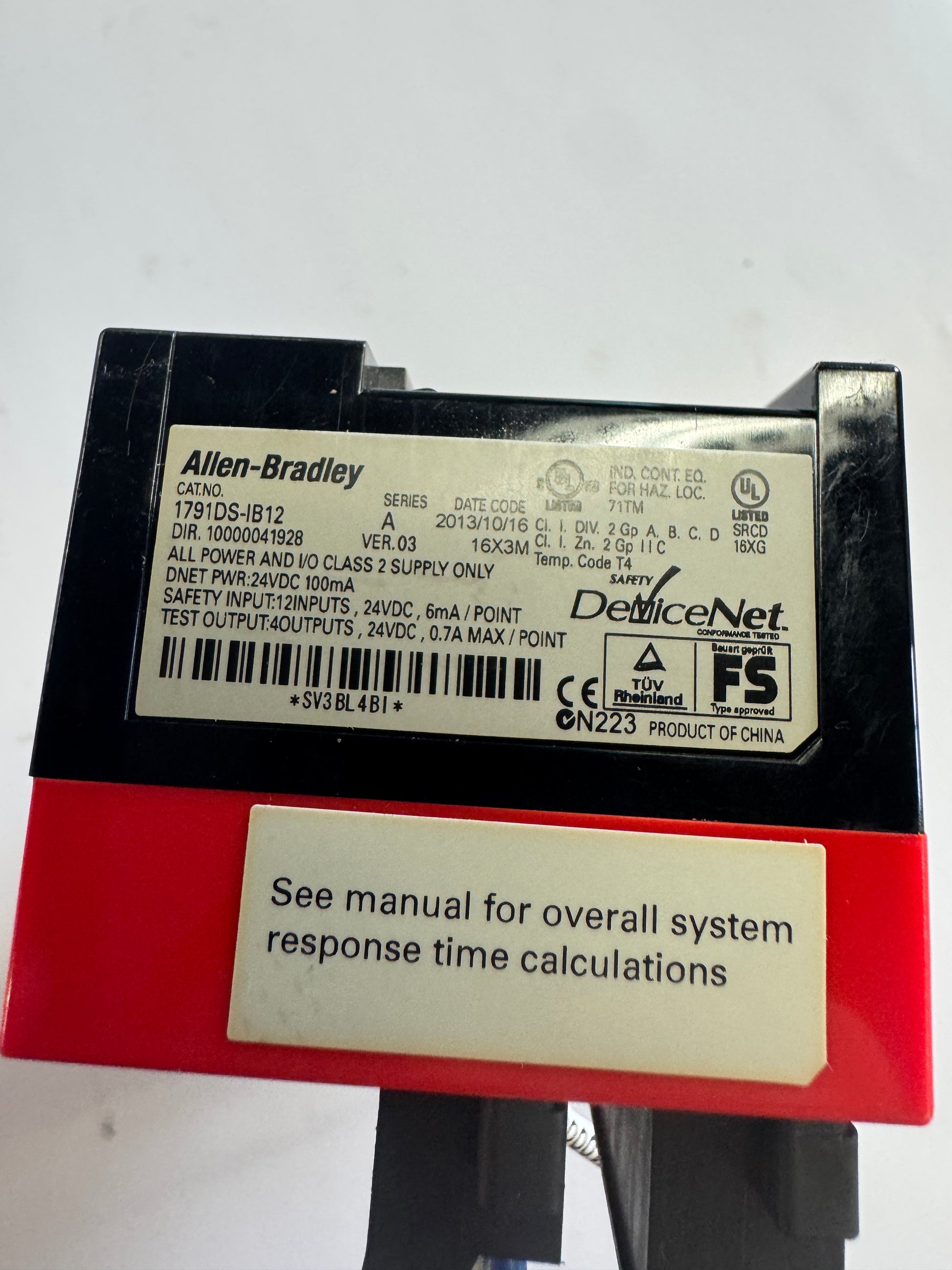

This is an Allen-Bradley 1791DS-IB12 DeviceNet Safety CompactBlock I/O module. The nameplate reads Allen-Bradley, Cat. No. 1791DS-IB12, Series A, Date Code 2013/10/16, DIR. 10000041928, Ver. 03, 16X3M, All Power and I/O Class 2 Supply Only, DNET PWR 24VDC 100mA, Safety Input 12 inputs 24VDC 6mA per point, Test Output 4 outputs 24VDC 0.7A max per point, and serial *SV3BL4BI*. It shows UL Listed marks, 71TM, Cl. I Div. 2 Gp A, B, C, D, Cl. I Zn. 2 Gp IIC, Temp. Code T4, SRCD 16XG, CE, TUV Rheinland FS type approved, the Safety DeviceNet conformance tested logo, and Product of China. A separate label on the housing reads See manual for overall system response time calculations.

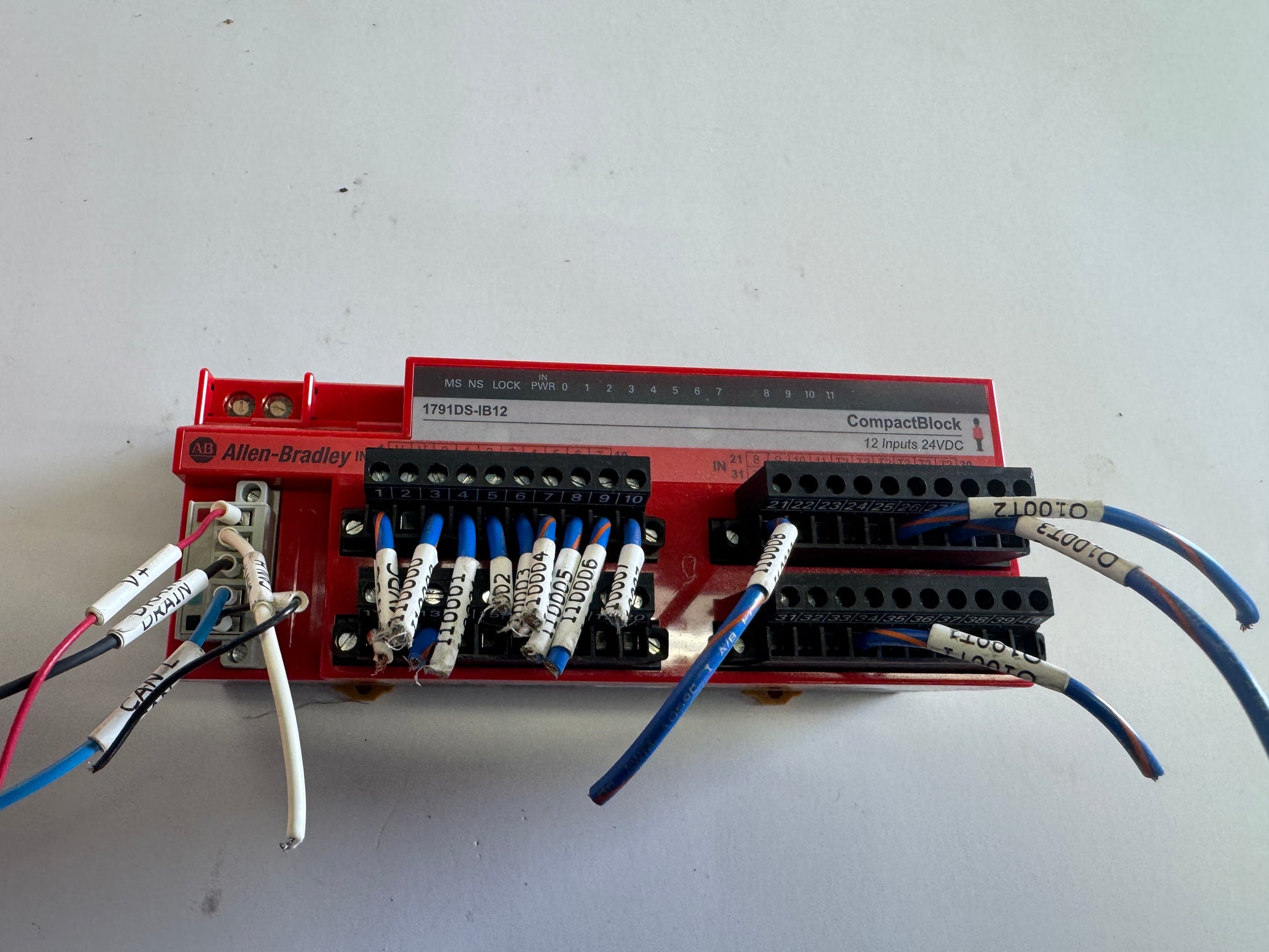

The module has a red top cover and a black base. It has four removable black screw terminal blocks numbered 1 to 40, a gray DeviceNet connector, node address switches and an LED status panel with input indicators 0 to 11. Field wiring is still installed in the terminal blocks and the DeviceNet connector, in blue, red, black and white wires with wire marker sleeves. Several wire ends are stripped, loose or frayed.
Sold as surplus, untested. This unit has not been powered on or tested by MRO Exchange, and the inputs, test outputs, DeviceNet communication and safety functions have not been verified.
Stock # 0426-02086
Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
