Allen-Bradley Contactor 100-B110N*3

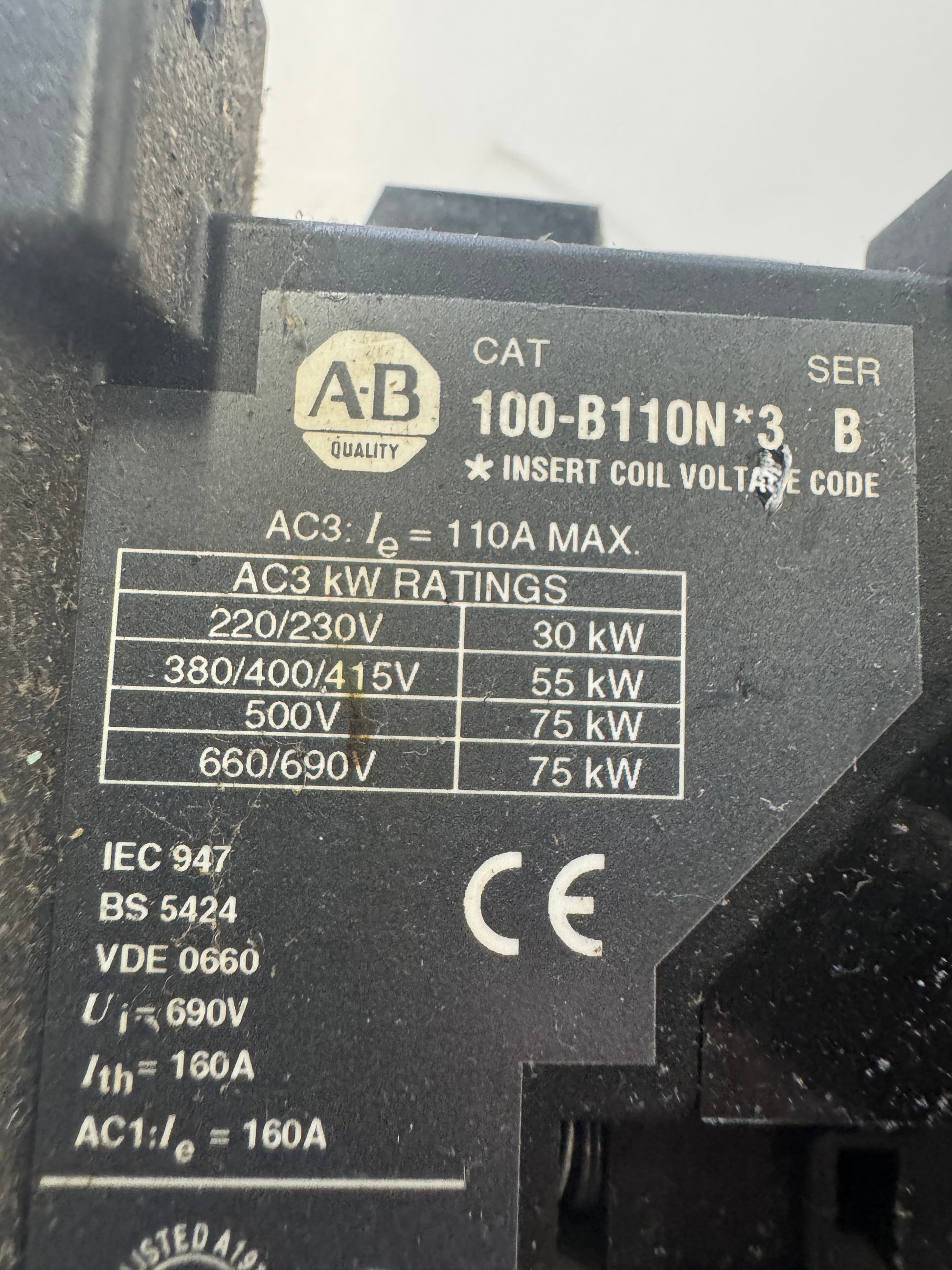

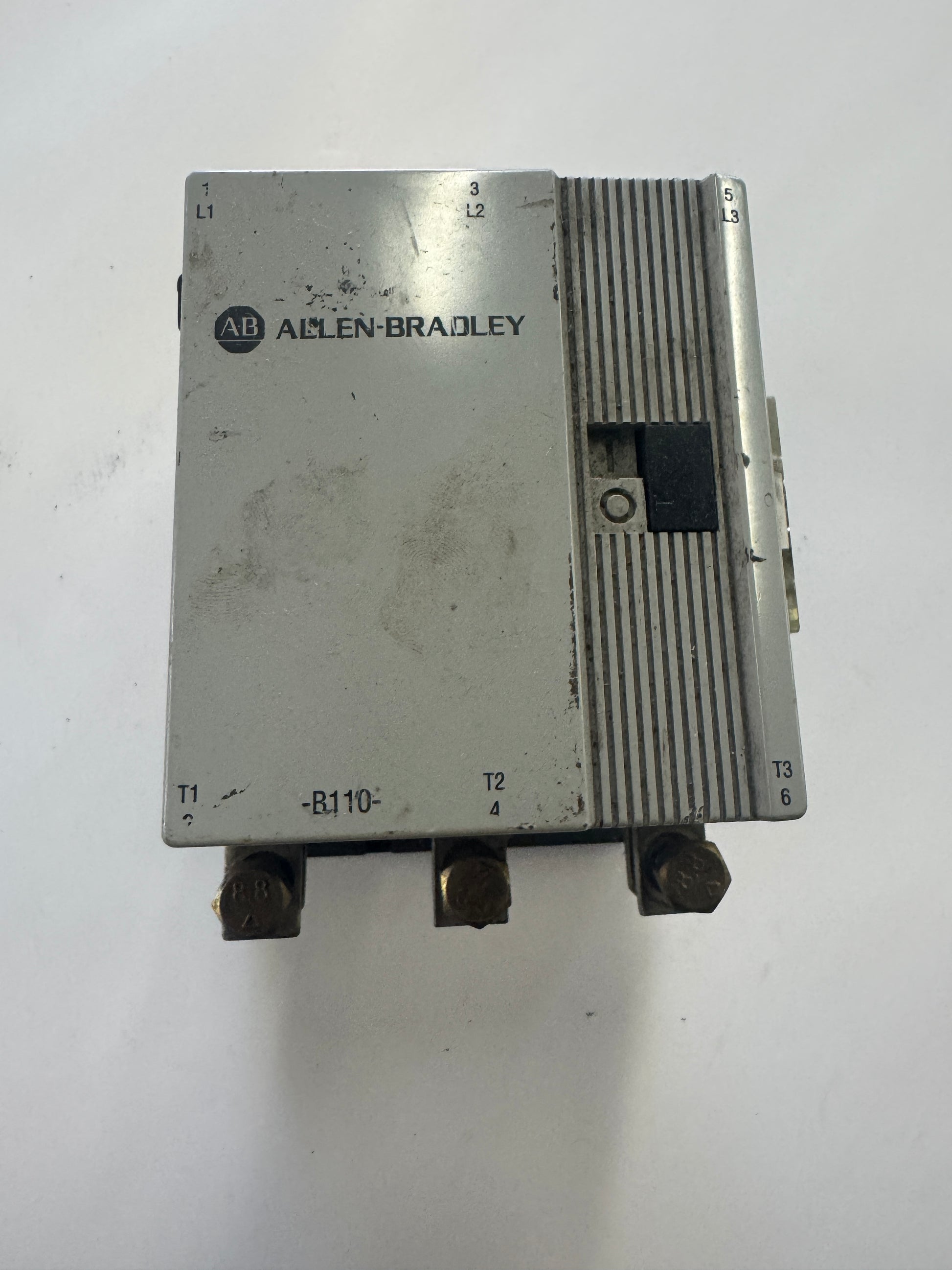

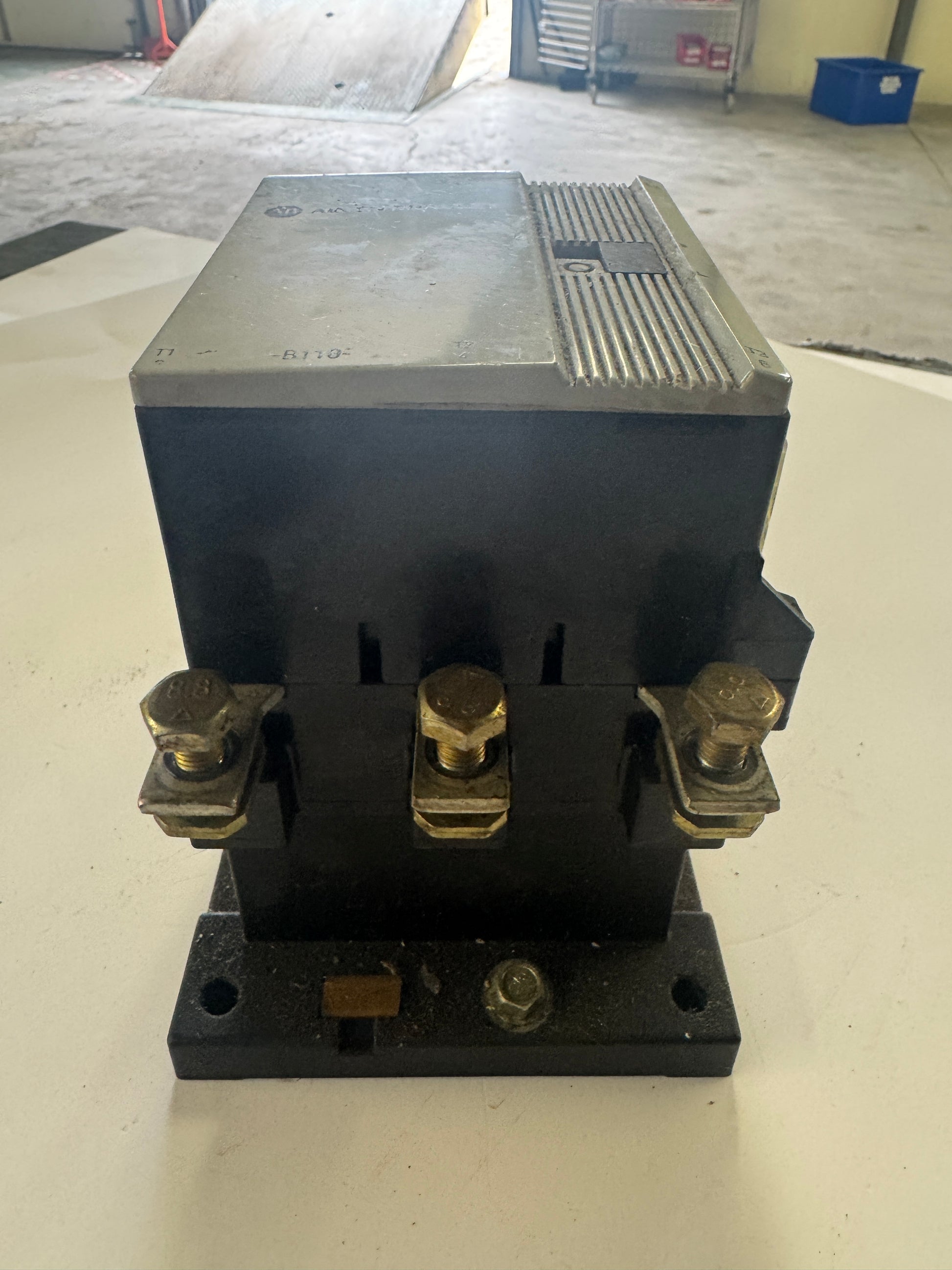

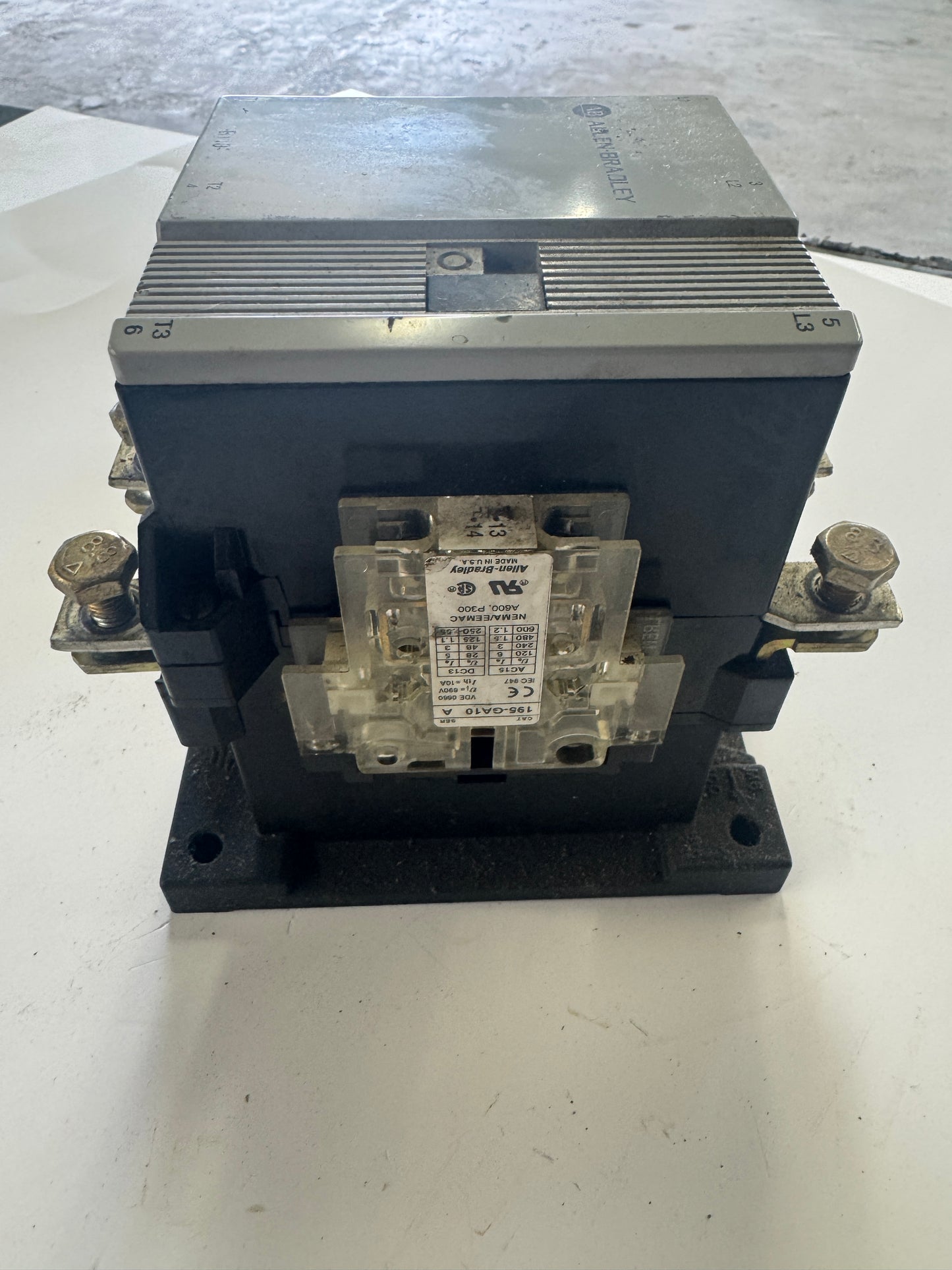

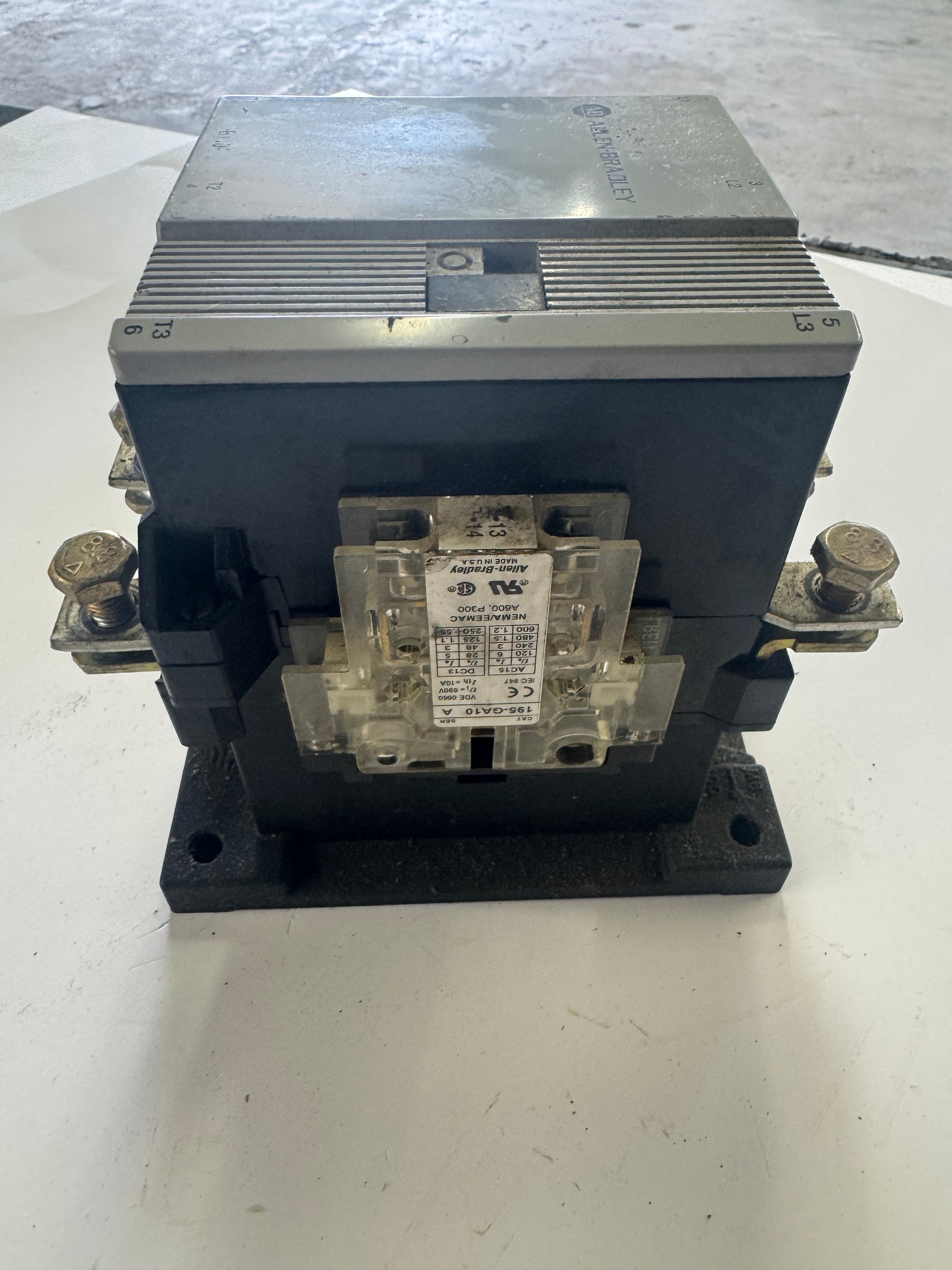

The Allen-Bradley 100-B110N*3 is a 3-pole IEC power contactor rated for AC3 service at 110A maximum. Nameplate data confirms catalog number 100-B110N*3, Series B, with a coil voltage position designated by the asterisk in the catalog number, indicating the coil voltage code is field-specified at installation. AC3 kW ratings are stamped on the nameplate as follows: 30 kW at 220/230V, 55 kW at 380/400/415V, and 75 kW at both 500V and 660/690V. Additional nameplate specifications include Ui of 690V, Ith of 160A, and AC1 Ie of 160A. Certifications visible on the nameplate include IEC 947, BS 5424, VDE 0660, and CE marking. The unit is also UL listed, as indicated by the partial UL marking visible at the bottom of the nameplate. Power terminals are labeled L1, L2, L3 on the line side and T1, T2, T3 on the load side. An auxiliary contact block is mounted to the front face of the contactor, bearing catalog number 195-GA10A, NEMA/EEMAC A600 P300, rated per the auxiliary block nameplate at various HP values across 120V through 600V. The contactor body is constructed in a two-piece black and aluminum-topped housing typical of the Allen-Bradley 100-B series IEC frame. This unit was removed from service and shows surface wear consistent with prior industrial installation.

Stock # 0426-02109

Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
