Allen-Bradley ControlLogix Digital DC Input Module 1756-IB32/B 10 to 31 VDC

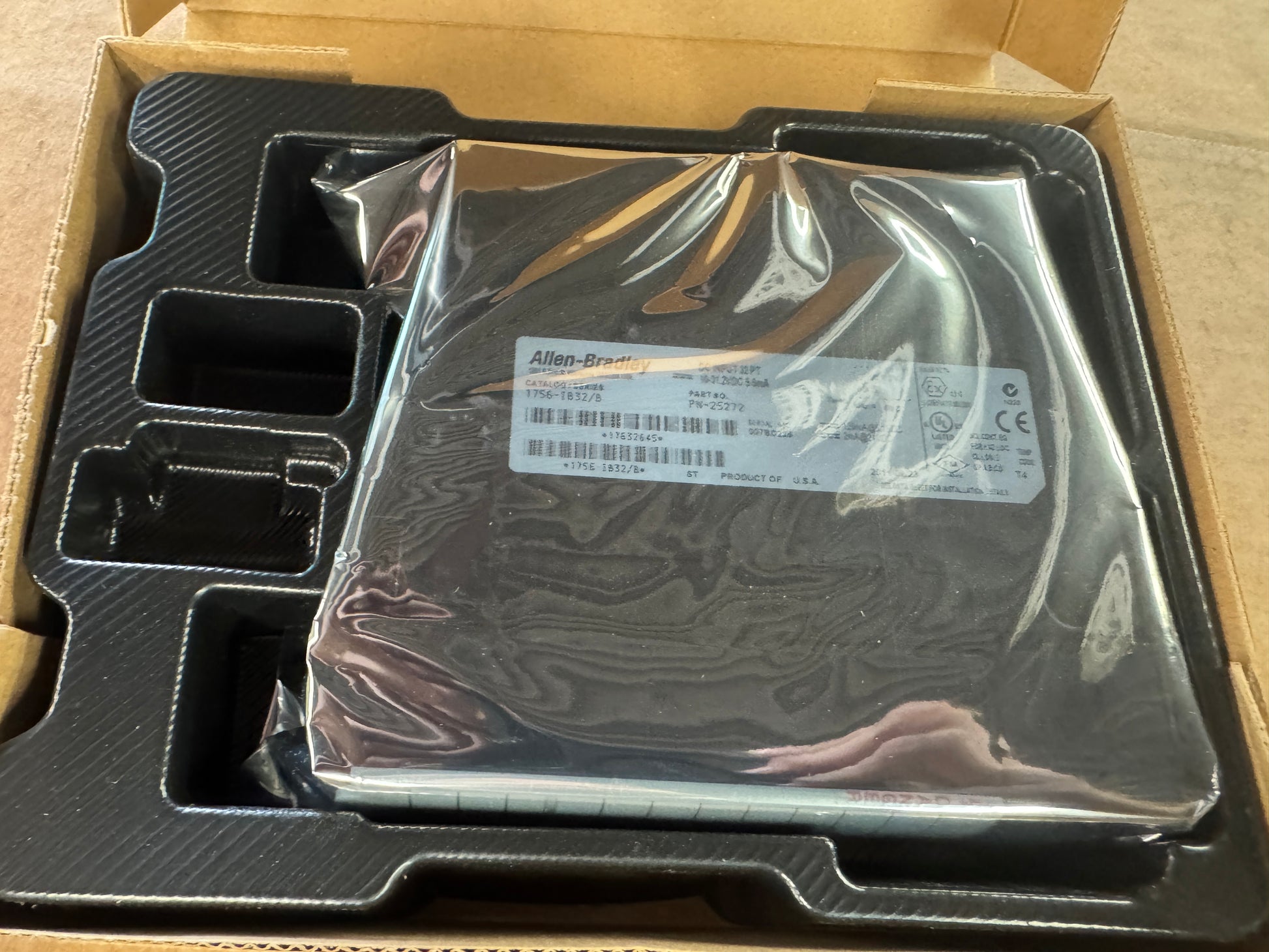

The Allen Bradley 1756-IB32/B is a ControlLogix digital DC input module supplied as a Rockwell Automation Remanufactured Product in sealed factory packaging. Catalog number 1756-IB32/B, part number PN C75667, serial number 17632645, packaging date 2025/10/01, Plant 1190, Product of USA. The module provides 32 sinking digital input channels arranged in two isolated groups of 16 points, with an operating voltage range of 10 to 31.2V DC and a nominal 24V DC input rating. Each input channel draws approximately 5.5 mA at the nominal rating. Backplane current draw is 120 mA at 5.1V DC and 2 mA at 24V DC. Group to group isolation is rated at 250V continuous. The unit uses a 36 pin field side interface and accepts either a 1756 TBCH or 1756 TBS6H removable terminal block, which is not included. Status indicators provide input state, communication status, and module health feedback. Recommended operating temperature is 0 to 60 degrees Celsius with 5 to 95 percent non condensing humidity. The 1756-IB32/B installs into a standard 1756 ControlLogix local or remote chassis and is compatible with Logix5000 family controllers including ControlLogix, GuardLogix, and CompactLogix gateways. Certifications referenced on the product label include UL, cUL, CE, and Class I Division 2 hazardous location marking. This module is commonly used for collecting discrete sensor, pushbutton, limit switch, and proximity switch signals in industrial automation, packaging, material handling, and process control systems. Firmware revision and Logix5000 software compatibility should be verified against the end user application requirements.

Stock # 0526-02387
