Allen-Bradley Digital DC Output Module 1771-OBD Series C 10 to 60V DC
Allen-Bradley Digital DC Output Module 1771-OBD Series C 10 to 60V DC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

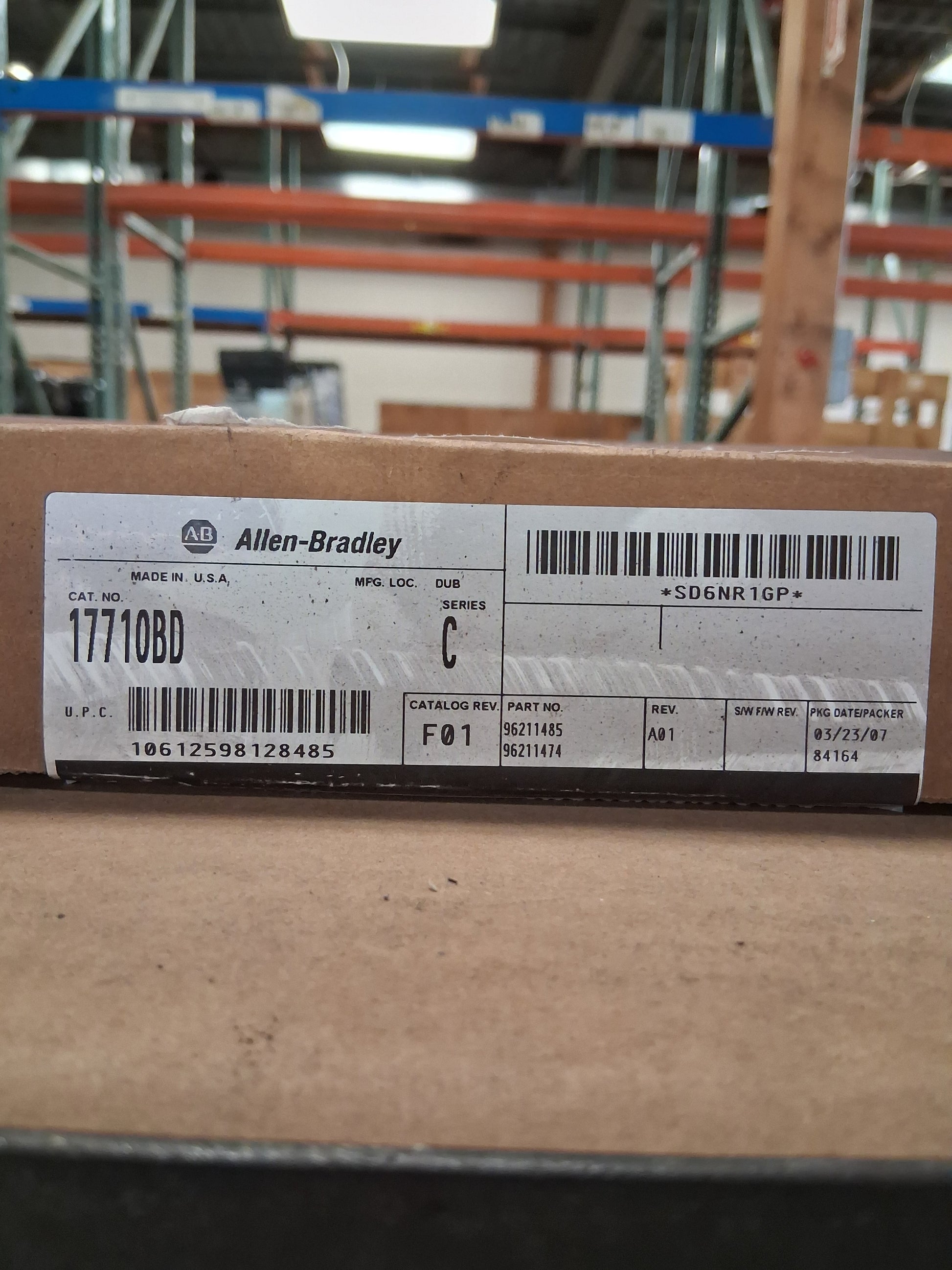

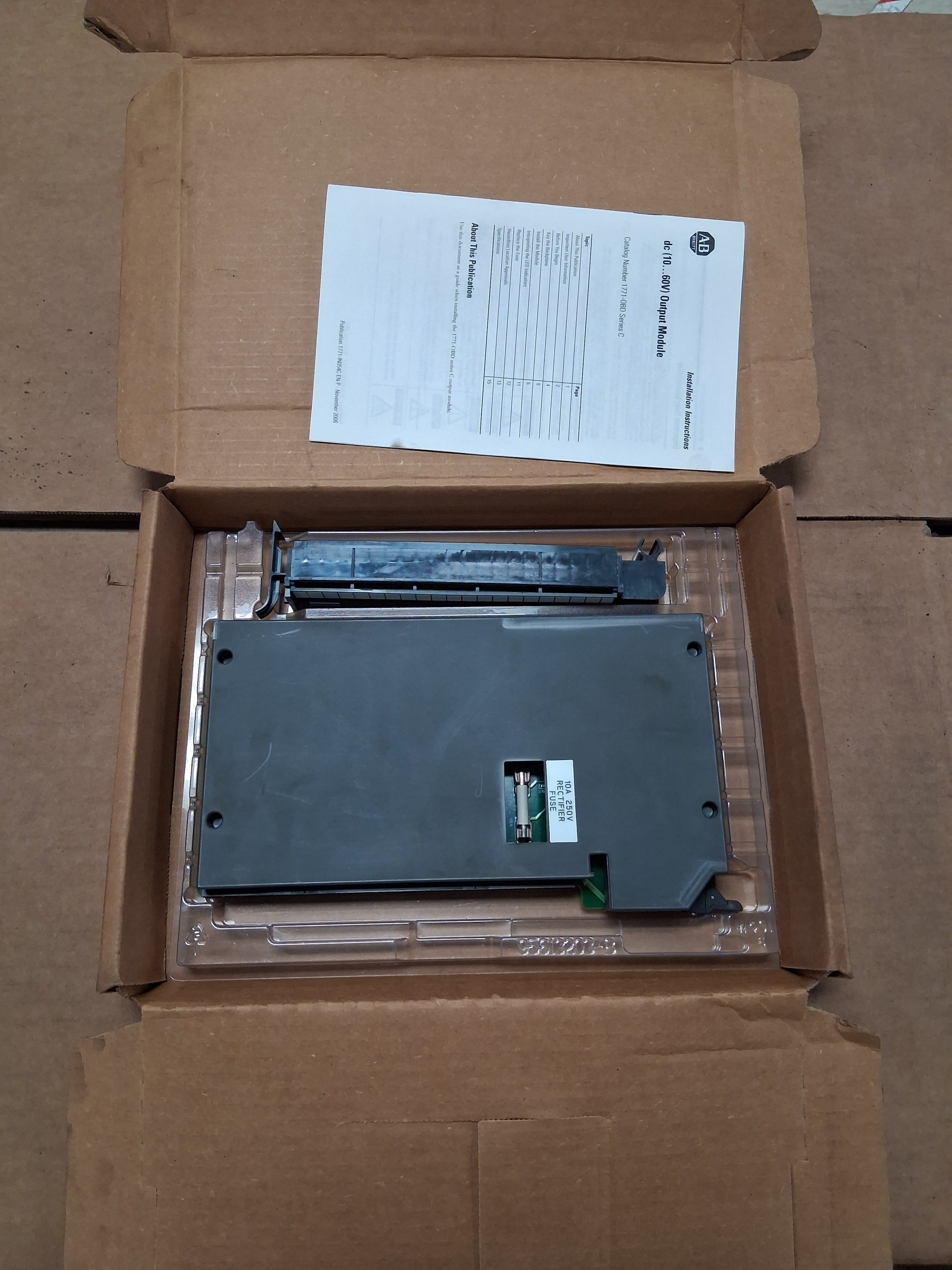

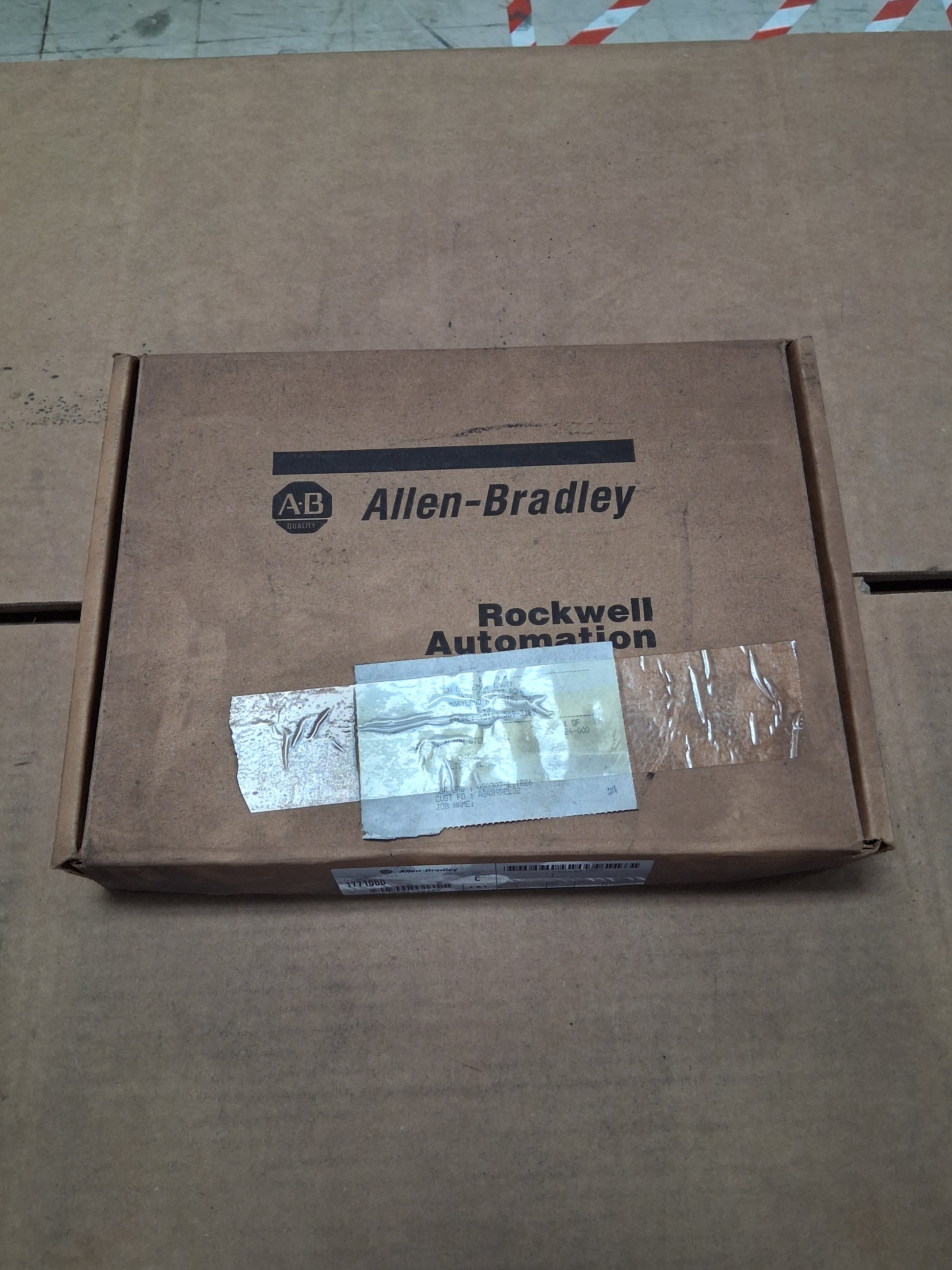

The Allen Bradley 1771-OBD Series C is a 16 point digital DC output module from the Rockwell Automation PLC 5 family, designed to energize DC powered field devices such as solenoids, relay coils, indicator lamps, and pilot duty loads in 1771 I/O chassis applications. Catalog number 1771-OBD, Series C, with manufacturer part numbers 96211485 and 96211474, packaged on 03/23/07. The unit ships in original Allen Bradley factory sealed packaging with installation instructions for publication 1771-IN056C EN P (November 2006) and an internal 10A 250V rectifier fuse. Operating voltage range is 10 to 60V DC with a nominal on state output voltage of 48V DC. Current rating is 2 A per output resistive, not to exceed 8 A per module, with 0.2 A per output pilot duty. Backplane current draw is 400 mA at 5V DC. The module is non isolated, sourcing type, and installs in 1771-A1B through 1771-A4B I/O chassis. Field wiring is connected through 1771-WH, 1771-WHF, or 1771-WHFB wiring arms (sold separately). This module is compatible with the PLC 5 product family and was discontinued by Rockwell Automation on January 31, 2021, making new old stock units a sourcing priority for legacy PLC 5 system maintenance and replacement programs.
Stock # 0526-02432
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
