Allen-Bradley Drive Module 1756-DMD30 24V DC
Allen-Bradley Drive Module 1756-DMD30 24V DC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

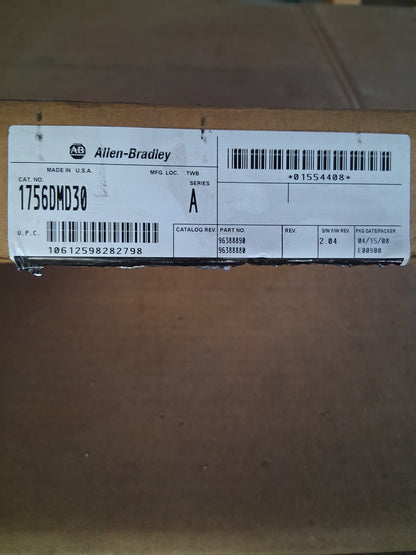

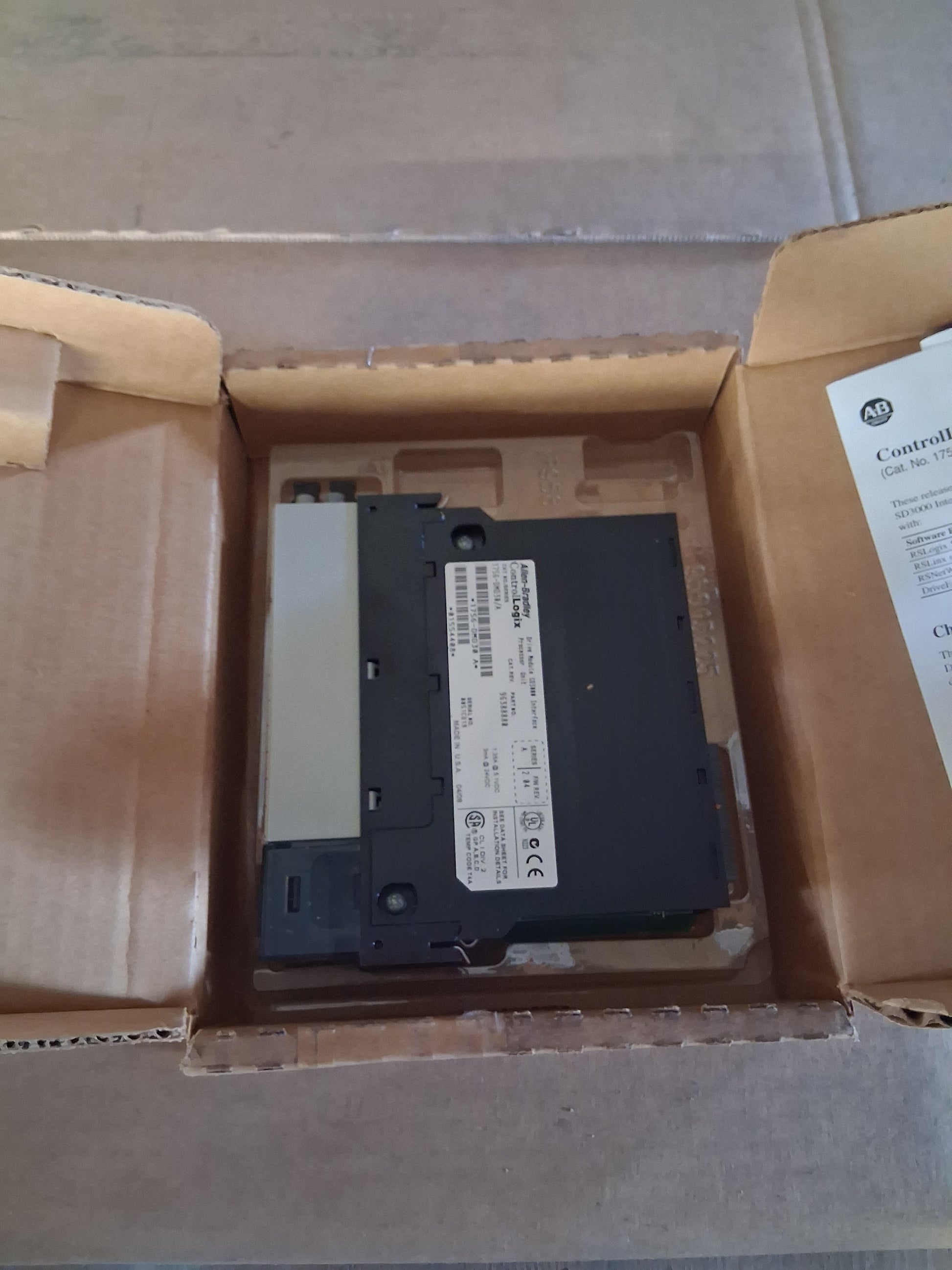

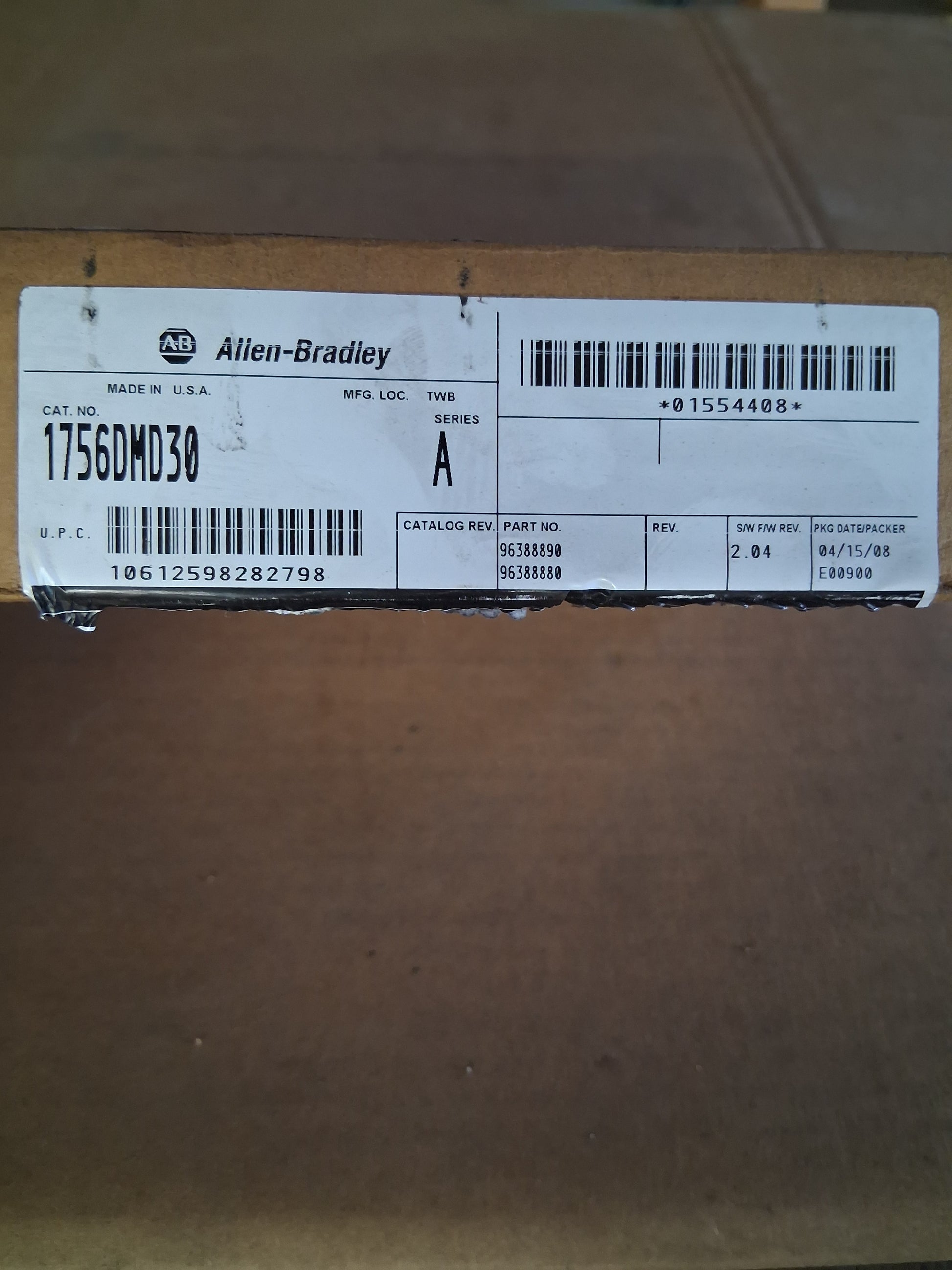

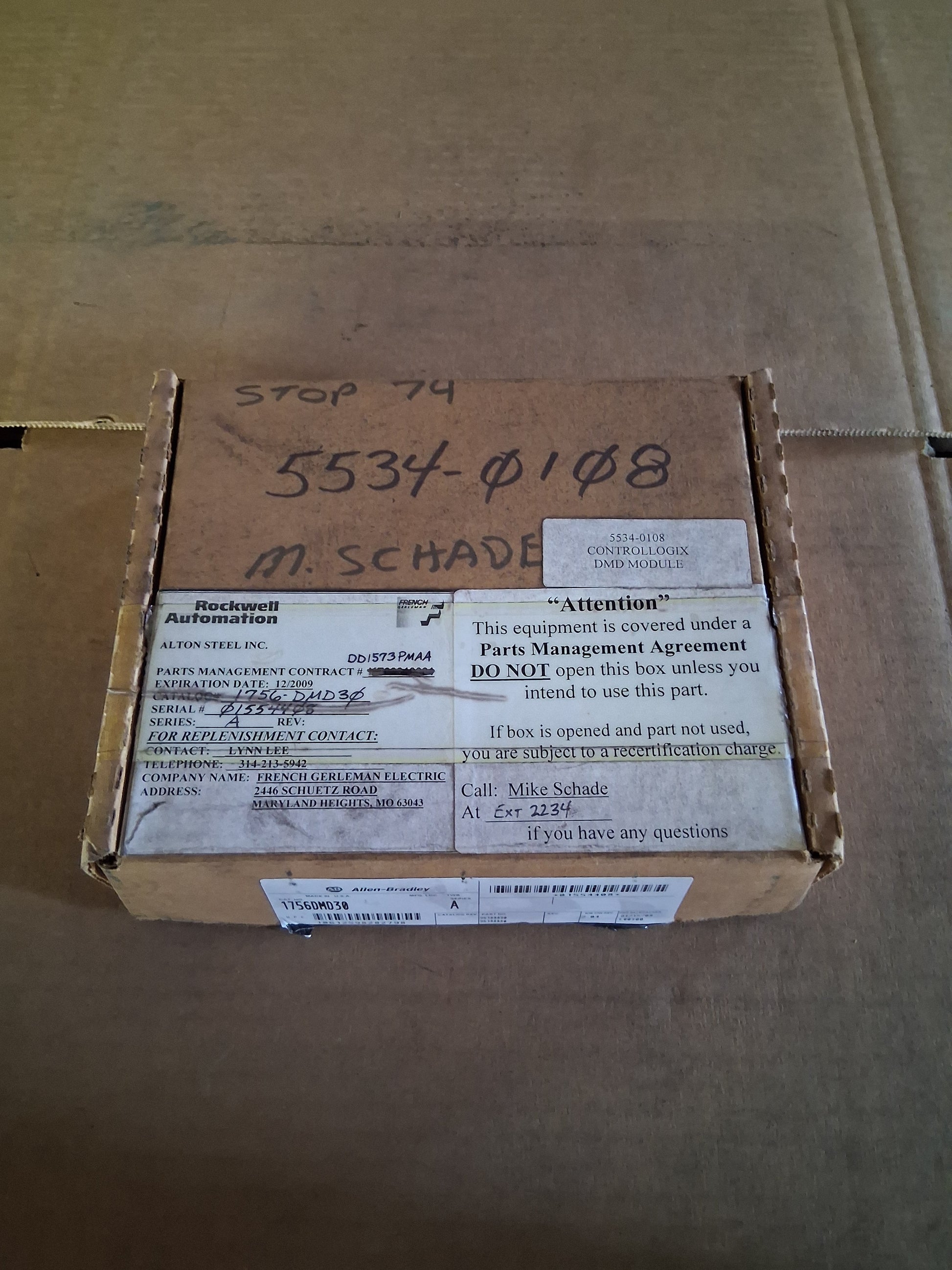

The Allen Bradley 1756-DMD30 is a ControlLogix Drive Module designed as the SD3000 interface for Reliance Electric Distributed Power System (DPS) drive equipment. This single slot module installs in a 1756 ControlLogix chassis and interfaces with individual Power Module Interface (PMI) chassis to perform outer torque, position, and velocity control loops. It operates with SD3000 6 Pulse DC drives (S6 and S6R) and SD3000 12 Pulse DC drives (S12 and S12R), communicating to SynchLink nodes through fiber optic connections at 5 Mbps SynchLink and 10 Mbps Drive Communication speeds. Power is supplied through the ControlLogix backplane at 1.35 A at 5.1V DC and 3.0 mA at 24V DC, with peak module power dissipation of 6.96 W and thermal dissipation of 23.7 BTU per hour. Green and red LED indicators provide operation, status, and diagnostic feedback. The catalog number is 1756-DMD30, Series A, part number 96388880, with packaging label part numbers 96388890 and 96388880, S/W F/W revision 2.04, serial number 01554408, and package date 04/15/08. The unit was originally distributed through French Gerleman Electric under a Rockwell Automation Parts Management Agreement contract DD1573PMAA for Alton Steel Inc. and remains in its original sealed factory packaging. Applications include integration of legacy Reliance Electric SD3000 DC drive systems into Allen Bradley ControlLogix architectures using RSLogix and DriveExecutive software. Made in the U.S.A.
Stock # 0526-02419
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
