Allen-Bradley Flex I/O High Speed Counter Module 1794-VHSC 24 VDC
Allen-Bradley Flex I/O High Speed Counter Module 1794-VHSC 24 VDC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods

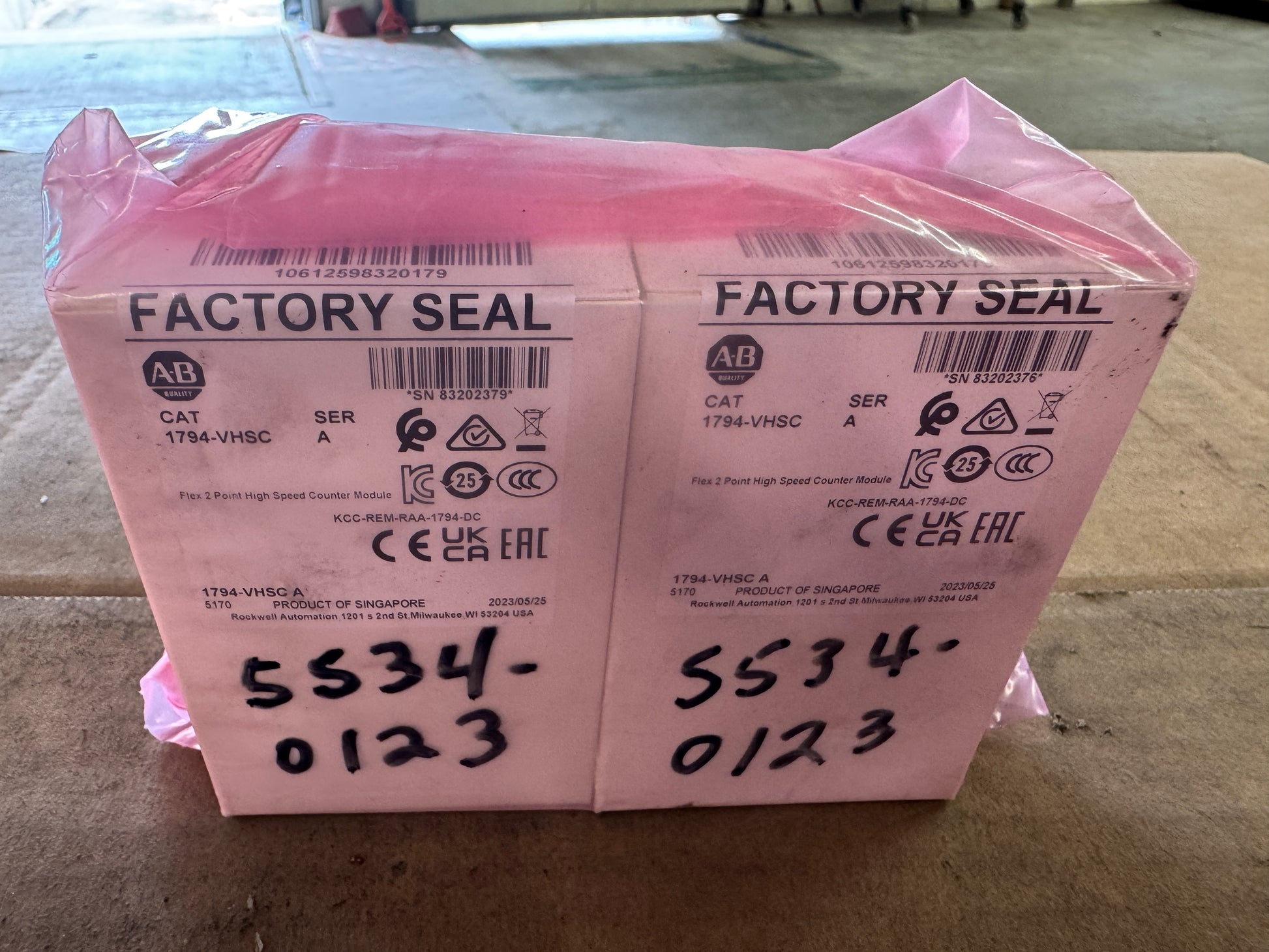

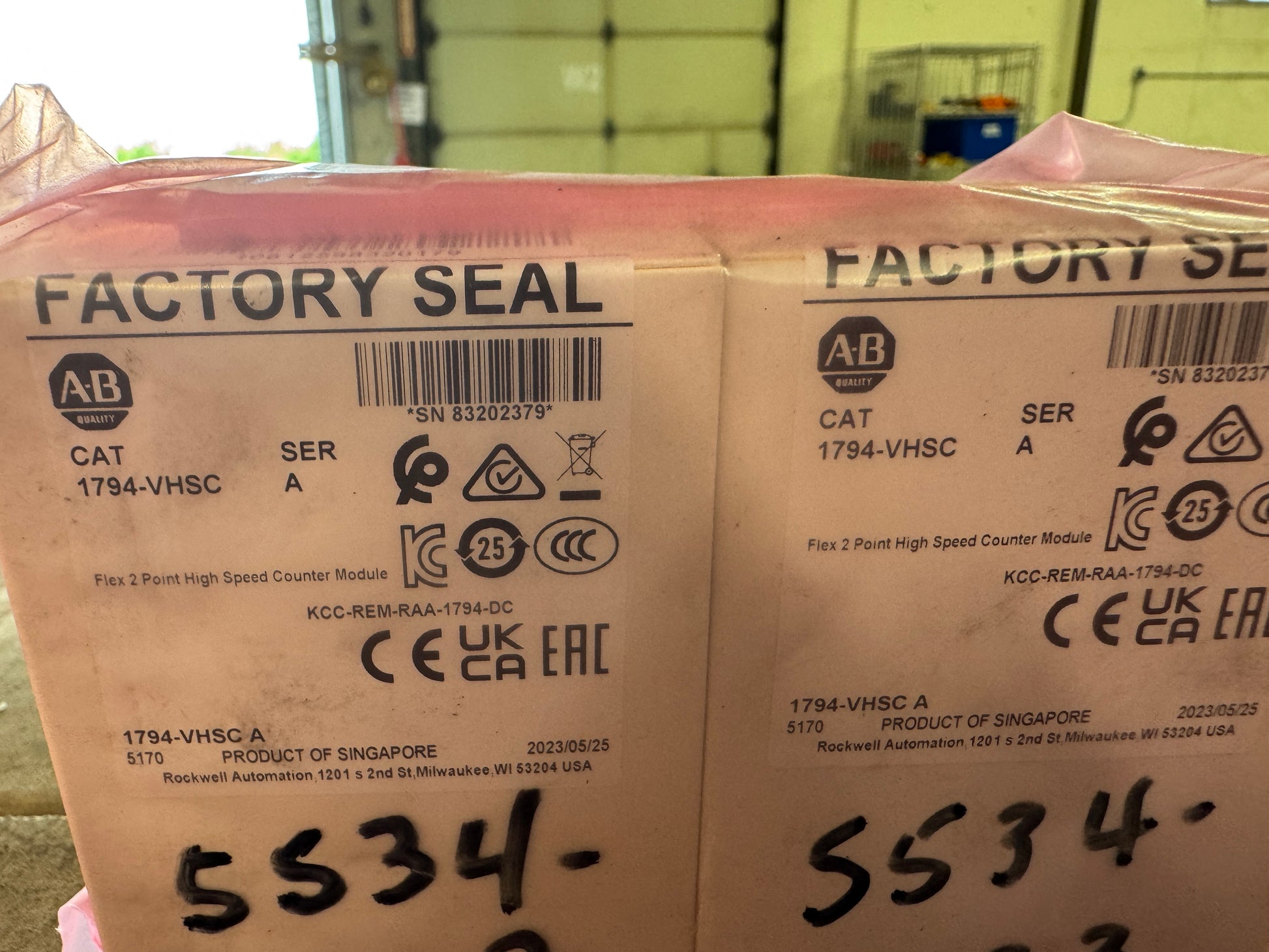

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:
The Allen-Bradley 1794-VHSC is a Flex I/O Very High Speed Counter Module manufactured by Rockwell Automation, identified by catalog number 1794-VHSC, Series A. This intelligent input/output module provides high speed counting functions for the Flex I/O platform and connects to compatible programmable controllers across the 1794 family. The module features 2 input channels with 2 counters per channel, configurable for 3 encoder modes, and supports input terminations rated at 5V DC or 15 to 24V DC. Input frequency is rated up to 1 MHz for single phase inputs. The 1794-VHSC has 4 isolated outputs arranged in 2 groups, rated 0.5A at 5V DC and 1.0A at 12 to 24V DC. External power supply is 24V DC nominal with a supply range of 19.2 to 31.2V DC at 100 mA. Flexbus current draw is 75 mA at 5V DC. The module mounts on a 1794-TB3G or 1794-TB3GS terminal base unit and is housed in an open style DIN mount enclosure rated IP20. Operating temperature range is 0 to 55 degrees C at 5 to 95 percent relative humidity. Certifications include CE, UKCA, EAC, KCC, RCM, and CCC. The unit is identified as product of Singapore, manufactured by Rockwell Automation, 1201 S 2nd St, Milwaukee, WI 53204. Applications include encoder feedback, RPM monitoring, position tracking, and pulse counting within Flex I/O distributed control systems. Module dimensions are 3.7 in x 3.7 in x 2.7 in with the module installed.
Stock # 0526-02385
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
