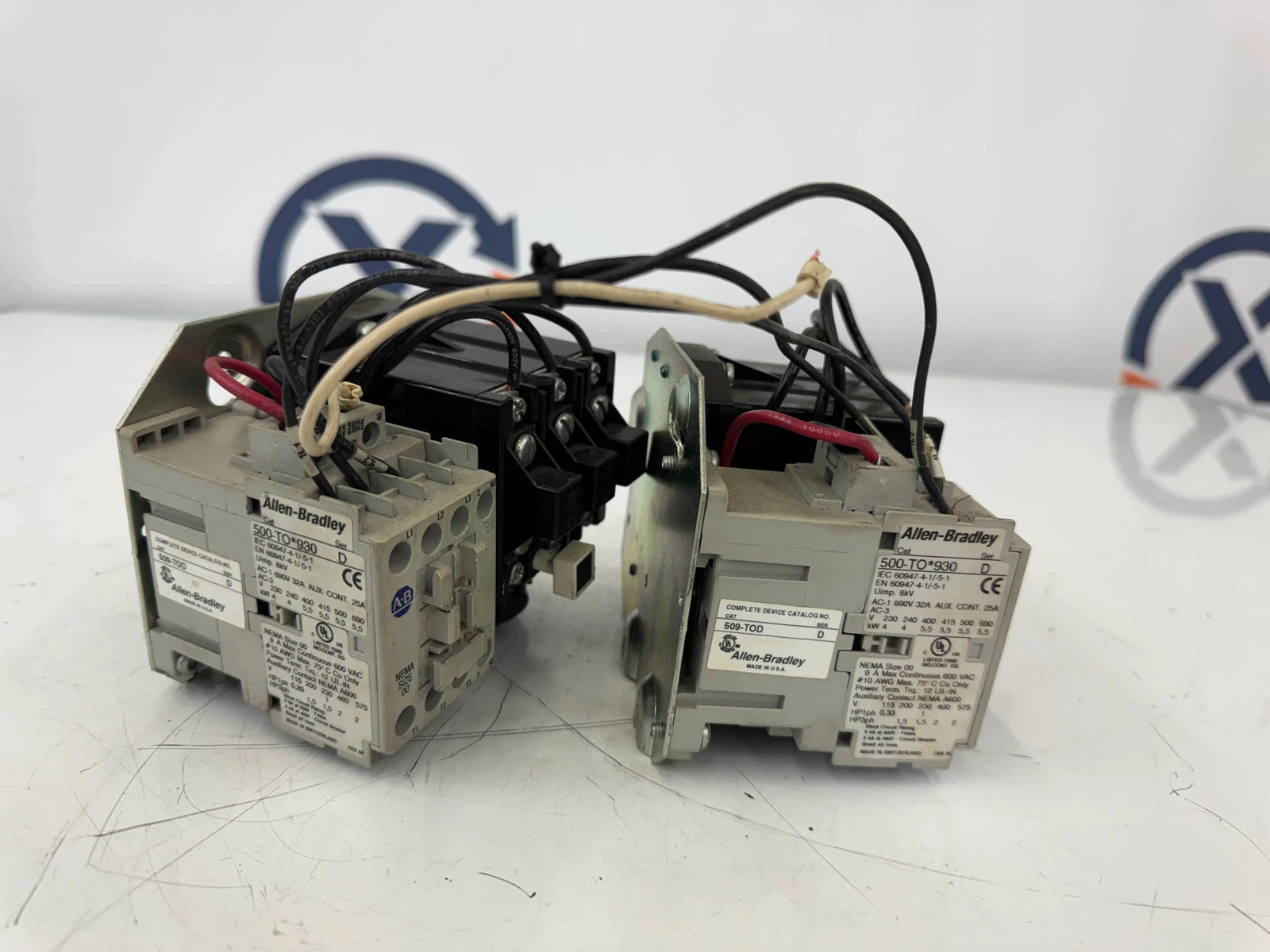

Allen-Bradley Full Voltage Non-Reversing Motor Starter 509-TOD 600VAC Max

$49.00 USD

Sale Sold out

ConditionSurplus - Untested MPN509-TOD Stock #0226-00341

Photos reflect current condition. Items differing from description may be eligible for return or refund — see our condition guide.

Shipping Estimate

Estimated package weight: 5.0 lbs

Select your state above for a shipping estimate.

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

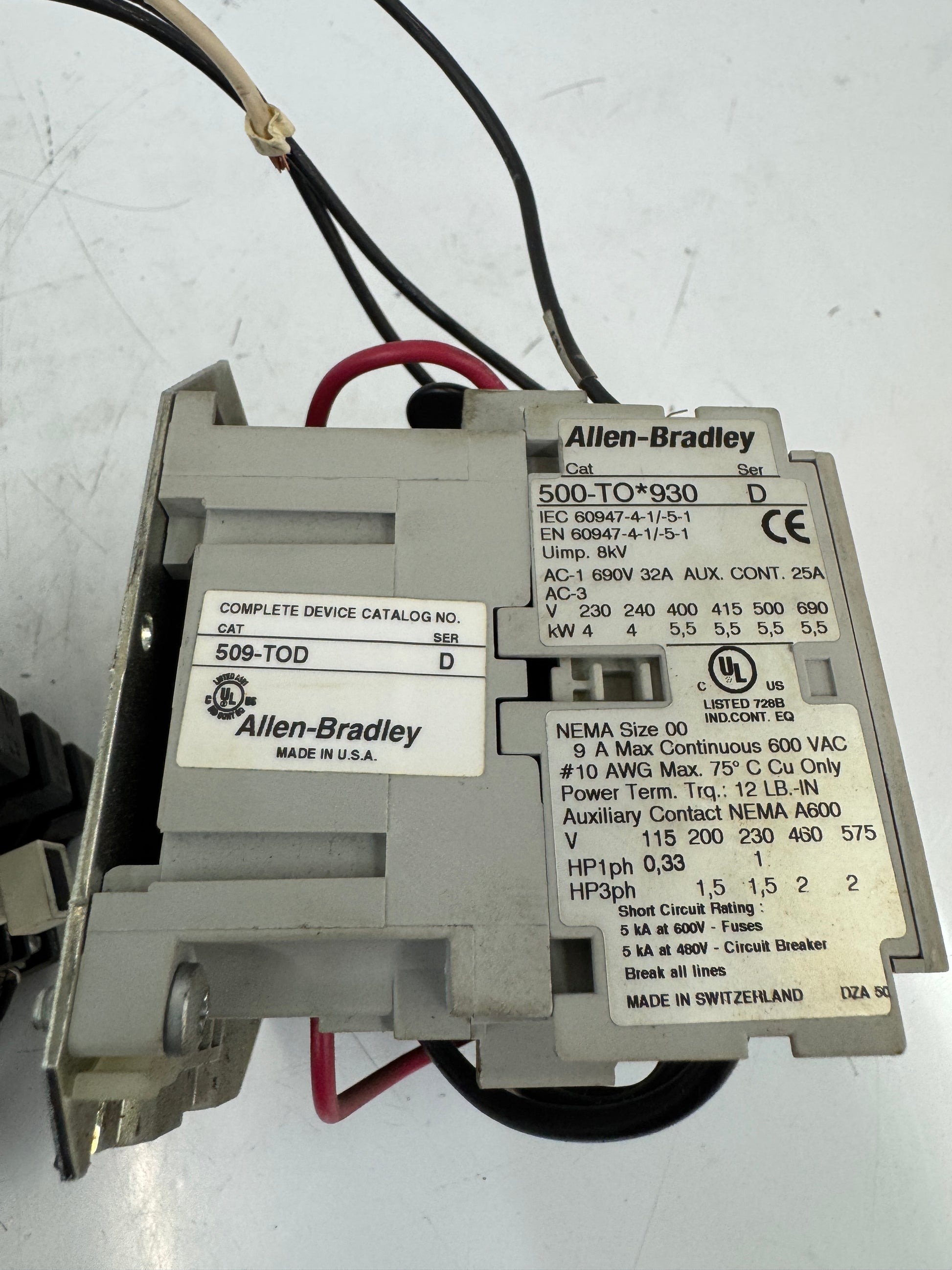

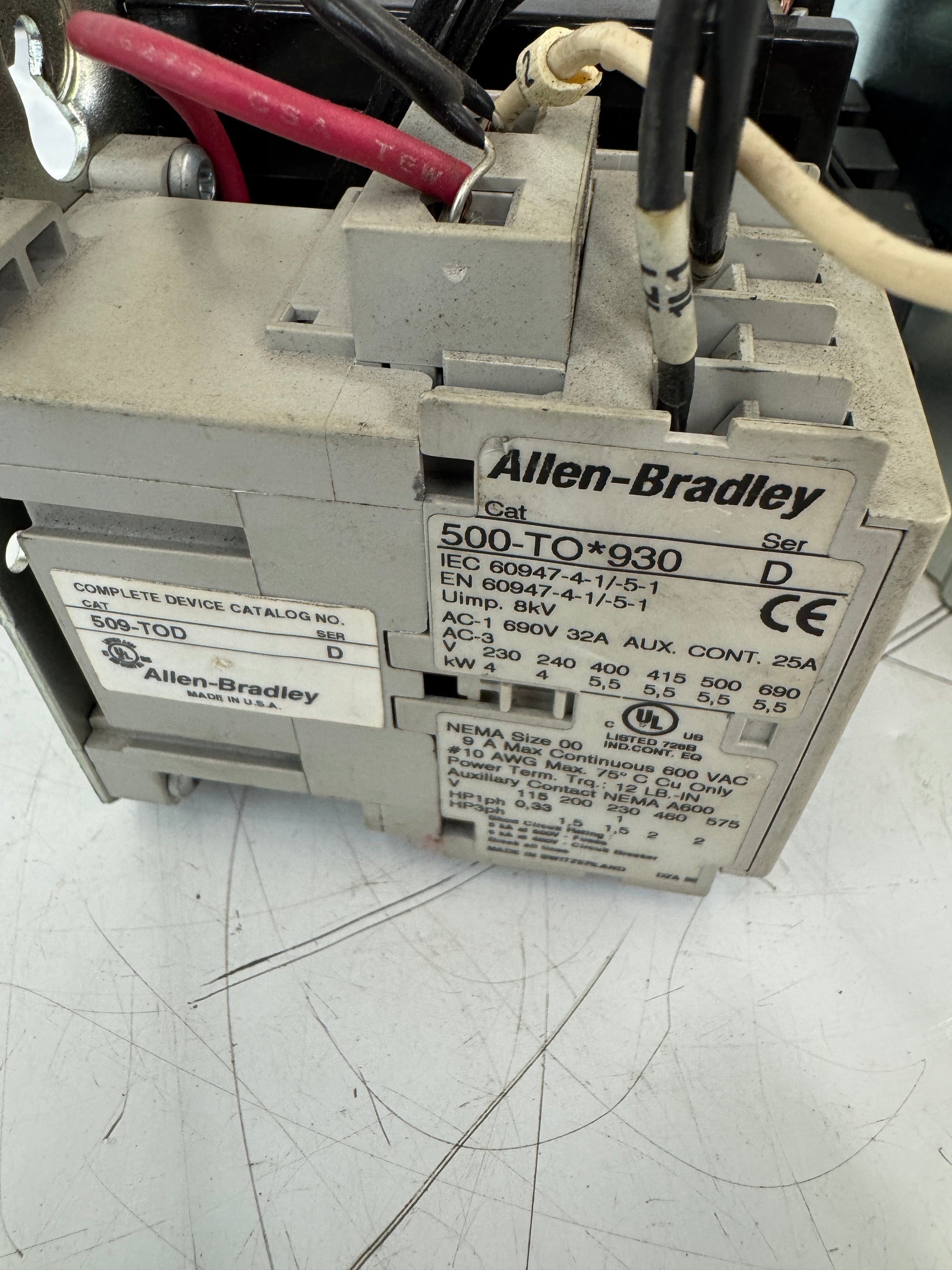

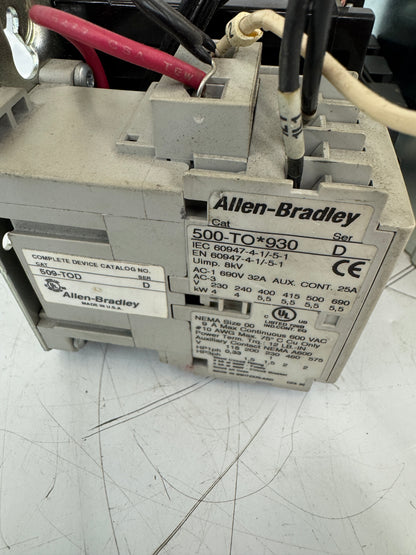

Allen-Bradley 509-TOD Series D Full Voltage Non-Reversing Motor Starter, NEMA Size 00. Cat. No. 509-TOD, Complete Device Cat. No. 509-TOD, Series D. Rated 9A maximum continuous current, 600VAC maximum, NEMA Size 00. Coil voltage 110VAC at 50Hz and 120VAC at 60Hz. Three-pole, three-phase configuration. AC-1 rating 690V at 32A with auxiliary contact rated 25A. AC-3 ratings: 4kW at 230V, 4kW at 240V, 5.5kW at 400V, 5.5kW at 415V, 5.5kW at 500V, 5.5kW at 690V. Impulse withstand voltage 8kV. Compliant with IEC 60947-4-1, IEC 60947-5-1, EN 60947-4-1, and EN 60947-5-1. Power terminals accept up to 10 AWG copper conductors, rated 75 degrees C. Terminal torque 12 lb-in. Auxiliary contact NEMA A600 rated. HP ratings at 1-phase: 1.5HP at 115V, 1HP at 200V, 1HP at 230V. HP ratings at 3-phase: 0.33HP at 115V, 1.5HP at 200V, 1.5HP at 230V, 2HP at 460V, 2HP at 575V. UL Listed (File E720B), Industrial Control Equipment designation. Eutectic alloy overload relay included. Open type mounting. Made in Switzerland (nameplate). Part of the Allen-Bradley Bulletin 509 full voltage non-reversing starter family, compatible with Allen-Bradley Bulletin 500 series contactors and Centerline motor control centers.

Stock # 0226-341

Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
