Allen-Bradley General Purpose Limit Switch 801-ASC25X 600V AC/DC
Allen-Bradley General Purpose Limit Switch 801-ASC25X 600V AC/DC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

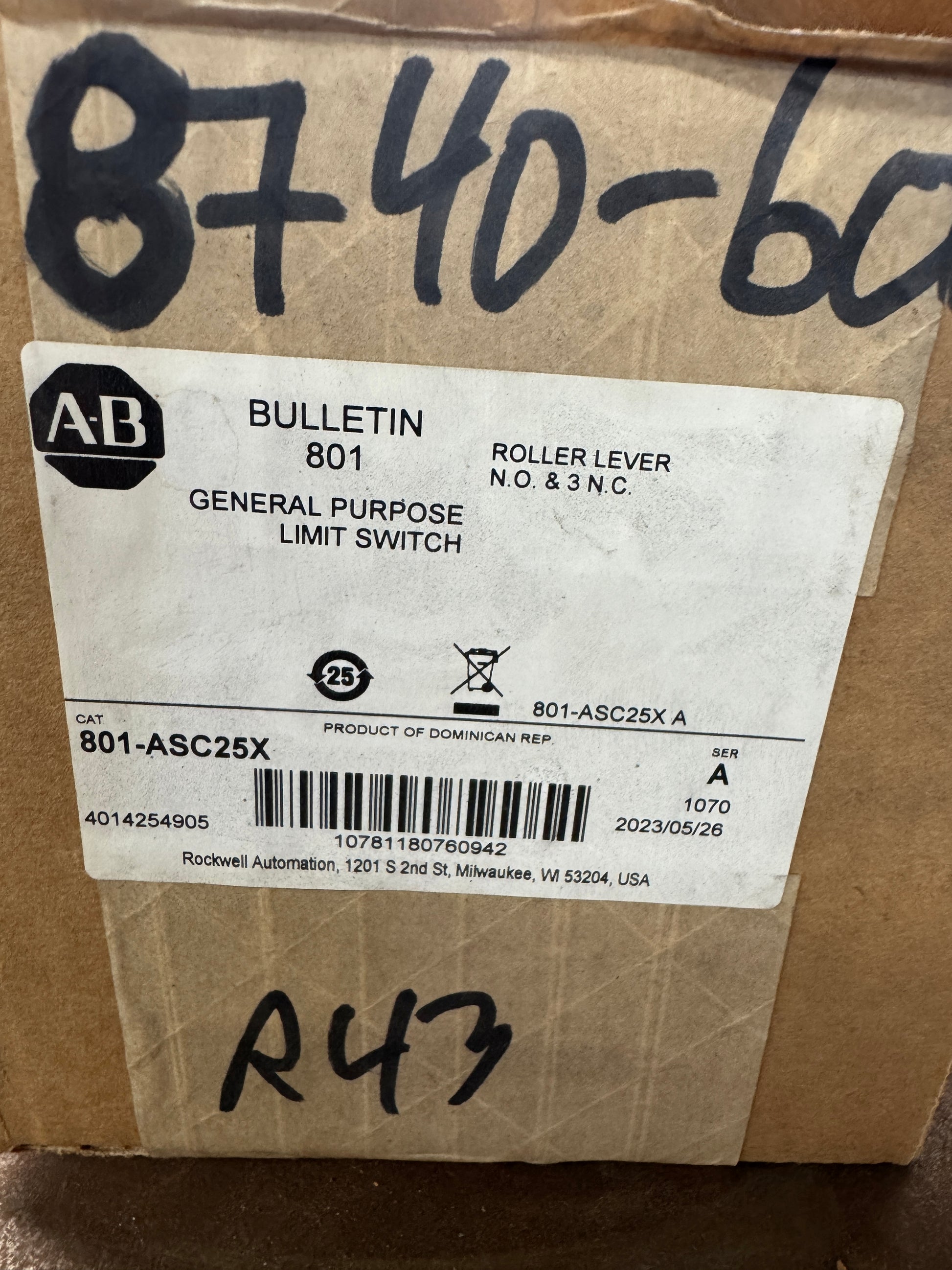

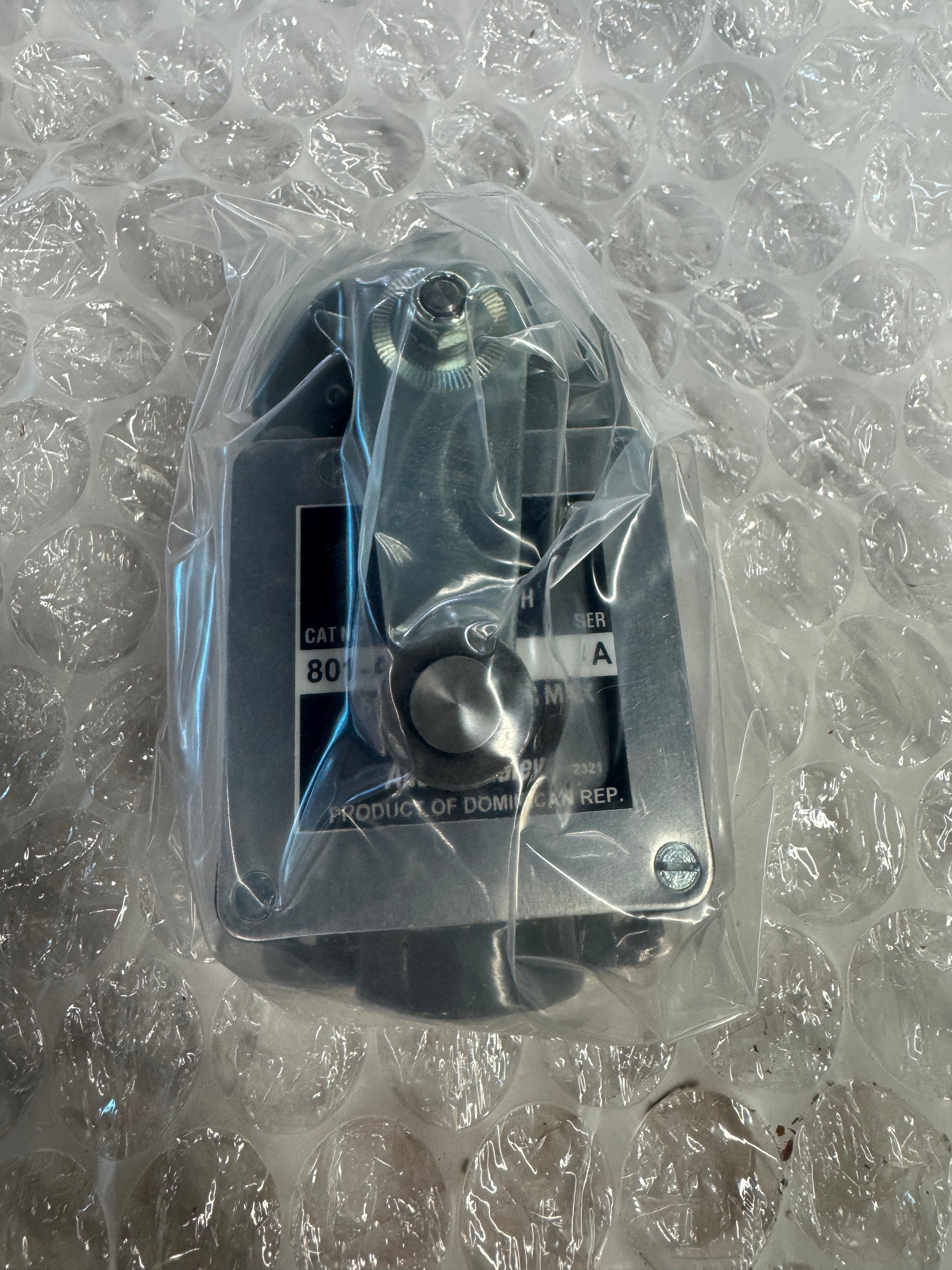

Used in general-purpose industrial automation and machine control applications, the Allen-Bradley 801-ASC25X is a Bulletin 801 assembled limit switch featuring a roller lever actuator with snap action and spring return operation. The unit is configured with Arrangement C contacts, providing 1 normally open contact and 3 normally closed contacts in a NEMA Type 1 enclosure housed in a Type 3 body style. Contact rating is 600V AC/DC. The snap action mechanism delivers consistent, repeatable switching with a nominal travel-to-operate angle of 9 degrees and a minimum over-travel of 44 degrees, per published Rockwell Automation specifications. Torque to operate contacts is rated at 31.15N (7.0 lbs) maximum. The unit carries catalog number 801-ASC25X, Series A, and was manufactured in the Dominican Republic by Rockwell Automation. Date code on the original packaging reads 2023/05/26, indicating recent manufacture. The item ships in its original Allen-Bradley carton with the component wrapped in protective packaging inside. This is a Rockwell Automation Bulletin 801 product, a product line widely deployed in factory automation, conveyor systems, material handling equipment, and machine tool applications where robust, reliable position detection is required. Dimensions and full wiring diagrams are available in the Rockwell Automation published cut sheet for catalog number 801-ASC25X.
Stock # 0526-02200
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
