Allen-Bradley Incremental Encoder 845H-SJDZ14CNY2C 5V DC
Allen-Bradley Incremental Encoder 845H-SJDZ14CNY2C 5V DC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

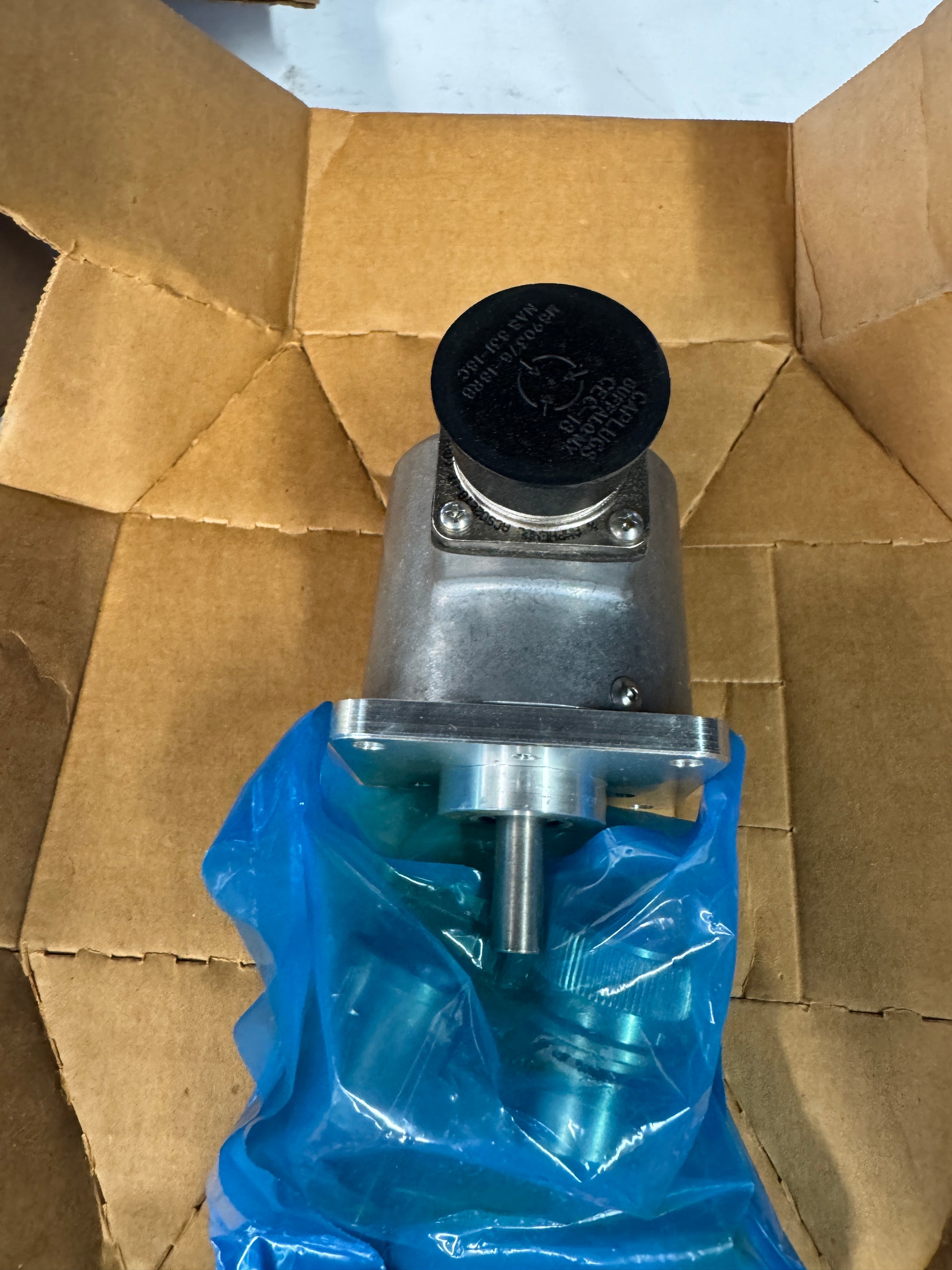

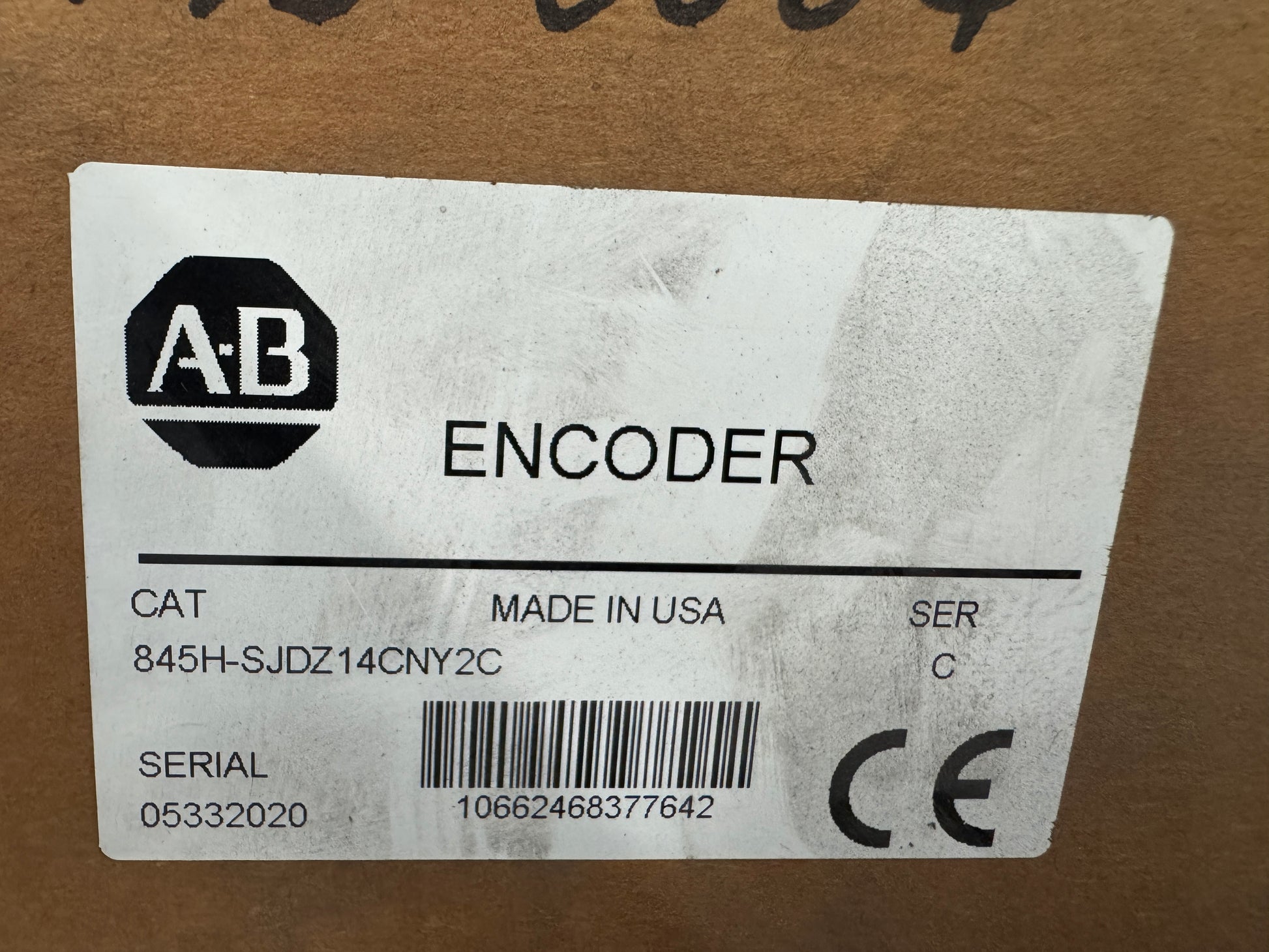

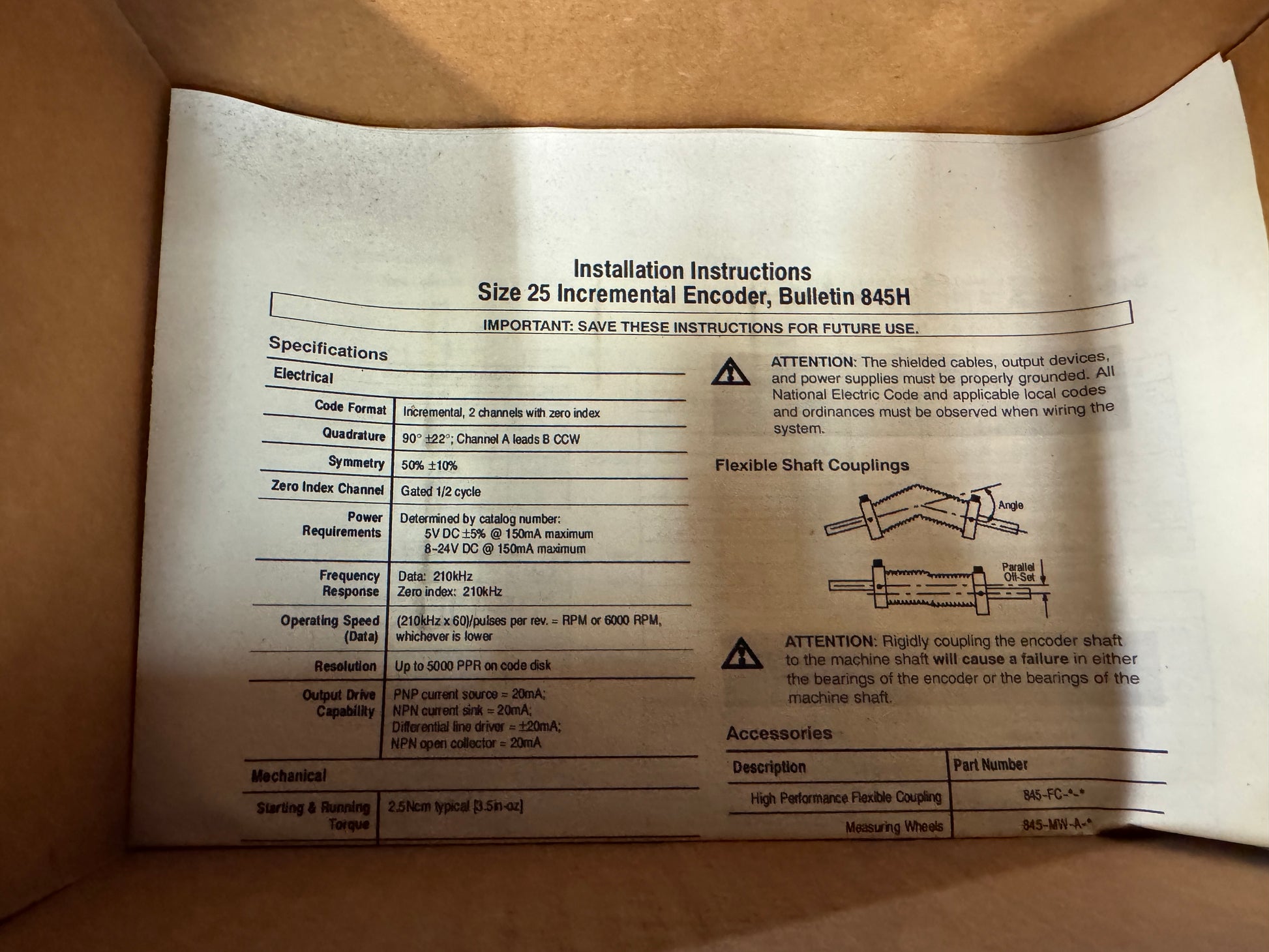

The Allen-Bradley 845H-SJDZ14CNY2C is a Size 25 optical incremental encoder from Rockwell Automation's Bulletin 845H series, manufactured in the USA. Catalog number 845H-SJDZ14CNY2C, Series C, serial number 05332020. The encoder operates on 5V DC at 150mA maximum and delivers an incremental, dual-channel quadrature output with zero index. Code format is incremental with 2 channels and zero index. Quadrature is 90 degrees plus or minus 22 degrees, with Channel A leading Channel B in the counterclockwise direction. Symmetry is 50 percent plus or minus 10 percent, and the zero index channel is a gated half cycle. Frequency response for data and zero index channels is rated at 210kHz, with a maximum operating speed of 6000 RPM. Resolution supports up to 5000 PPR on the code disk, and the 1000 PPR configuration is associated with the CNY2C suffix. Output drive options include PNP current source, NPN current sink, differential line driver, and NPN open collector, each rated at 20mA. Starting and running torque is 2.5 Ncm typical. The unit is housed in a Size 25 frame with a radial connector interface. This item is offered in original manufacturer packaging with installation documentation.
Stock # 0526-02224
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
