Allen-Bradley I/O Option Module 20-750-2262C-2R 24 VDC
Allen-Bradley I/O Option Module 20-750-2262C-2R 24 VDC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:
The Allen-Bradley 20 750 2262C 2R is a 24V DC I/O option module designed for use with PowerFlex 753 and PowerFlex 755 variable frequency drives. Catalog number 20 750 2262C 2R, Series A, ships factory sealed with firmware version 1.008 as labeled. Part number PN 102577, UPC 884951062535, serial number 25328747, manufactured 2013/04/18 in the USA.
This 22 Series option module provides 6 digital inputs, 2 analog inputs, 2 analog outputs, and 2 relay outputs within a single expansion card that mounts into a PowerFlex 750 Series drive option port. Device power rating is +12V DC at 300 mA and 12V DC at 150 mA. The relay outputs support general purpose switching for auxiliary control circuits, while the analog channels accommodate process feedback and command signals commonly used in motor control applications. Digital inputs are opto isolated and rated for 24V DC logic.
Certifications shown on the label include UL Listed (Industrial Control Equipment, file 966X), cUL, CE, C Tick (N223), and KC (KCC REM RAA 20 750). The module is intended for integration into industrial automation systems for motor speed regulation, conveyor control, pump and fan control, and other PowerFlex 750 Series drive applications. The PowerFlex 753 platform supports applications up to 400 HP and 270 kW, with the 755 platform extending to higher horsepower ratings.

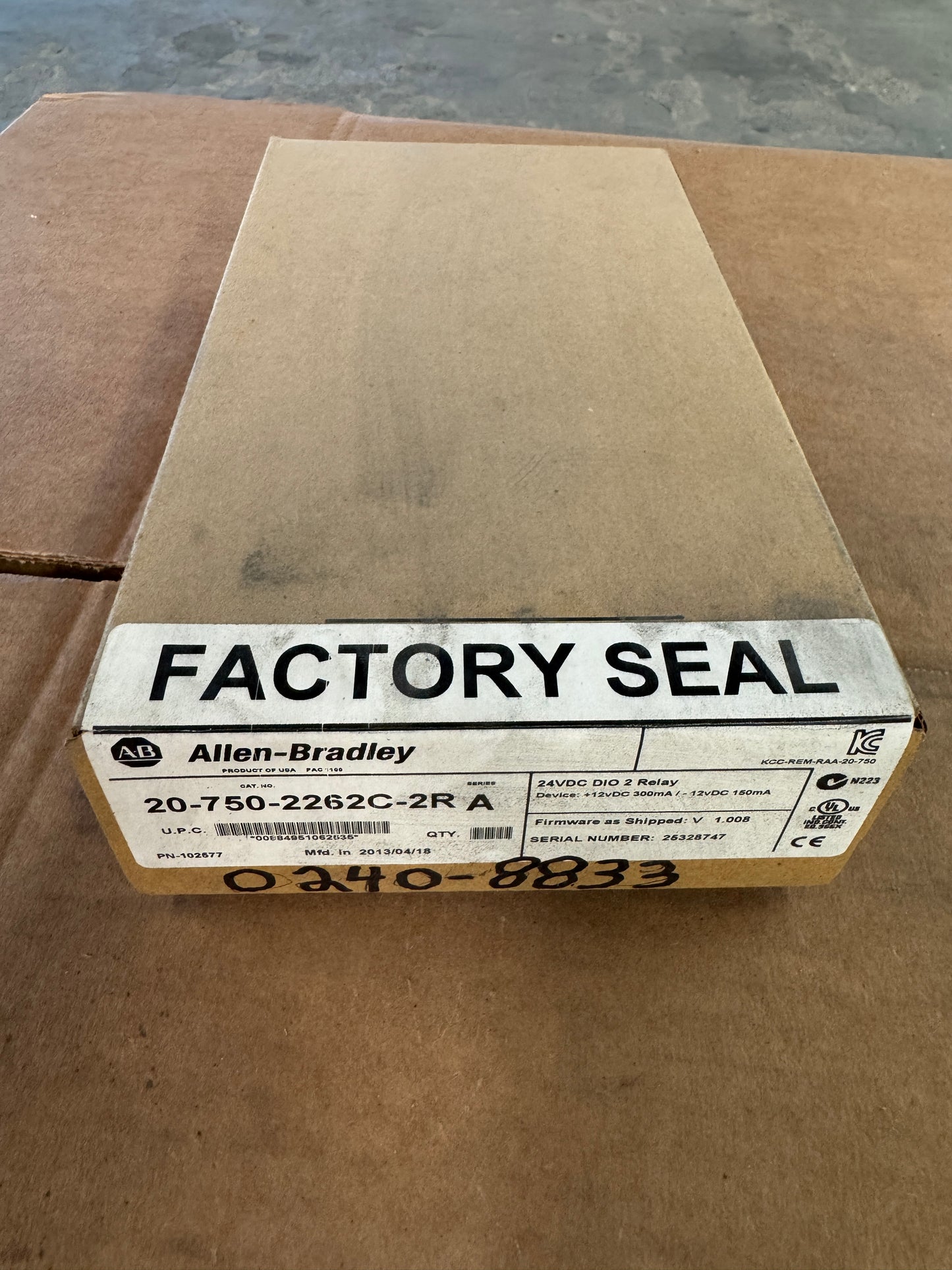

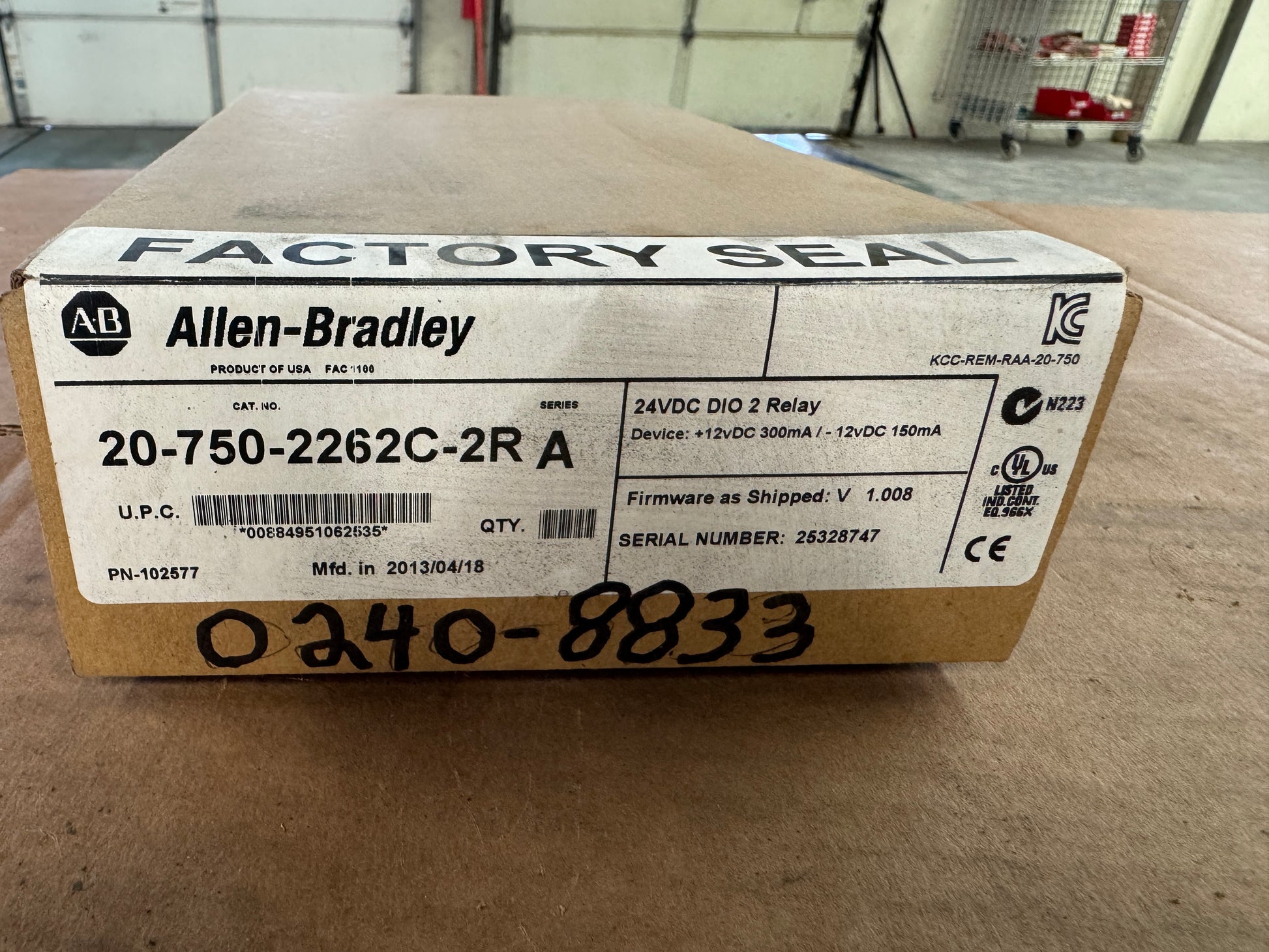

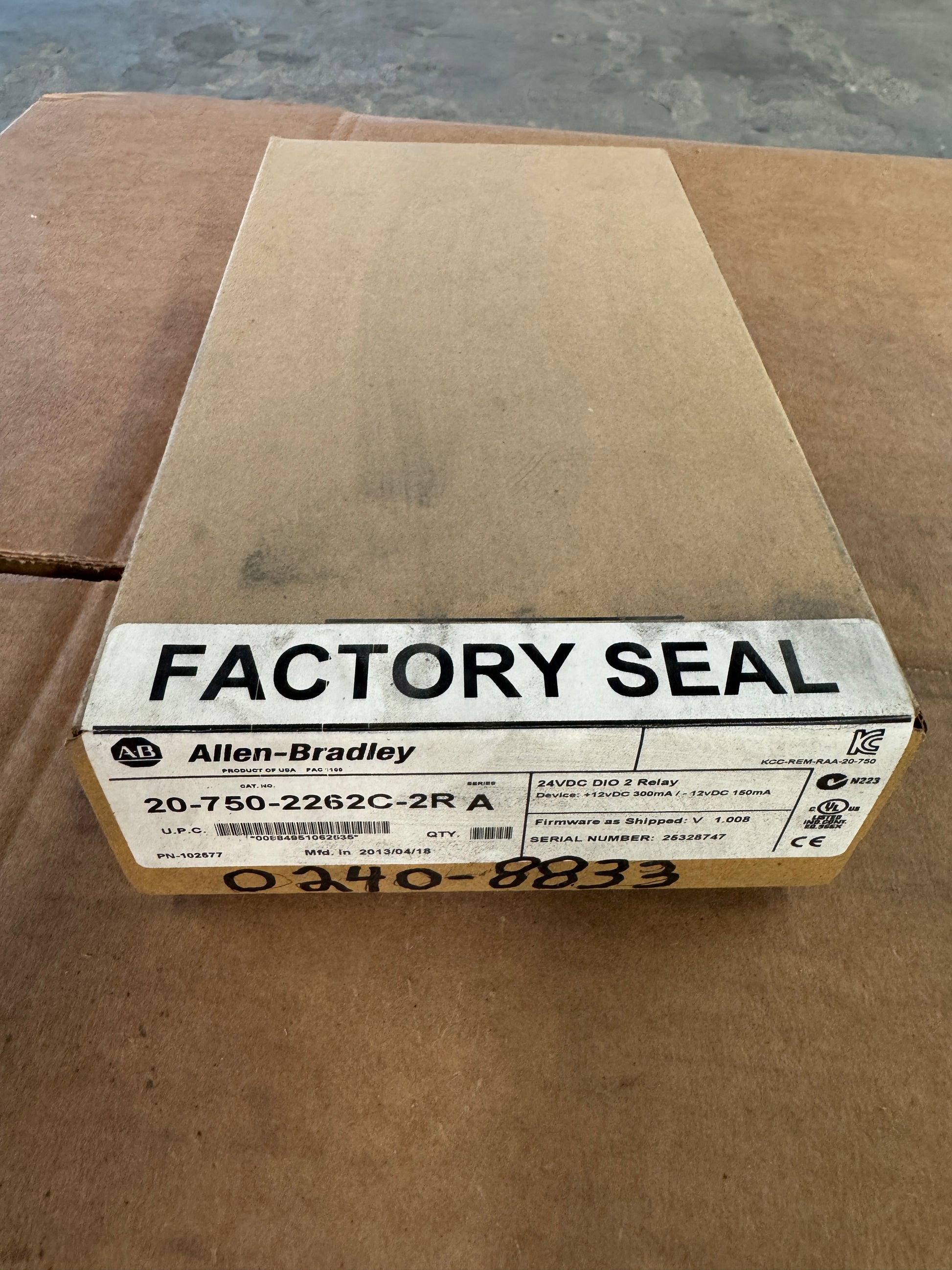

Original Allen-Bradley factory carton with Factory Seal label intact. Catalog number, series designation, firmware revision, and serial number remain readable on the carton label.
Stock # 0526-02337
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
