Allen-Bradley Limit Switch 802T-ALP 24-600V AC

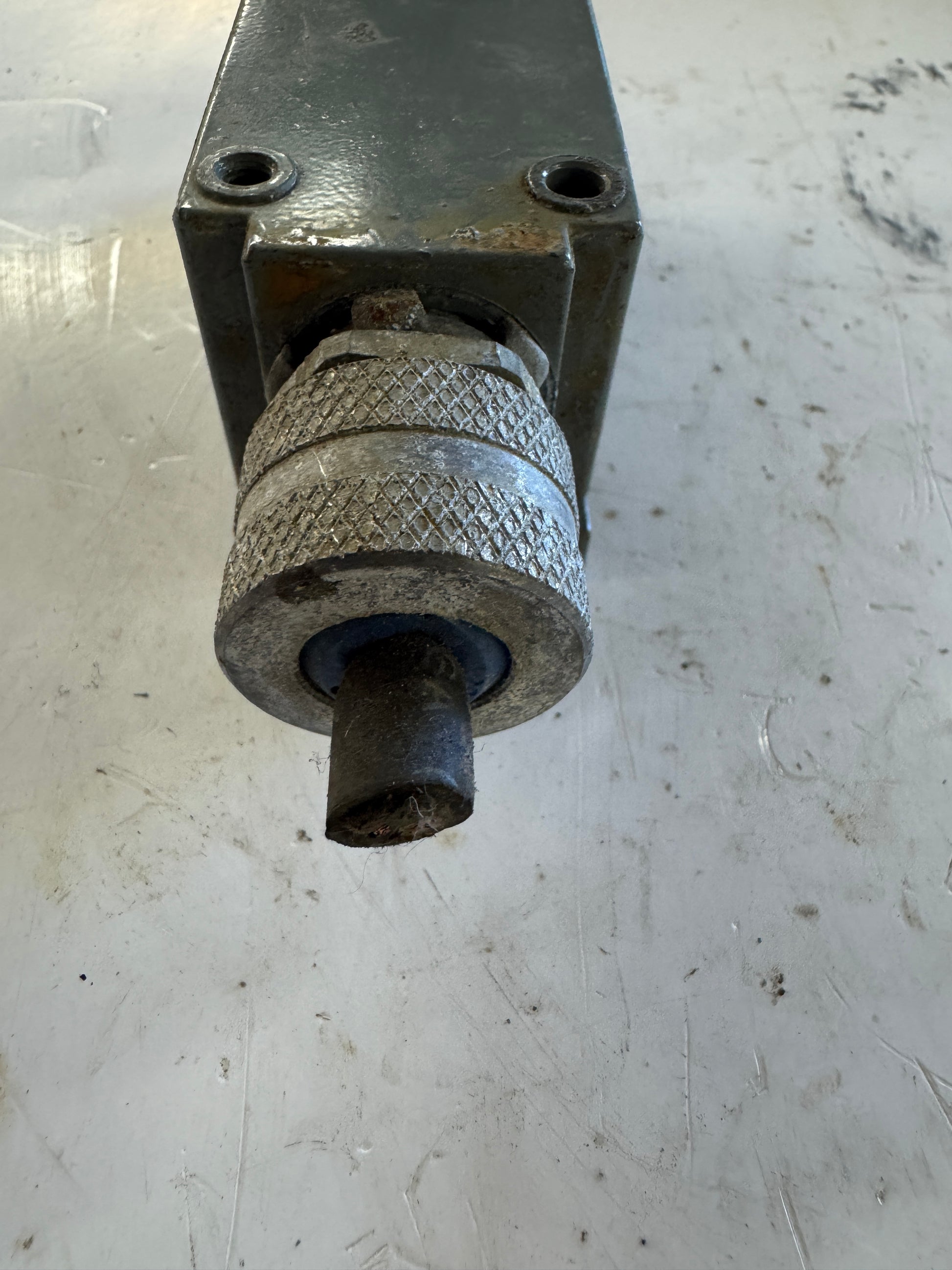

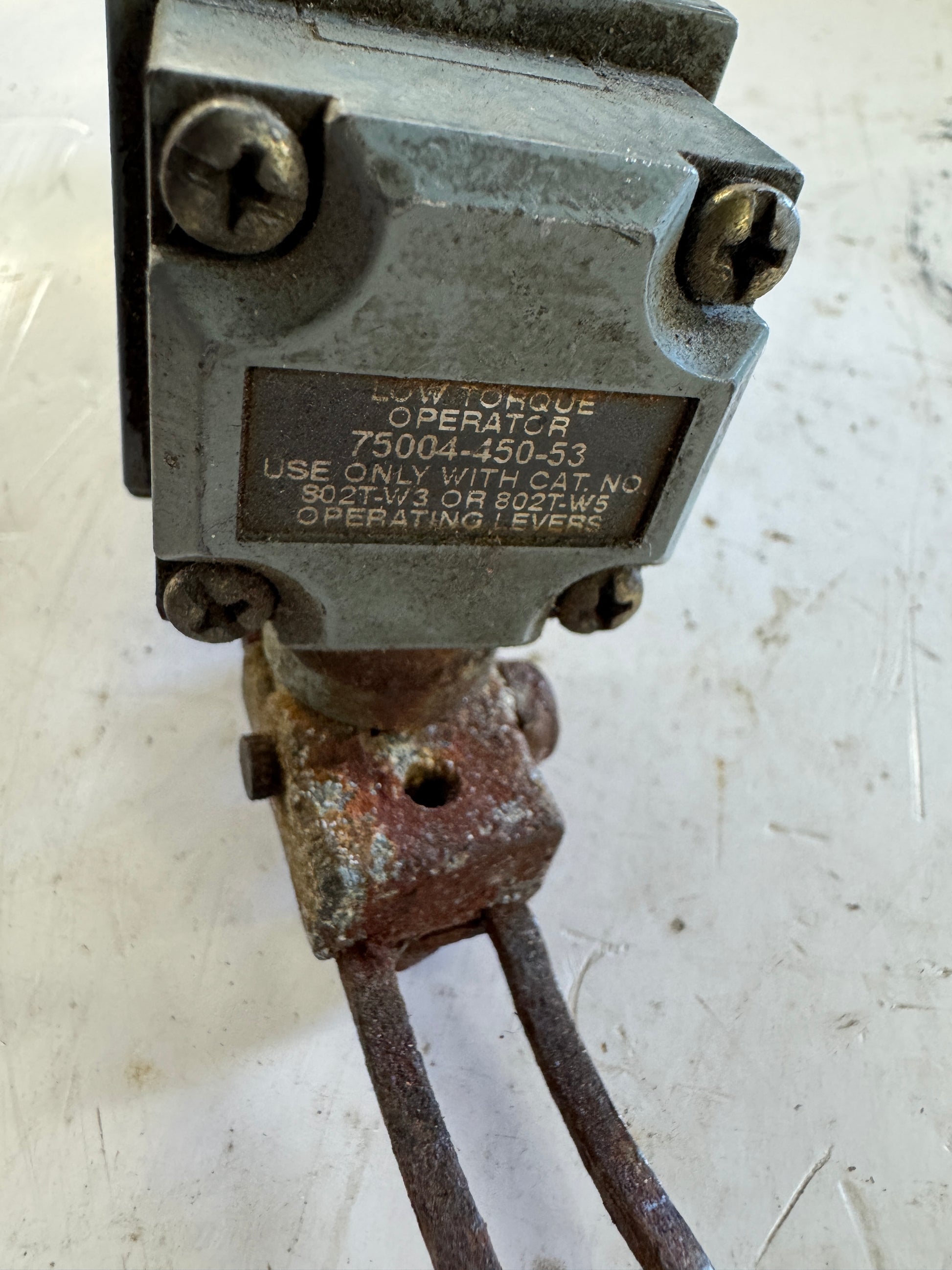

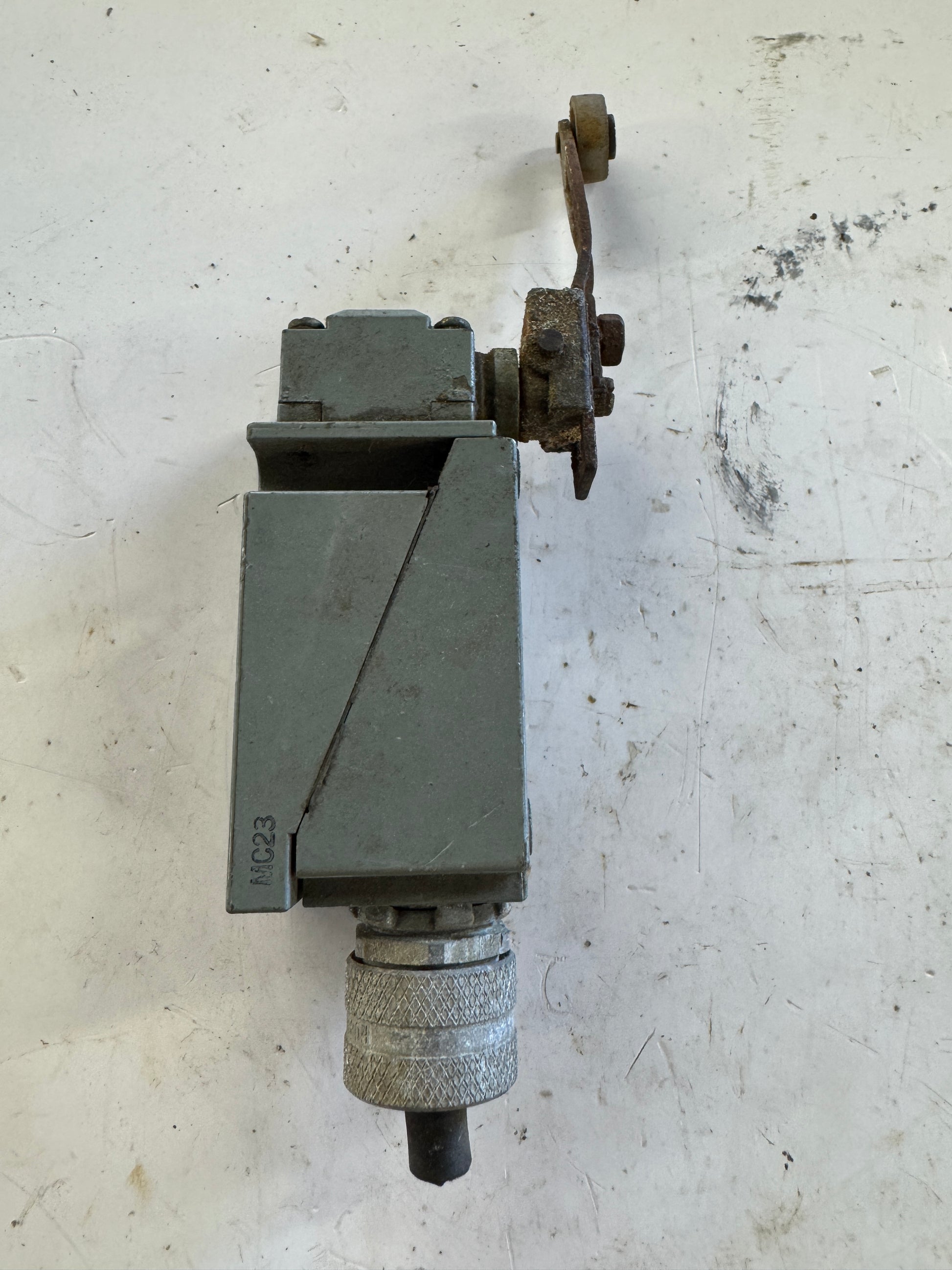

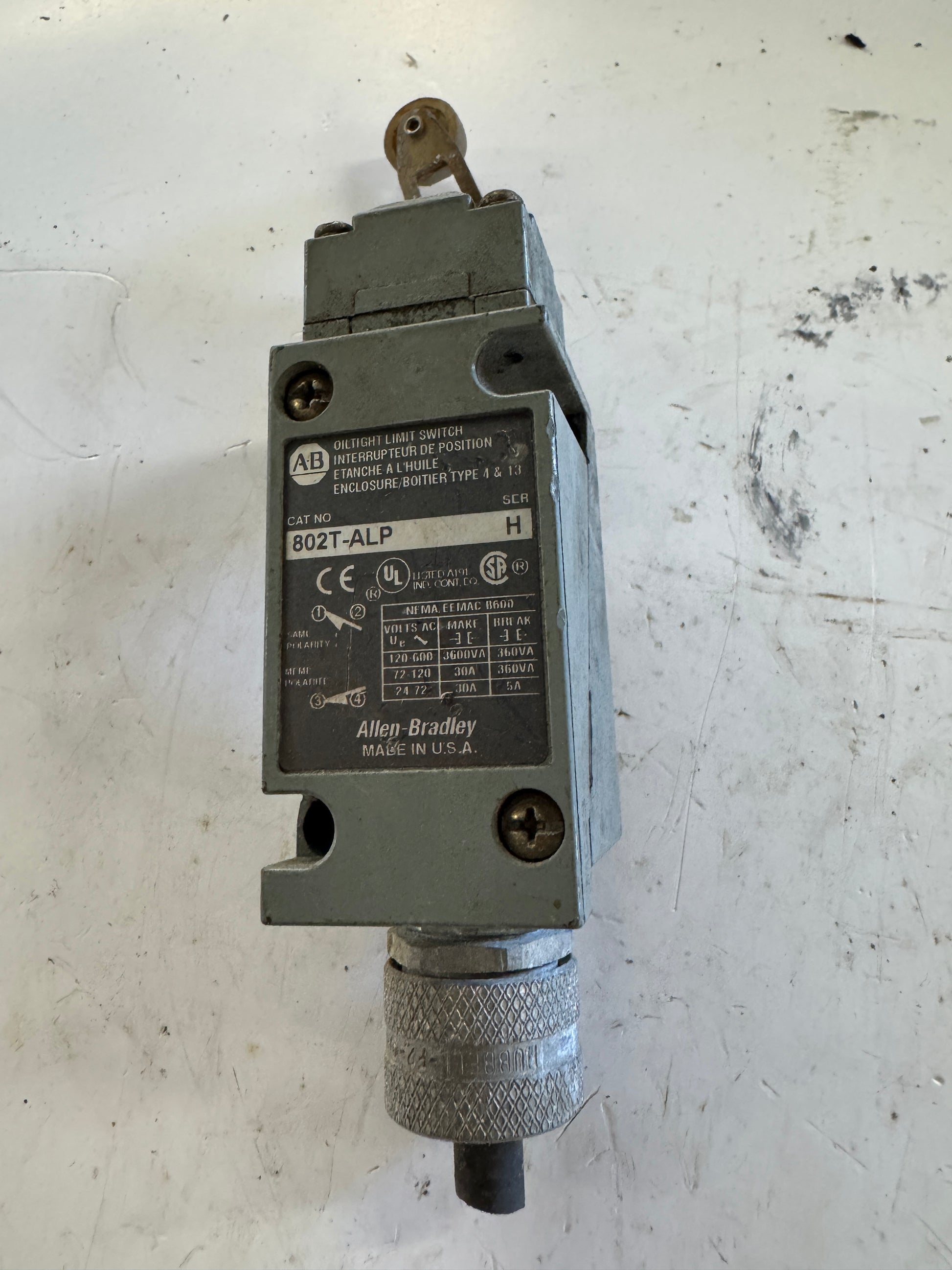

The Allen-Bradley 802T-ALP is a plug-in oiltight rotary limit switch rated for 24 to 600V AC and 10A maximum, built to NEMA Type 4 and 13 enclosure standards. The switch body carries catalog number 802T-ALP, Series H, and is manufactured in the USA. It features a 2-circuit configuration with clockwise and counterclockwise operation and low operating torque. The unit is equipped with the 75004-450-53 low torque operator head, which per the nameplate is compatible with Cat. No. 802T-W3 or 802T-W5 operating levers. A roller lever arm actuator is attached and visible in the photos. The conduit entry uses a knurled metal fitting at the bottom of the switch body. Four mounting screws are present on the switch body. The Allen-Bradley 802T Bulletin series has been widely deployed in industrial machinery, conveyor systems, and automated production equipment for position and travel limit detection. The 802T-ALP plug-in design allows the switch contact block to be replaced without rewiring. Body markings include the Allen-Bradley logo, UL listing mark, CE mark, and NEMA EEMAC B600 rating table. The item is sold as removed surplus and includes the operator head and attached lever assembly. Series H denotes an earlier production run than the current Series J.

Stock # 0426-02062

Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
