Allen-Bradley Magnetic Motor Starter 509-BOD

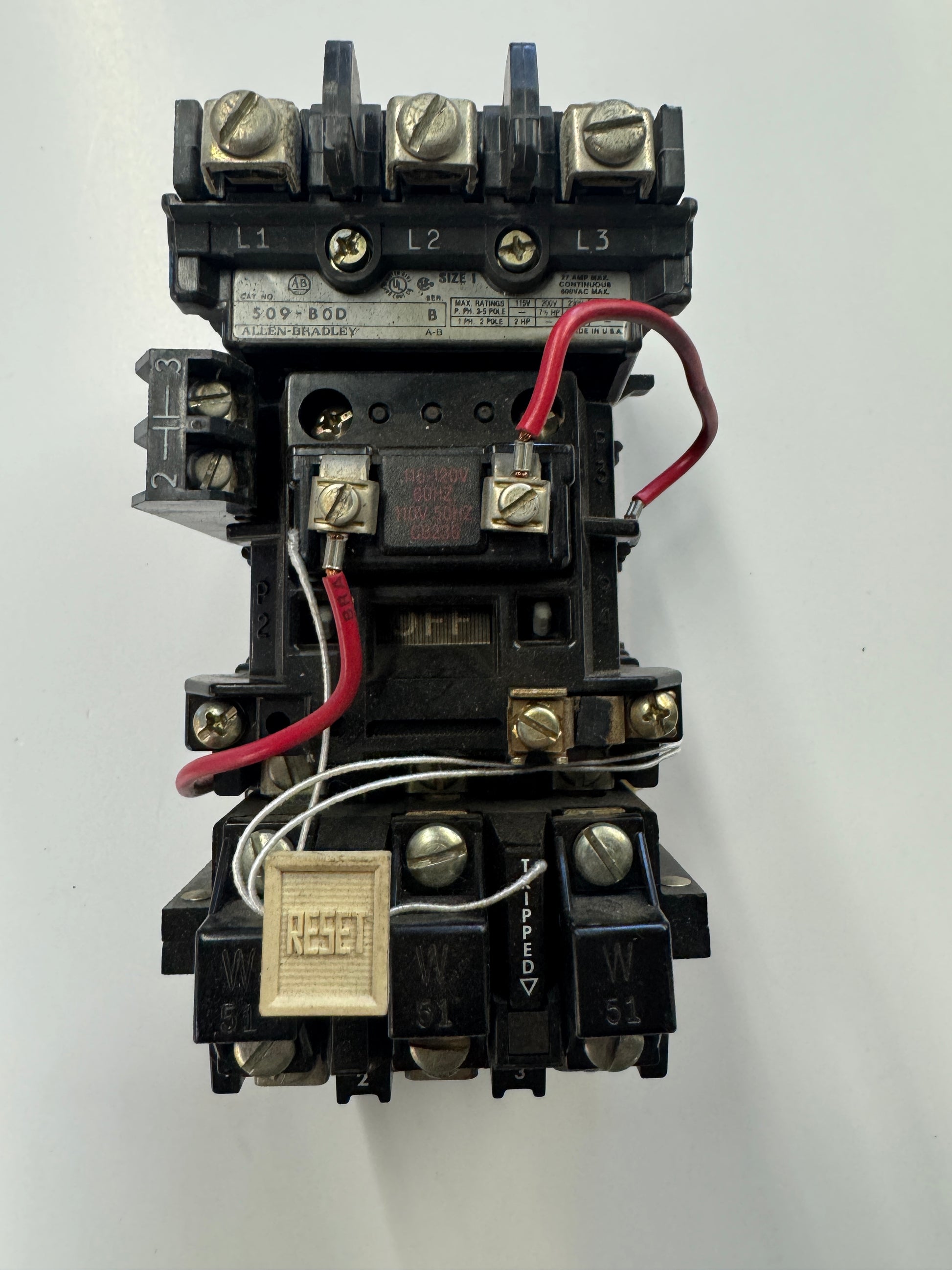

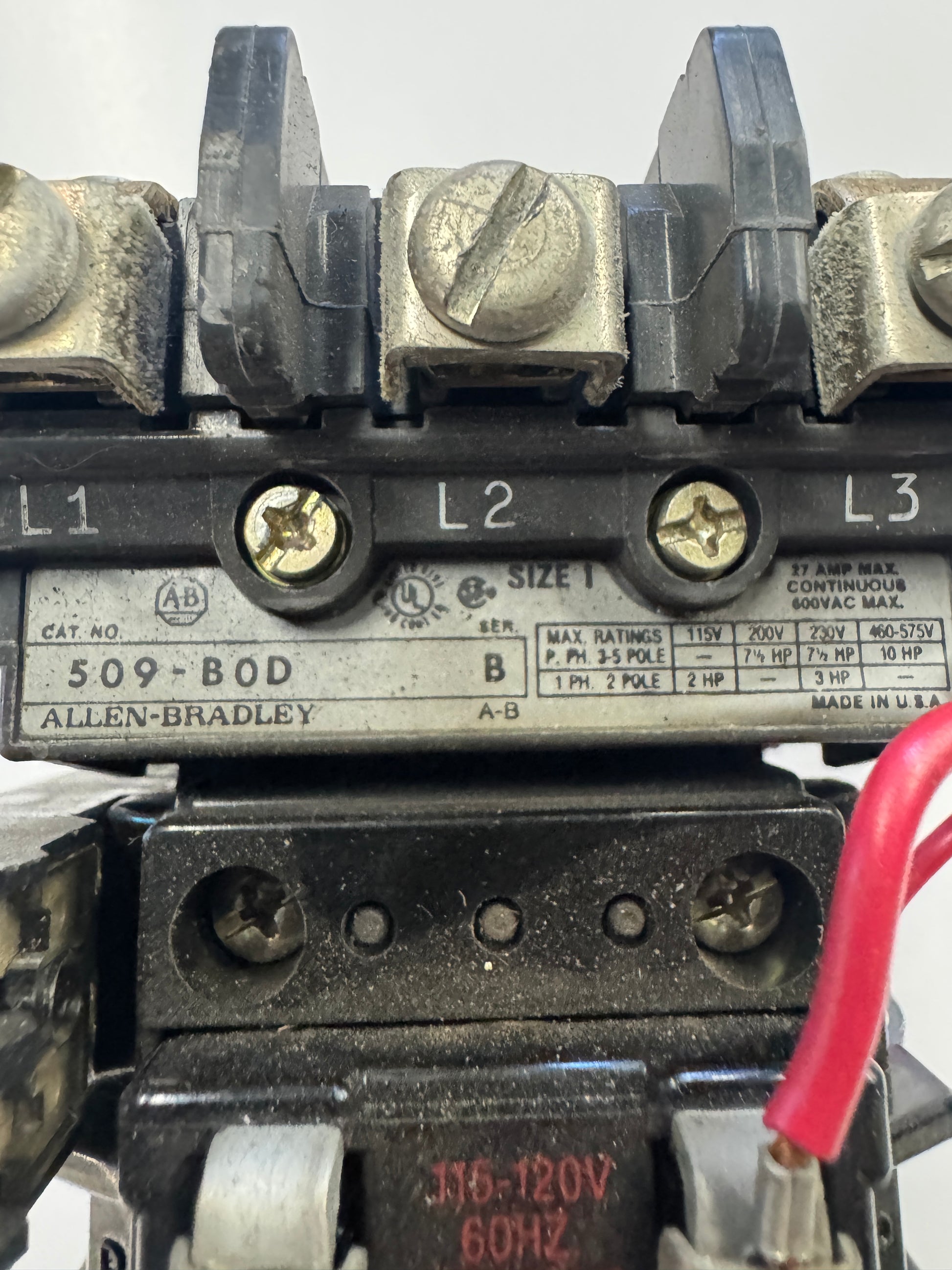

The Allen-Bradley 509-BOD is a NEMA Size 1 full voltage non-reversing magnetic motor starter rated at 27 amps continuous and 600V AC maximum. The catalog number is 509-BOD, Series B, manufactured by Allen-Bradley (A-B) in the USA. The coil voltage visible on the unit is 115-120V at 60Hz, with an alternate rating of 110V at 50Hz. Maximum horsepower ratings per the nameplate are 7.5 HP at 200V and 230V for three-phase 3 to 5 pole operation, 10 HP at 460-575V three-phase, and 2 HP at 115V single phase or 3 HP at 230V single phase. The starter features three main power poles labeled L1, L2, and L3, a manual RESET button on the overload relay, and a TIPPED indicator visible on the overload assembly. An integrated eutectic alloy overload relay is mounted to the assembly. Two short red lead wires are present on the unit. The open-type construction is designed for panel or enclosure mounting and is non-combination, meaning it does not include a fused disconnect. The 509 series is a legacy Allen-Bradley product line that has been discontinued and replaced by more current offerings, which makes surplus units relevant for maintenance, repair, and replacement applications in existing installations.

Stock # 0426-02135

Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
