Allen-Bradley 140G-N6H3-E12-Z1 Molded Case Circuit Breaker 1200A 600V AC 3-Pole
Allen-Bradley 140G-N6H3-E12-Z1 Molded Case Circuit Breaker 1200A 600V AC 3-Pole
Share
Couldn't load pickup availability
✓ 30-day returns on every item — return policy
30-day returns on every item. Photos reflect the actual item’s current condition — see our return policy and condition guide.
Shipping Estimate
⚡ Same-day shipping available — order by 11 am CT ($100 add-on at checkout)
✓ Free domestic UPS Ground shipping — applied automatically at checkout.
- Same-Day Available
- Real support team
- Secure checkout
Product Specifications
- Manufacturer: Allen-Bradley / Rockwell Automation
- MPN / Model: 140G-N6H3-E12-Z1
- Product Type: N-Frame Molded Case Circuit Breaker
- Bulletin: 140G
- Series: A
- Poles: 3
- Current Rating: 1,200A (rating plug N-NS-R, In = 1200A)
- Voltage Rating: 600V AC, 50/60 Hz
- Ambient Rating: 40°C
- Trip Unit: LSI electronic, part CC701012336, trip unit serial 0X021
- Long Time (L): I1 = 0.4 to 1 x In; t1 = 3, 6, 12 or 18 s at 6 x I1
- Short Time (S): I2 = off, 0.6 to 10 x In; t2 = 0.1, 0.25, 0.5 or 0.8 s
- Instantaneous (I): I3 = off, 1.5 to 12 x In
- Neutral Protection (InN): Off, 50%, 100% or 200% x In
- Interrupting Rating (UL 489 / CSA C22.2 No. 5): 100 kA at 240V, 65 kA at 480V, 50 kA at 600V
- Interrupting Rating (IEC 60947-2): Icu 100 kA at 230V, 70 kA at 415V, 65 kA at 440V, 50 kA at 500V, 42 kA at 690V; Ics 100, 70, 65, 50 and 32 kA respectively
- Termination: Cu/Al 75°C only, wire range 4/0 to 500 kcmil, torque 380 lb-in, terminal lugs 140G-N-TLC43 / 140G-N-TLA43
- Type: HACR
- Certifications: UL Listed E107878, CSA LR1234 / 259041, CE, CCC, EAC
- Part Number: PN-D12687
- Date Code: Week 29, 2022
- Country of Origin: Italy
- Condition: Open Box - Unused
Product Description
The Allen-Bradley 140G-N6H3-E12-Z1 is a Bulletin 140G N-Frame molded case circuit breaker, three pole, rated 1,200A at 600V AC, 50/60 Hz, with a 40°C ambient rating. The rating plug is an N-NS-R at In = 1200A. UL 489 and CSA C22.2 No. 5 interrupting ratings are 100 kA at 240V, 65 kA at 480V and 50 kA at 600V. Under IEC 60947-2 the nameplate lists Icu of 100, 70, 65, 50 and 42 kA at 230, 415, 440, 500 and 690V, with Ics of 100, 70, 65, 50 and 32 kA at the same voltages.

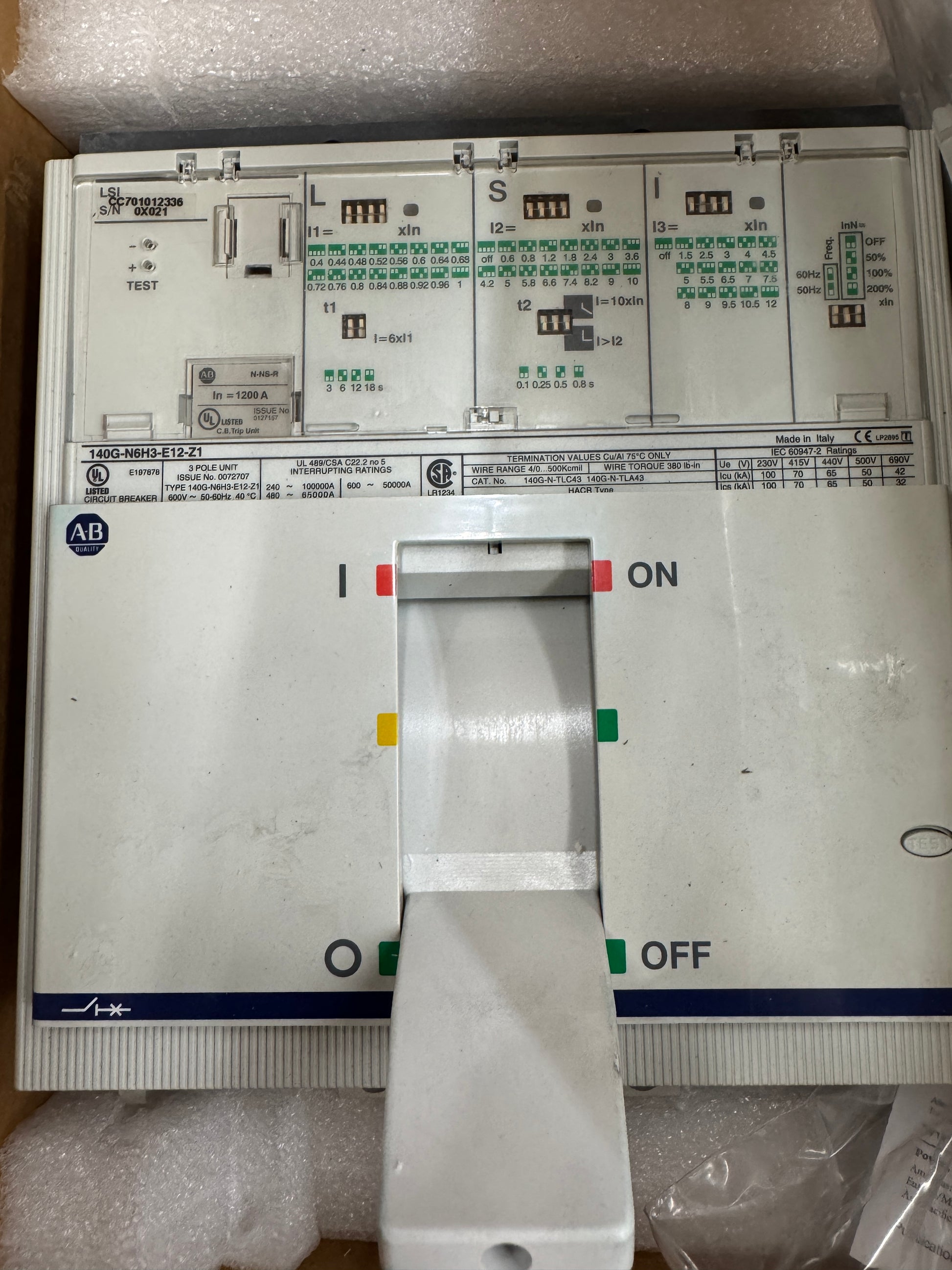

Protection is by an electronic LSI trip unit, part number CC701012336, trip unit serial 0X021. The front face carries DIP switch adjustment for long time pickup from 0.4 to 1 times In with a delay of 3, 6, 12 or 18 seconds at six times the setting; short time pickup from off through 0.6 to 10 times In with a delay of 0.1, 0.25, 0.5 or 0.8 seconds; and instantaneous pickup from off through 1.5 to 12 times In. Neutral protection is selectable at off, 50%, 100% or 200% of In, and the trip unit has a 50/60 Hz frequency selector and a test port.
Terminations are rated for Cu/Al conductors at 75°C only, with a wire range of 4/0 to 500 kcmil and a torque specification of 380 lb-in. The matching terminal lug catalog numbers shown on the nameplate are 140G-N-TLC43 and 140G-N-TLA43. The breaker is HACR type and carries UL file E107878, CSA LR1234, CE, CCC and EAC marks.

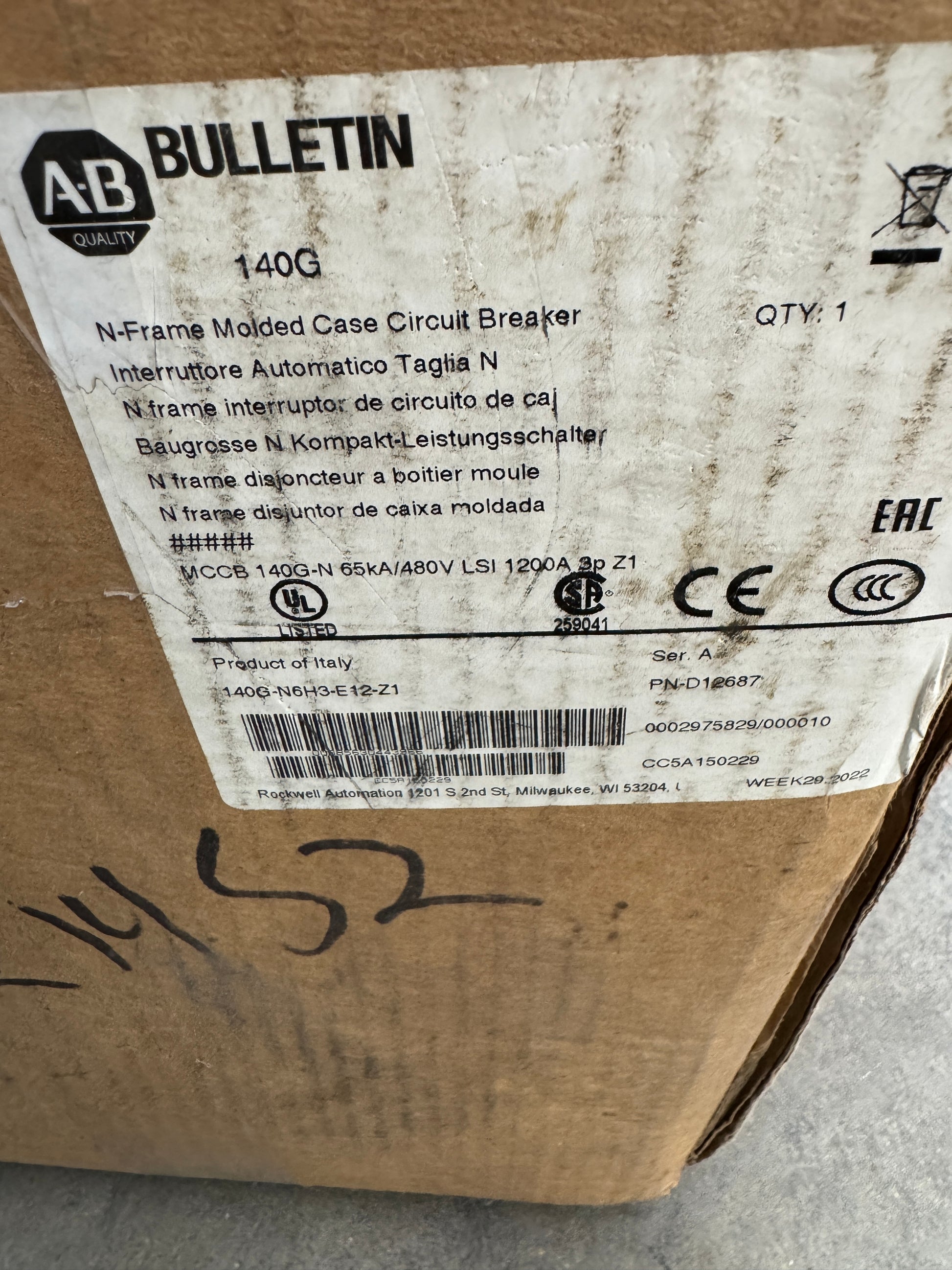

The box label identifies part number PN-D12687, Series A, week 29 of 2022 production, product of Italy for Rockwell Automation. The outer carton has been opened; the breaker remains in its sealed inner packaging with foam in place, and the original installation instruction sheet and terminal hardware kit are included as pictured.
Buyers matching this breaker for replacement or spare inventory should confirm the catalog number, the rating plug, the trip unit part number and the required interrupting rating against their existing installation.
Stock # 0526-02196
Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
