Allen-Bradley Motor Starter 509-BOD

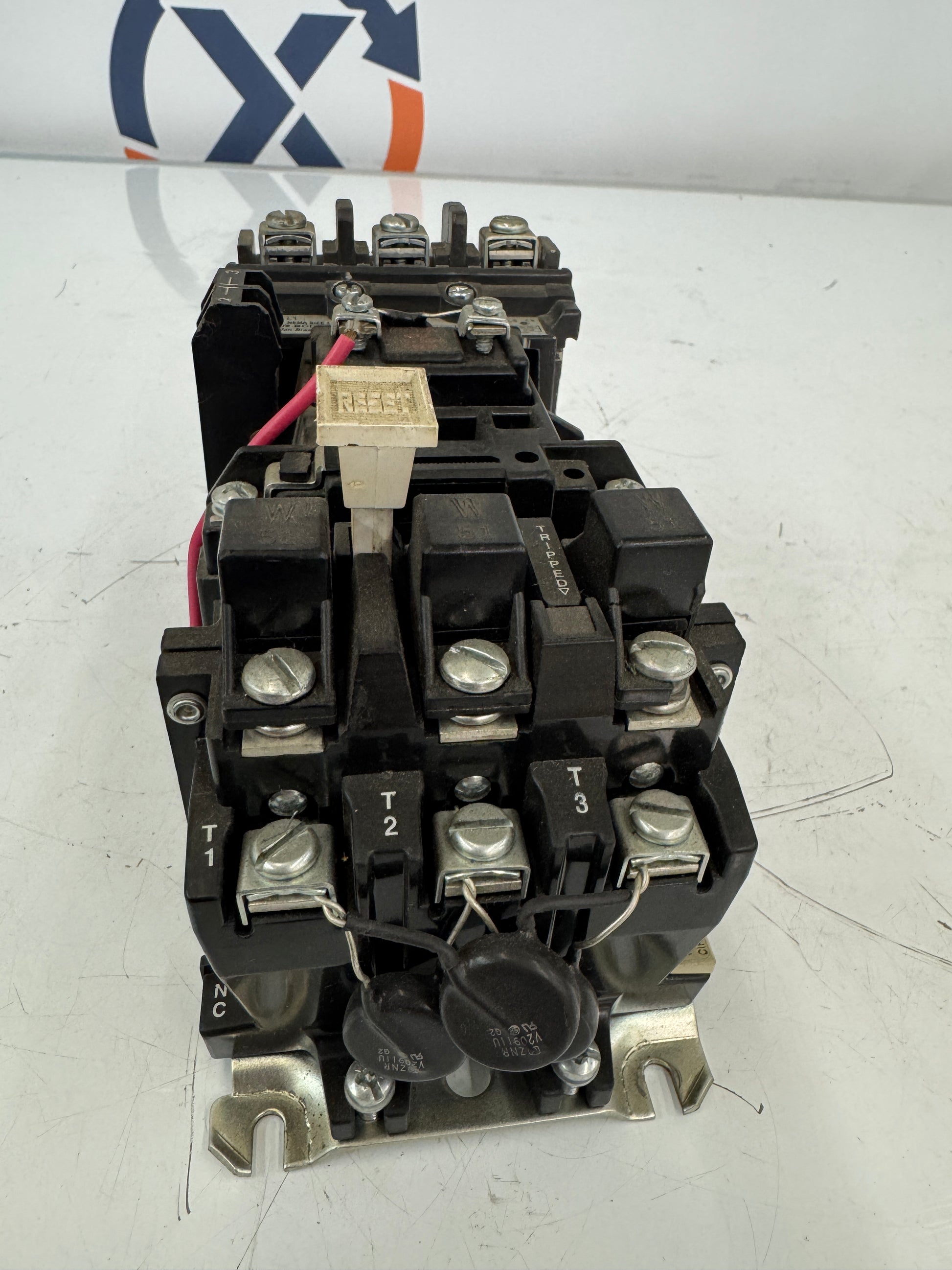

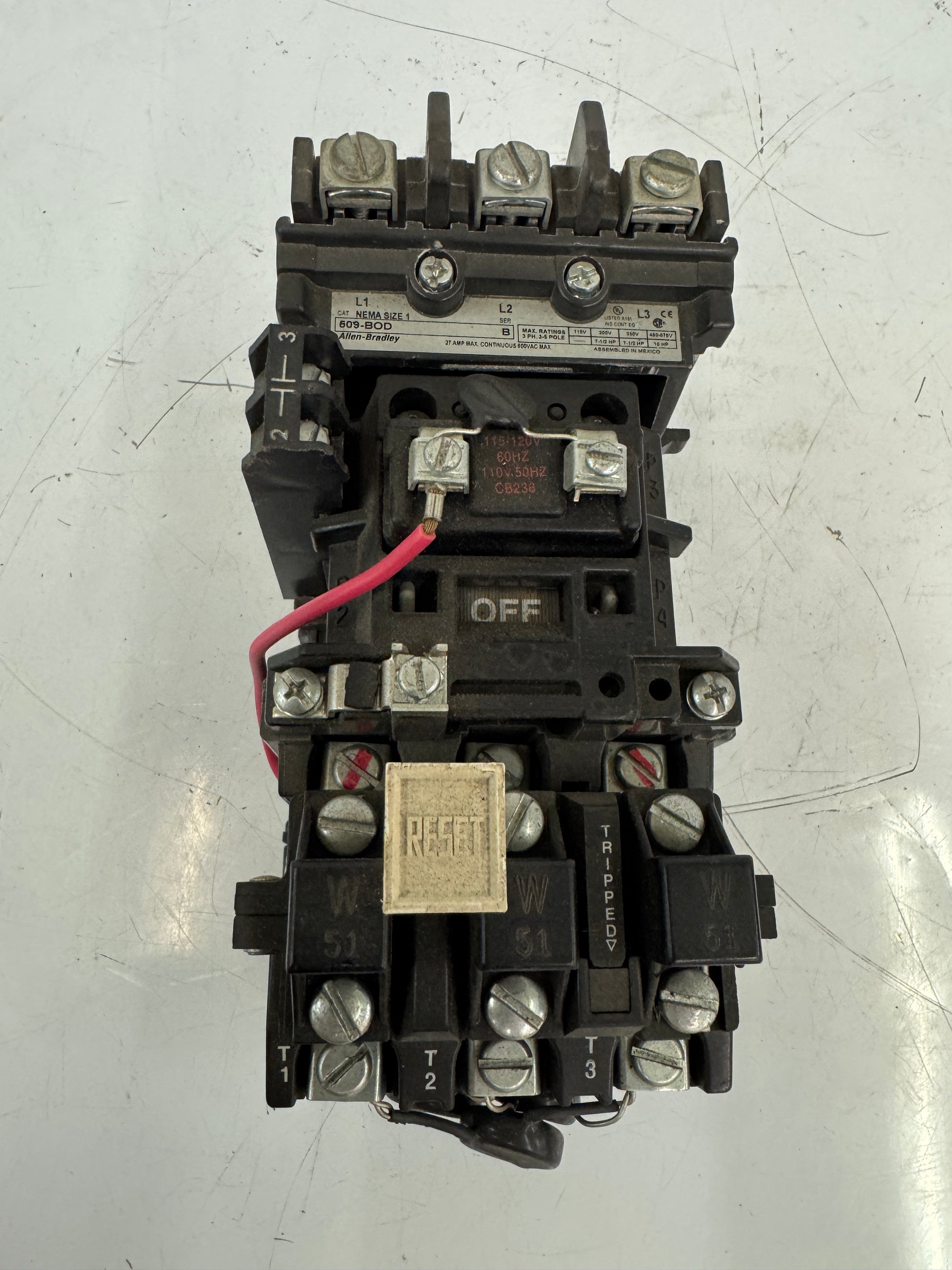

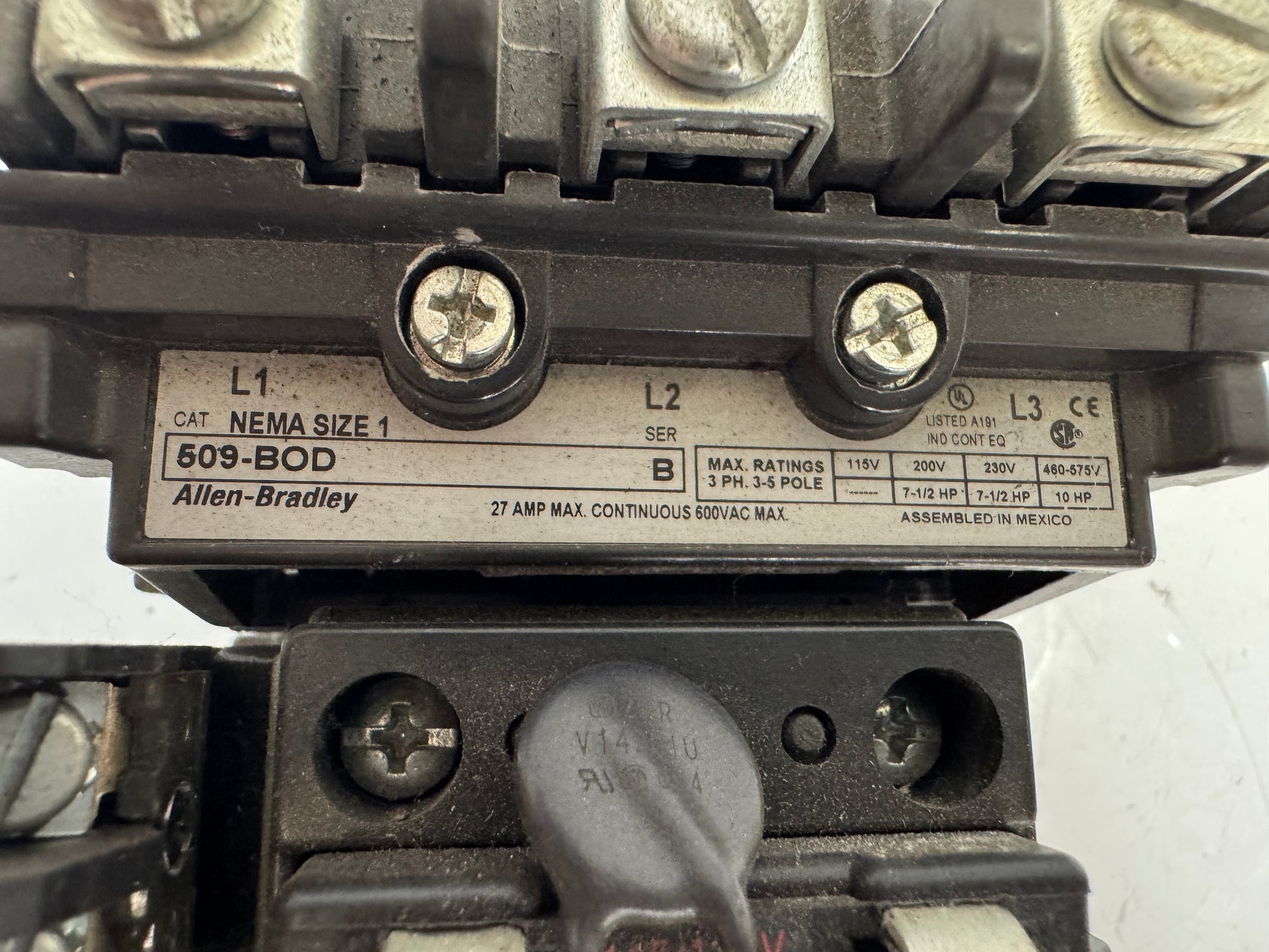

Used in motor control centers and standalone motor control applications, the Allen-Bradley 509-BOD is a NEMA Size 1 full voltage non-reversing motor starter rated at 27 amps continuous, 600VAC maximum. The catalog number 509-BOD designates an open-type, non-combination unit without enclosure, designed for 3-phase, 3 to 5 pole applications. This example is Series B and is equipped with a eutectic alloy overload relay and a CB236 coil rated at 115-120V at 60Hz and 110V at 50Hz. A 595-A auxiliary contact block is visible mounted to the side of the starter body. Output terminals are labeled T1, T2, and T3; input terminals are labeled L1, L2, and L3. Maximum ratings for 3-phase operation are 7.5 HP at 200V or 230V and 10 HP at 460 to 575V. The unit includes a manual reset button and a TRIPPED indicator on the overload relay assembly. Assembled in Mexico per the nameplate. The 509-BOD is part of Allen-Bradley's Bulletin 509 line of NEMA full voltage starters and is compatible with standard MCC bucket configurations for Size 0 through Size 5.

Stock # 0226-339

Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
