Allen-Bradley Motor Starter 709-TOD103
Allen-Bradley Motor Starter 709-TOD103
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 709-TOD103
Stock #: 0526-02139

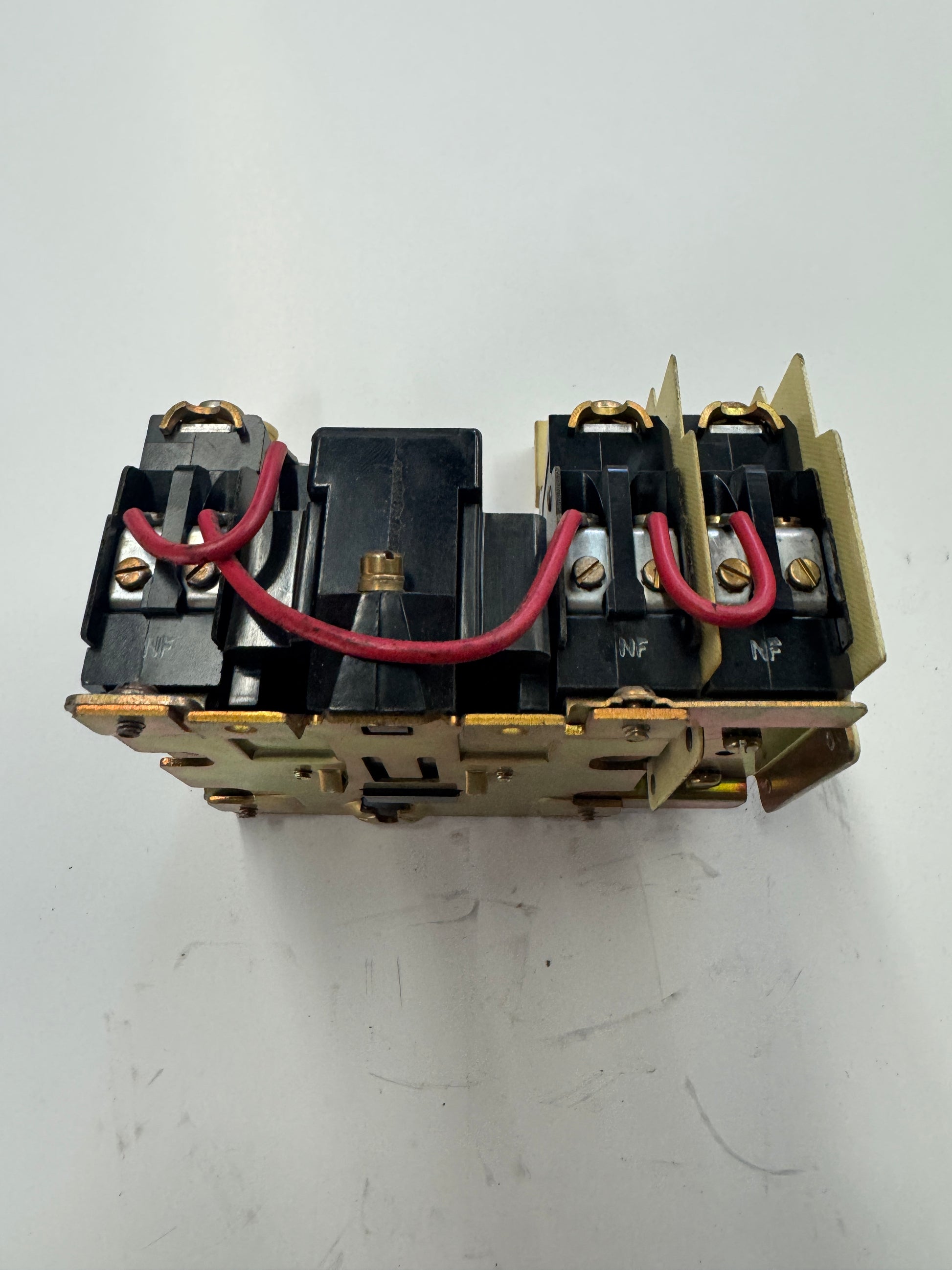

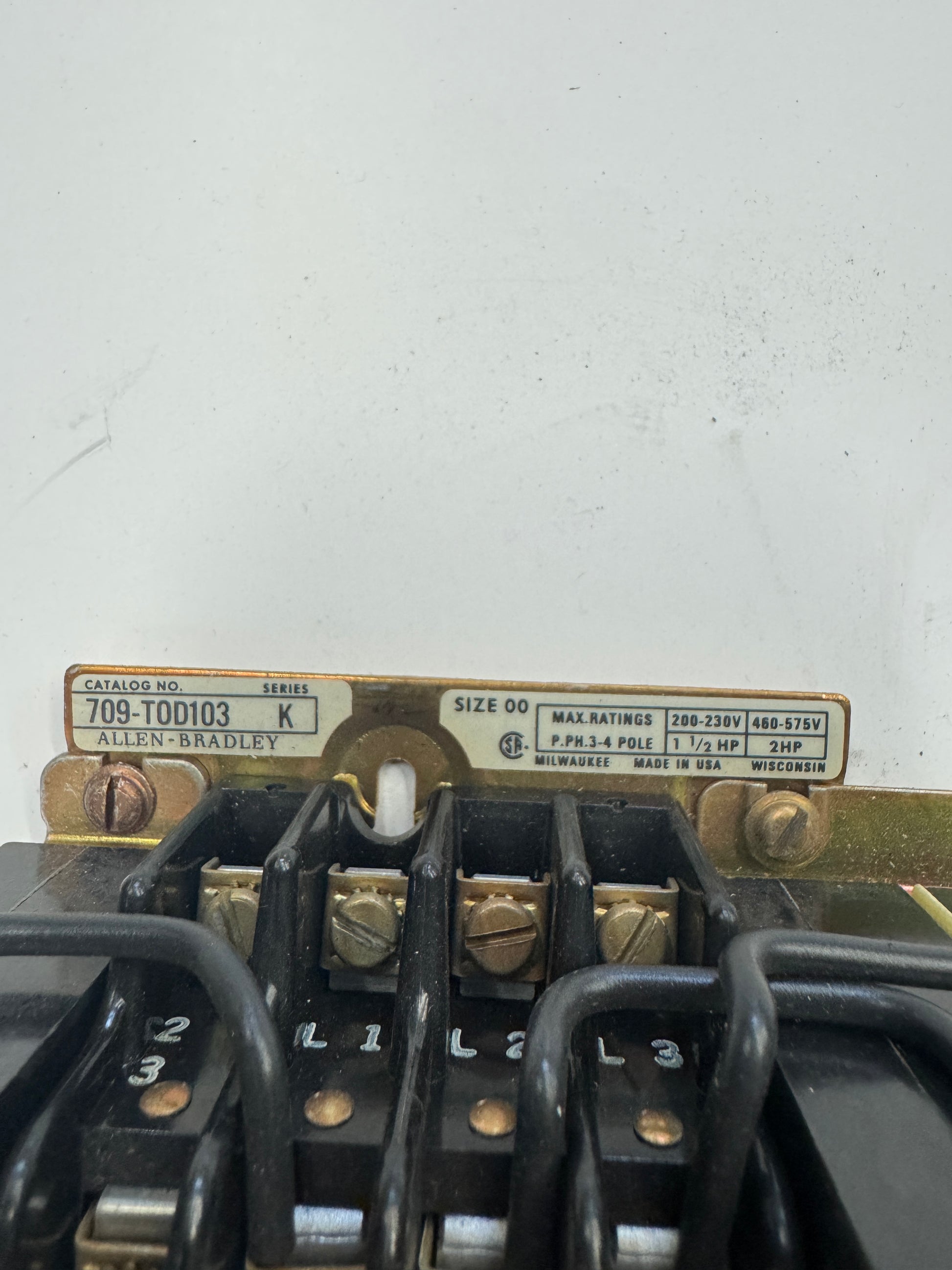

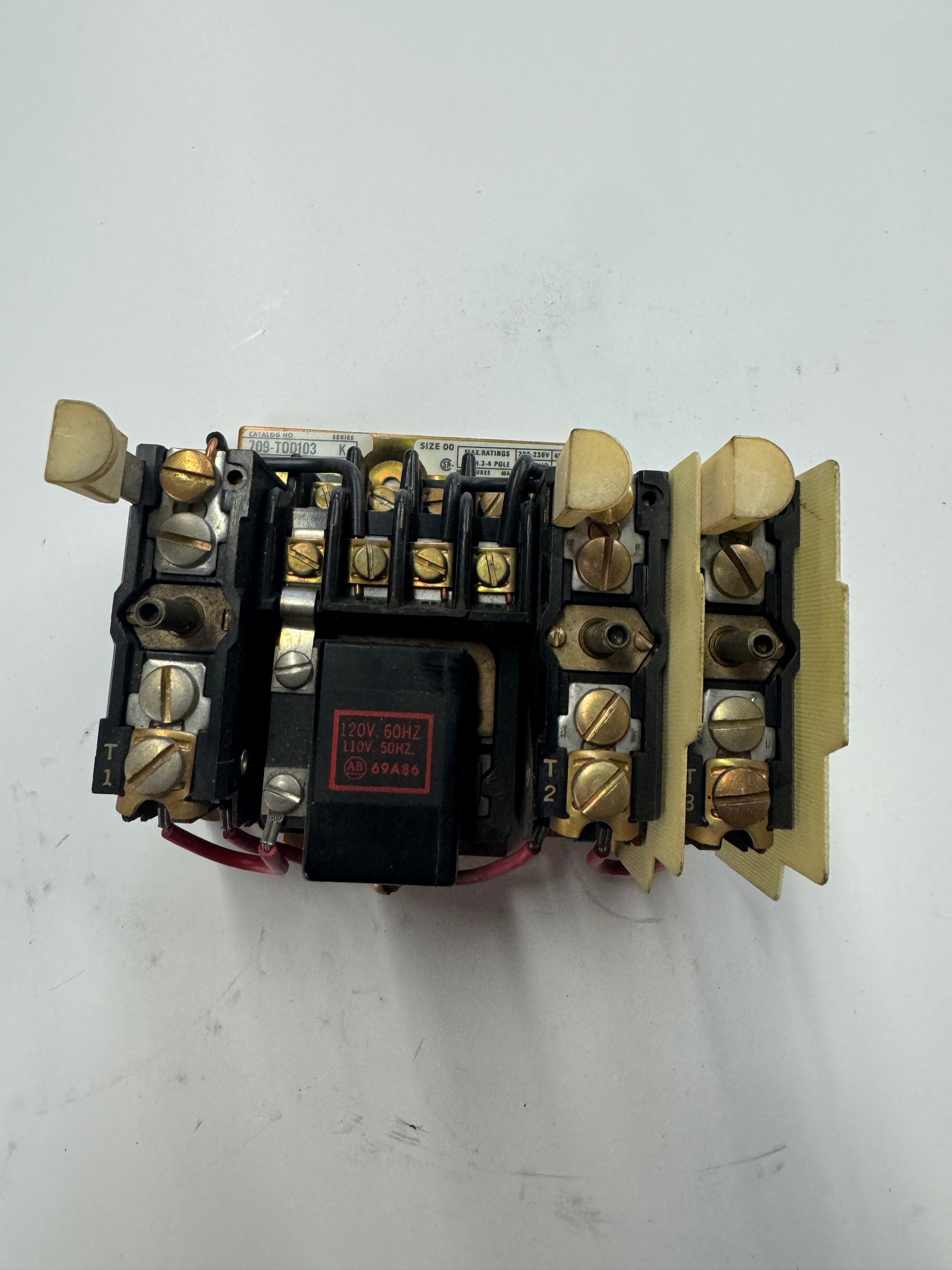

Used in industrial motor control applications, the Allen-Bradley 709-TOD103 is a NEMA Size 00 full-voltage across-the-line AC magnetic motor starter from the Bulletin 709 series. The catalog number 709-TOD103 identifies a Type T enclosed configuration with Series K revision. The coil module, marked 69A86, is rated 120V at 60Hz and 110V at 50Hz. Power circuit ratings are 200-230V at 1.5 HP and 460-575V at 2 HP for poly-phase 3-4 pole applications. Terminal markings L1, L2, L3 on the line side and T1, T2, T3 on the load side are visible on the assembly. Three overload relay blocks labeled NF are present and interconnected with factory red jumper wiring. The unit was manufactured by Allen-Bradley in Milwaukee, Wisconsin, USA and carries CSA certification as indicated on the nameplate. Heater elements are not included and condition of the overload elements should be verified prior to installation. Removed from service as industrial surplus; functionality has not been verified.
Stock # 0426-02139
Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
