Allen-Bradley NEMA Eutectic Alloy Overload Relay 592-JOV16 120 to 600 VAC
Allen-Bradley NEMA Eutectic Alloy Overload Relay 592-JOV16 120 to 600 VAC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

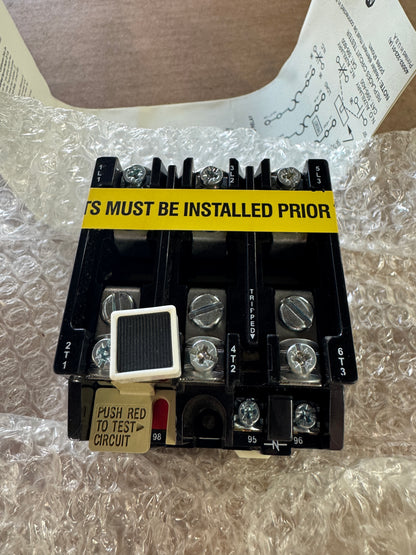

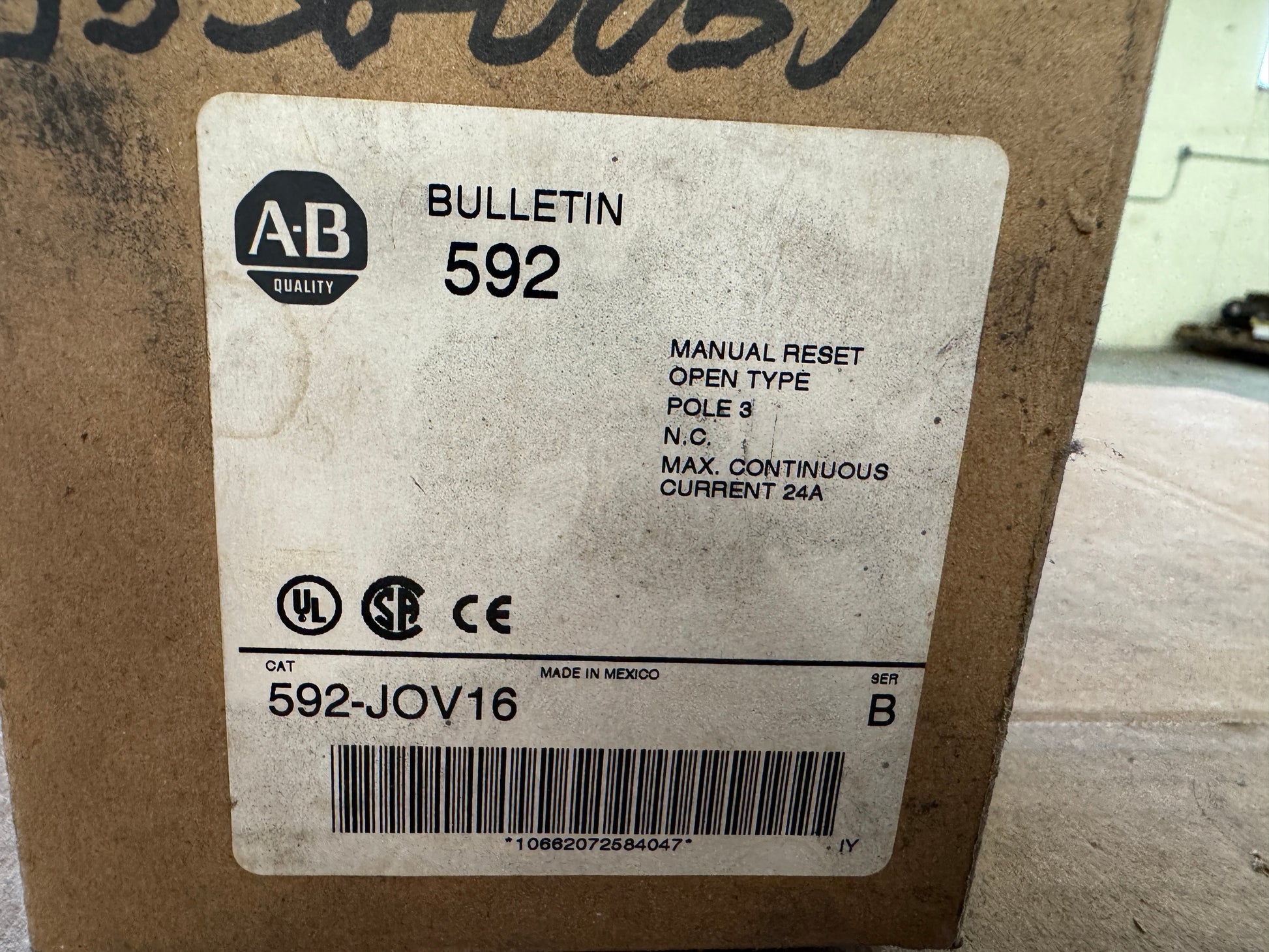

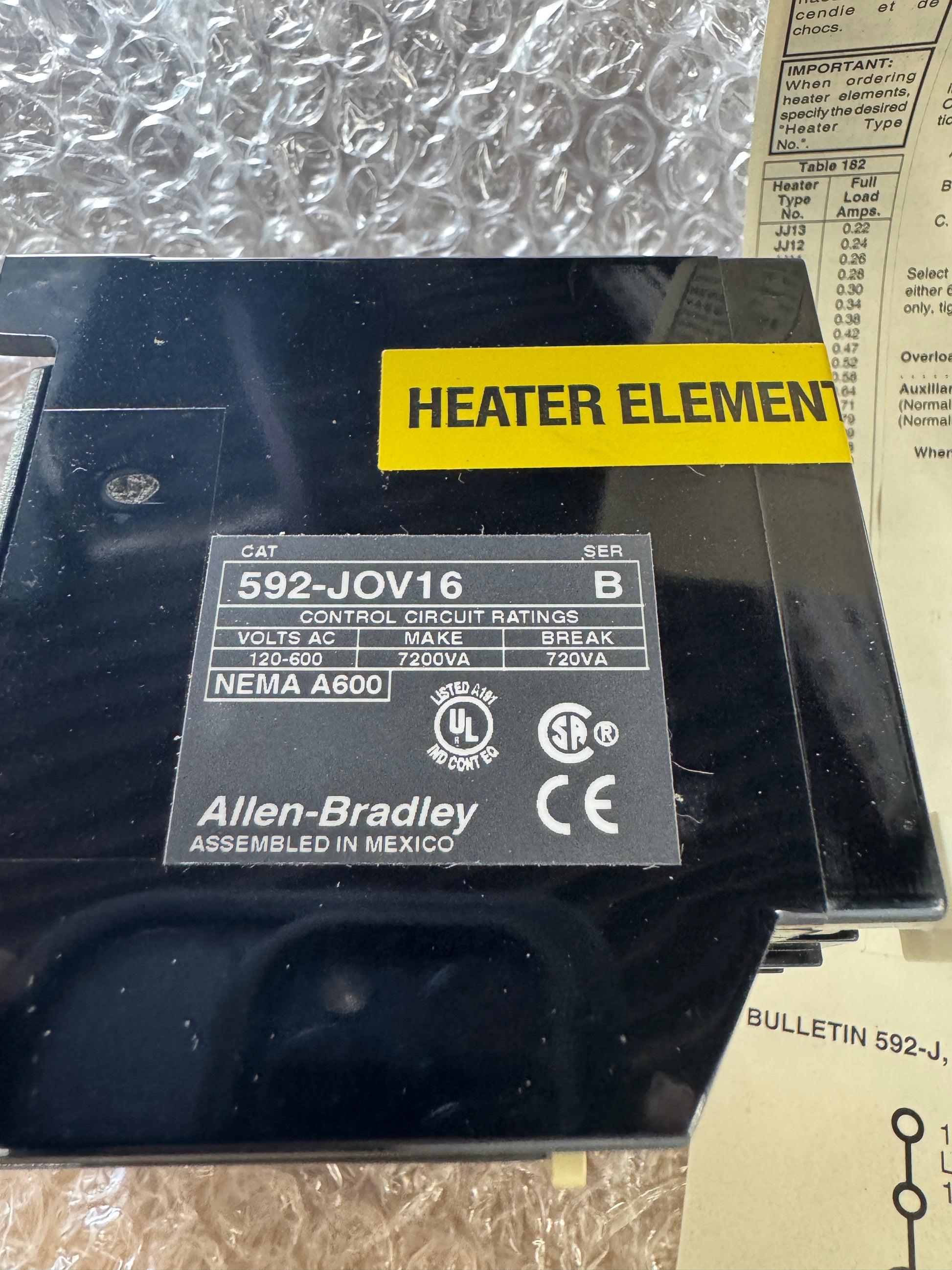

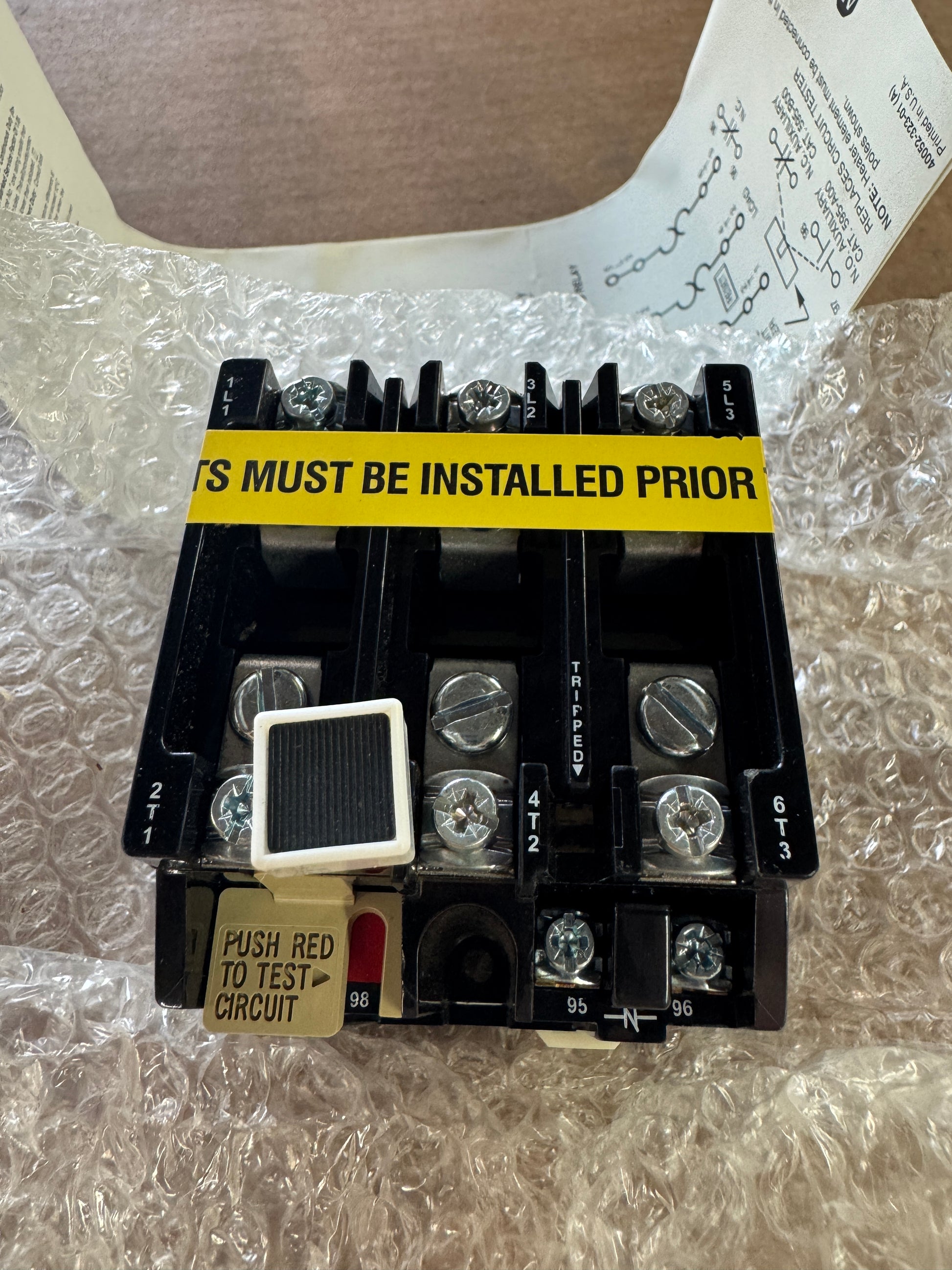

The Allen-Bradley 592-JOV16 is a Bulletin 592 NEMA eutectic alloy overload relay rated for 24 amps maximum continuous current across three poles. Series B. This open type relay features manual reset operation and is intended for panel mounting alongside NEMA Size 00 Series B and D Bulletin 500 line starters, or as a separate panel mount component. The unit carries one normally closed auxiliary contact and is configured for use with the heater element shown in the listing photos. Control circuit ratings are NEMA A600, with an input voltage range of 120 to 600 VAC, make rating of 7200 VA, and break rating of 720 VA. Terminal connections are screw type, labeled 1L1, 3L2, 5L3 on the line side and 2T1, 4T2, 6T3 on the load side. Auxiliary contact terminals are marked 95, 96, and 98. The unit includes a visible trip indicator and a "Push Red to Test Circuit" function for verifying overload trip operation. Certifications include UL Listed, CSA, and CE. Assembled in Mexico. Suitable for use as a thermal overload protection component in motor control circuits where overcurrent protection is required for motor windings and associated wiring. Catalog number 592-JOV16, Series B, UPC 662072584040.
Stock # 0526-02345
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
