Allen-Bradley 1762-OB16 MicroLogix Digital Output Module 24V DC Factory Sealed

$299.00 USD

Sale Sold out

ConditionSurplus Original Packaging MPN1762-OB16 Stock #0526-02236

Photos reflect current condition. Items differing from description may be eligible for return or refund — see our condition guide.

Shipping Estimate

Estimated package weight: 5.0 lbs

Select your state above for a shipping estimate.

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

The Allen-Bradley 1762-OB16 is a 16 point digital output module from the MicroLogix 1200 expansion I/O family, identified by Catalog Number 1762-OB16, Bulletin 1762, Series A, Revision B. The nameplate confirms a sourcing output configuration rated for 24VDC operation, providing sixteen discrete output points for interfacing with DC loads such as solenoids, indicators, contactors, and small actuators in compact PLC applications.

Built for use with MicroLogix 1200 controllers, the module mounts to the controller bus via the integrated expansion connector and operates in conjunction with the host processor's I/O addressing. Source output configuration supplies positive voltage to the connected load when the output point is energized, making it suitable for systems wired with a common DC return.

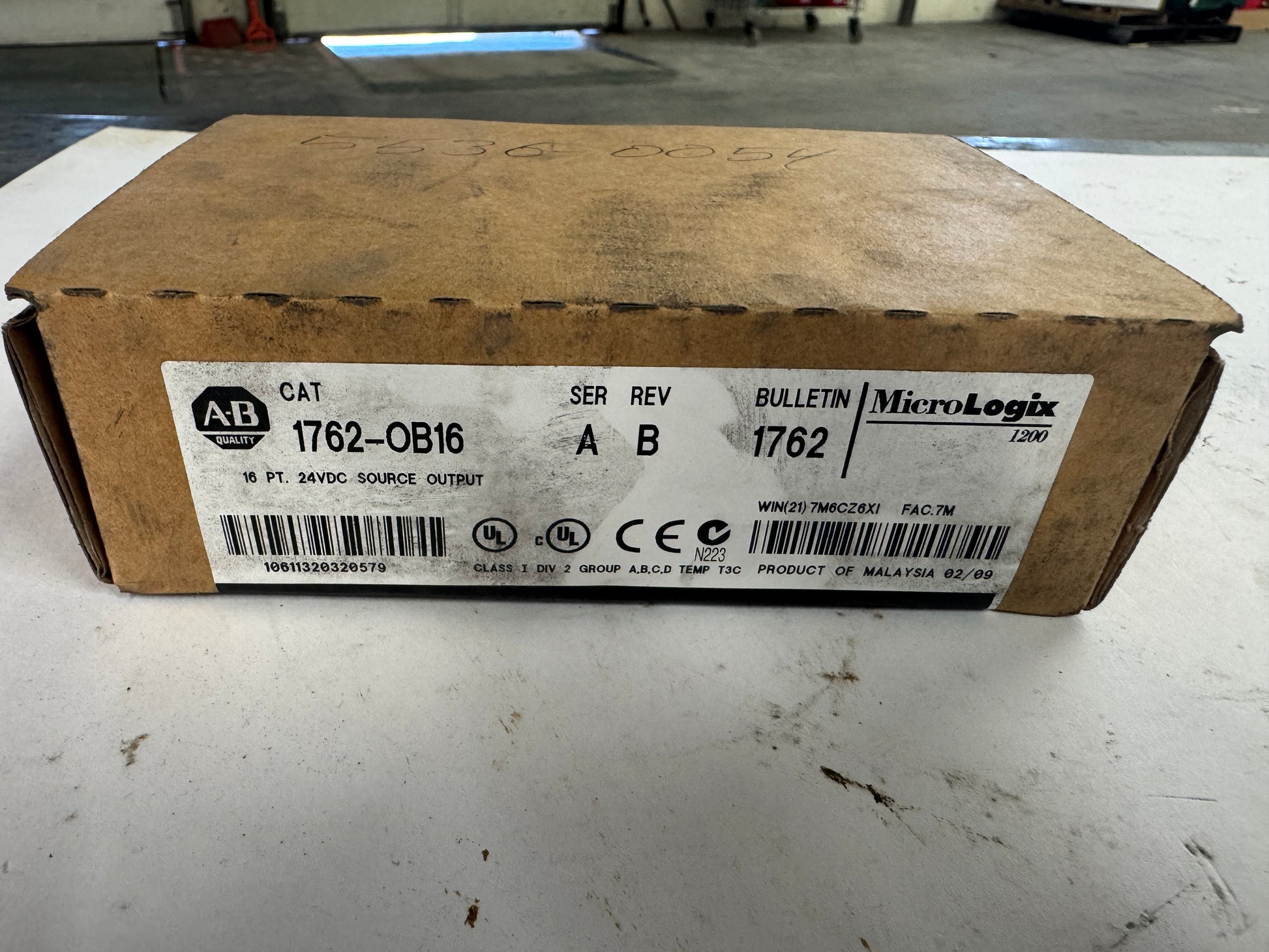

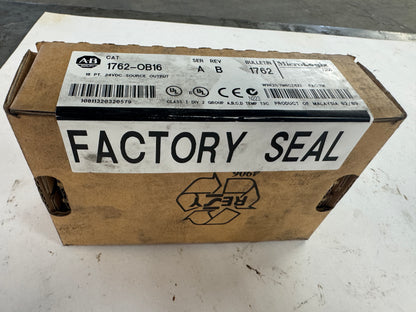

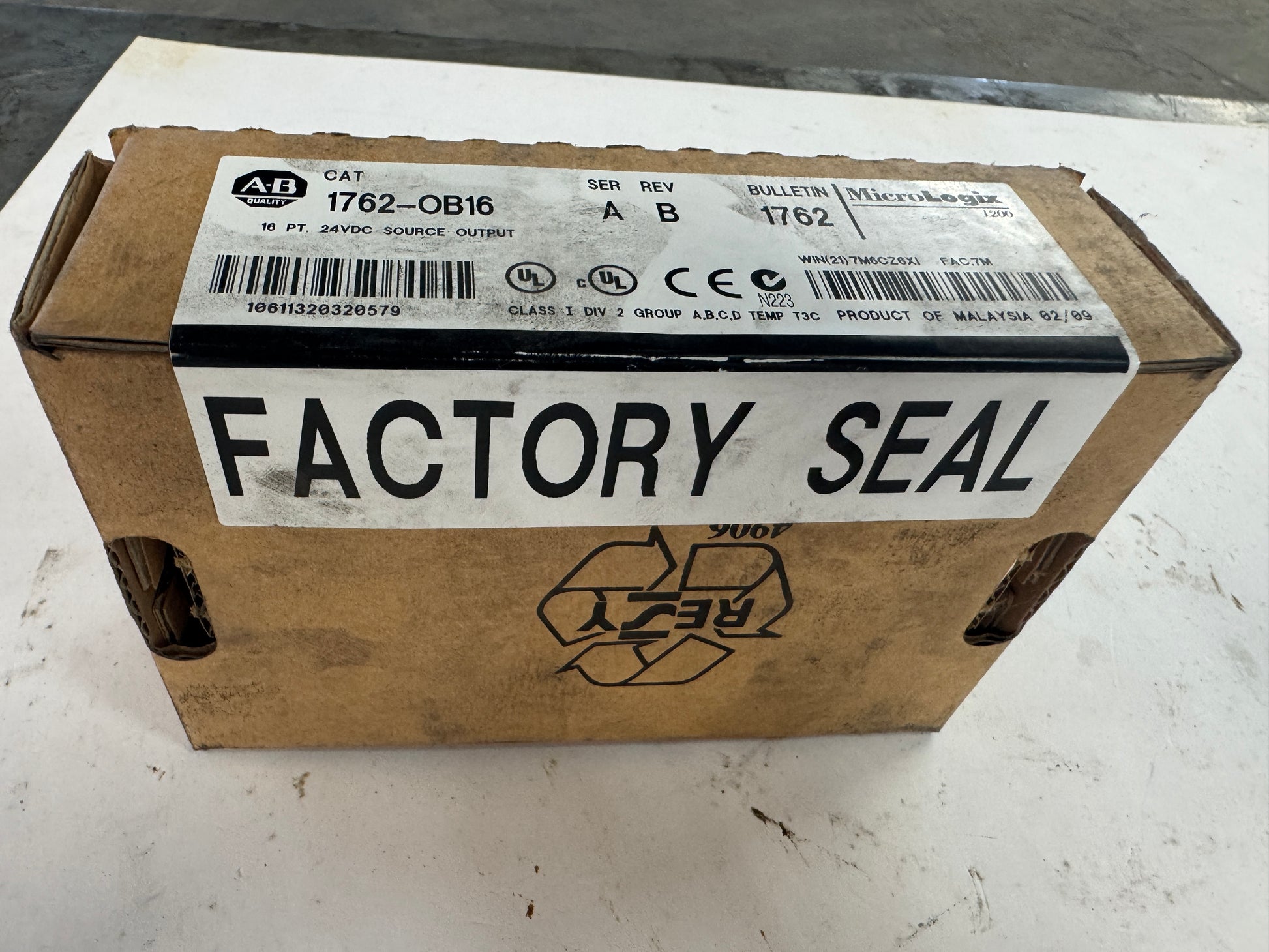

Carrier markings include UL and cUL certification, CE marking, C tick (N223), and Class I Division 2 Group A, B, C, D Temp T3C hazardous location rating. Box markings indicate the unit was produced in Malaysia in February 2009. Barcode identifier 10611320320579 and WIN(21) 7M6CZ6XI are present on the carton label. The unit pictured remains in its sealed factory carton with the Factory Seal label intact.

Typical applications for the 1762-OB16 include packaging machinery, conveyor controls, water and wastewater equipment, OEM machine builds, and other compact automation systems where additional 24VDC source outputs are required beyond the base MicroLogix 1200 controller's onboard I/O count.

Stock # 0526-02236

Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
