Allen-Bradley PowerFlex 40 AC Drive VFD 22B-D017N104 - 10 HP Variable RPM
Allen-Bradley PowerFlex 40 AC Drive VFD 22B-D017N104 - 10 HP Variable RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 22B-D017N104
Stock #: Stock # 0626-01632
Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 22B-D017N104
- Product Type: PowerFlex 40 AC Drive (VFD)
- Series: A
- Motor Rating: 7.5 kW / 10.0 HP
- Input: 3 Phase, 380 to 480V, 48 to 63 Hz
- Input AC Voltage Range: 342 to 528V
- Input Amps: 18.4
- Output: 3 Phase, 0 to 400 Hz
- Output AC Voltage Range: 0 to 460V
- Continuous Amps: 17.0
- 60 Sec Overload Amps: 25.5
- Short Circuit Current Rating: 100 kA
- Enclosure: IP20 / UL Open Type (top cover removed); IP30 / NEMA 1 / UL Type 1 with top cover and optional conduit box kit installed
- FRN: 6.02
- Serial Number: BD017N0W15450048
Product Description

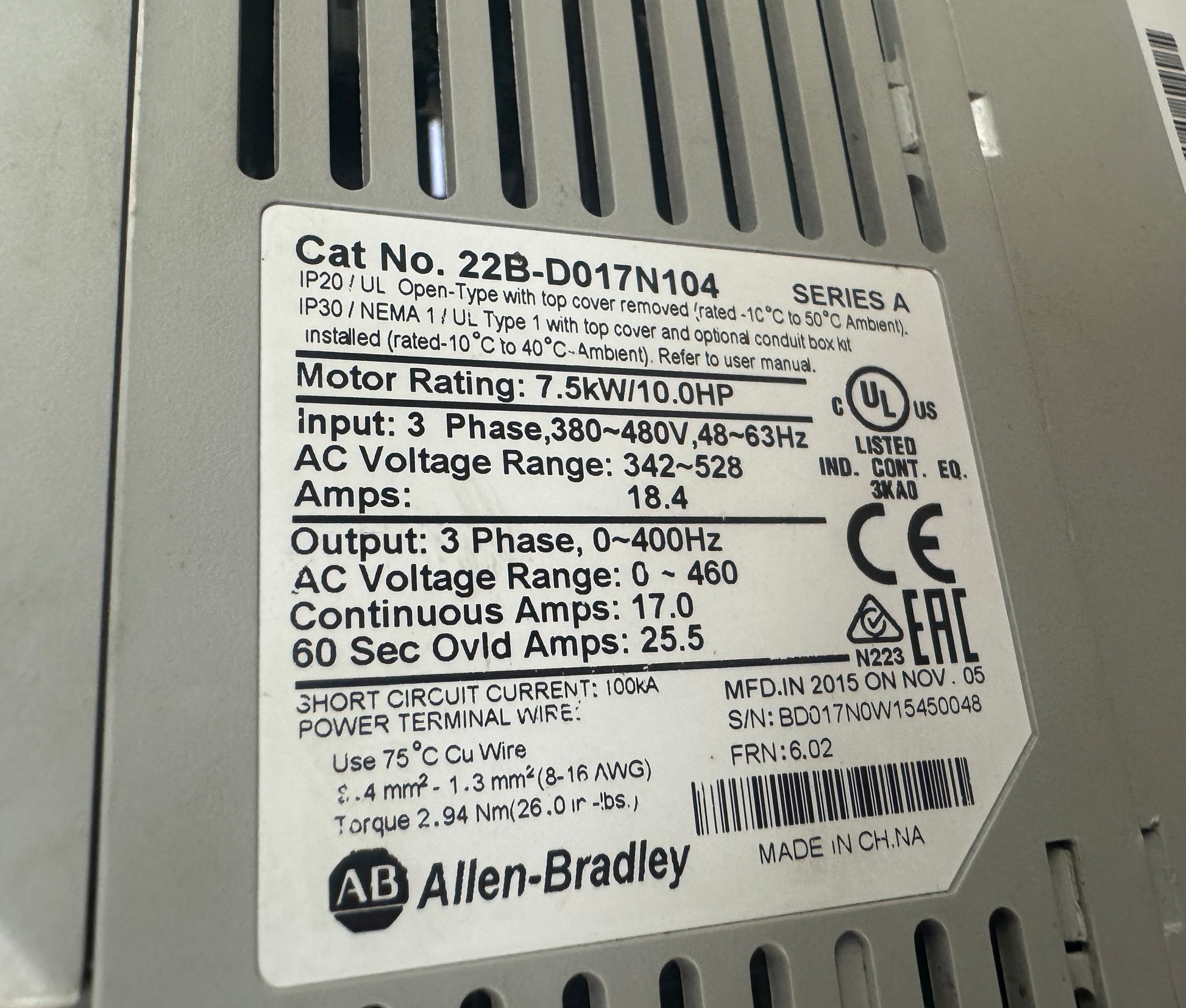

This Allen-Bradley PowerFlex 40 AC drive is identified by catalog number 22B-D017N104, Series A, and is rated for a 7.5 kW / 10.0 HP motor. It accepts 3 phase input at 380 to 480V, 48 to 63 Hz, with an input current of 18.4 amps and an AC voltage range of 342 to 528V. The output is 3 phase, 0 to 400 Hz, 0 to 460V, with a continuous current rating of 17.0 amps and a 60 second overload rating of 25.5 amps. The drive carries a 100 kA short circuit current rating and a firmware revision of 6.02. The nameplate notes IP20 / UL Open Type protection with the top cover removed, and IP30 / NEMA 1 / UL Type 1 with the top cover and optional conduit box kit installed. Buyers matching an exact Allen-Bradley catalog number for replacement, spare inventory, or maintenance sourcing can use MPN 22B-D017N104 and the listed serial number BD017N0W15450048 to compare this unit against their existing equipment.
Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
