Allen Bradley PowerFlex 70 AC Drive 20AD011A3AYNANC0 - 7 HP Variable RPM

$1,999.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: 20AD011A3AYNANC0
Stock #: 0526-01417

Product Specifications

Manufacturer: Allen-Bradley
MPN / Model: 20AD011A3AYNANC0
Product Type: AC Variable Frequency Drive
Series: PowerFlex 70, Series A
Frame Size: C
Input Voltage: 480V AC, 3-Phase
Input Voltage Range: 432 to 528V AC
Input Frequency: 47 to 63 Hz
Input Amperage: 9.4A at 480V Class
Output Voltage: 0 to 460V AC
Output Frequency: 0 to 400 Hz
Output Current: 11A Continuous
Normal Duty Power: 5.5 kW / 7.5 HP
Heavy Duty Power: 4 kW / 5 HP
Enclosure Rating: UL Type 1 / IP20
Ambient Temperature Rating: 50 degrees C
HIM: Full Numeric LCD with Keypad
Control Type: Enhanced Control, No Feedback
Braking Transistor: Integrated IGBT
Firmware Version: 5.001
Serial Number: 55224510
Manufacture Date: June 16, 2017
Stock Number: 0526-01417

Product Description

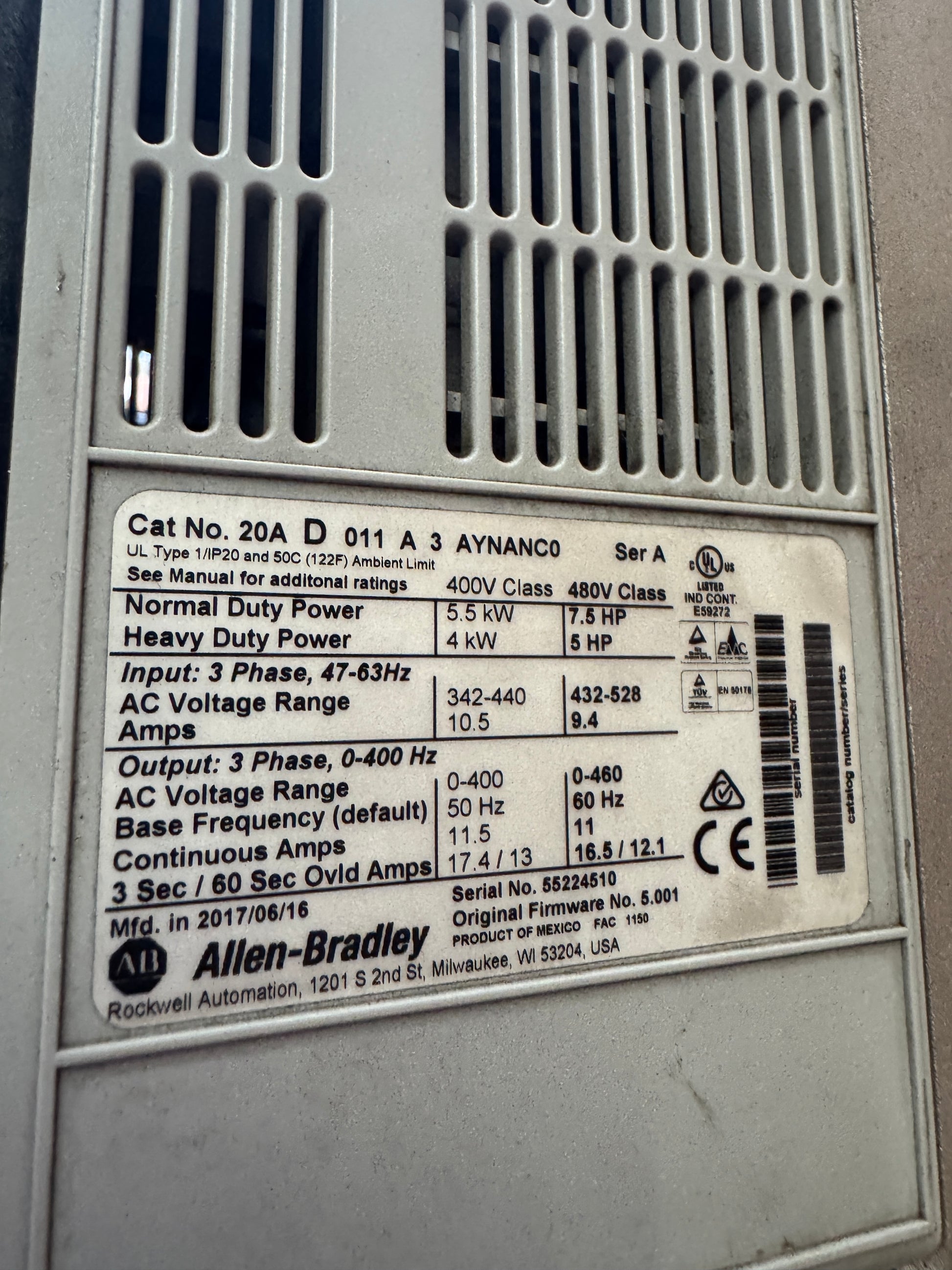

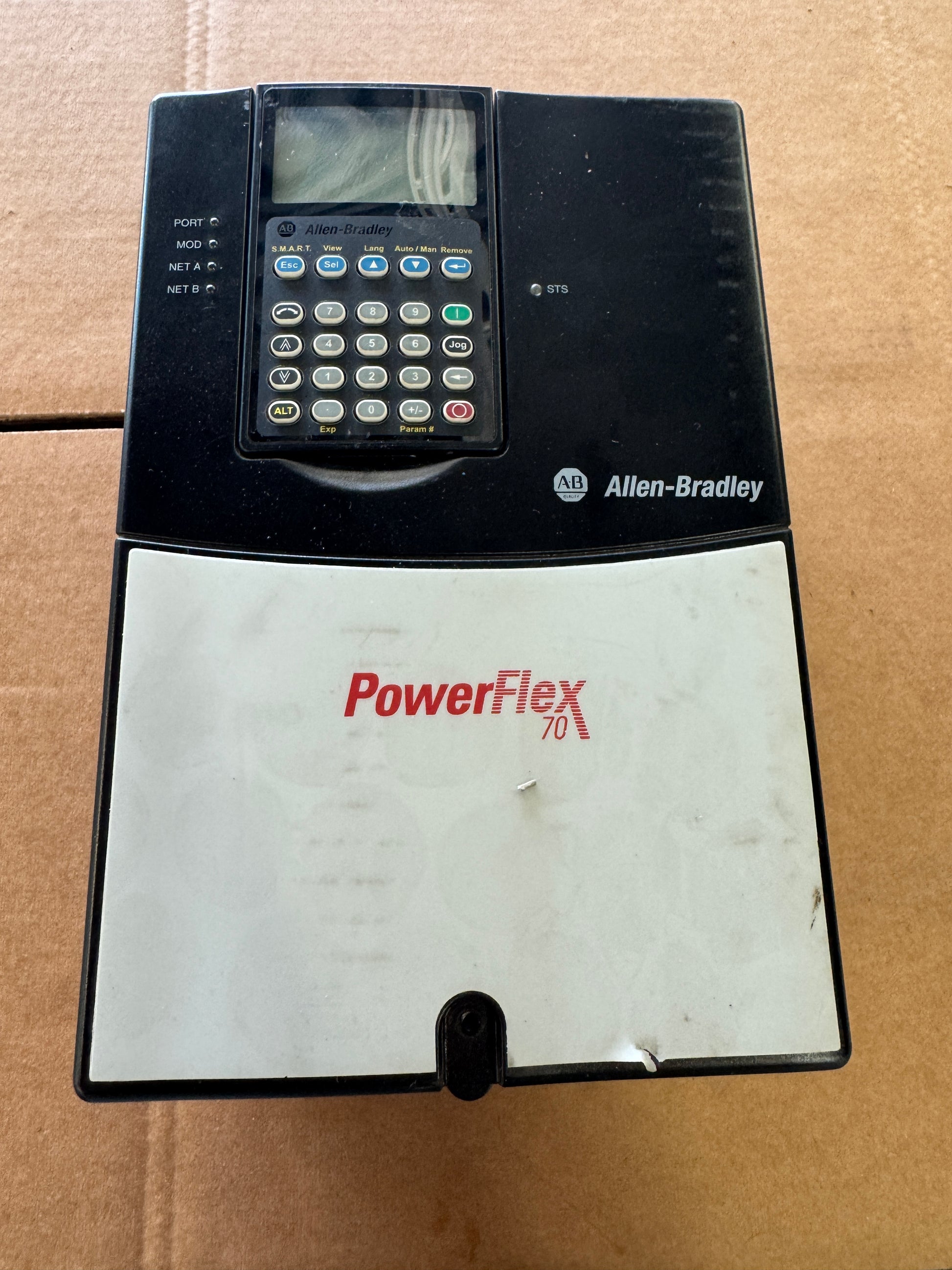

The Allen-Bradley PowerFlex 70, catalog number 20AD011A3AYNANC0, Series A, is rated for 7.5 HP normal duty and 5 HP heavy duty at 480V. This C frame unit accepts 3-phase input across a 432 to 528V AC range at 47 to 63 Hz, with a rated input current of 9.4 amps in the 480V class. Output is 3-phase, 0 to 460V AC, across a 0 to 400 Hz range, delivering 11 continuous amps. The enclosure is UL Type 1 / IP20 for panel mount installation, rated to a 50 degrees C ambient limit. The unit includes a full numeric LCD HIM keypad interface module and features enhanced control with no feedback and an integrated brake IGBT. Original firmware revision is 5.001. Serial number 55224510, manufactured June 16, 2017. Status indicators for PORT, MOD, NET A, and NET B are present on the front panel.

This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
