Allen-Bradley 1756-IB16ISOE/A ControlLogix DC Isolated SOE Input Module 10 to 55V DC

$640.00 USD

Sale Sold out

ConditionSurplus - Untested MPN1756-IB16ISOE/A Stock #0526-02420

Photos reflect current condition. Items differing from description may be eligible for return or refund — see our condition guide.

Shipping Estimate

Estimated package weight: 5.0 lbs

Select your state above for a shipping estimate.

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

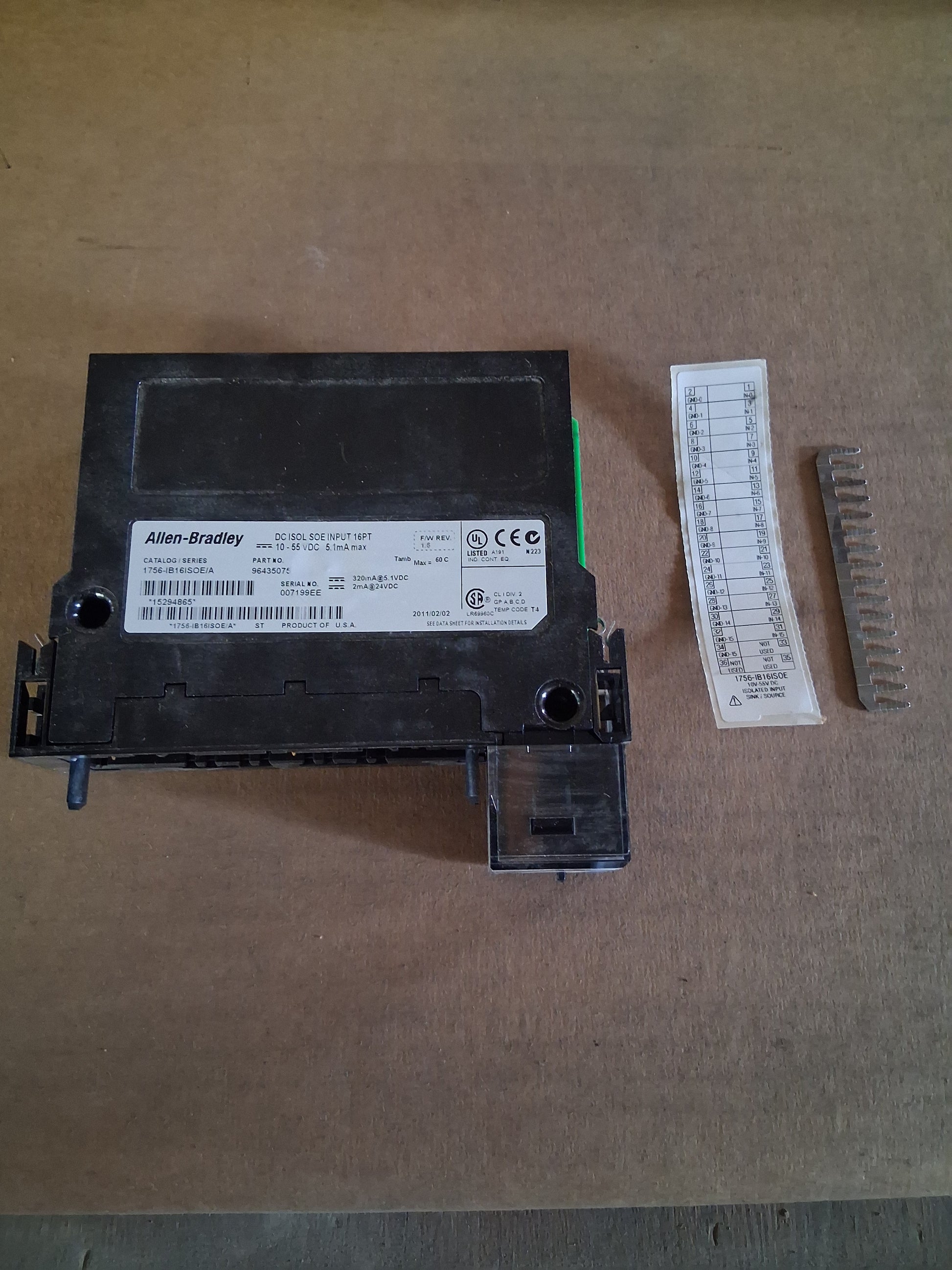

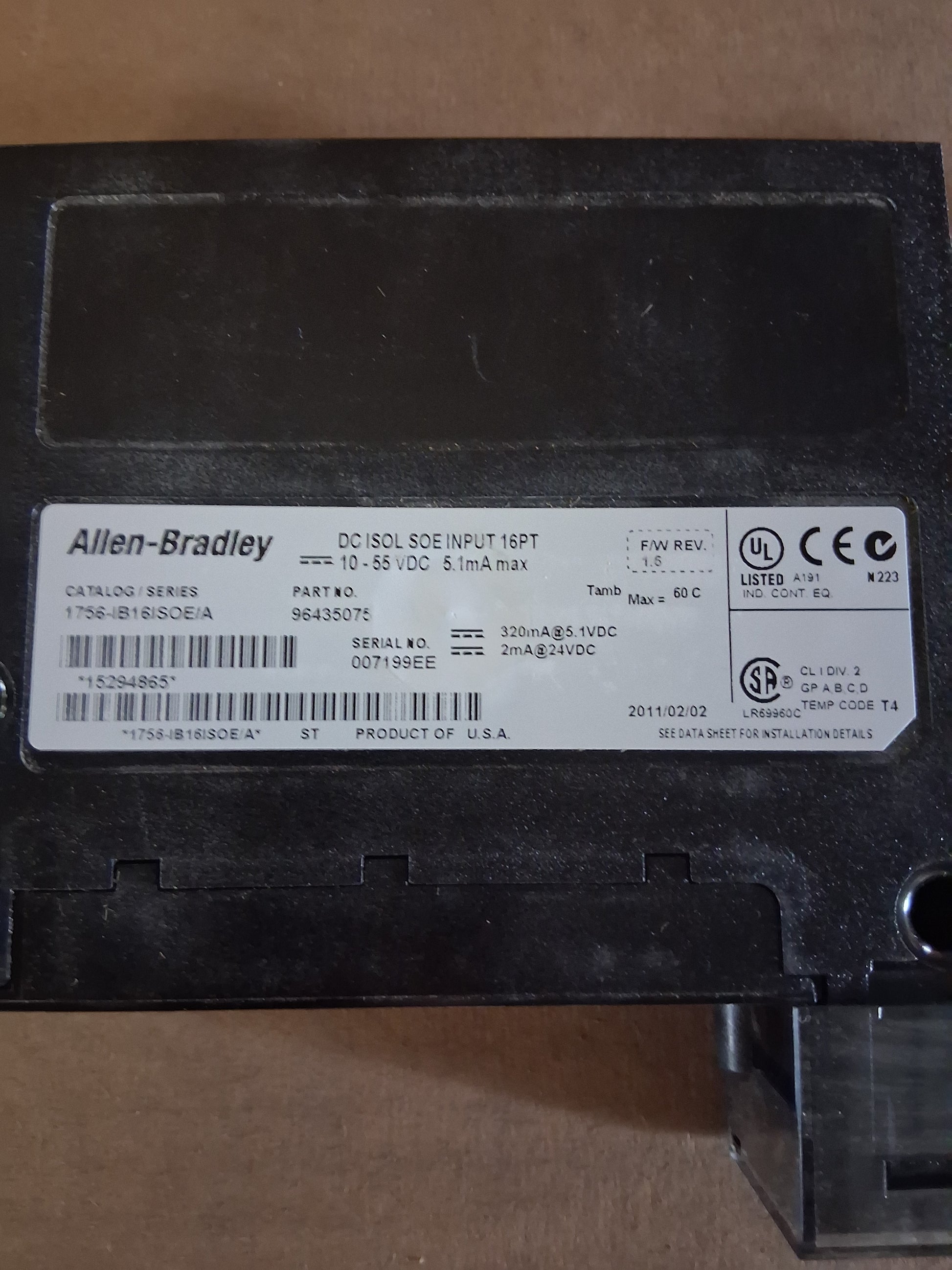

The Allen-Bradley 1756-IB16ISOE/A is a ControlLogix DC isolated sequence of events input module with 16 individually isolated input points. Part number 96435075, serial number 007199EE, with a manufacturing date of 2011/02/02 and firmware revision 1.6. The module operates on an input voltage range of 10 to 55 VDC with a maximum input current of 5.1 mA. Backplane current draw is 320 mA at 5.1 VDC and 2 mA at 24 VDC. Each of the 16 input points is individually isolated to support sink or source wiring across mixed voltage groups within a single module. The sequence of events function timestamps input transitions at sub millisecond resolution for change of state recording and diagnostic trace work in process control applications. Maximum ambient operating temperature is 60 C. Agency markings include UL Listed for industrial control equipment (A191), CSA Class I Division 2 Groups A, B, C, D Temp Code T4 (LR69960C), CE, and C Tick (N223). The module installs in a 1756 ControlLogix chassis and accepts a 1756-TBCH or 1756-TBS6H removable terminal block. Photos show the module accompanied by a removable terminal block and a wiring label identifying the 1756-IB16ISOE pinout for 10V to 55V DC isolated input sink or source connections. Outer packaging carries a factory warranty seal labeled 42231232. Country of origin is U.S.A.

Stock # 0526-02420

Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
