Allen-Bradley Thermocouple Input Module 1756-IT6I2 24V DC
Allen-Bradley Thermocouple Input Module 1756-IT6I2 24V DC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

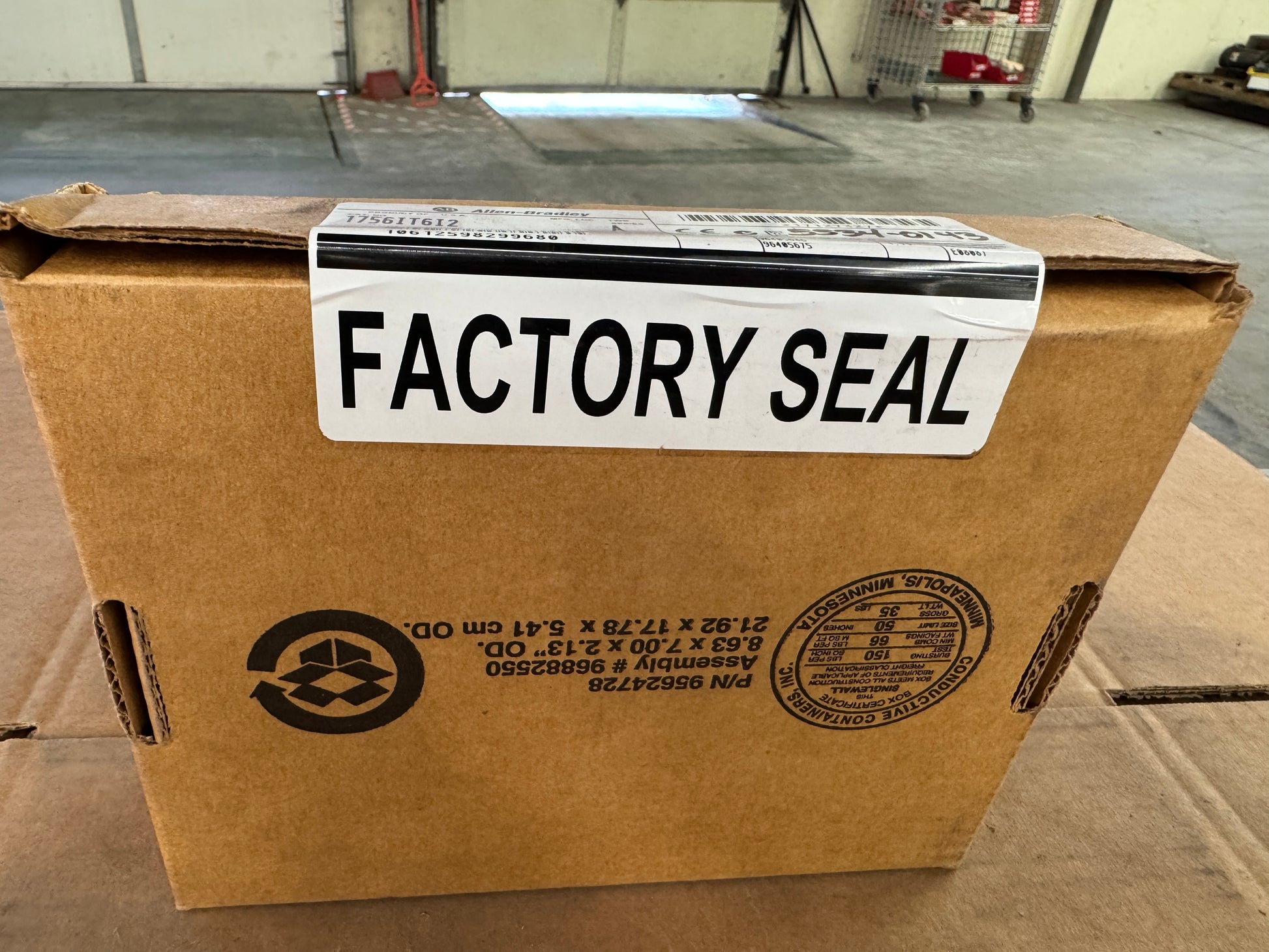

The Allen-Bradley 1756-IT6I2 is an enhanced isolated thermocouple and millivolt analog input module for the ControlLogix 1756 platform. Part number 96405675, Series A, packed factory sealed in original Allen-Bradley packaging on 2011/08/01 per the carton label. UPC 10612598299680. The module provides six individually isolated thermocouple or millivolt input channels and includes two integrated cold junction compensation sensors for precise temperature measurement. Compatible thermocouple types include B, E, J, K, R, S, T, N, C, D, and L (TXK/XK), with thermocouple linearization per ITS 90. Resolution is 16 bits with 1.4 microvolts per bit on the standard input range and 0.7 microvolts per bit on the high resolution range. Operating input ranges cover negative 12 to 78 mV and negative 12 to 30 mV. Backplane current draw is 200 mA at 5.1V and 150 mA at 24V, with total backplane power and maximum power dissipation of 4.6 W and thermal dissipation of 15.7 BTU per hour. The module requires the 1756-TBNH twenty pin removable terminal block for field wiring (sold separately). Features include channel to channel isolation, multiple input ranges, real time sampling, digital filtering, notch filter, wire off detection, under range and over range detection, process alarms, and rate alarm. Carries CE, KC (KCC REM RAA 1756 AI), and N223 markings. Suitable for installation in any ControlLogix chassis as local or distributed I/O.
Stock # 0526-02339
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
