Allen-Bradley Variable Frequency Drive 20BD034A0AYYANA0 Series A 480V 3-Phase
Allen-Bradley Variable Frequency Drive 20BD034A0AYYANA0 Series A 480V 3-Phase
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

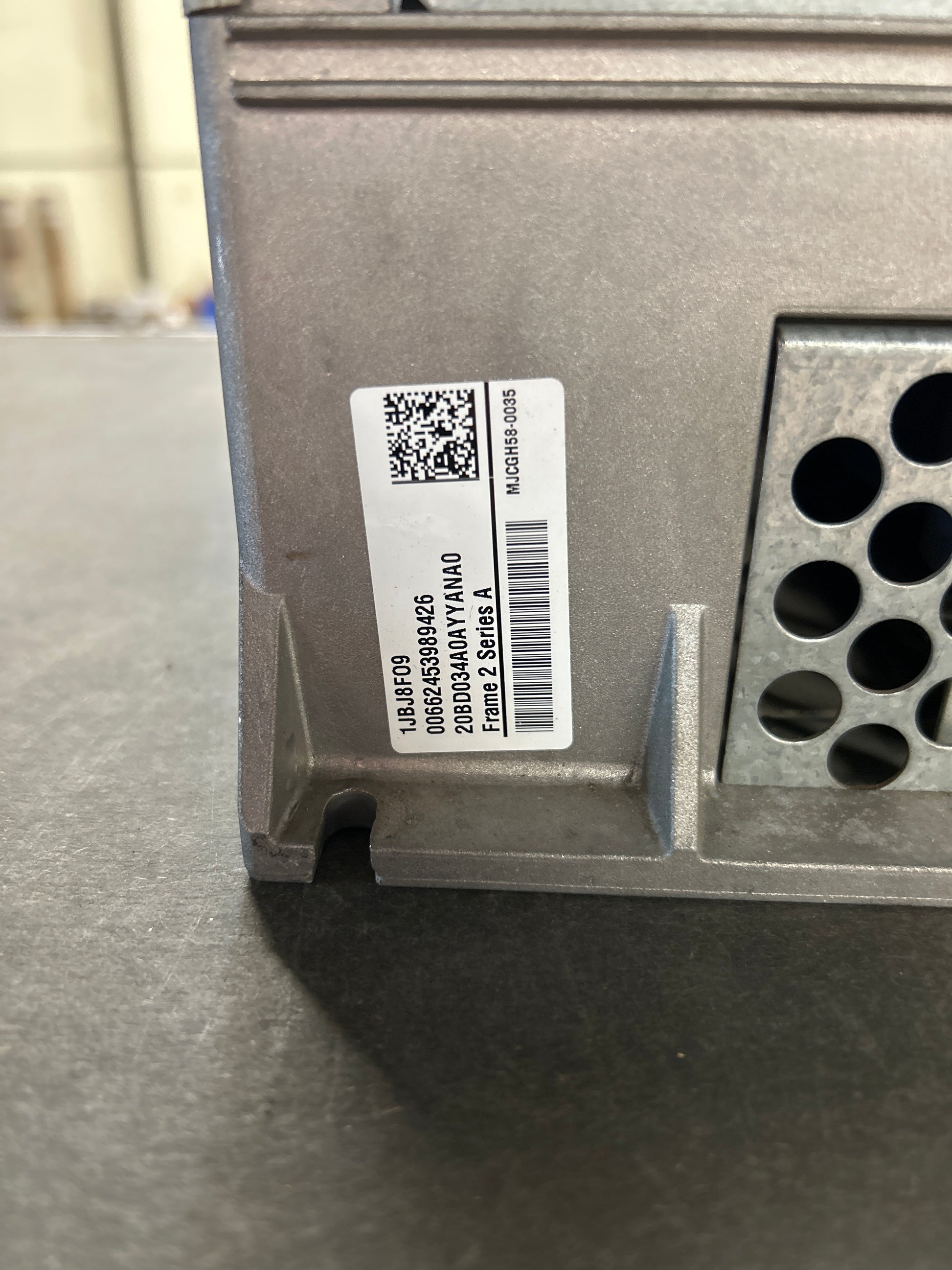

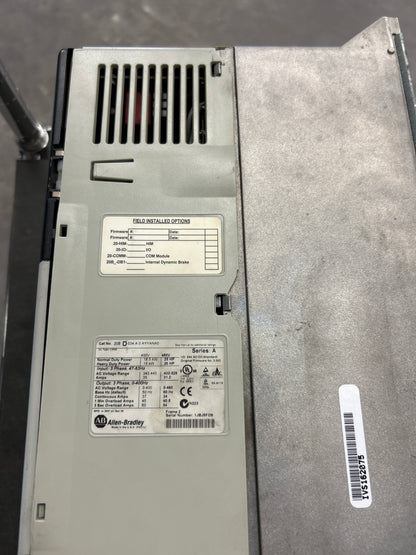

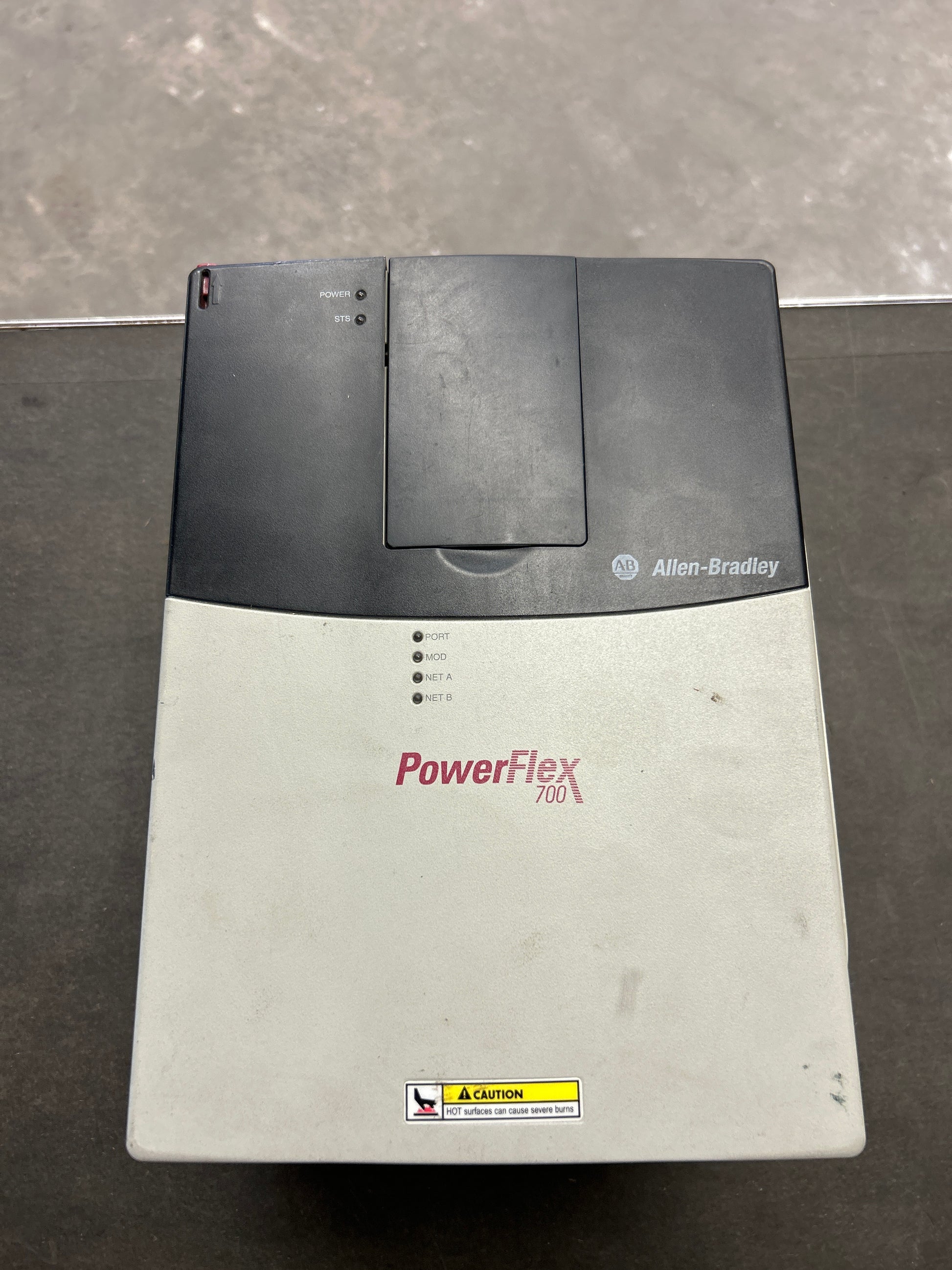

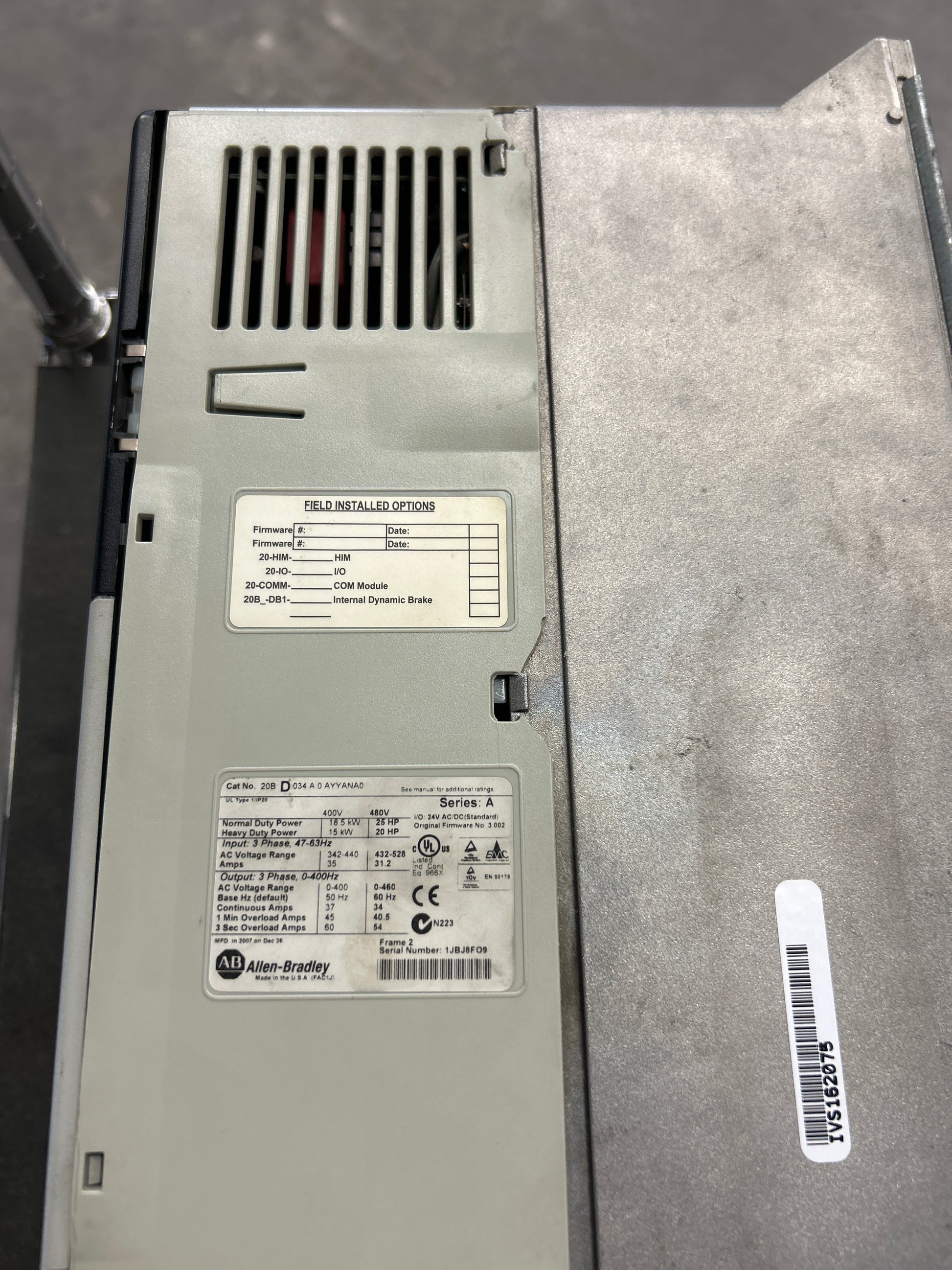

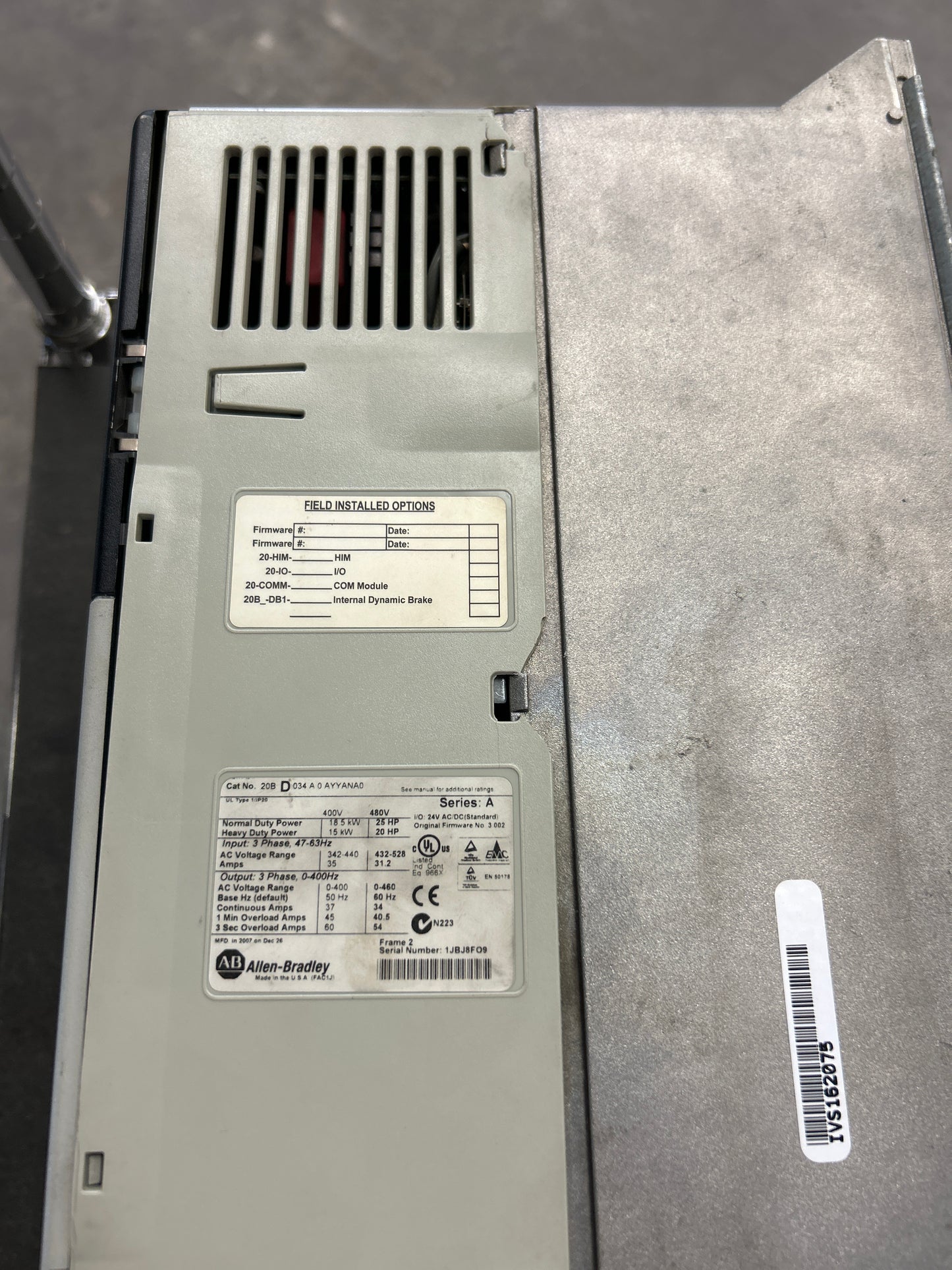

Used in industrial motor control applications requiring precise speed and torque regulation, the Allen-Bradley PowerFlex 700 is a full-featured AC variable frequency drive built for demanding three-phase environments. This unit carries catalog number 20BD034A0AYYANA0, Series A, and was manufactured by Rockwell Automation in the USA. The nameplate confirms a 480V AC, 3-phase input with a frequency range of 47 to 63 Hz and an AC voltage range of 432 to 528V. Normal Duty rating is 25 HP at 18.5 kW with a continuous output of 34 amps. Heavy Duty rating is 20 HP at 15 kW with a continuous output of 31.2 amps. Output frequency range is 0 to 400 Hz. One-minute overload is rated at 45A normal duty and 40.5A heavy duty; three-second overload is rated at 60A normal duty and 54A heavy duty. The drive is Frame 2 construction and carries UL Type 1P38 enclosure designation. I/O is 24V AC/DC standard. Original firmware is listed as version 3.003. Serial number is 1JBJ8FO9. The Field Installed Options label indicates provisions for HIM, I/O, COM module, and Internal Dynamic Brake accessories. The PowerFlex 700 platform supports volts per hertz, sensorless vector, and full vector control modes, and is compatible with Allen-Bradley DPI communication adapters. This part number is also documented under UPC 662453989426.
Stock # 0526-01402
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
