Allen-Bradley 22A-D6P0N104 Variable Frequency Drive 480V AC, 3-Phase, 6A, 3 HP
Allen-Bradley 22A-D6P0N104 Variable Frequency Drive 480V AC, 3-Phase, 6A, 3 HP
Share
Couldn't load pickup availability
✓ 30-day returns on every item — return policy
30-day returns on every item. Photos reflect the actual item’s current condition — see our return policy and condition guide.
Shipping Estimate
⚡ Same-day shipping available — order by 11 am CT ($100 add-on at checkout)
✓ Free domestic UPS Ground shipping — applied automatically at checkout.
- Same-Day Available
- Real support team
- Secure checkout
Product Specifications
- Manufacturer: Allen-Bradley
- MPN / Model: 22A-D6P0N104
- Product Type: Variable Frequency Drive
- Series: A
- Firmware Revision (FRN): 6.01
- Manufactured: Aug. 31, 2015
- Motor Rating: 2.2 kW / 3.0 HP
- Input: 3 Phase, 380-480 V, 48-63 Hz
- Input AC Voltage Range: 342-528 V
- Input Current: 7.5 A
- Output: 3 Phase, 0-240 Hz
- Output AC Voltage Range: 0-460 V
- Output Continuous Current: 6.0 A
- Output 60 Sec Overload Current: 9.0 A
- Short Circuit Current: 100 kA
- Power Terminal Wire: 75 C Cu wire, 5.3 mm2 - 1.3 mm2 (10-16 AWG), torque 1.96 Nm (17.4 in.-lbs.)
- Enclosure Rating: IP20 / UL Open-Type with top cover removed (-10 C to 50 C ambient); IP30 / NEMA 1 / UL Type 1 with top cover and optional conduit box kit installed (-10 C to 40 C ambient)
- Certifications: UL Listed Ind. Cont. Eq. 3KA0, CE, EAC, N223
- Country of Origin: China
- Condition: Surplus - Untested
Product Description

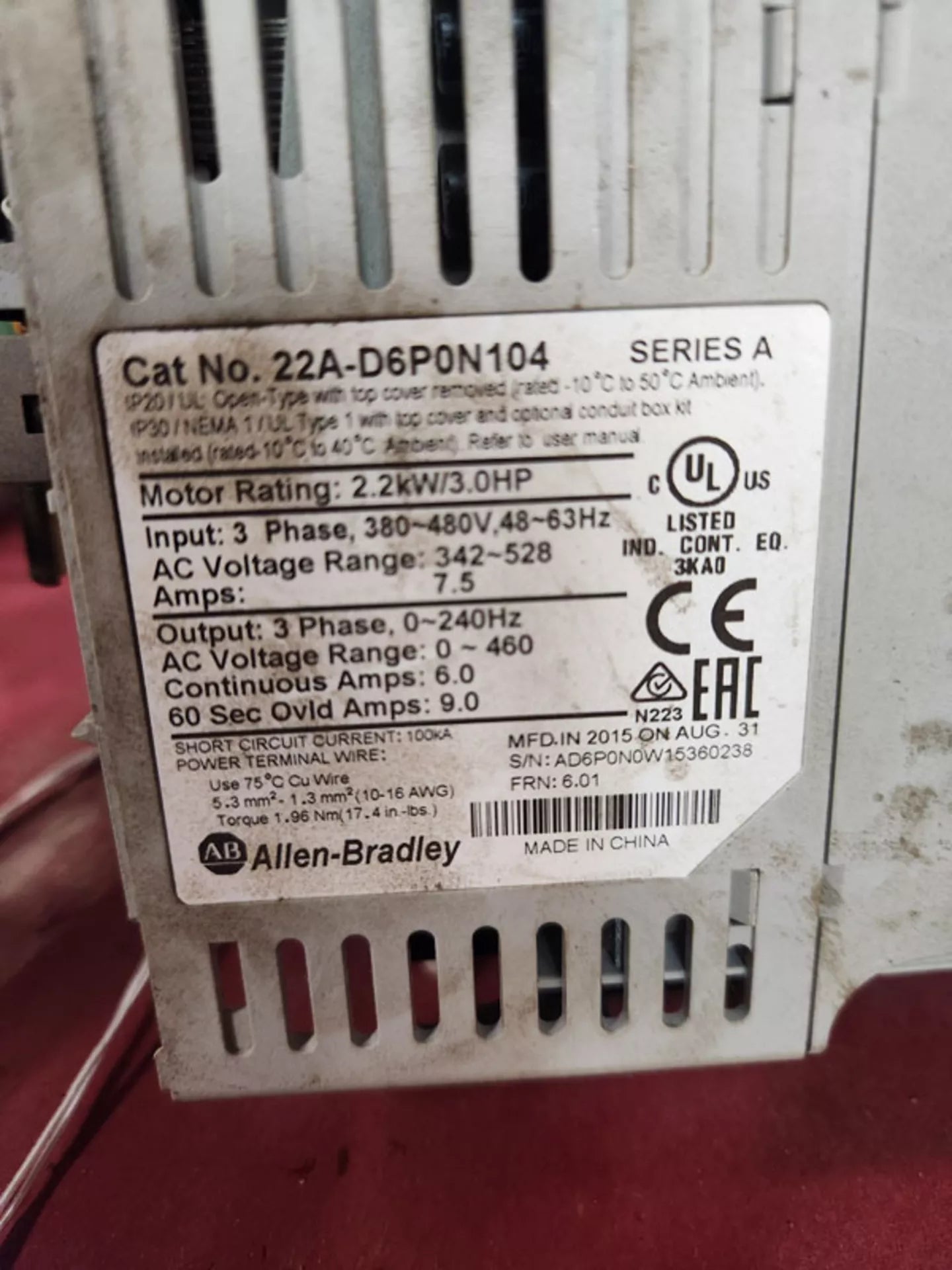

This is an Allen-Bradley 22A-D6P0N104 variable frequency drive. The nameplate reads Cat No. 22A-D6P0N104, SERIES A, Motor Rating: 2.2kW/3.0HP, Input: 3 Phase, 380~480V, 48~63Hz, AC Voltage Range: 342~528, Amps: 7.5, Output: 3 Phase, 0~240Hz, AC Voltage Range: 0~460, Continuous Amps: 6.0, 60 Sec Ovld Amps: 9.0, Short Circuit Current: 100kA, MFD. IN 2015 ON AUG. 31, FRN: 6.01, and Made in China. It also shows UL Listed Ind. Cont. Eq. 3KA0, CE, EAC, N223 and a triangle compliance mark. The serial number is not listed for this unit.

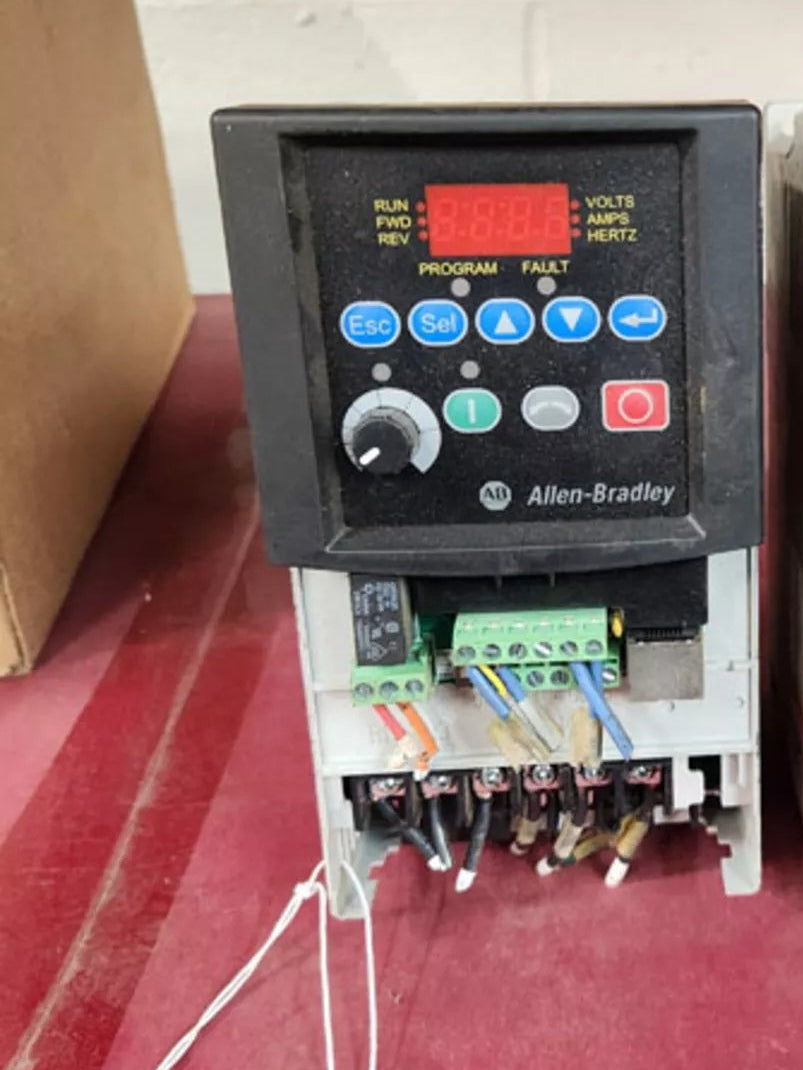

The drive has a black front cover with a red LED display, Esc, Sel, up, down and enter keys, a speed knob, and green start, direction and red stop buttons. The terminal cover is off, and wires with ferrules and some tape are still connected to the control and power terminals. A white string hangs from the lower left. The housing is gray with vent slots, and the nameplate shows dirt and wear.
Sold as surplus, untested. This unit has not been powered on or tested by MRO Exchange, and the drive, display and terminals have not been verified.
Stock # 0426-02012
Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
