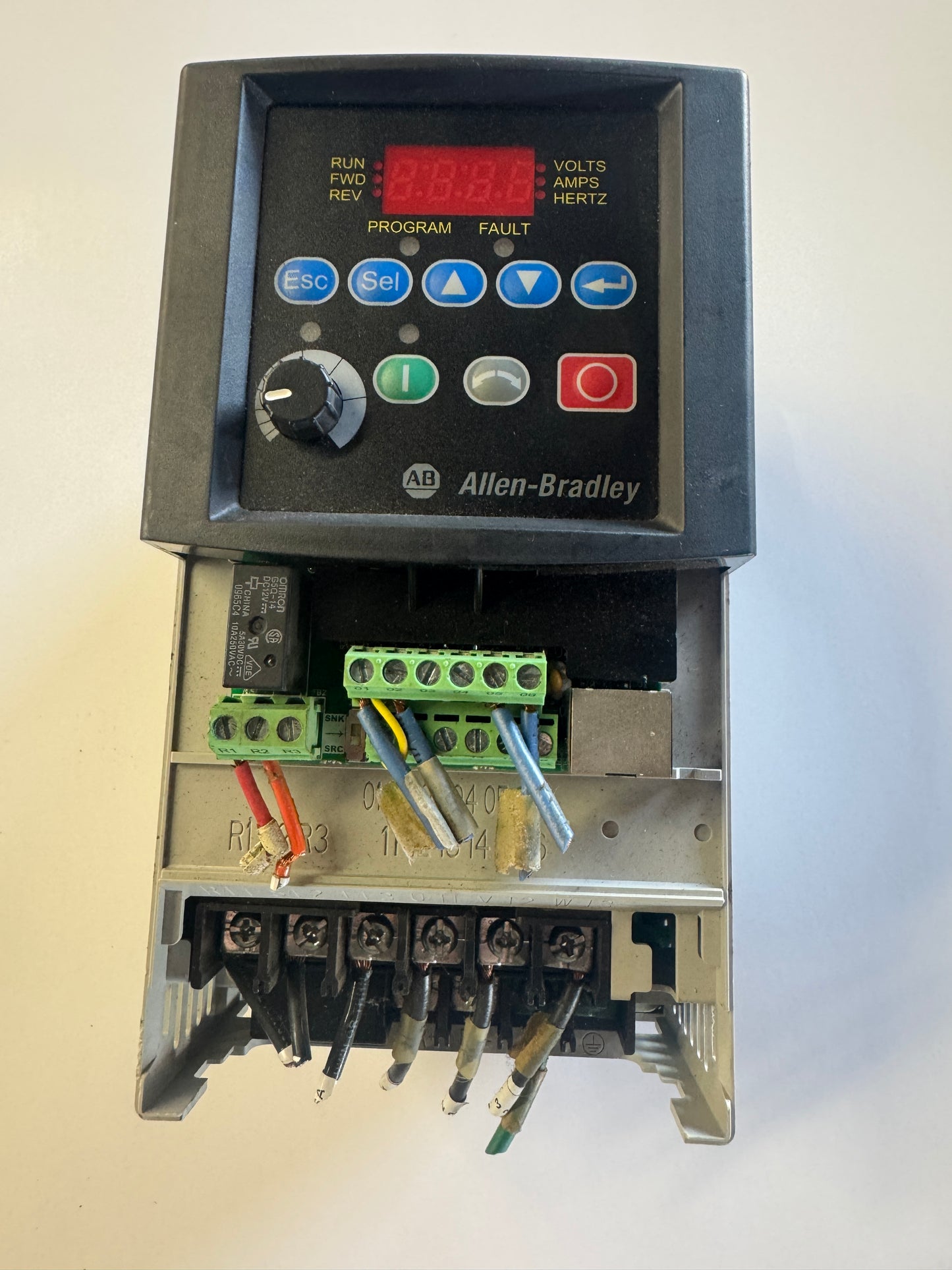

Allen-Bradley Variable Frequency Drive 22A-D6P0N104 480V 3-Phase
Allen-Bradley Variable Frequency Drive 22A-D6P0N104 480V 3-Phase
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 22A-D6P0N104
Stock #: 0426-02013
The Allen-Bradley 22A-D6P0N104 is a PowerFlex 4 series variable frequency drive rated for a 2.2 kW / 3.0 HP motor load. Catalog number 22A-D6P0N104, Series A, with firmware revision 6.01 and serial number AD6P0N0W15360238. Manufactured in August 2015.

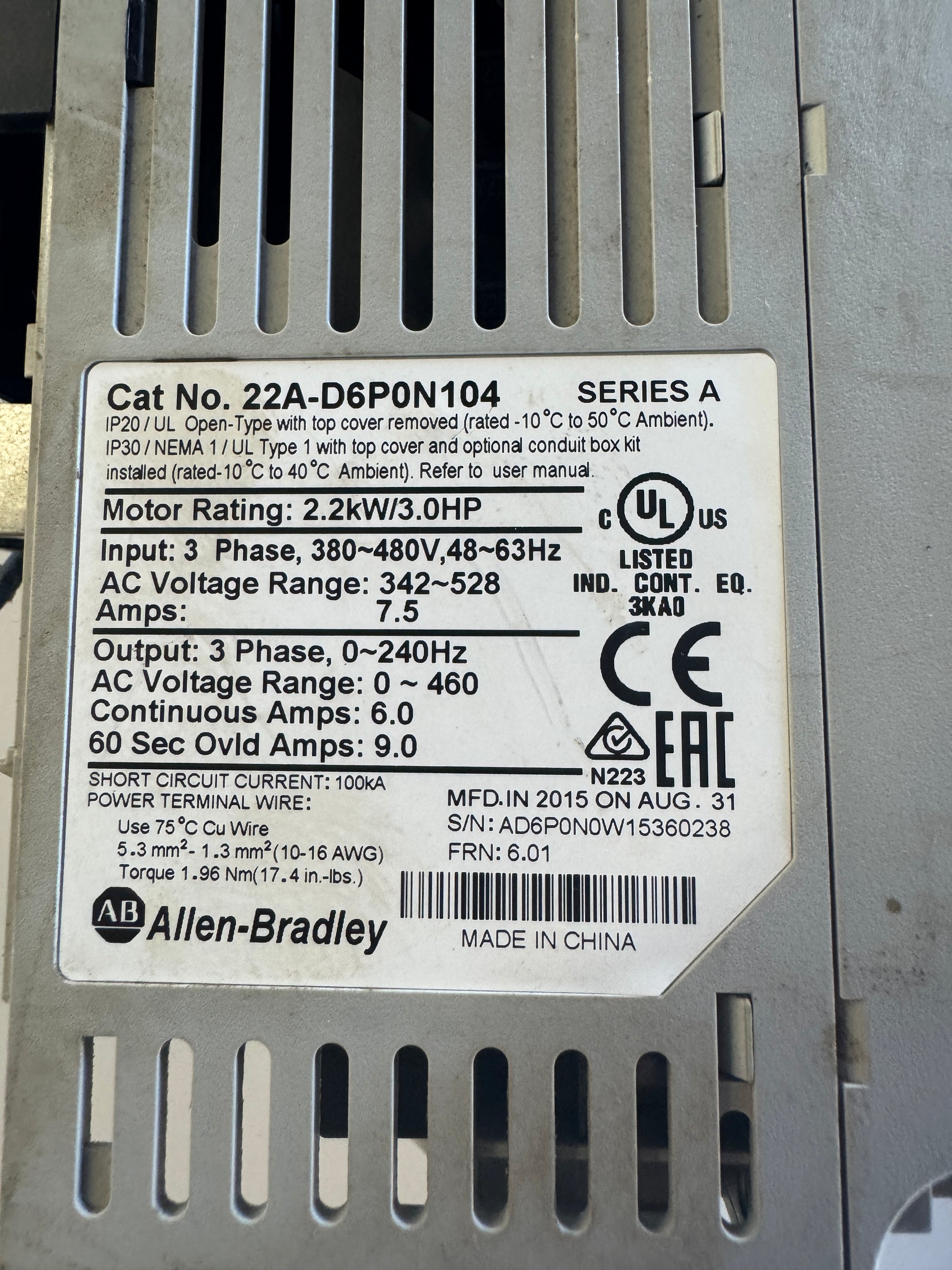

Input specifications per nameplate: 3-phase, 380 to 480V, 48 to 63 Hz, with an AC voltage range of 342 to 528V and 7.5 input amps. Output: 3-phase, 0 to 240 Hz, AC voltage range 0 to 460V, 6.0 continuous amps, and 9.0 amps for 60-second overload. Short circuit current rating is 100 kA.

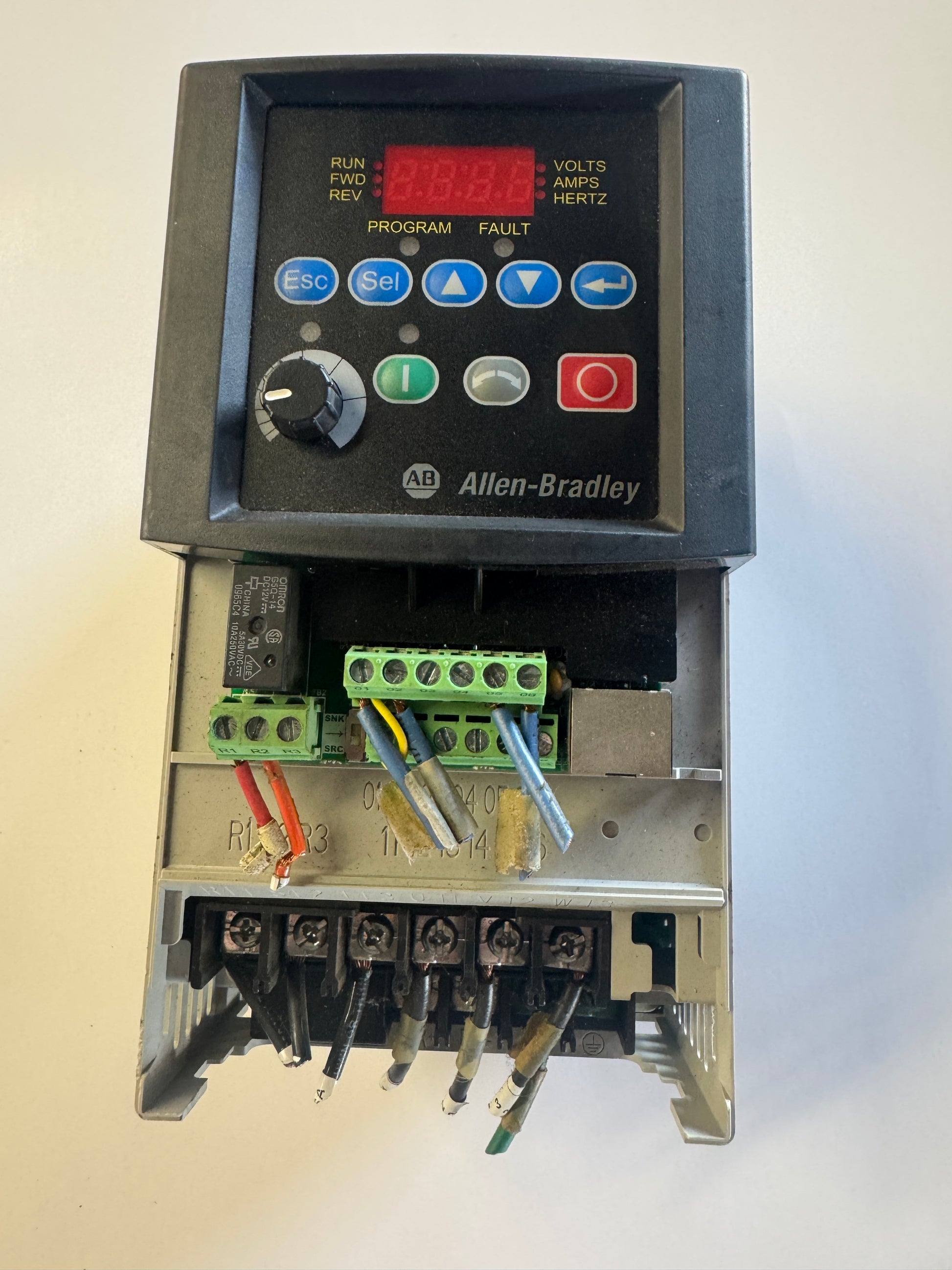

The unit features an integrated keypad with LED display showing volts, amps, and hertz, along with run/forward/reverse status indicators, program and fault indicators, and dedicated Esc, Sel, and directional keys. Power terminal wiring accepts 10 to 16 AWG (1.3 to 5.3 mm2) copper wire at 75°C, torqued to 1.96 Nm (17.4 in-lb).
Enclosure is IP20 / UL Open-Type with the top cover removed, rated for ambient temperatures of -10°C to 50°C. With the top cover and optional conduit box kit installed, the unit meets IP30 / NEMA 1 / UL Type 1 ratings at -10°C to 40°C ambient. UL listed, CE marked, and EAC certified.
Stock # 0426-02013
Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
