Allen-Bradley Variable Frequency Drive 22B-B5P0N104
Allen-Bradley Variable Frequency Drive 22B-B5P0N104
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 22B-B5P0N104
Stock #: 0426-02076
The Allen-Bradley PowerFlex 40 is a compact, general-purpose variable frequency drive designed for adjustable speed control of three-phase AC motors across a wide range of industrial applications. This unit carries catalog number 22B-B5P0N104, Series A, manufactured in July 2013, serial number BB5P0N0W3300058, firmware revision FRN 6.02.

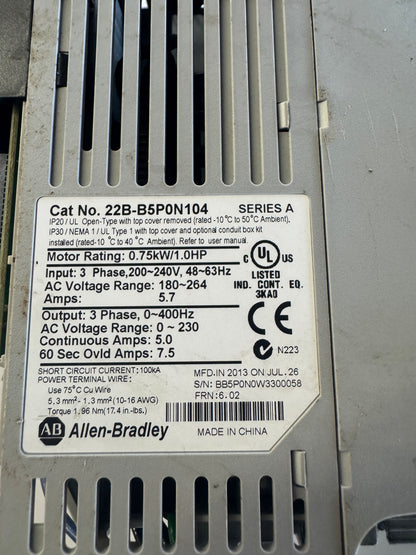

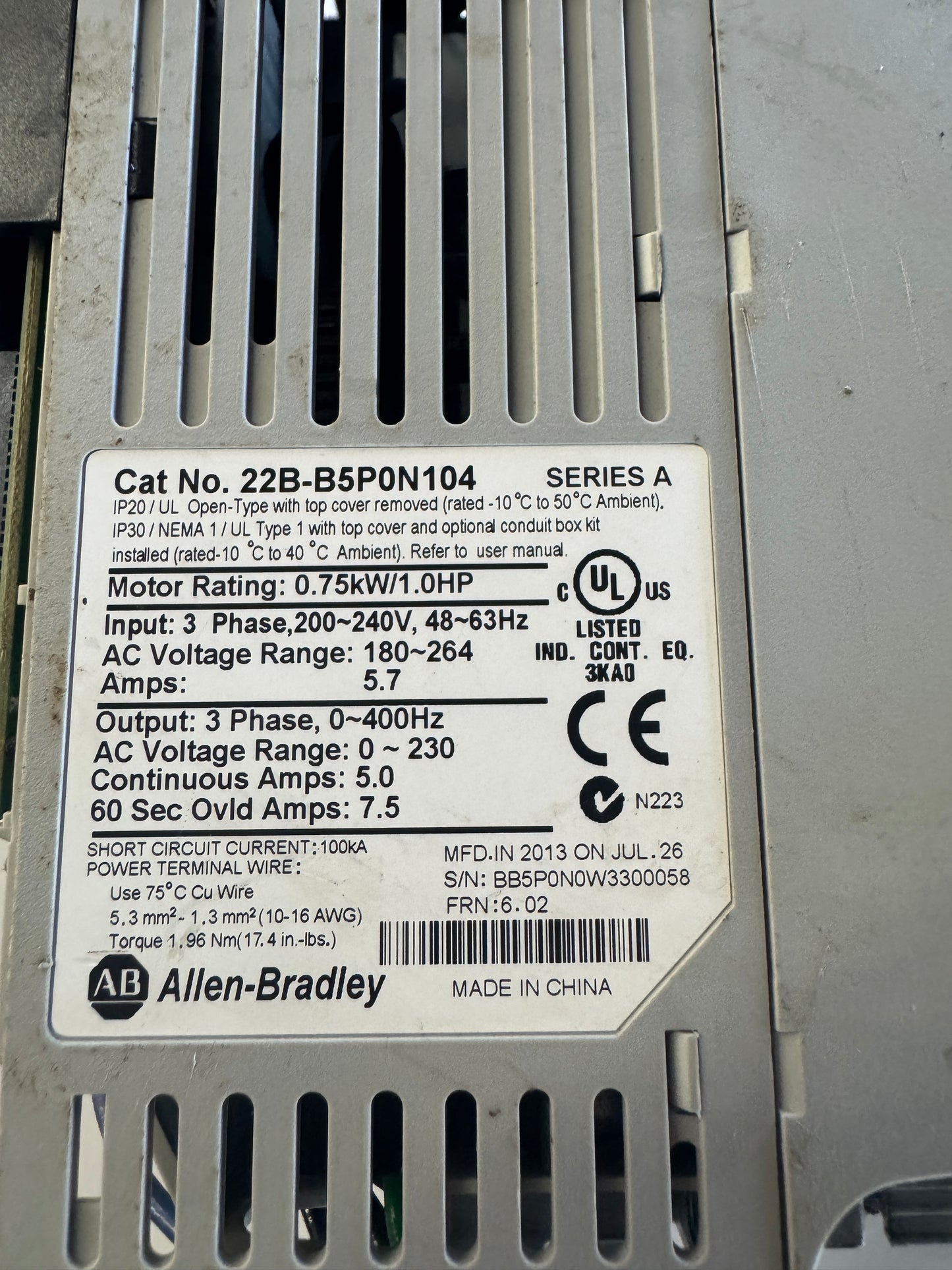

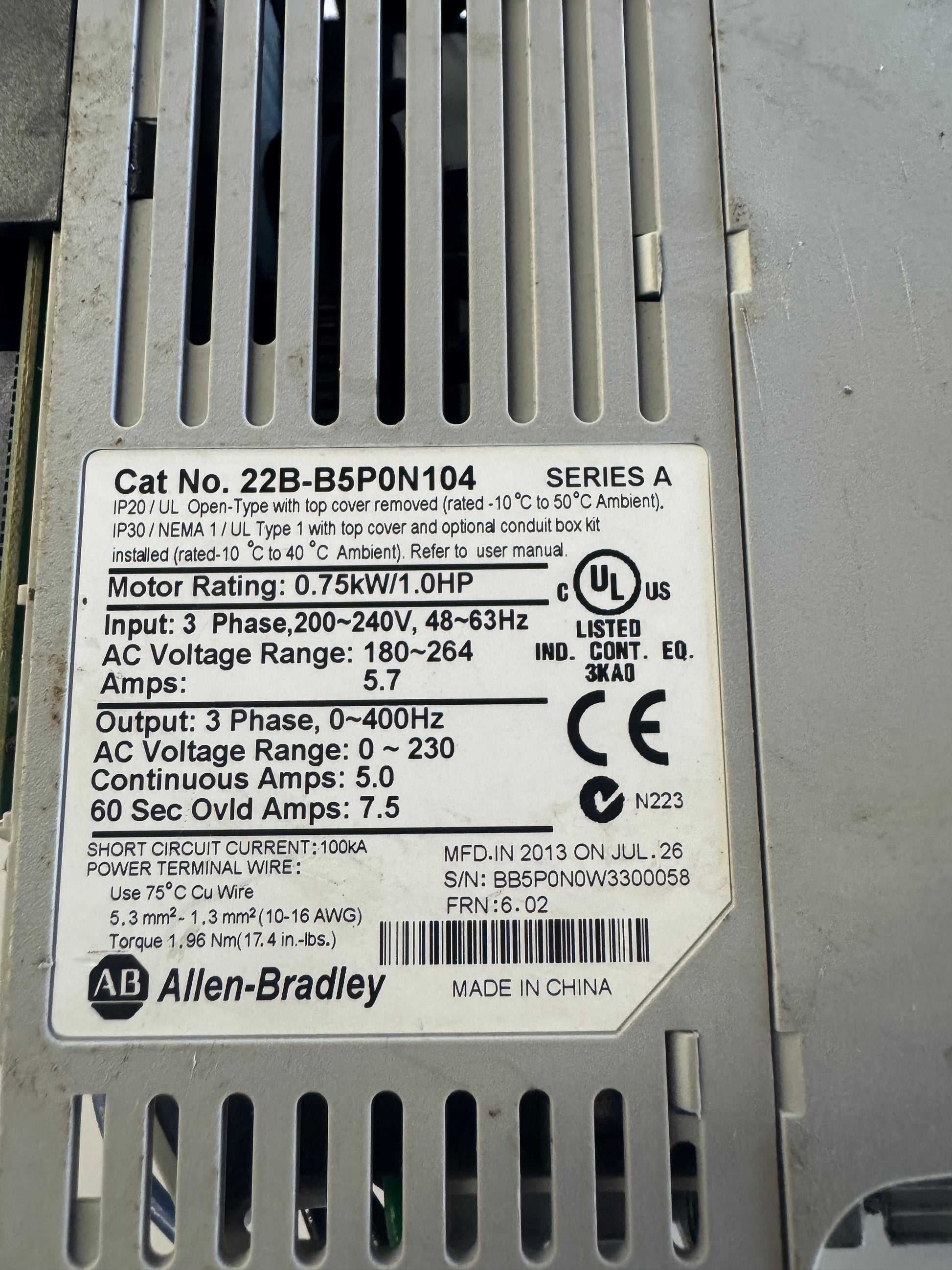

Nameplate data confirms a motor rating of 0.75 kW / 1.0 HP with three-phase input rated 200 to 240V AC at 48 to 63 Hz, drawing 5.7 amps continuous. Output is three-phase, 0 to 230V AC, 0 to 400 Hz, with 5.0 amps continuous output current and a 60-second overload rating of 7.5 amps. The AC voltage input range is 180 to 264V. Short circuit current rating is 100 kA.
The enclosure is IP20 / NEMA UL Open Type with the top cover removed, rated for ambient temperatures from negative 10 to 50 degrees Celsius in that configuration. With the top cover installed, it qualifies as IP30 / NEMA 1 / UL Type 1 rated for negative 10 to 40 degrees Celsius ambient. Power terminal wiring is rated for 75 degrees Celsius copper conductors, 10 to 16 AWG, torqued to 1.96 Nm.

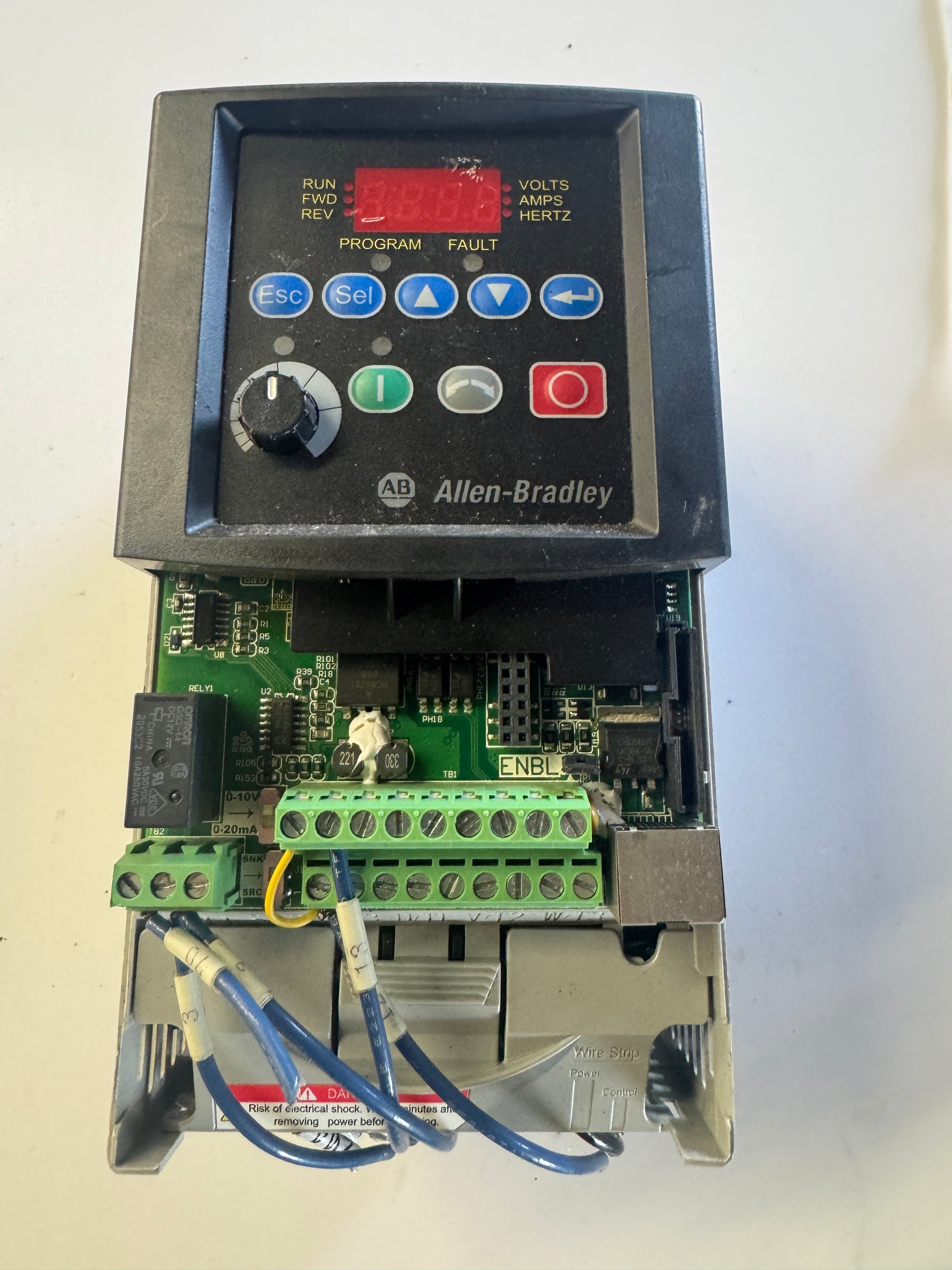

The unit includes the integral LED display and digital keypad panel with Esc, Sel, directional, and Enter controls, along with run/forward/reverse and fault indicators. Terminal blocks for I/O, 0 to 10V and 0 to 20mA analog references, and a relay output are present. An RS485 communication interface is integrated for network control.
Stock # 0426-02076
Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
