Allen-Bradley Variable Frequency Drive 22B-D024N104 Series A 480V 3-Phase Unit A
Allen-Bradley Variable Frequency Drive 22B-D024N104 Series A 480V 3-Phase Unit A
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

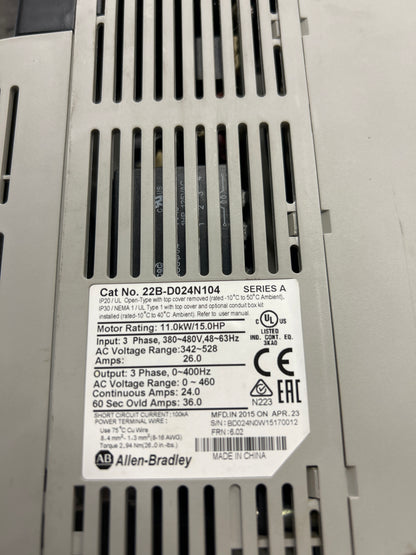

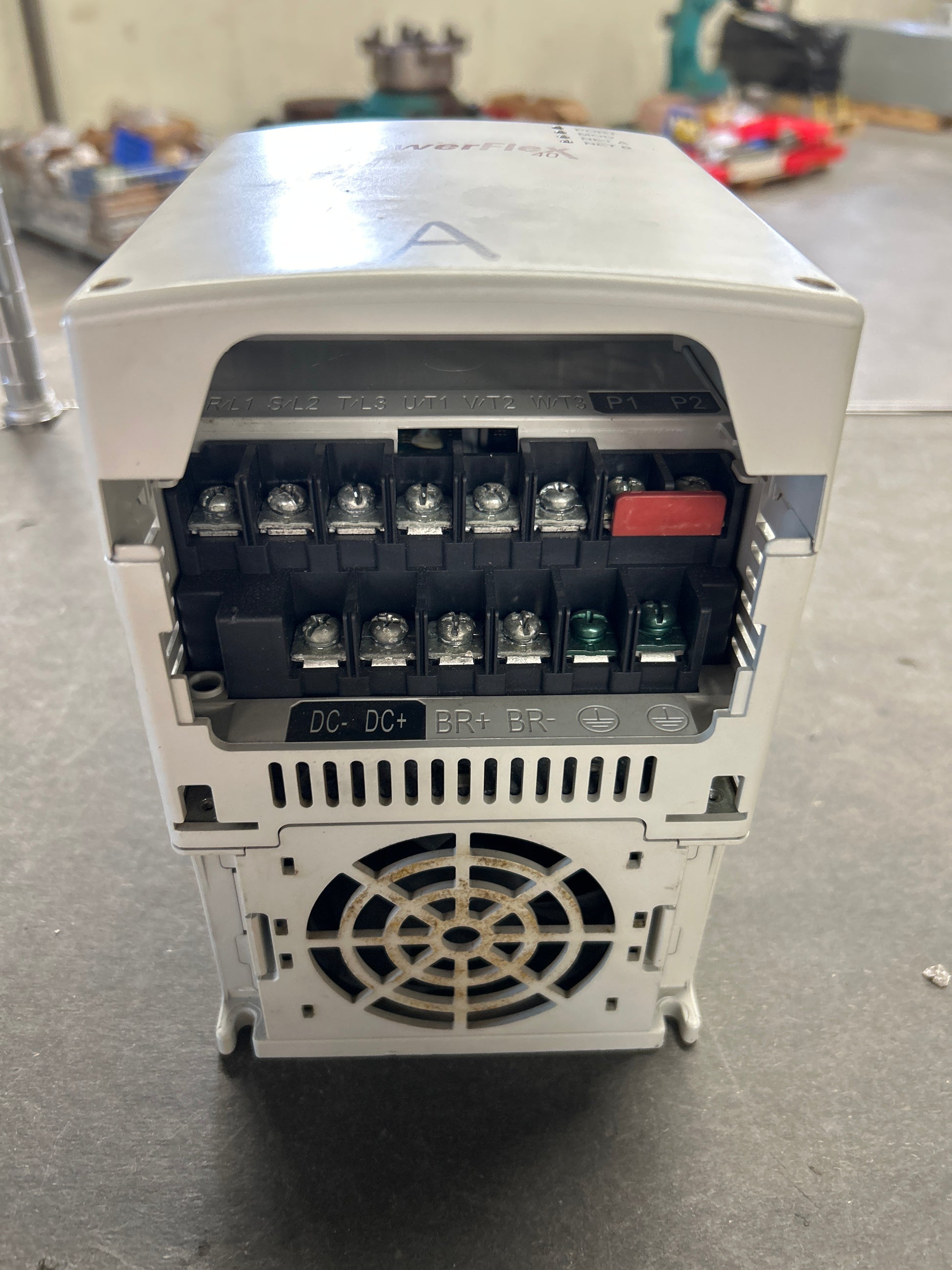

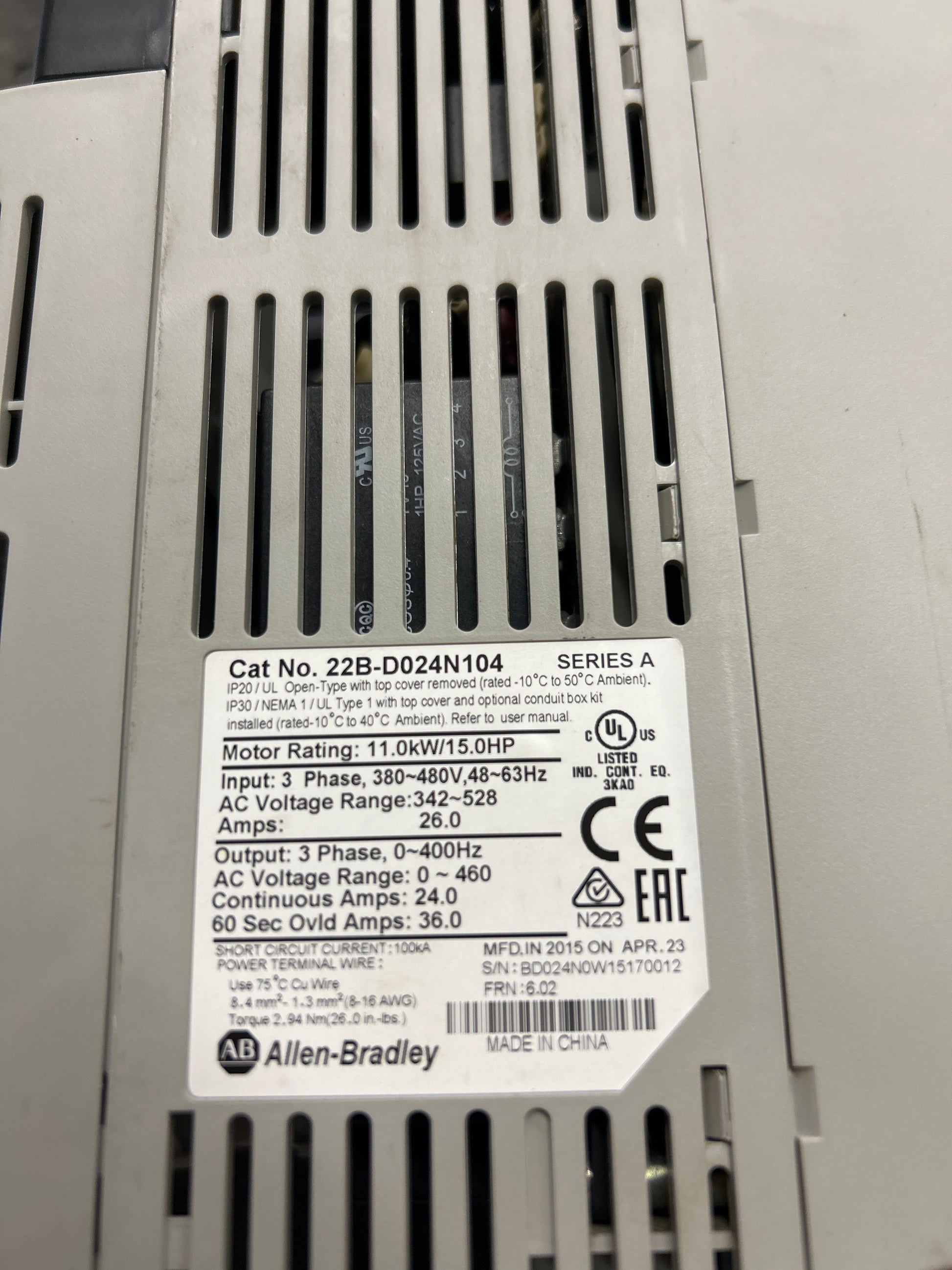

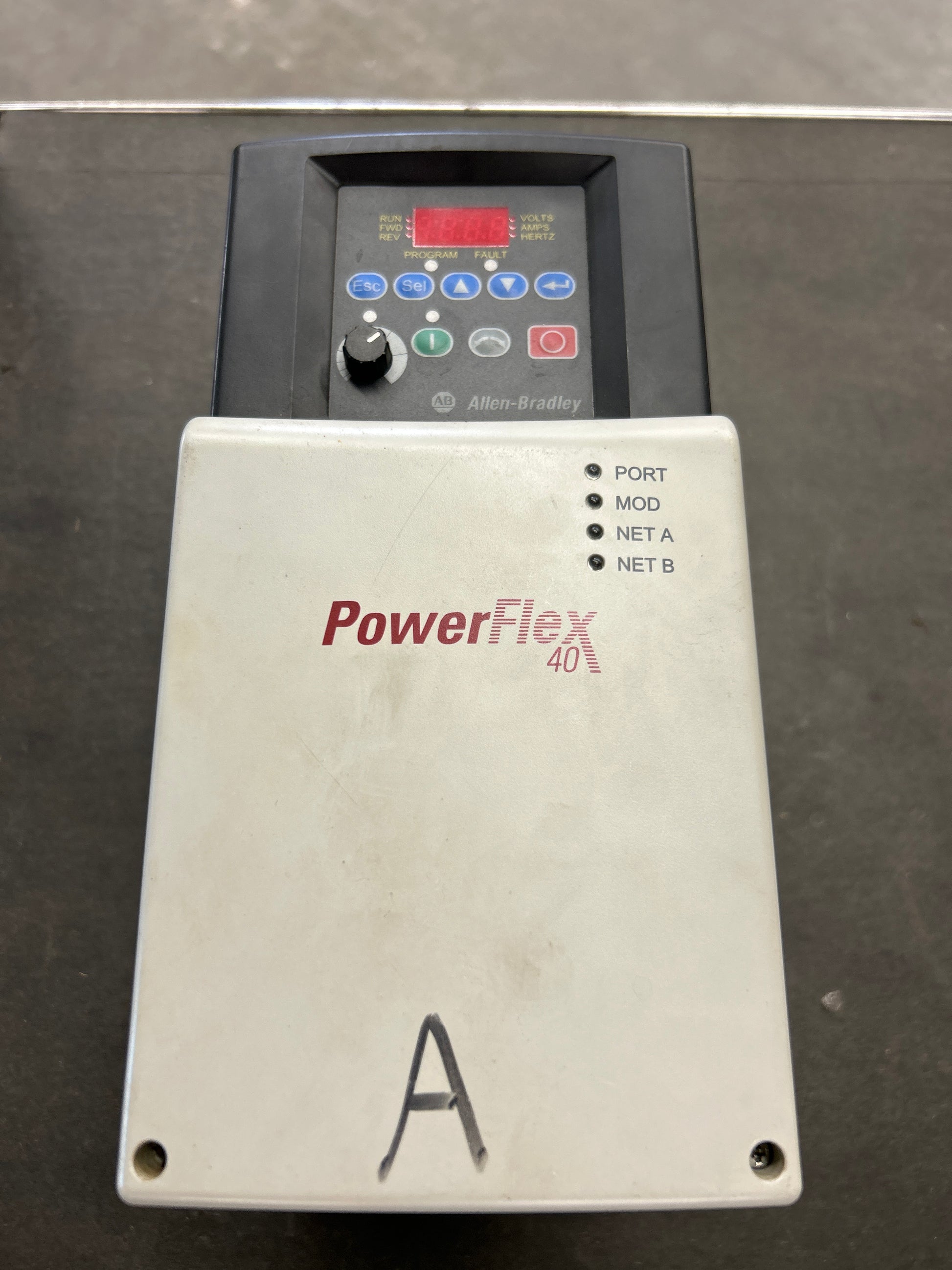

The Allen-Bradley 22B-D024N104 is a PowerFlex 40 series variable frequency drive rated for 11 kW (15 HP) output with a 480V AC three-phase input. Input voltage range spans 342 to 528V AC at 48 to 63 Hz, with an input current rating of 26.0 amps. Output is rated at 24.0 amps continuous, with an overload rating of 36.0 amps for 60 seconds and a programmable output frequency range of 0 to 400 Hz. The unit carries catalog number 22B-D024N104, Series A, firmware revision 6.02, and serial number BD024N0W15170012. Manufactured in April 2015. Enclosure type is IP20 / NEMA Type Open (panel mount), rated for ambient temperatures from -10 degrees C to 50 degrees C with top cover installed. The drive features sensorless vector control and Volts per Hertz control methods, an integrated fixed keypad with four-digit display, and an internal IGBT brake. No internal EMC filter is included. The front cover is fitted with a network communication adapter module showing PORT, MOD, NET A, and NET B status indicators. DC bus terminals (DC+, DC-) and dynamic brake terminals (BR+, BR-) are accessible on the power terminal block. UL Listed, CE marked, and EAC certified. Rockwell Automation discontinued the 22B-D024N104 as of June 30, 2025; the engineering replacement is the 25B-D024N104 PowerFlex 523 series drive.
Stock # 0526-01404
This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The original manufacturer's warranty does not apply.
