Allen-Bradley 22C-D105A103 PowerFlex 400 VFD 75 HP 380-480V AC 3-Phase
Allen-Bradley 22C-D105A103 PowerFlex 400 VFD 75 HP 380-480V AC 3-Phase
Share
Couldn't load pickup availability
✓ 30-day returns on every item — return policy
30-day returns on every item. Photos reflect the actual item’s current condition — see our return policy and condition guide.
Shipping Estimate
⚡ Same-day shipping available — order by 11 am CT ($100 add-on at checkout)
✓ Free domestic freight — applied automatically at checkout.
- Same-Day Available
- Real support team
- Secure checkout
Product Specifications
- Manufacturer: Allen-Bradley (Rockwell Automation)
- MPN / Model: 22C-D105A103
- Product Type: PowerFlex 400 AC Variable Frequency Drive
- Series: A
- Serial Number: CD105A0T5510012
- Firmware (FRN): 3.03
- Date of Manufacture: 12 December 2005
- Motor Rating: 55 kW / 75 HP
- Input: 3 phase, 380-480 V, 48-63 Hz
- Input Voltage Range: 342-528 V
- Input Amps: 107.0 A
- Output: 3 phase, 0-320 Hz
- Output Voltage Range: 0-460 V
- Continuous Output Amps: 105.0 A
- 60 Second Overload Amps: 115.5 A
- Short Circuit Current: 200 kA
- Enclosure: IP30 / NEMA 1 / UL Type 1 (rated -10C to 45C ambient; 50C with derating)
- Power Terminal Wire: 75C Cu, 53.5-107.2 mm2 (1/0-4/0 AWG), torque 19.5 Nm (173.0 in-lbs)
- Operator Interface: HIM with LCD keypad installed
- Certifications: cULus Listed (Ind. Cont. Eq. 3KA0), CE
- Country of Origin: Taiwan
- Condition: Surplus - Untested
- As Pictured: Drive with HIM; cut power cable stubs still attached at the bottom
Product Description

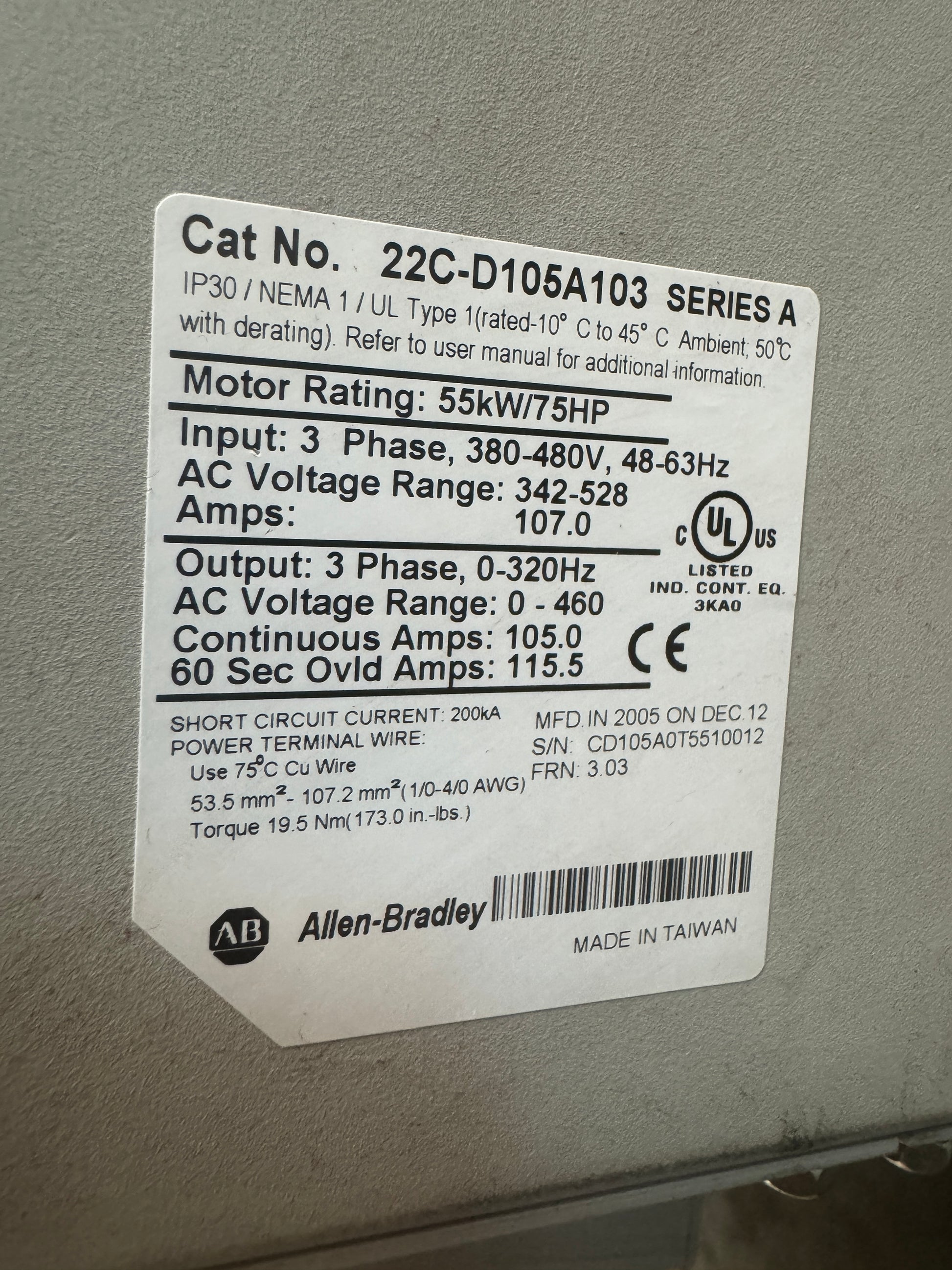

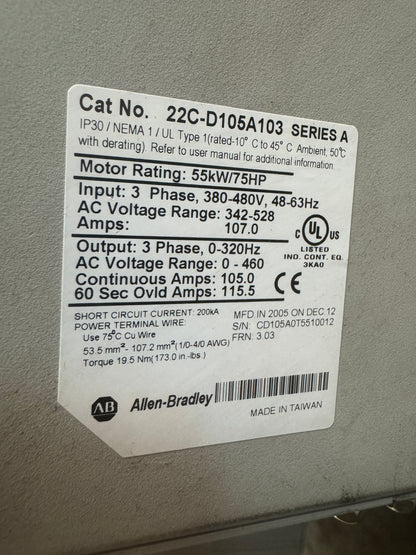

Allen-Bradley PowerFlex 400 variable frequency drive, catalog number 22C-D105A103, Series A, motor rating 55 kW / 75 HP, serial number CD105A0T5510012, firmware 3.03, manufactured 12 December 2005 and marked made in Taiwan. The nameplate lists a 3 phase input of 380-480 V at 48-63 Hz (342-528 V range) at 107.0 A, and a 3 phase output of 0-460 V, 0-320 Hz at 105.0 A continuous and 115.5 A for 60 seconds. The short circuit current rating is 200 kA, and the enclosure is rated IP30 / NEMA 1 / UL Type 1.

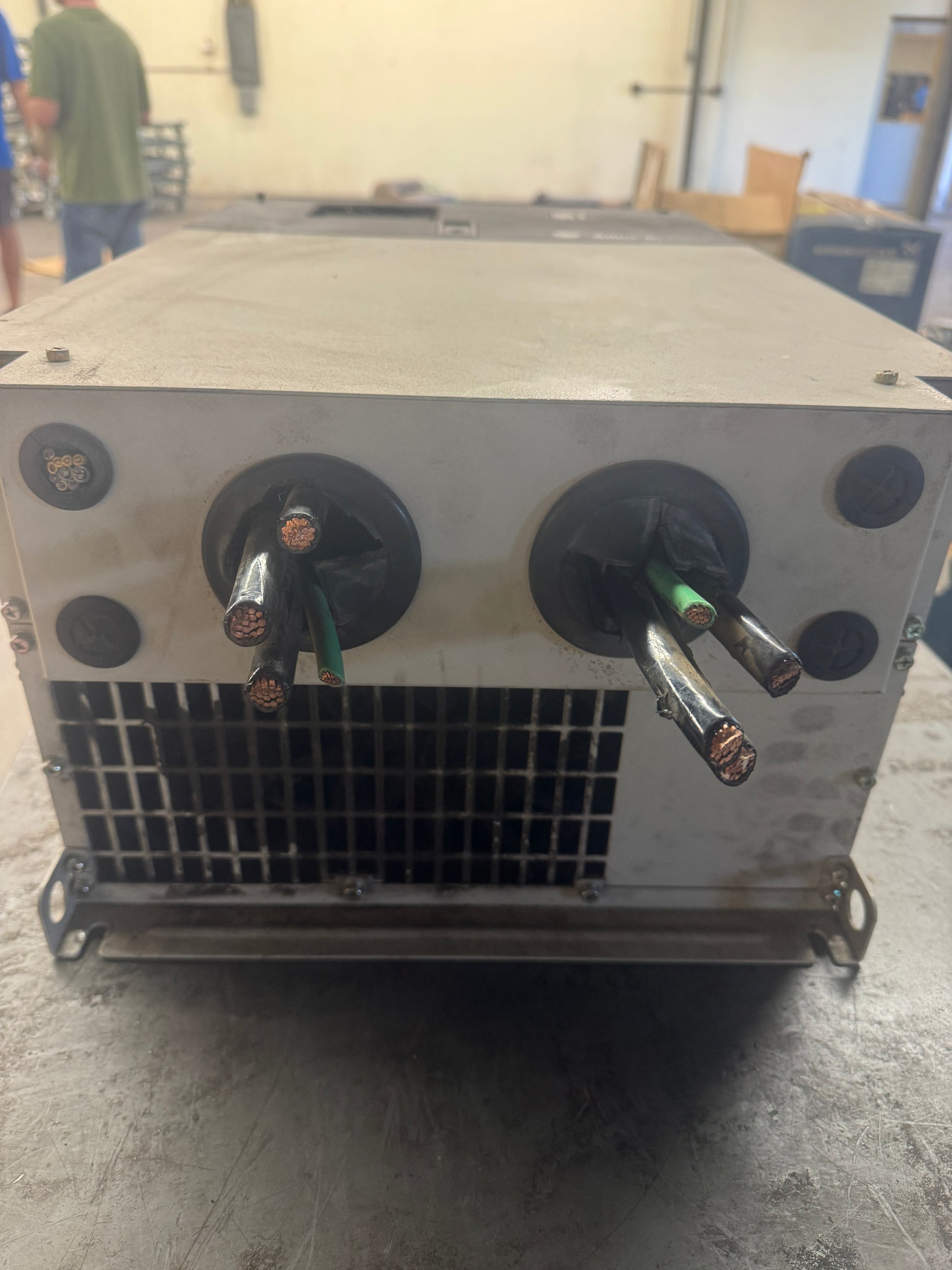

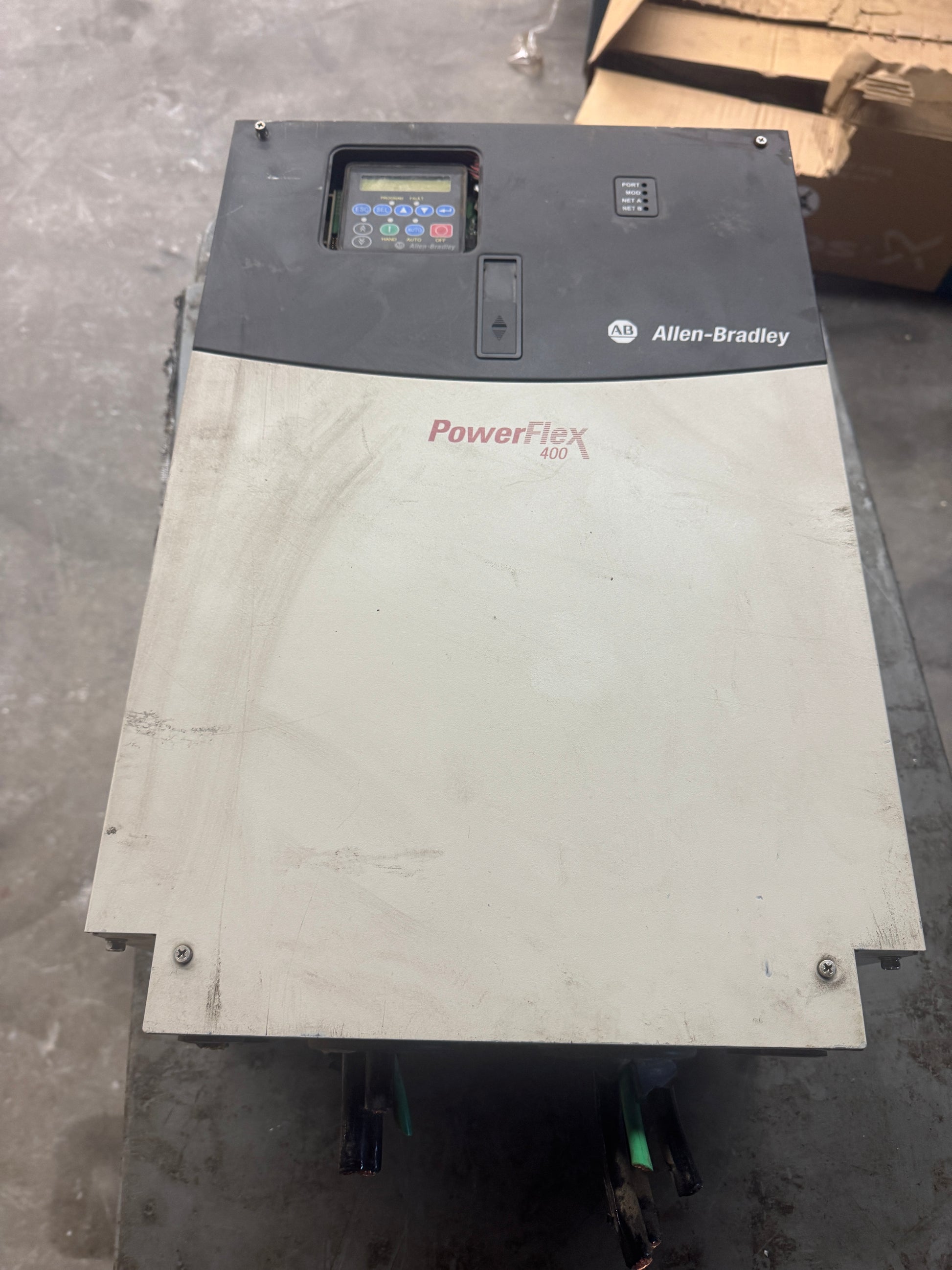

A HIM with an LCD keypad is installed on the front, and the front panel shows PORT, MOD, NET A and NET B indicators. Two power cables with a green ground wire are still attached at the bottom, cut off with bare copper ends. Dirt, scuffs and wear are visible on the front cover and the vents.
Sold as surplus, untested; this drive has not been powered on or functionally tested by MRO Exchange. Buyers should confirm the catalog number, voltage, firmware revision and installed options against their application before purchase.
Stock # 0426-02018
Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
