Allen-Bradley Variable Frequency Drive 22D-B012N104 200-240V 3-Phase
Allen-Bradley Variable Frequency Drive 22D-B012N104 200-240V 3-Phase
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:

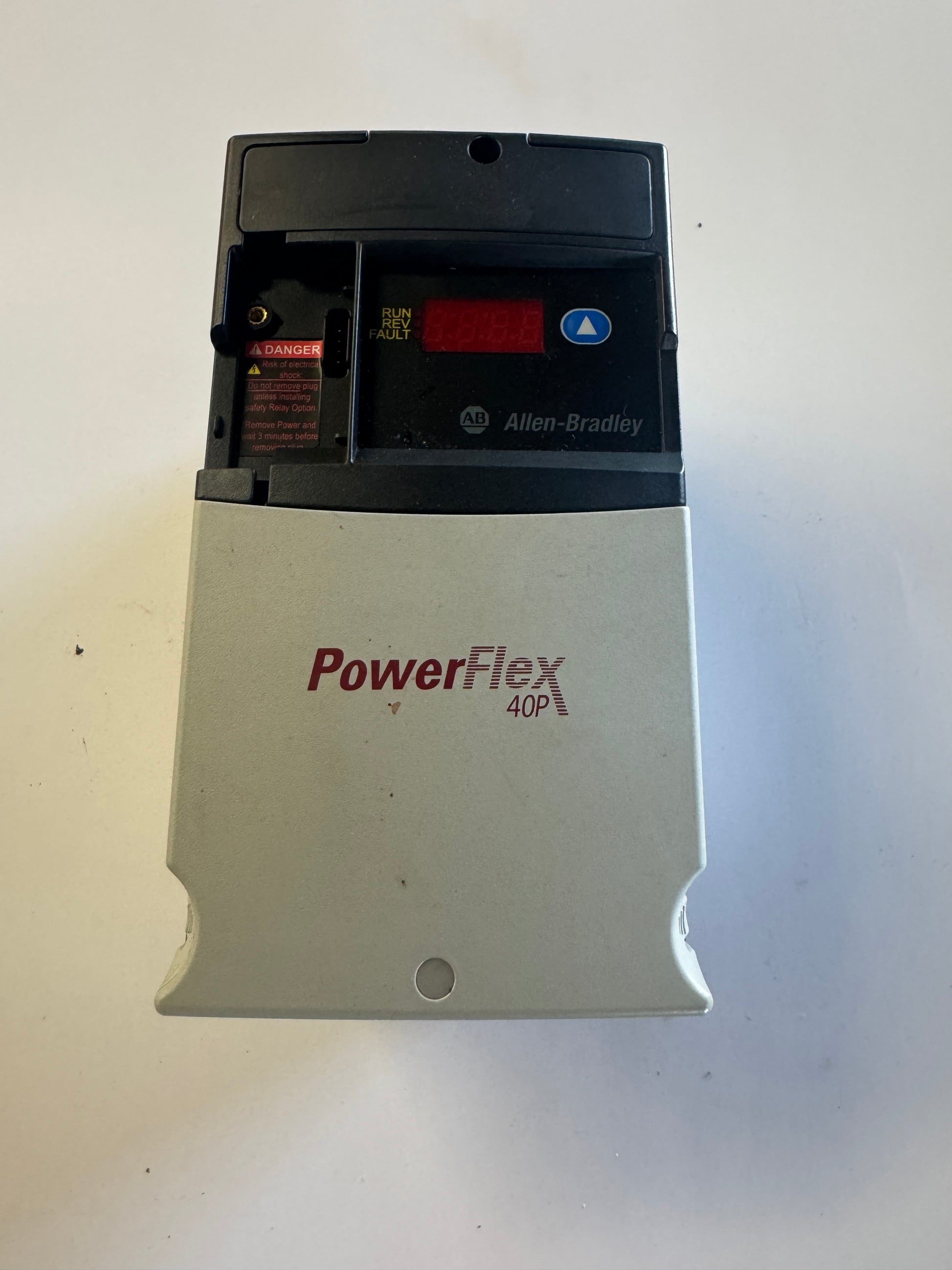

Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 22D-B012N104
Stock #: 0426-02073

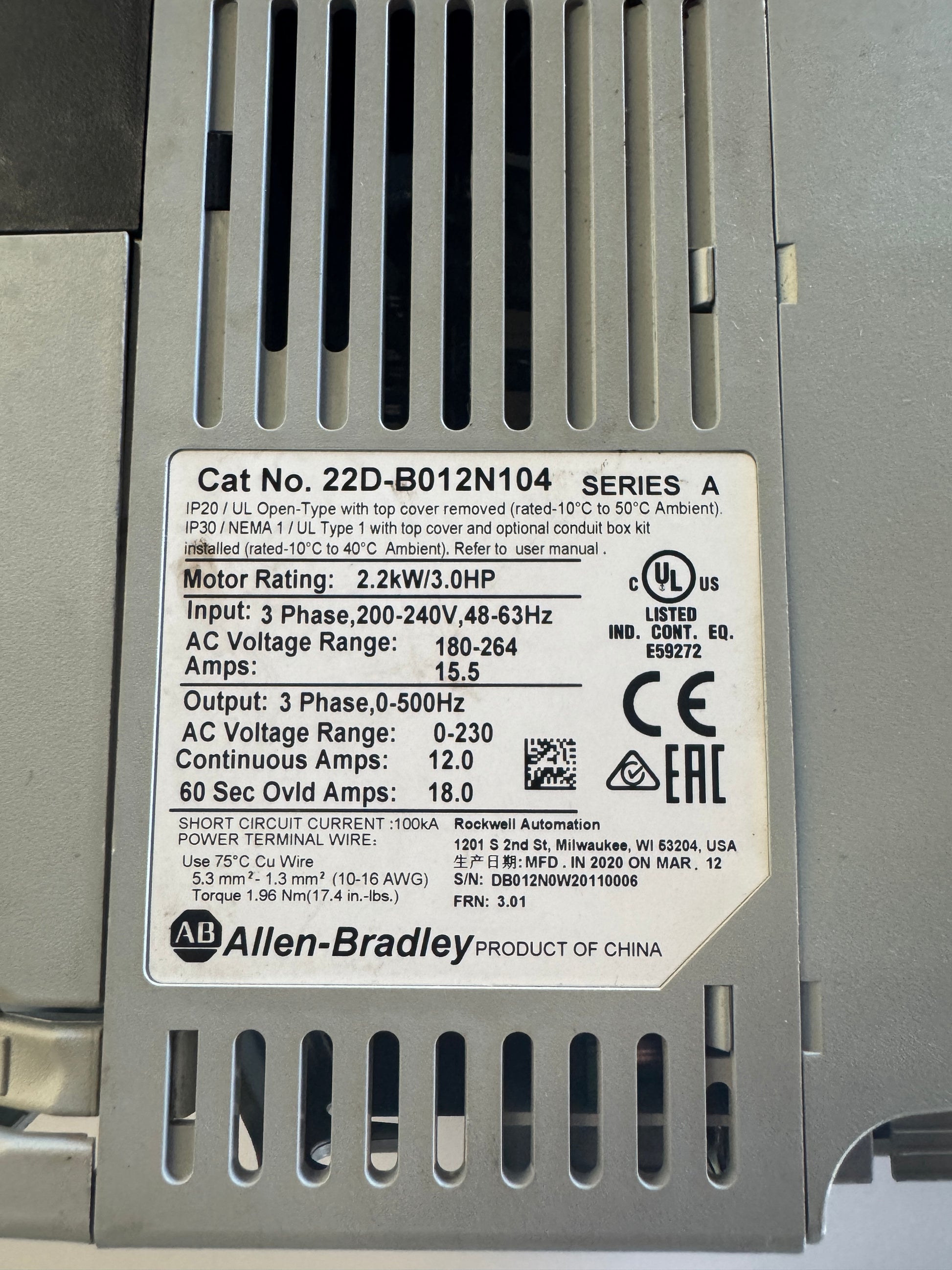

The Allen-Bradley PowerFlex 40P is a compact AC variable frequency drive designed for three-phase motor control in industrial automation applications. This unit carries catalog number 22D-B012N104, Series A, manufactured by Rockwell Automation in 2020. It is rated at 2.2 kW / 3.0 HP with a three-phase input of 200-240V at 48-63Hz and an input current rating of 15.5 amps. The AC voltage input range is 180-264V. Output is three-phase, 0-500Hz, with an AC voltage range of 0-230V and a continuous output current rating of 12.0 amps. The 60-second overload current rating is 18.0 amps. The short circuit current rating is 100kA. Enclosure type is IP20 / UL Open-Type (NEMA Type 1 with optional conduit box kit and top cover installed). Operating ambient temperature ranges from -10 degrees C to 50 degrees C in open configuration and -10 degrees C to 40 degrees C with top cover and conduit box kit. Serial number DB012N0W20110006, firmware revision 3.01. Certifications include UL Listed (Industrial Control Equipment, E59272), CE, and EAC. Power terminal wiring requires 75 degree C copper wire, 5.3 to 1.3 mm2 (10-16 AWG), torqued to 1.96 Nm (17.4 in-lbs). The PowerFlex 40P product family supports sensorless vector control and closed-loop encoder feedback operation. Listed as a single unit only.
Stock # 0426-02073
Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
