Allen-Bradley Variable Speed Drive 160-AA04NSF1P1 200-240V 3-Phase

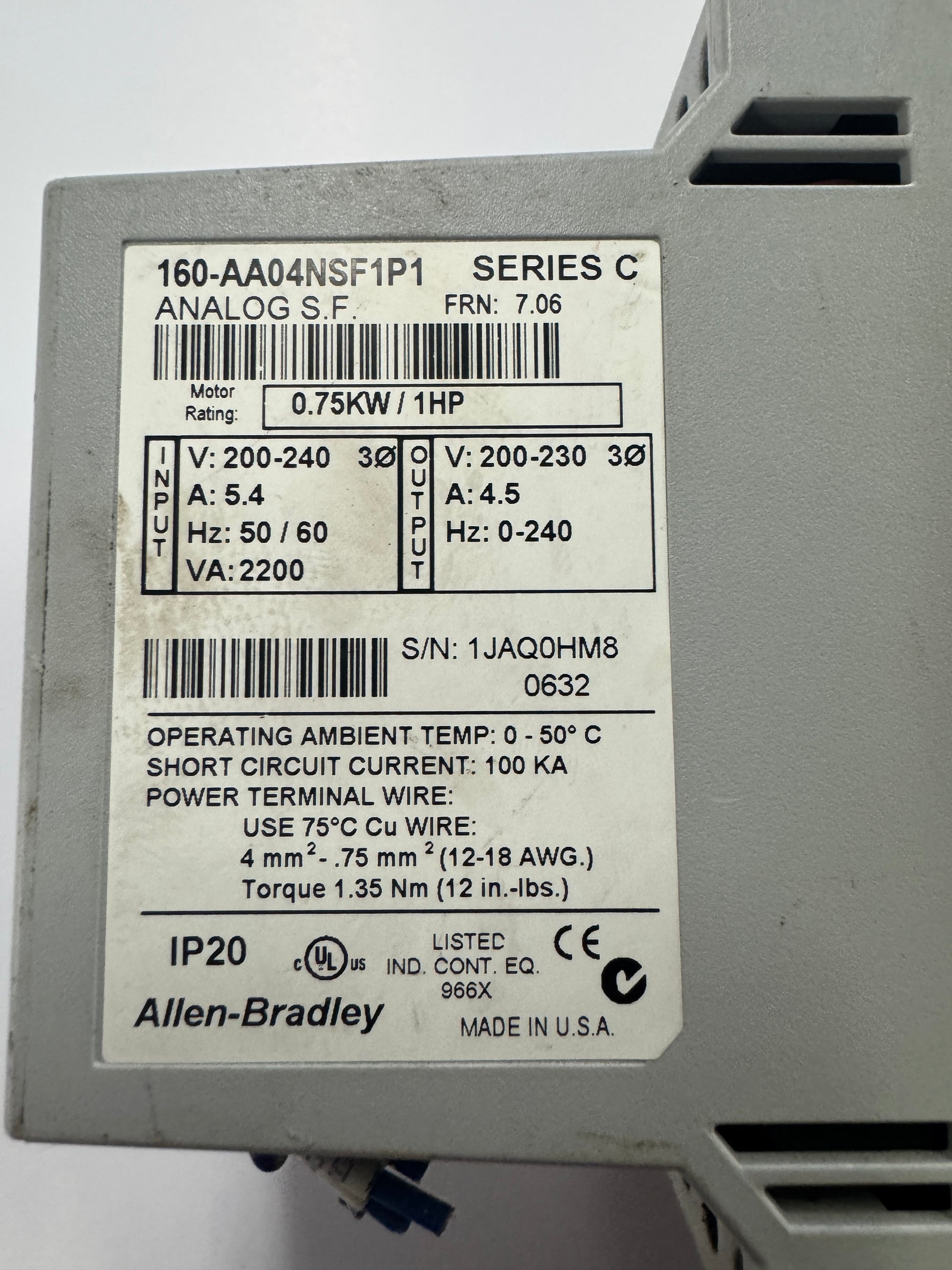

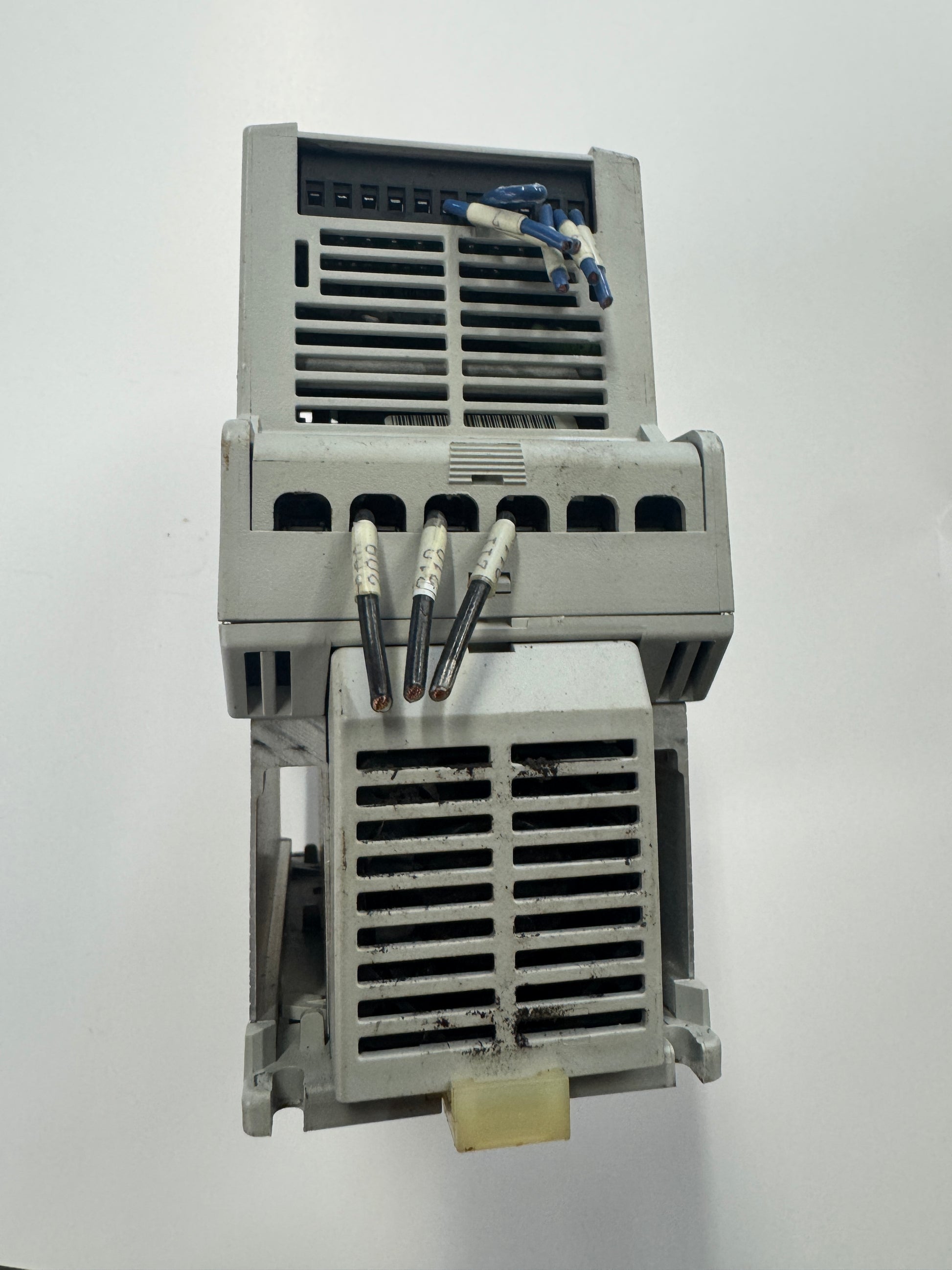

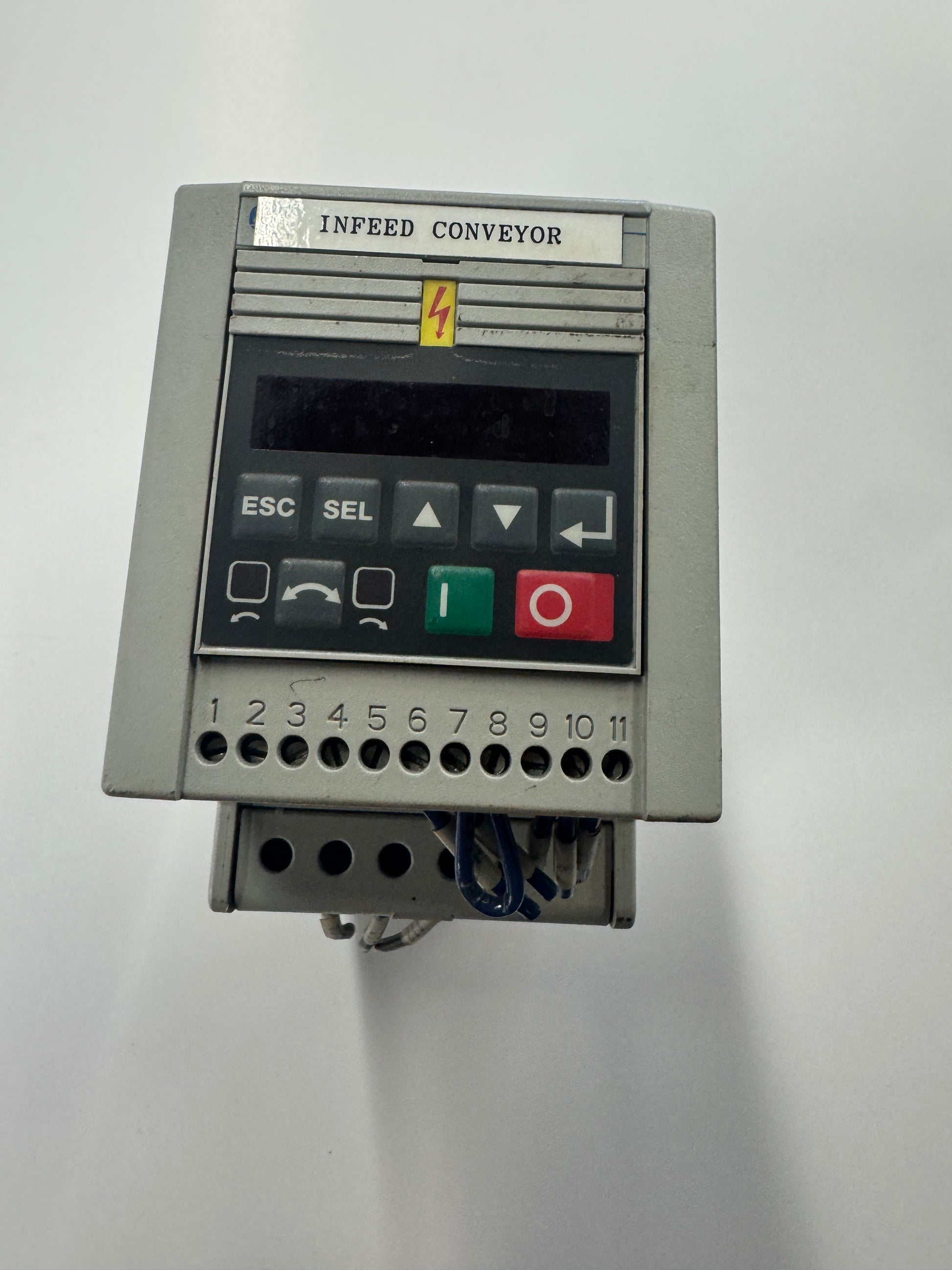

The Allen-Bradley 160-AA04NSF1P1 is a Bulletin 160 Smart Speed Controller (SSC) variable speed drive rated at 0.75 kW / 1 HP with a 3-phase input voltage of 200 to 240V AC. The nameplate confirms catalog number 160-AA04NSF1P1, Series C, firmware revision FRN 7.06, and serial number 1JAQ0HM8 with date code 0632. Input specifications per nameplate: 200 to 240V 3-phase, 5.4A, 50/60 Hz, 2200 VA. Output specifications: 200 to 230V 3-phase, 4.5A, 0 to 240 Hz. The unit carries an IP20 open enclosure rating and is UL Listed (IND. CONT. EQ., file 966X) and CE marked. Operating ambient temperature range is 0 to 50 degrees C. Short circuit current rating is 100 kA. Power terminal wiring requires 75 degrees C copper wire, 12 to 18 AWG (4 mm2 to 0.75 mm2), torqued to 1.35 Nm (12 in-lbs). The drive features an analog signal follower (Analog S.F.) model type with an integrated operator panel including ESC, SEL, arrow, and enter keys plus start and stop buttons. The front panel label indicates prior use as an infeed conveyor drive. The unit was manufactured in the USA and is now discontinued by Rockwell Automation. Wire stubs with labels are present from prior installation.

Stock # 0426-02103

Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
