Allen-Bradley Variable Speed Drive 160-BA03NSF1P1 380-460V 3-Phase
Allen-Bradley Variable Speed Drive 160-BA03NSF1P1 380-460V 3-Phase
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 160-BA03NSF1P1
Stock #: 0426-02107

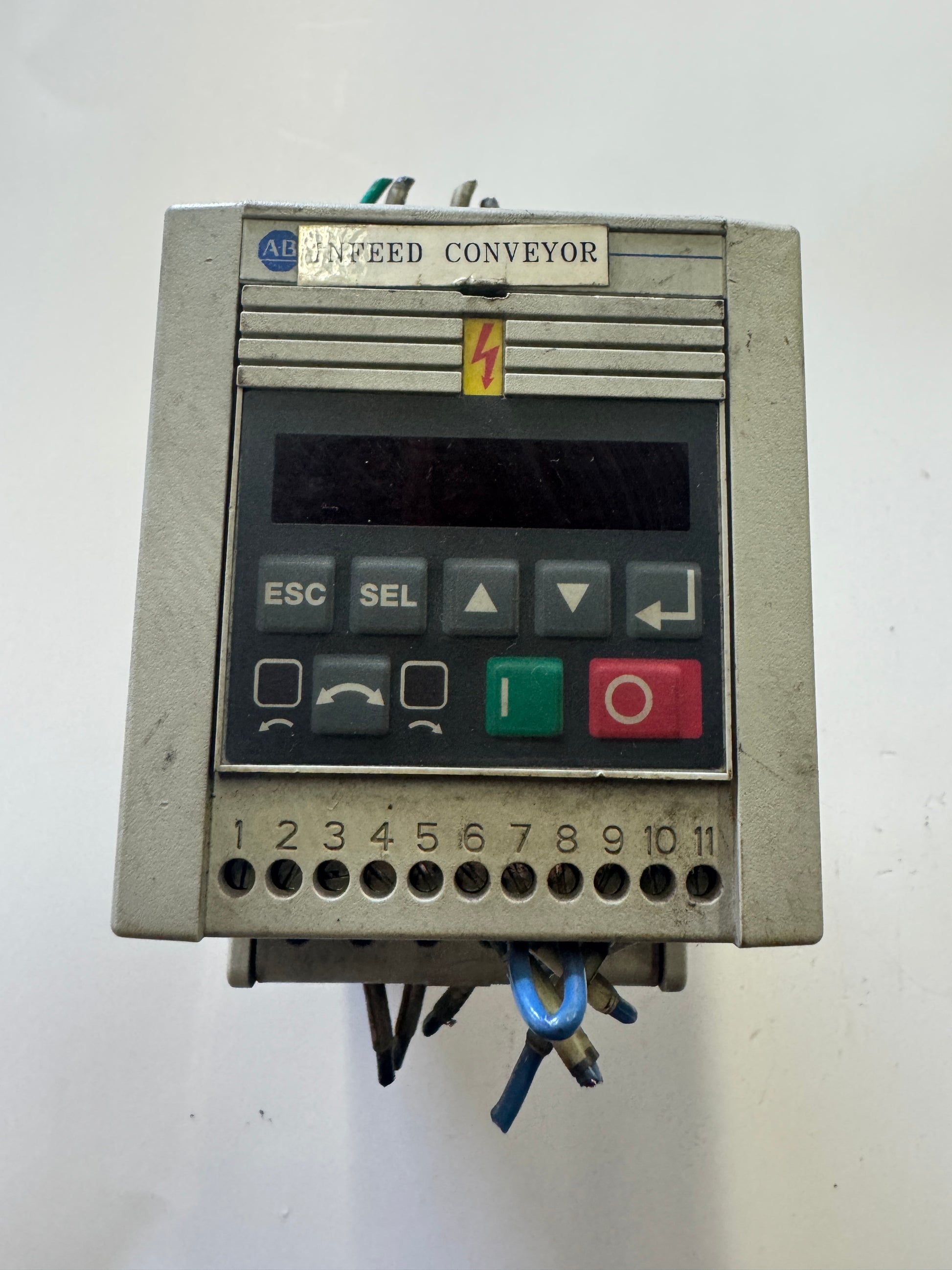

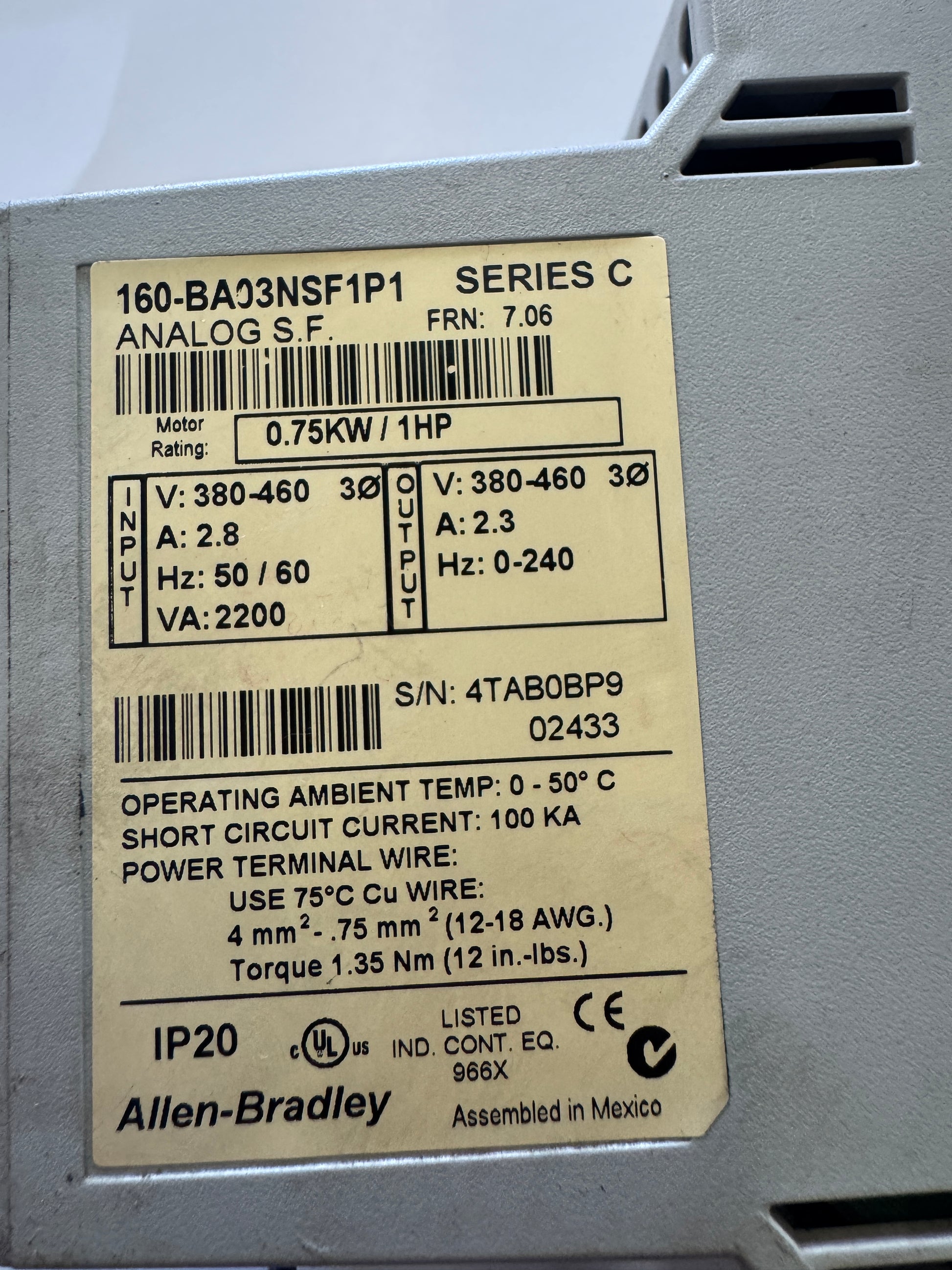

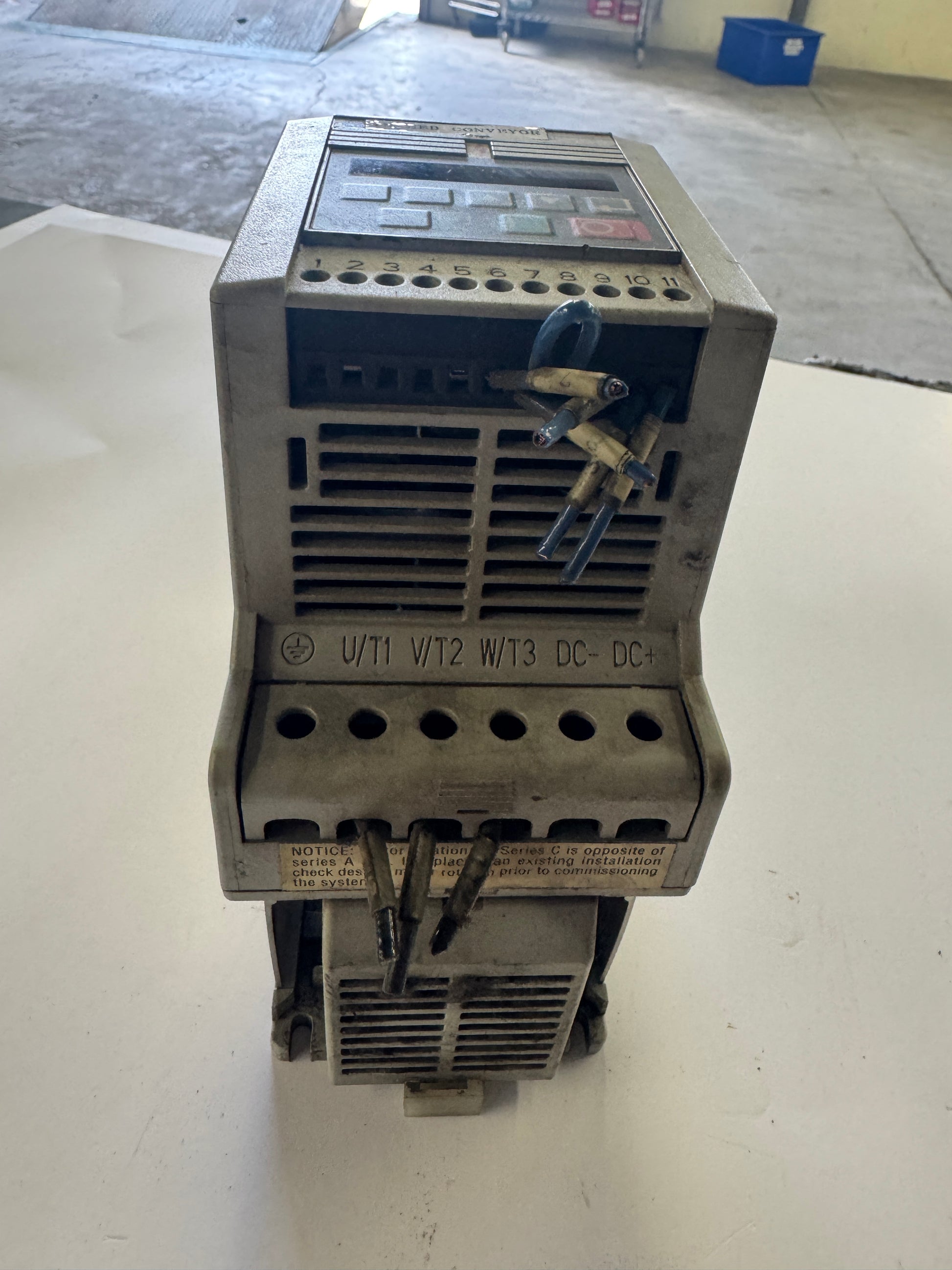

The Allen-Bradley 160-BA03NSF1P1 is a Bulletin 160 SSC Series C variable speed drive rated at 0.75 kW (1 HP) for use with three-phase AC motors. Input specifications confirmed from the nameplate are 380-460V, 3-phase, 2.8A, 50/60 Hz, with a VA rating of 2200. Output is 380-460V, 3-phase, 2.3A, with a frequency range of 0 to 240 Hz. The drive carries firmware revision FRN 7.06 and is configured as an Analog Signal Follower (Analog S.F.), accepting an external potentiometer or analog input signal for speed control. The unit features the 160-P1 program keypad module integrated into the catalog number, providing onboard programming capability via the ESC, SEL, up/down arrow, and enter keys visible on the front panel. Terminal strip accommodates 11 control connections numbered 1 through 11. Power output connections labeled U/T1, V/T2, W/T3, DC, and DC+ are accessible from the bottom. The enclosure is rated IP20 and the unit is UL listed (IND. CONT. EQ. 966X) and CE marked. Serial number is 4TAB0BP9 02433. Wire terminations are present from prior installation. Operating ambient temperature range is 0 to 50 degrees C. Assembled in Mexico.
Stock # 0426-02107
Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
