Ametek Gemco Linear Displacement Transducer 950MD14.0A0B0CXX

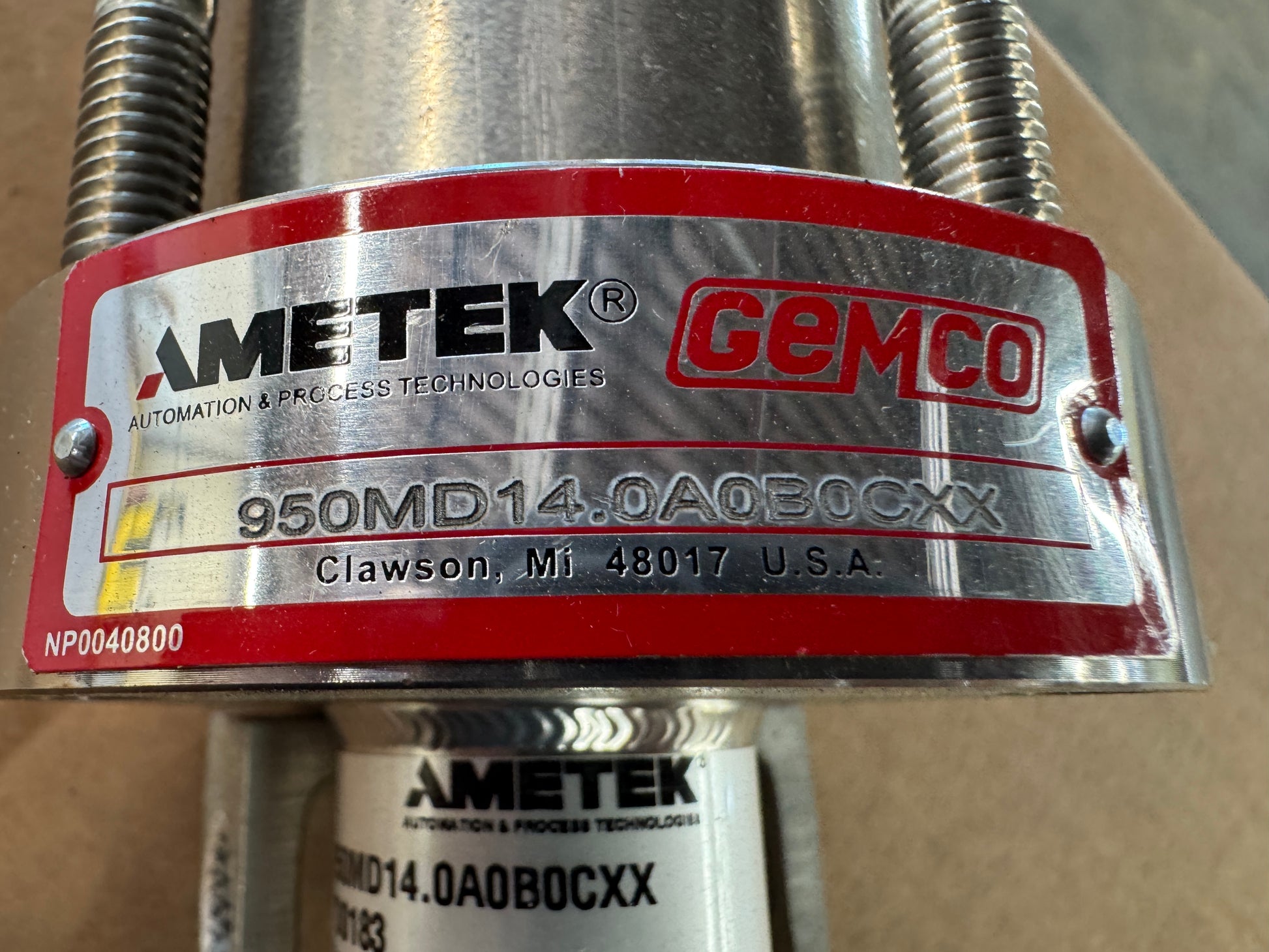

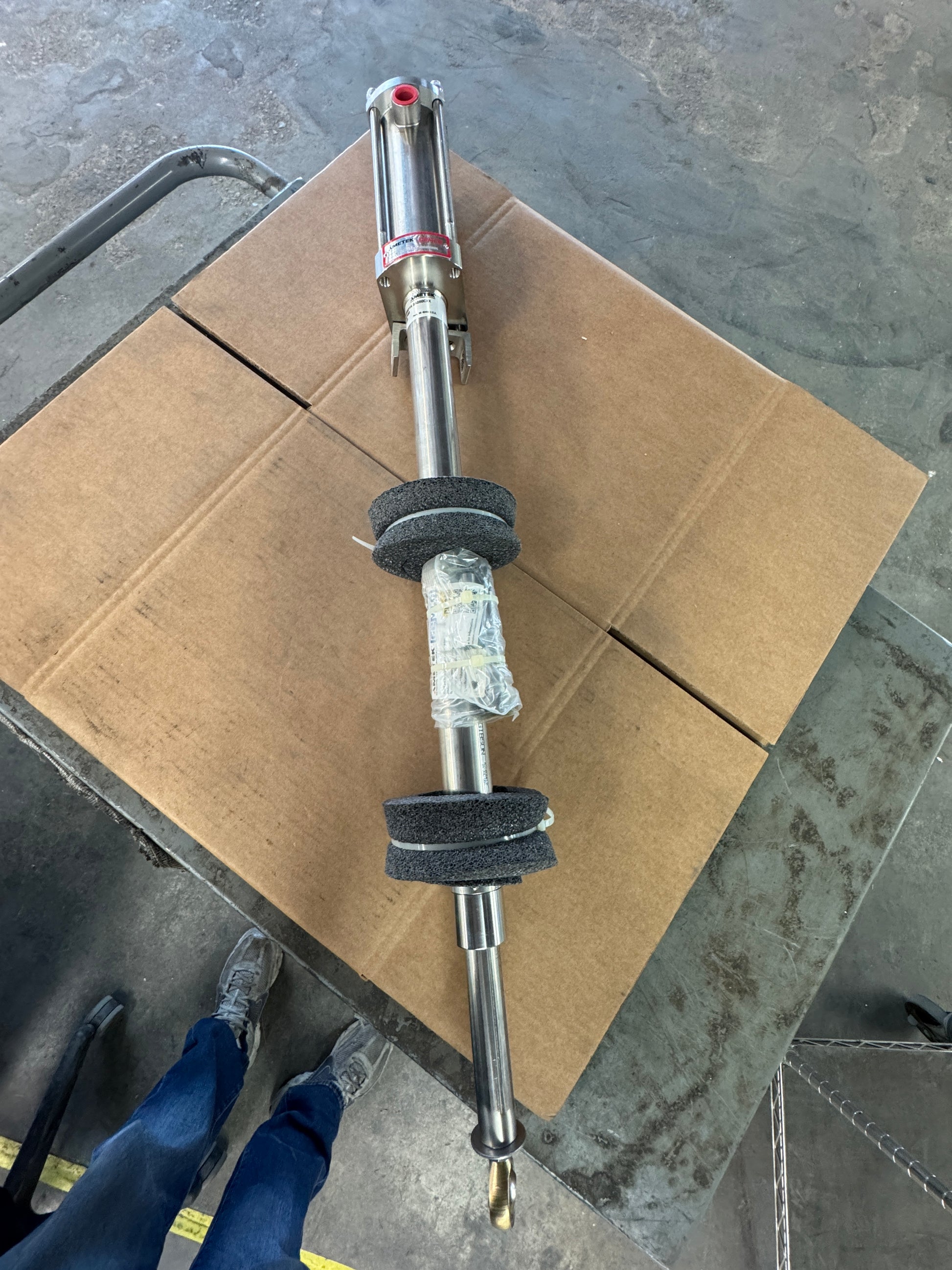

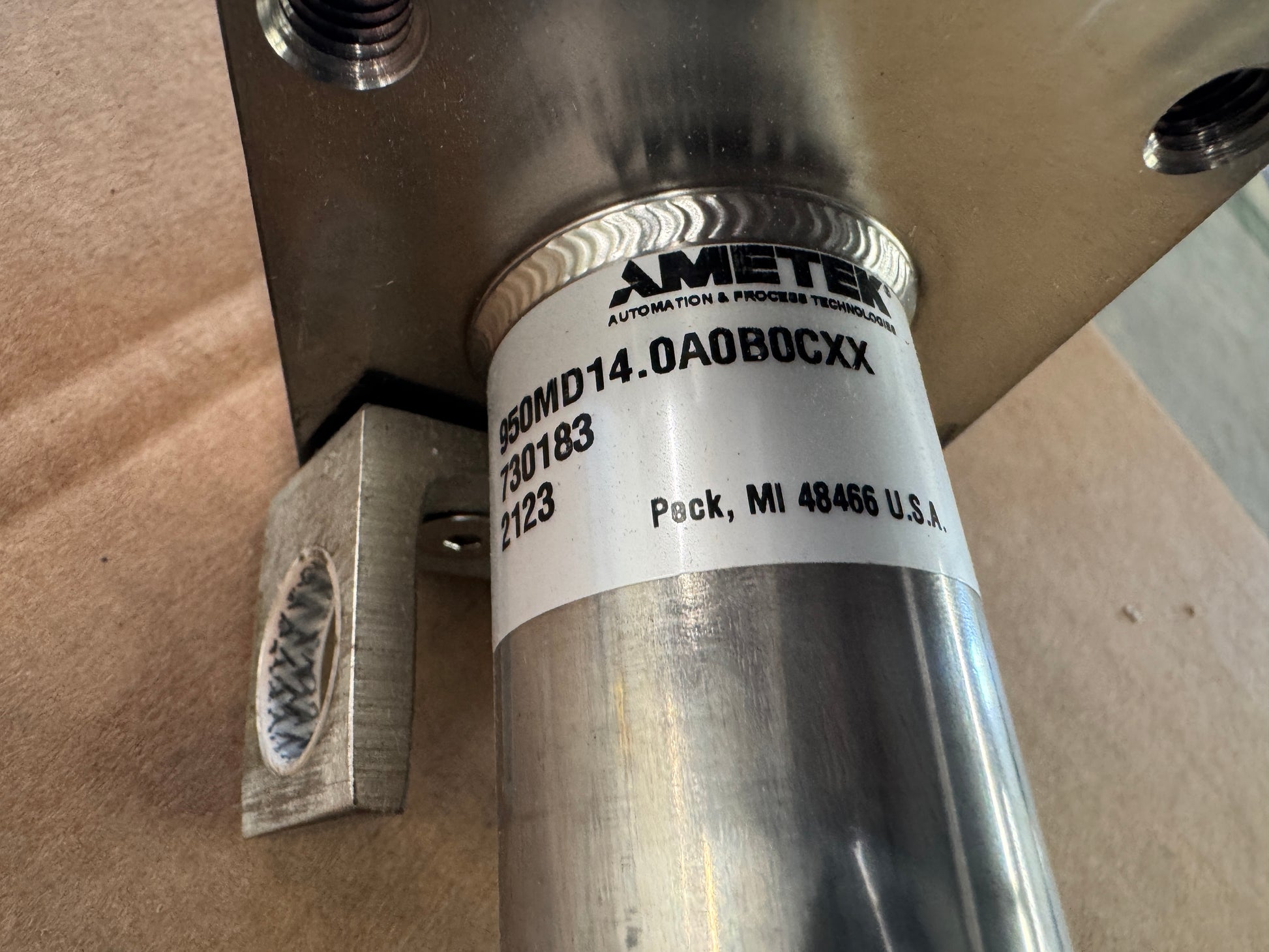

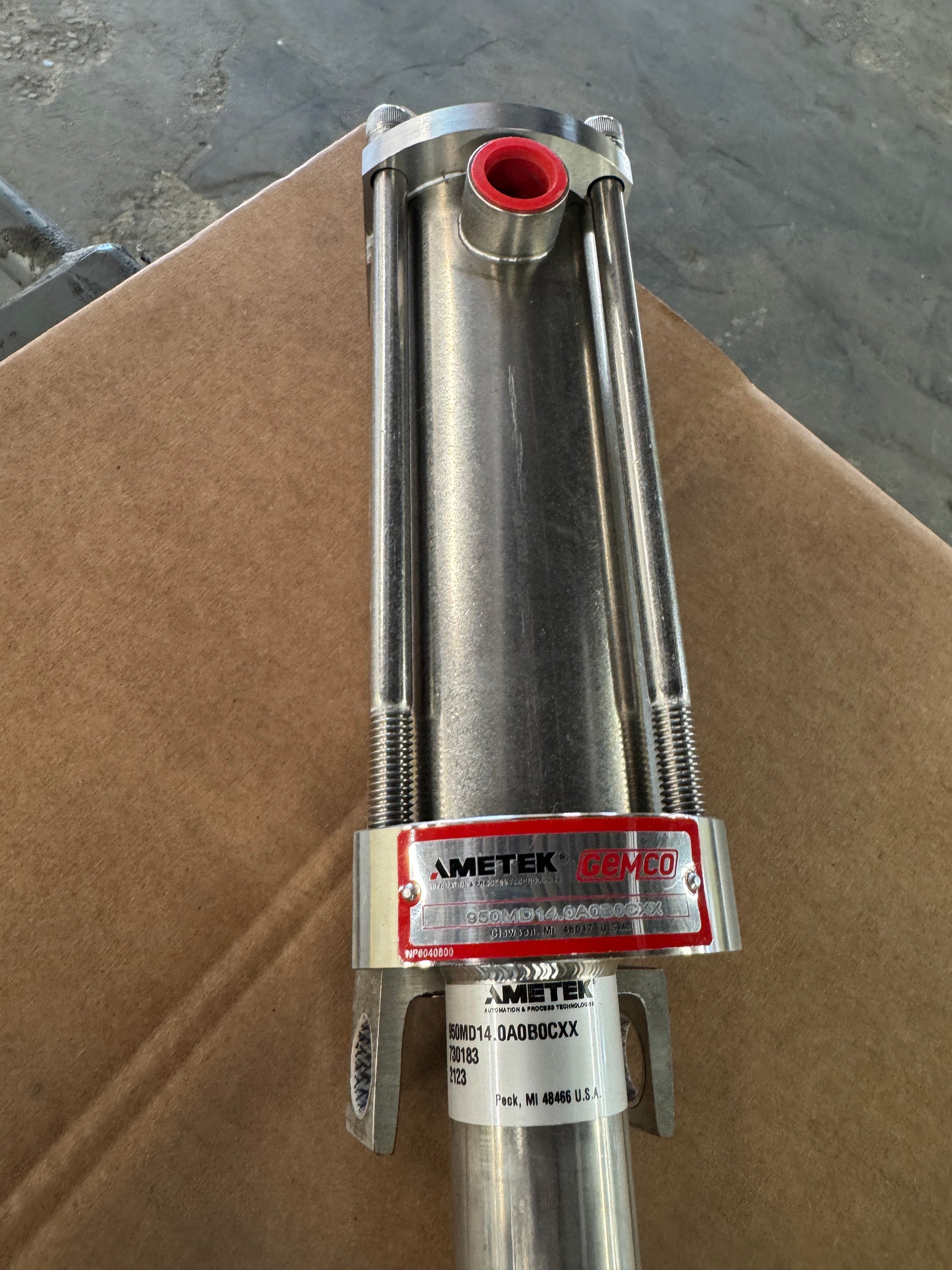

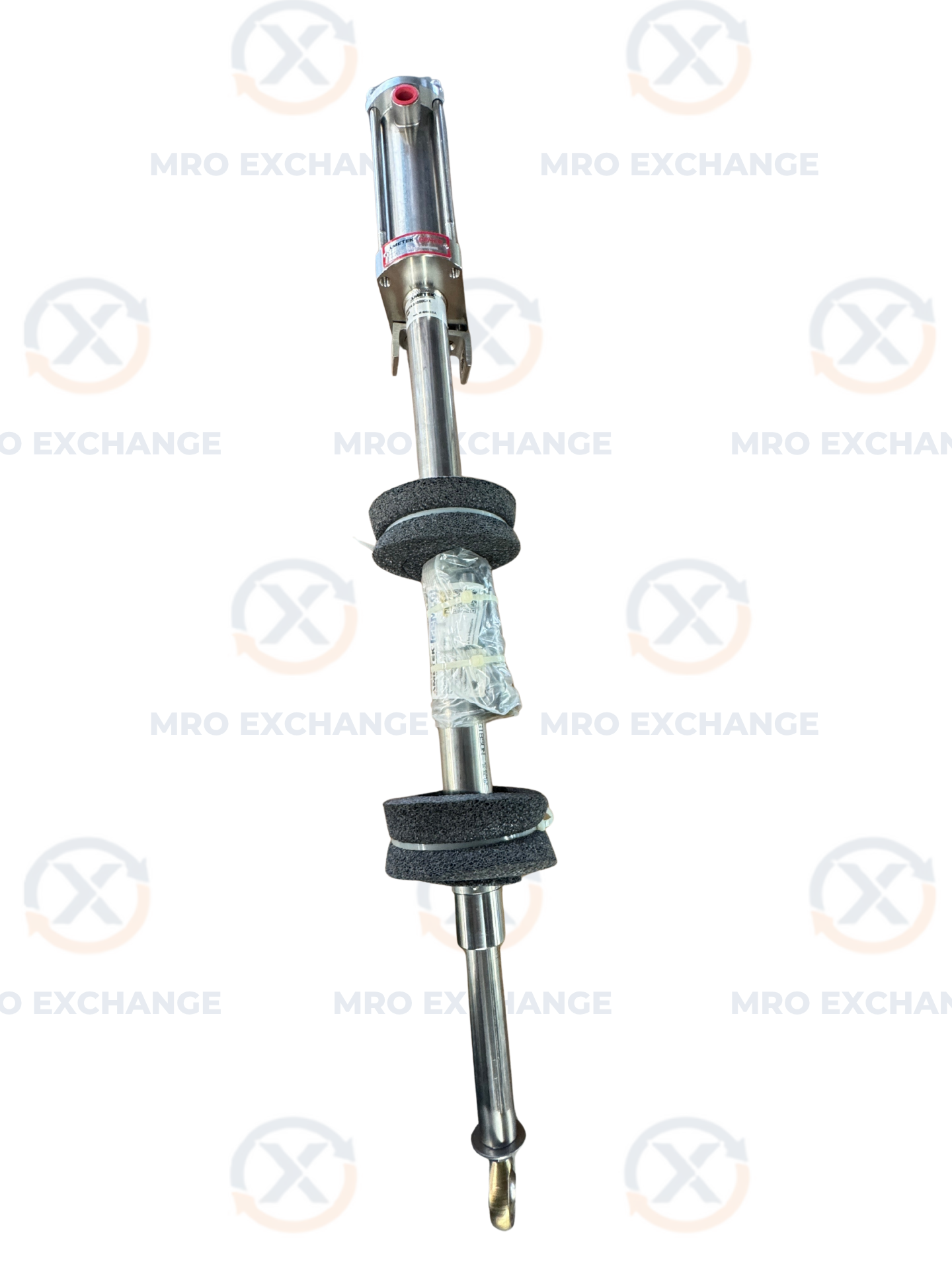

The Ametek Gemco 950MD14.0A0B0CXX is a magnetostrictive linear displacement transducer (LDT) assembly housed in a mill duty stainless steel enclosure with a 14.0 inch active stroke length. Manufactured by Ametek Automation and Process Technologies under the Gemco brand, this rod style linear position sensor is built around the 950 Series Mill Duty Housing platform, which is constructed from 304 stainless steel and engineered for use in steel mills, primary metals processing, and other harsh industrial environments where direct mounting of a standalone rod style LDT is not practical. The assembly features a two point mounting configuration with welded mounting feet, dual support tie rods, and an integral protective outer tube that shields the internal LDT probe from physical impact, weld splatter, abrasives, hydraulic fluid, and thermal exposure. Serial number 730183, date code 2123, manufactured in Peck, Michigan, U.S.A. The 950MD platform accepts rod style LDTs from the Ametek Gemco family including the 953 VMax and related variants, providing absolute position feedback using non contact magnetostrictive technology that requires no homing or calibration after a power loss. Typical applications include rolling mill screwdown systems, caster mold oscillation feedback, descaler position control, hydraulic press ram position, large hydraulic and pneumatic cylinder feedback, web tensioning systems, and similar long stroke linear position sensing tasks. Part number 950MD14.0A0B0CXX, nameplate identifier NP0040800.

Stock # 0526-02333
