AMT Pumps 5410-95 Vertical Centrifugal Pump Assembly - 3/4 HP, 230/460V, 3-phase, 50/60 Hz Motor 3400 RPM

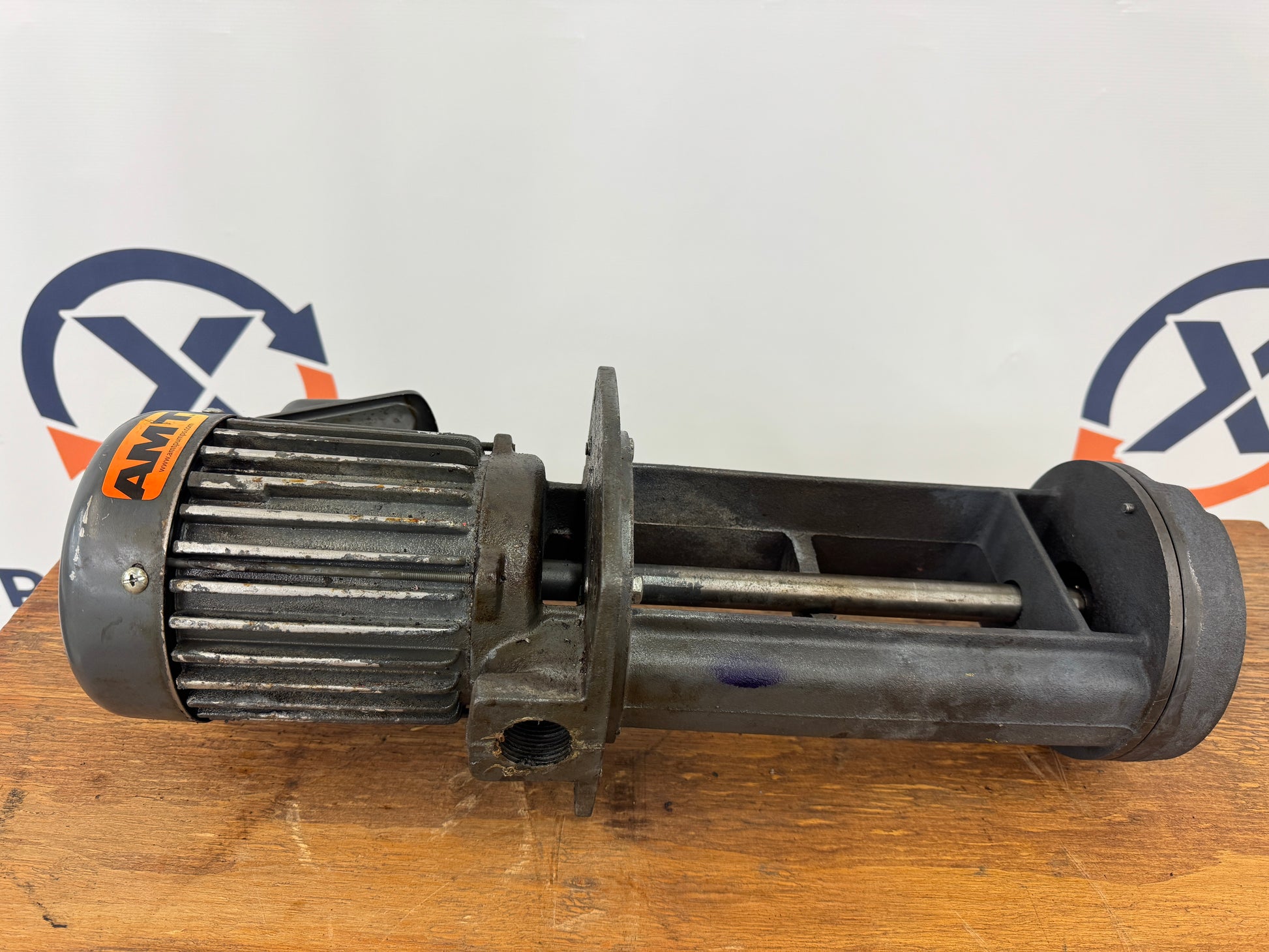

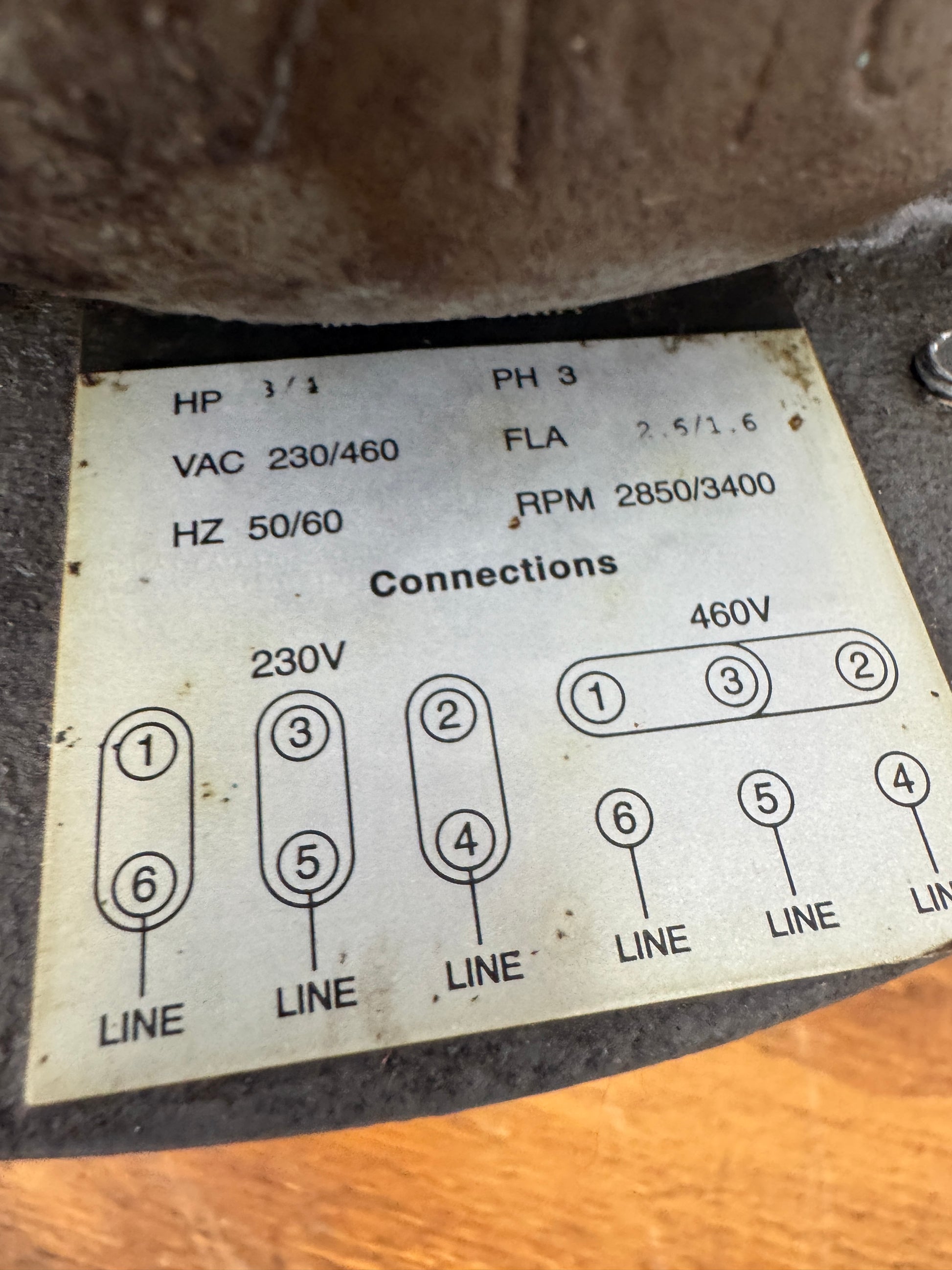

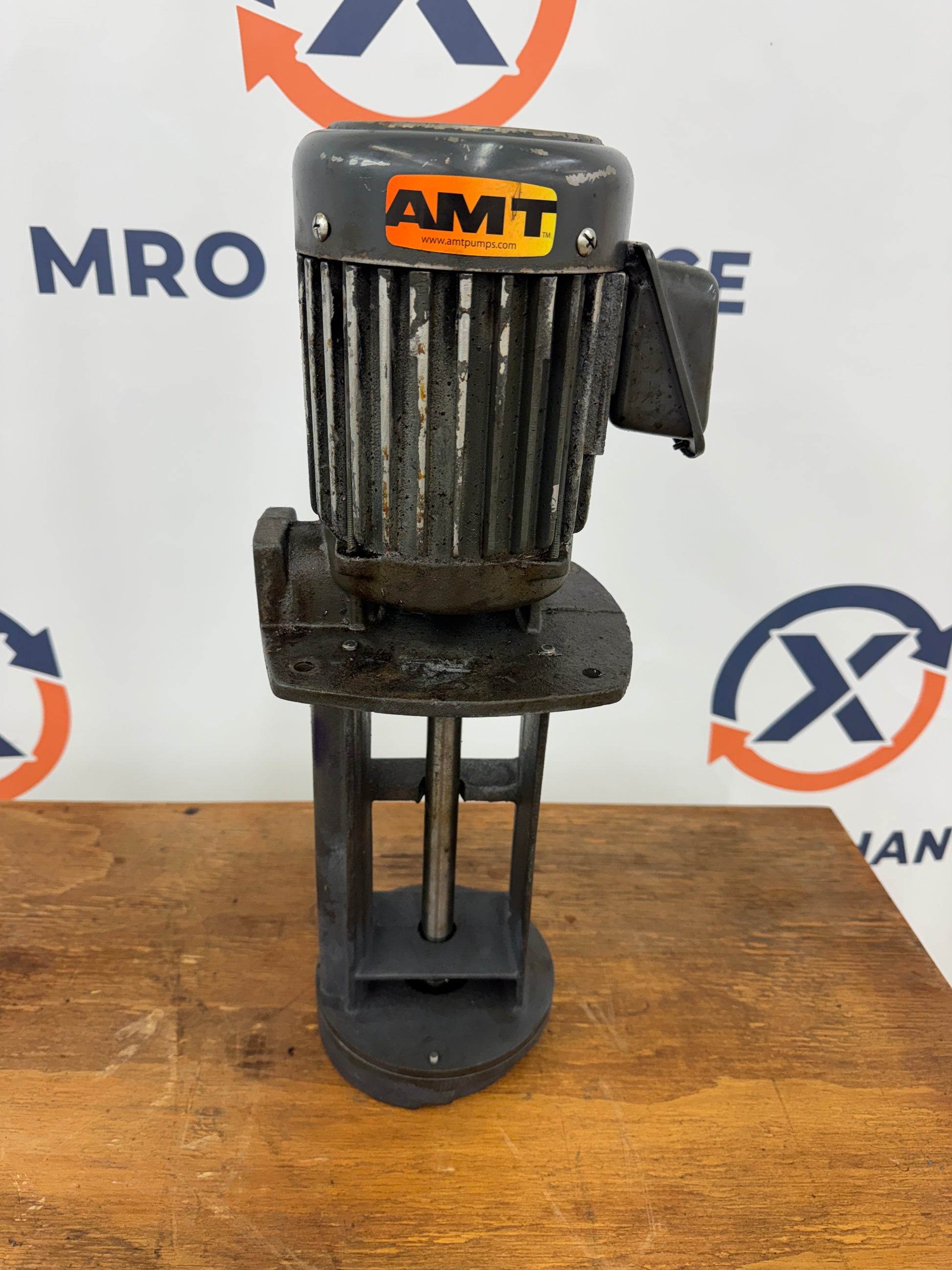

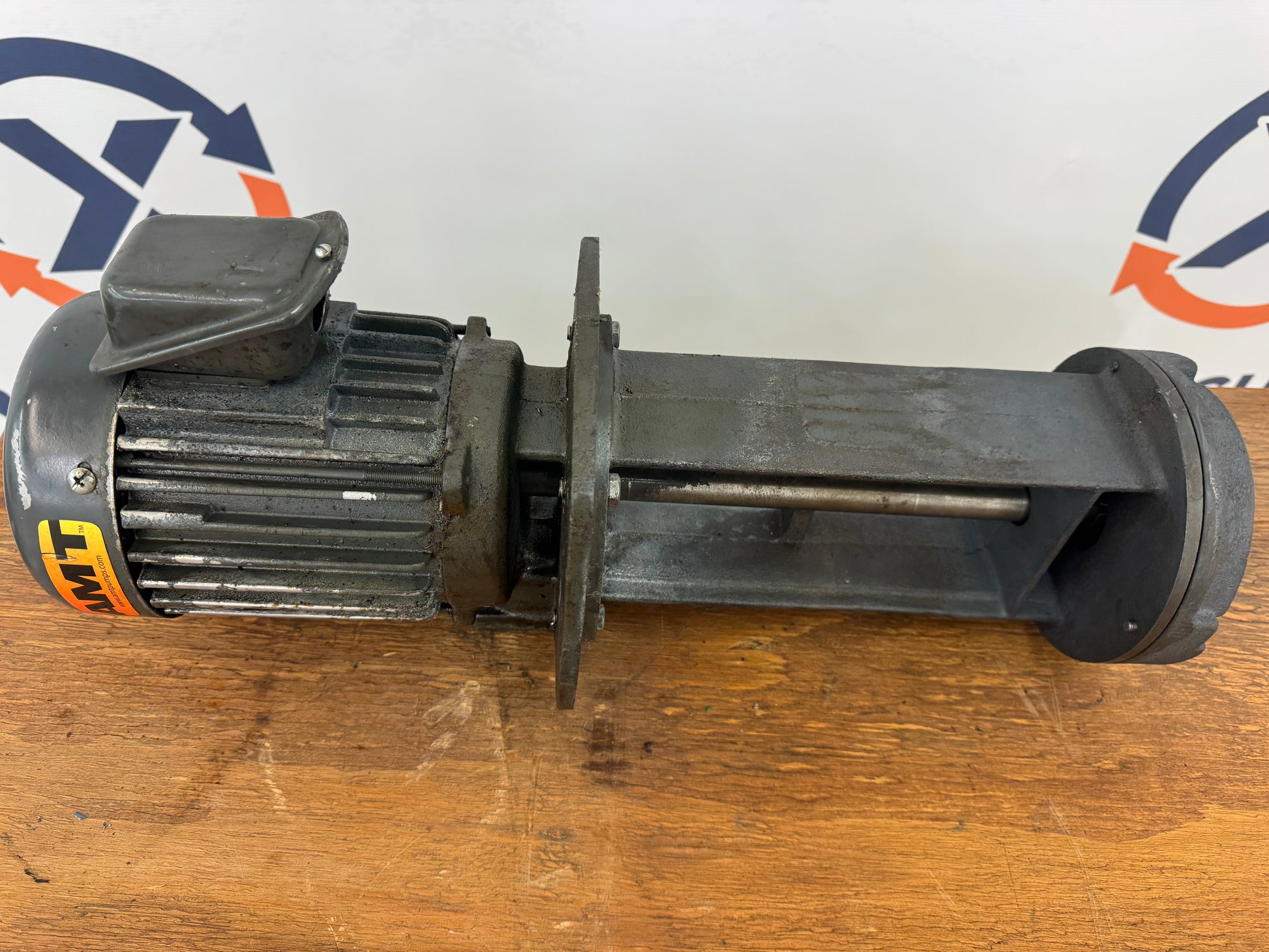

The AMT 5410-95 is a cast iron immersion type coolant pump rated for 3/4 HP, three phase operation at 230/460 VAC, 50/60 Hz. The nameplate lists full load amps of 2.5/1.6 and motor speed of 2850/3400 RPM. Discharge port size is 1 inch NPT female. AMT Pump Company manufactures these units as interchangeable replacement pumps for domestic and imported machine tools including grinders, lathes, mills, and machining centers, with cross compatibility to OEM pumps from Fuji, Mitsubishi, Toshiba, Hitachi, and similar manufacturers. The 5410-95 incorporates a totally enclosed motor with sealed, permanently lubricated bearings and a sealless design that eliminates the need for shaft seals or packing. Construction is cast iron throughout the motor housing, mounting flange, and column, paired with a stainless steel semi open impeller suited to fluids containing fine contaminants. The integral mounting flange supports vertical installation into a coolant sump, with the pump column extending below the flange to draw fluid from the reservoir. Published AMT specifications list maximum flow of 56 GPM on water, maximum head of 60 feet, maximum liquid temperature of 180 degrees F, and maximum liquid viscosity of 500 SSU. Typical applications include circulation and spraying of water based coolants and light cutting oils through machine tool coolant delivery systems. The unit shown carries the standard AMT identification label on the motor end cover and includes the cast iron support frame and column assembly.

Stock # 0226-121
