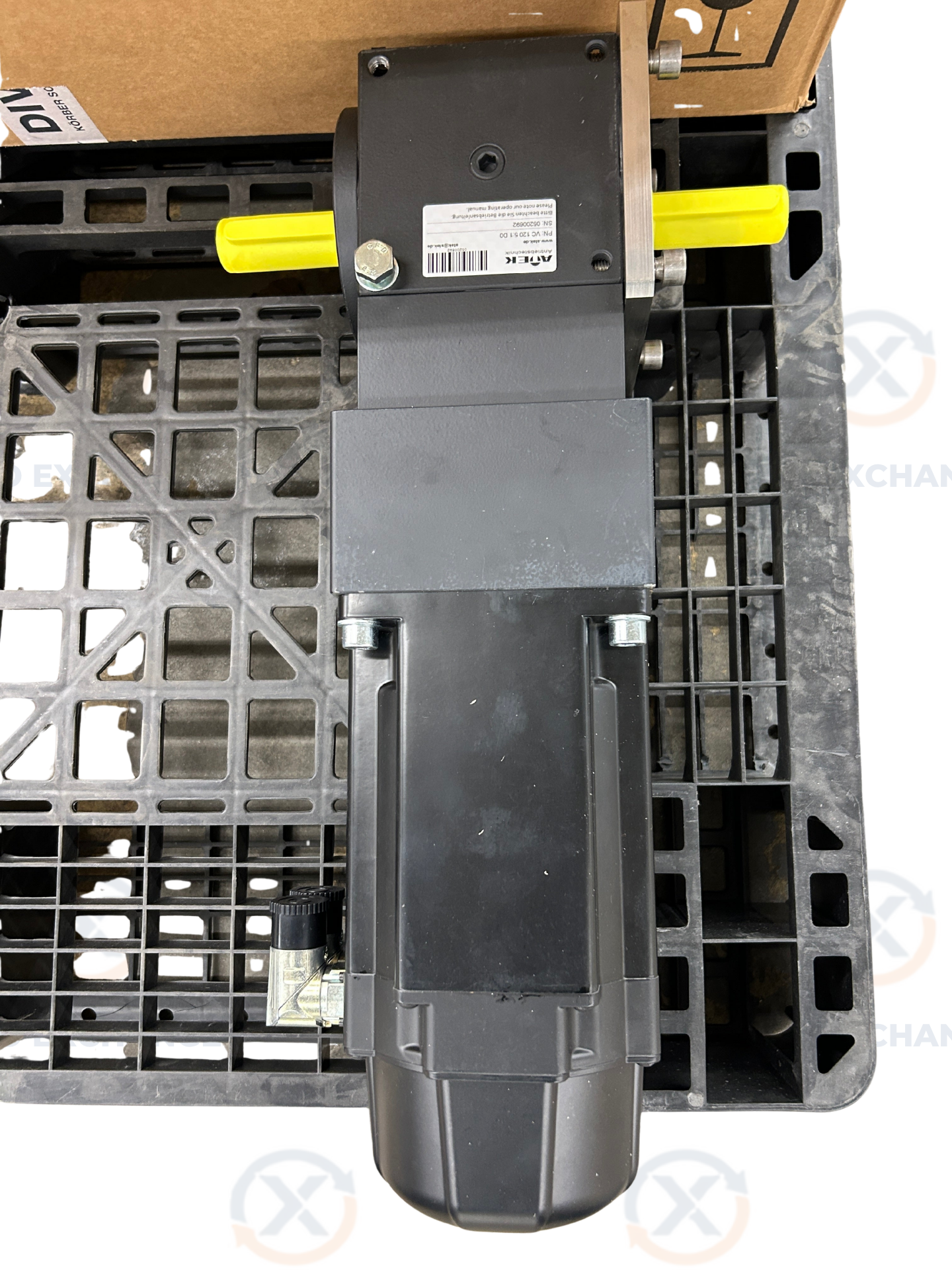

Atek Antriebstechnik Servo Bevel Gearmotor Assembly VC 120 5:1 D0

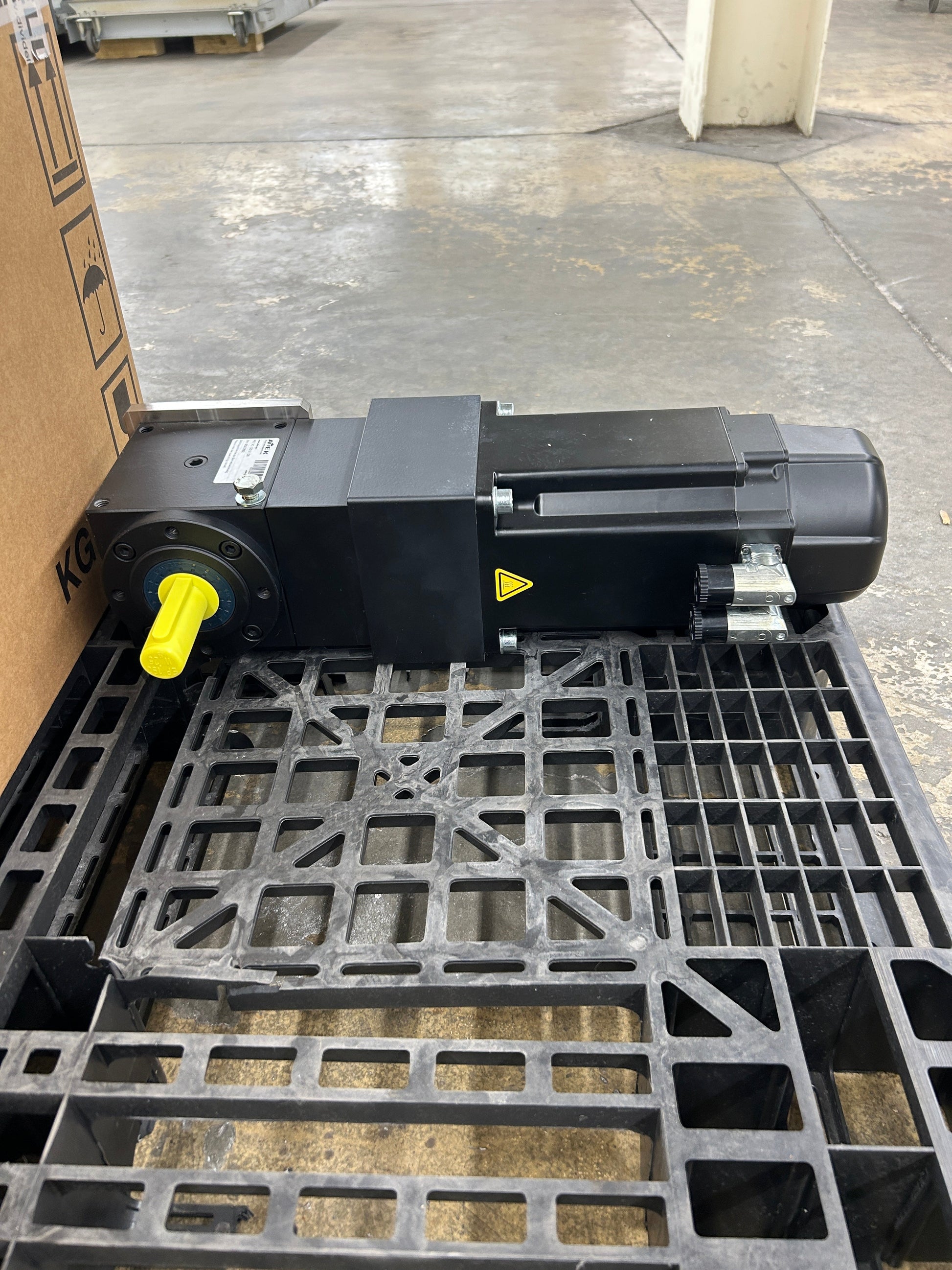

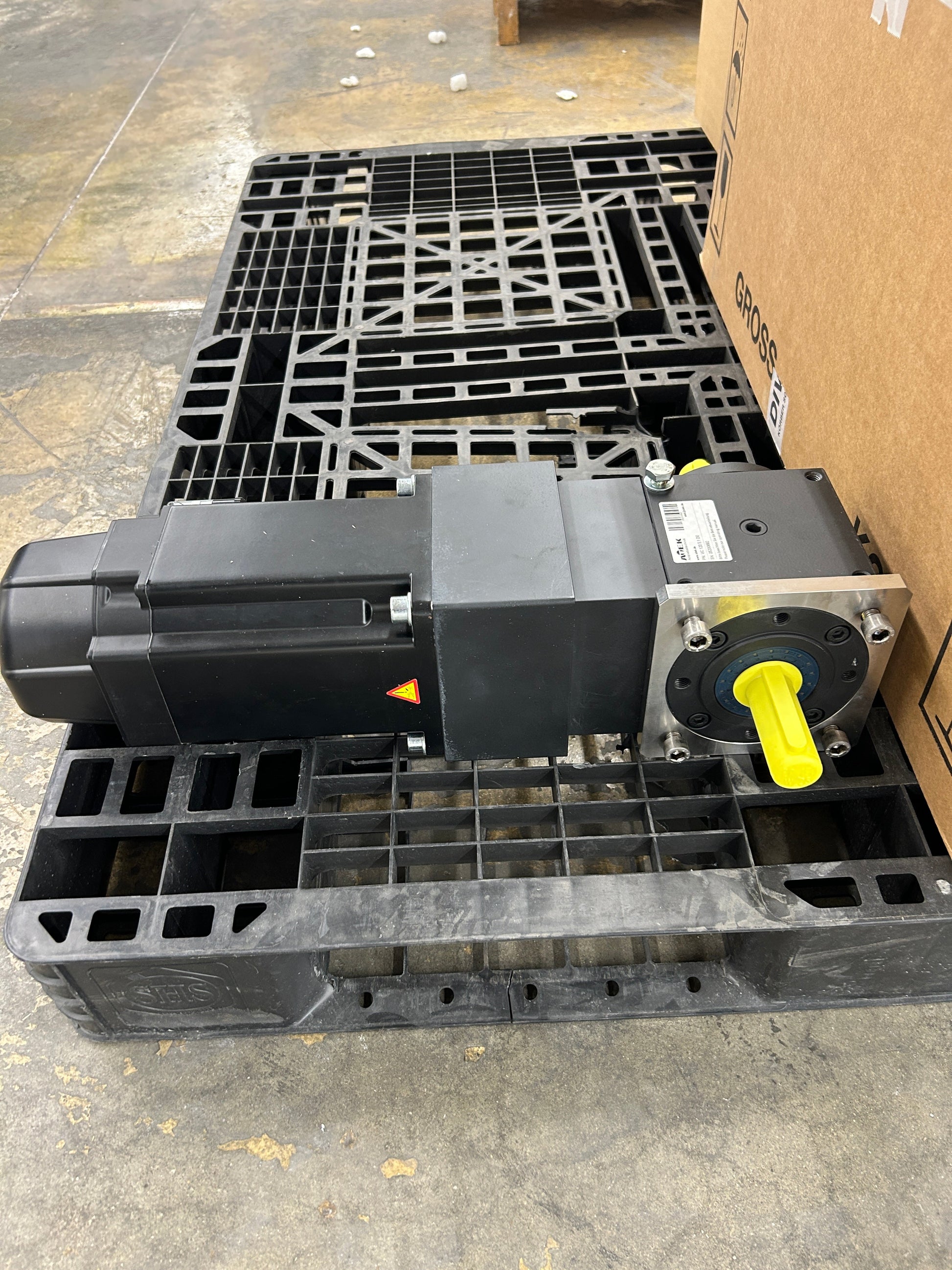

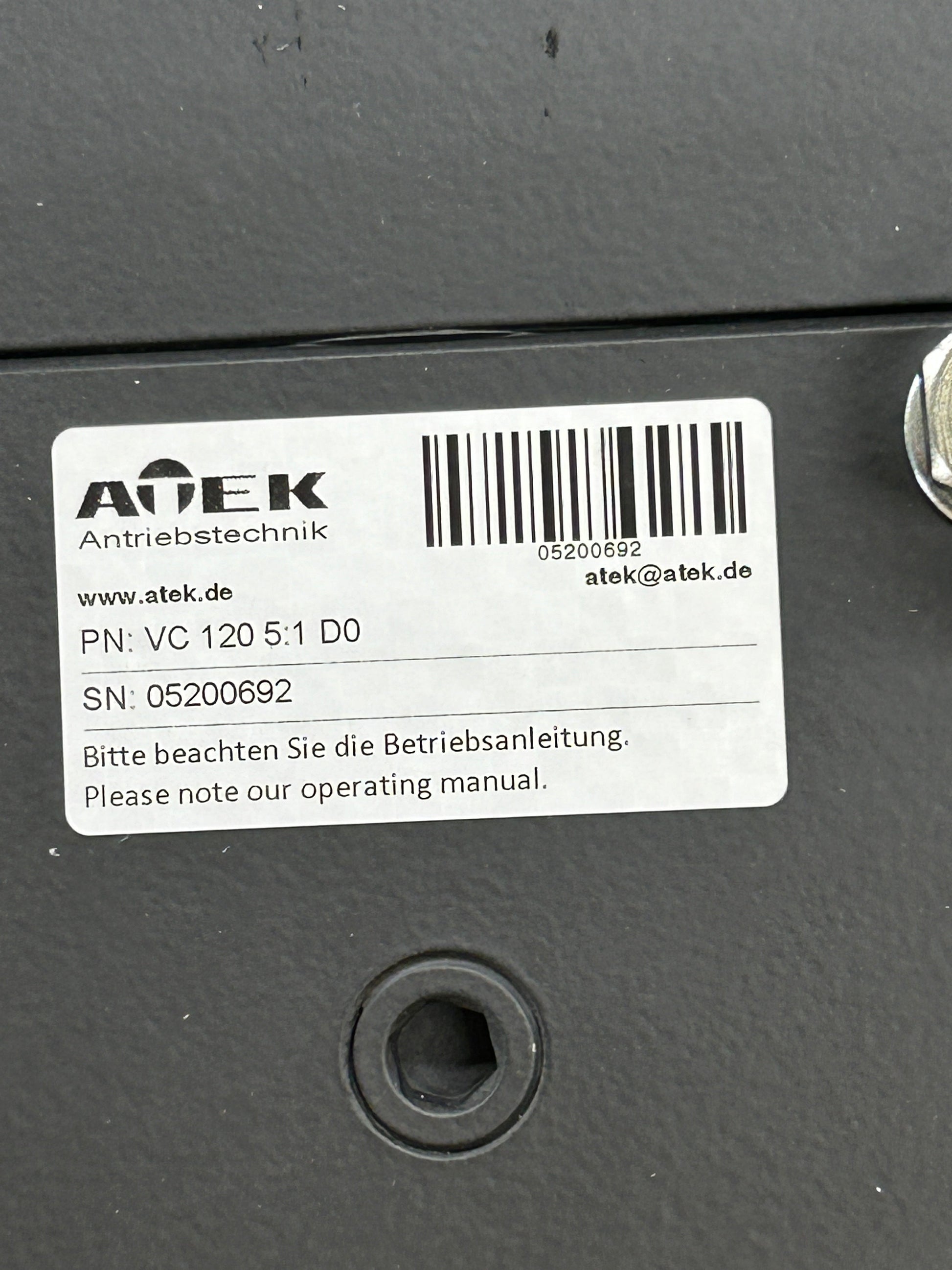

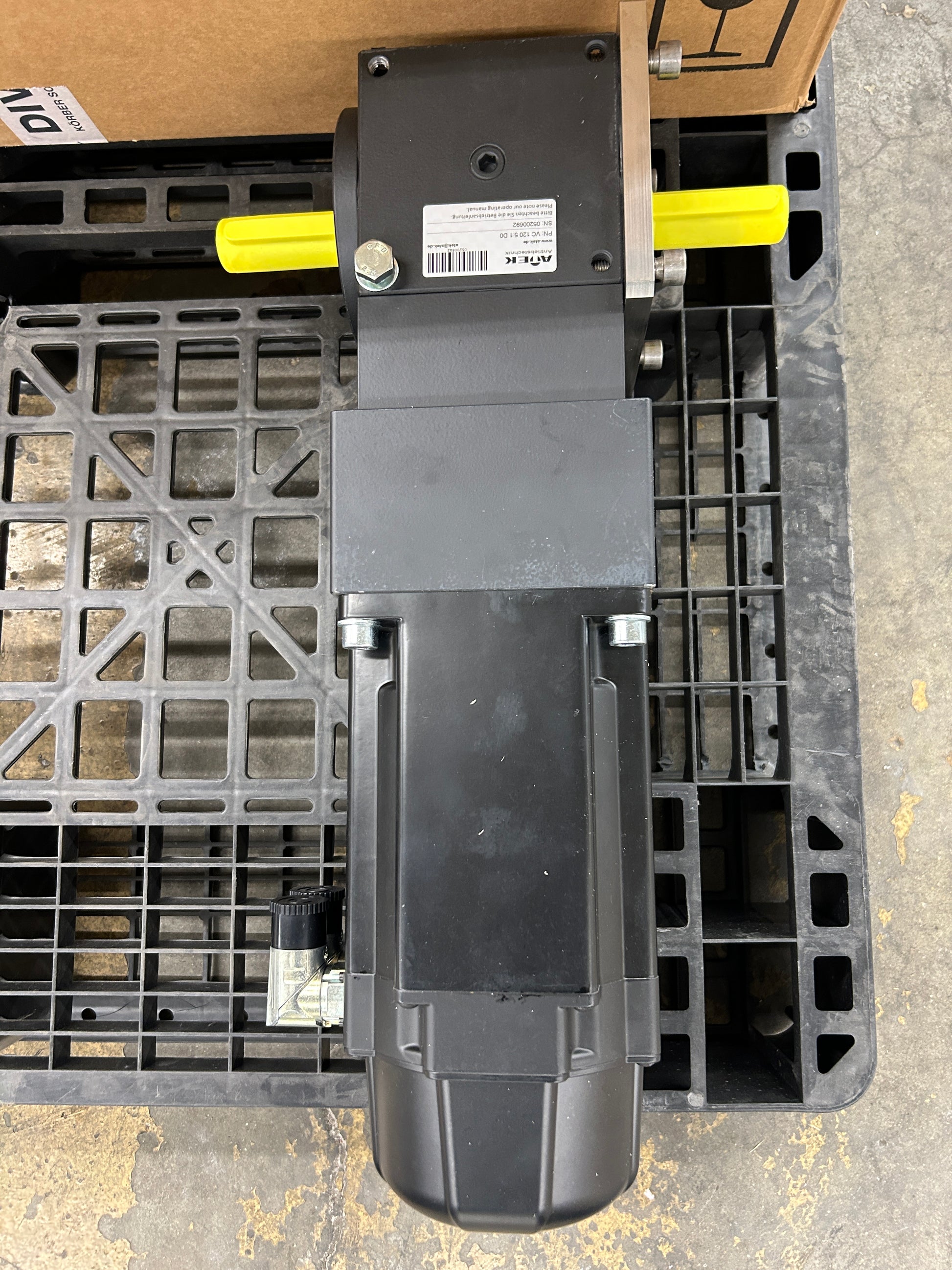

Used in industrial automation and packaging machinery applications, this right angle bevel gearmotor assembly combines an ATEK Antriebstechnik Type VC 120 servo bevel gearbox with a coupled servo motor. The gearbox is identified by part number VC 120 5:1 D0 with serial number 05200692, per the nameplate affixed to the gearbox housing. The VC 120 designation reflects a grey cast iron housing with a 120 mm edge length, consistent with ATEK product line specifications. The 5:1 gear ratio provides speed reduction and torque multiplication at a 90-degree output angle via spiral bevel gearing. The D0 suffix denotes the fixing side and installation position configuration per ATEK order code conventions. The VC series is rated for acceleration torques up to 700 Nm across the product line, with the VC 120 frame size positioned in the mid-range of the six available sizes spanning 065 to 200 mm. The servo motor is mounted directly to the gearbox input flange via an integral adapter, visible in the photos as an IEC-framed motor with connector housing. The motor make and specifications are not confirmed from visible nameplate data in the available photos. The output shaft is protected by a yellow plastic cap. The assembly includes a stainless steel output flange face with bolt pattern visible. Country of manufacture for the gearbox is Germany. Motor origin is unconfirmed.q

Stock # 0326-1129
