Becker Rotary Vane Vacuum Pump Compressor with Integrated VFD SV300/2-040A0 Pressure Ratio: 1.52 m00909

Becker SV300/2-040A0: a tightly integrated rotary vane vacuum pump and compressor smartly paired with a built‑in VFD for precise, on‑demand performance. This 2022 German‑made unit from Gebr. Becker GmbH combines a high‑reliability vacuum pump with the VAU 7,5/3_L variable frequency drive, delivering effortless speed control, energy efficiency, and a compact footprint that keeps your equipment floor space to a minimum. Designed for demanding industrial environments, the SV300/2-040A0 is engineered to run smoothly from 400 to 480 VAC three‑phase, drawing 14.8 A at 50/60 Hz, with an output capability of 17.8 A from 0 to 400 Hz and a rated 7.50 kW. The integrated drive is IP55 protected and meets IE2 efficiency standards, with UL listing and CE marking confirmed on the nameplate, ensuring compliance and reliability in busy plants from woodworking to plastics, printing, and general manufacturing. Key advantages you’ll notice on the factory floor - Absolute control: The built‑in VAU 7,5/3_L VFD provides ramped start‑ups and full speed range (0–400 Hz), enabling precise vacuum and pressure adjustments to match material handling, finishing, or packaging steps without abrupt load spikes. - Space‑saving design: One compact assembly integrates the pump and drive on a steel baseplate with dual integral junction boxes, simplifying installation, wiring, and service access. - Robust electrical and safety features: IP55 protection for the drive, IE2 efficiency, and certified UL and CE marks give you confidence in long‑term operation and regulatory compliance. - Versatile performance metrics: The pump runs at 5870 min⁻¹ with an inlet capacity between approximately 165 and 280 m³/h, and a pressure ratio of 1.52, allowing you to tailor vacuum or compression to the process—whether evacuating cavities, conveying materials, or supporting tooling. - Practical durability: Full‑load amperage of 16.3 A with protection fuses rated 20/6 and SCCR compliance ensure safe operation across typical industrial circuits. What makes this Becker unit a smart choice - Integrated solution for mixed tasks: If your line requires both vacuum capability and compressed air support in a single, controllable package, this unit eliminates the need for separate pump and drive assemblies, reducing wiring complexity and potential failure points. - Proactive energy management: With IE2 efficiency and variable speed operation, you can dial in just the right power for the job, cutting energy consumption during light‑duty periods and extending motor life. - Ready for diverse production environments: Becker’s renowned vacuum and pressure technology is backed by a global installed base across woodworking, plastics, printing, and general manufacturing—so you’re investing in a proven platform with long‑term serviceability. Ideal applications and scenarios - Woodworking and cabinetry shops needing reliable vacuum hold, part handling, or clamping with adjustable suction profiles. - Plastics and packaging lines that require gentle ramping and controlled vacuum to prevent part deformation or material loss. - Printing and coating operations where consistent, programmable vacuum or pressure is essential for platen handling, material transfer, or curing processes. - General manufacturing setups that benefit from a compact, reliable vacuum/pressure combo with a configurable drive. Stock and procurement - Stock # 0326-909 — ready for integration into existing systems or as a plug‑and‑play upgrade to streamline your process flow. Technical at‑a‑glance (highlights) - Model: SV300/2-040A0 with integrated VAU 7,5/3_L drive - Drive spec: 400–480 VAC three‑phase; 14.8 A @ 50/60 Hz; 17.8 A @ 0–400 Hz; 7.50 kW - Protection and compliance: IP55 (drive), IE2 efficiency class, UL listed, CE marked - Pump speed: 5,870 min⁻¹ - Inlet capacity: 165–280 m³/h - Pressure ratio: 1.52 - Full‑load amps: 16.3 A; fuse protection: 20/6; SCCR compliant - Mounting: steel baseplate with integral junction boxes on both drive and pump ends Designed for operators who value precise control, dependable performance, and a compact, integrated package, the Becker SV300/2-040A0 is a purpose‑built solution that reduces installation complexity while delivering flexible vacuum and pressure capabilities for a wide range of industrial processes.

A rotary vane compressor and vacuum pump unit from Gebr. Becker GmbH, model SV300/2-040A0, manufactured in Germany in 2022 with serial number 3751810. The unit integrates a Becker VAU 7,5/3_L variable frequency drive, article number VAU 7,5/3_L 79630252115, rated for three-phase input at 400VAC to 480VAC, 14.8A at 50/60 Hz, with an output of 17.8A at 0 to 400 Hz and 7.50 kW. The drive carries IP55 protection class and efficiency class IE2 (90, 100) at 2.1%, with UL listing and CE marking confirmed on the nameplate.

The pump itself is rated at a speed of 5870 min, with power required of 9.6 to 13.0 kW/hp and an inlet capacity of 280 to 165 m3/h per cfm. Pressure ratio is listed at 1.52. Full load amperage is 16.3A with protection fuses rated at 20/6 and confirmed SCCR compliance per nameplate data.

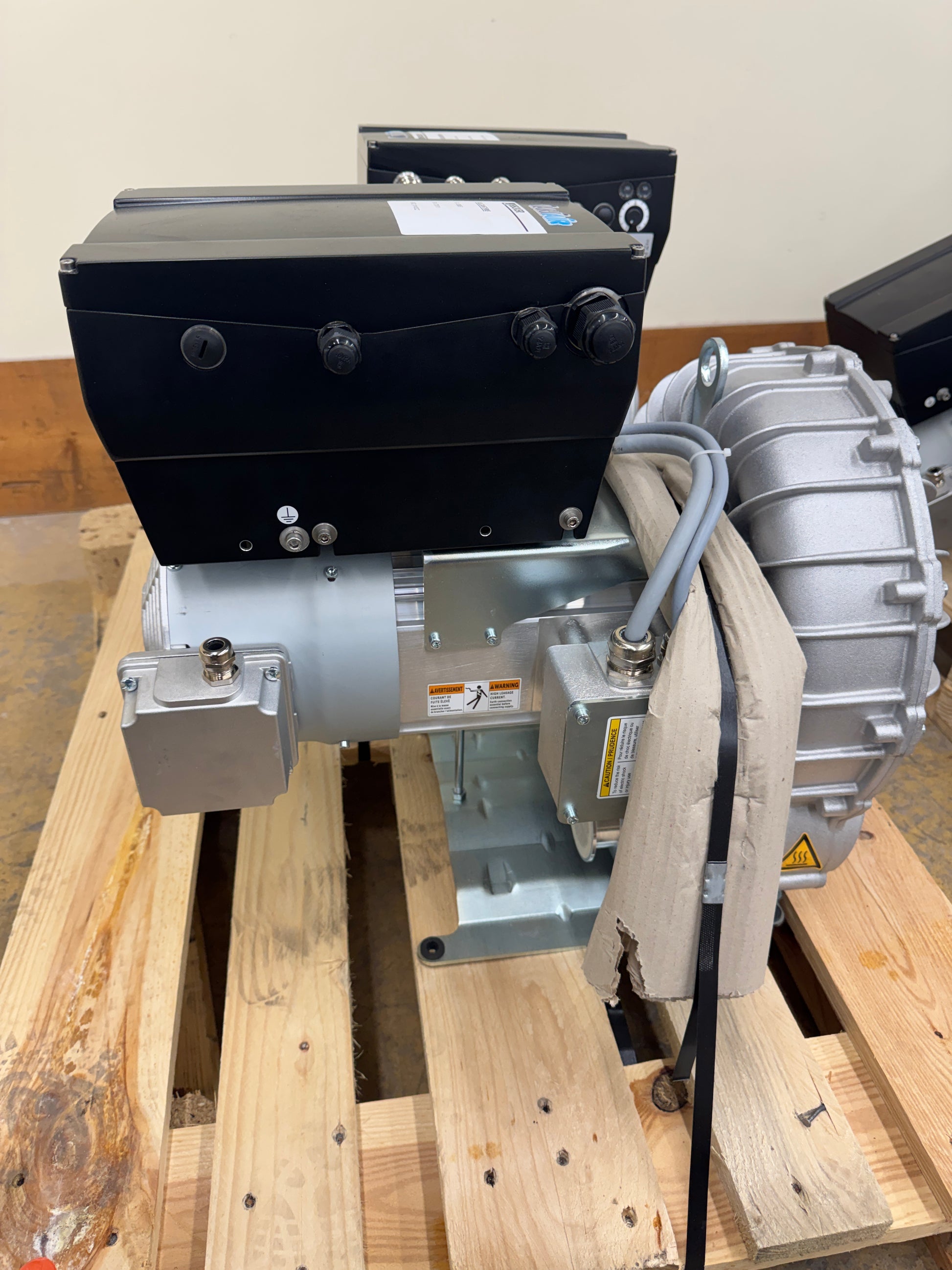

The assembly is mounted on a steel baseplate and includes integral junction boxes on both the drive and pump ends. The unit carries CE certification and is manufactured to IE2 efficiency standards. Becker is a German manufacturer known for industrial vacuum and pressure technology with a global installed base across woodworking, plastics, printing, and general industrial applications.

Stock # 0326-909
