Boston Gear Worm Gear Speed Reducer F713-25KT-B5-G2
Boston Gear Worm Gear Speed Reducer F713-25KT-B5-G2
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

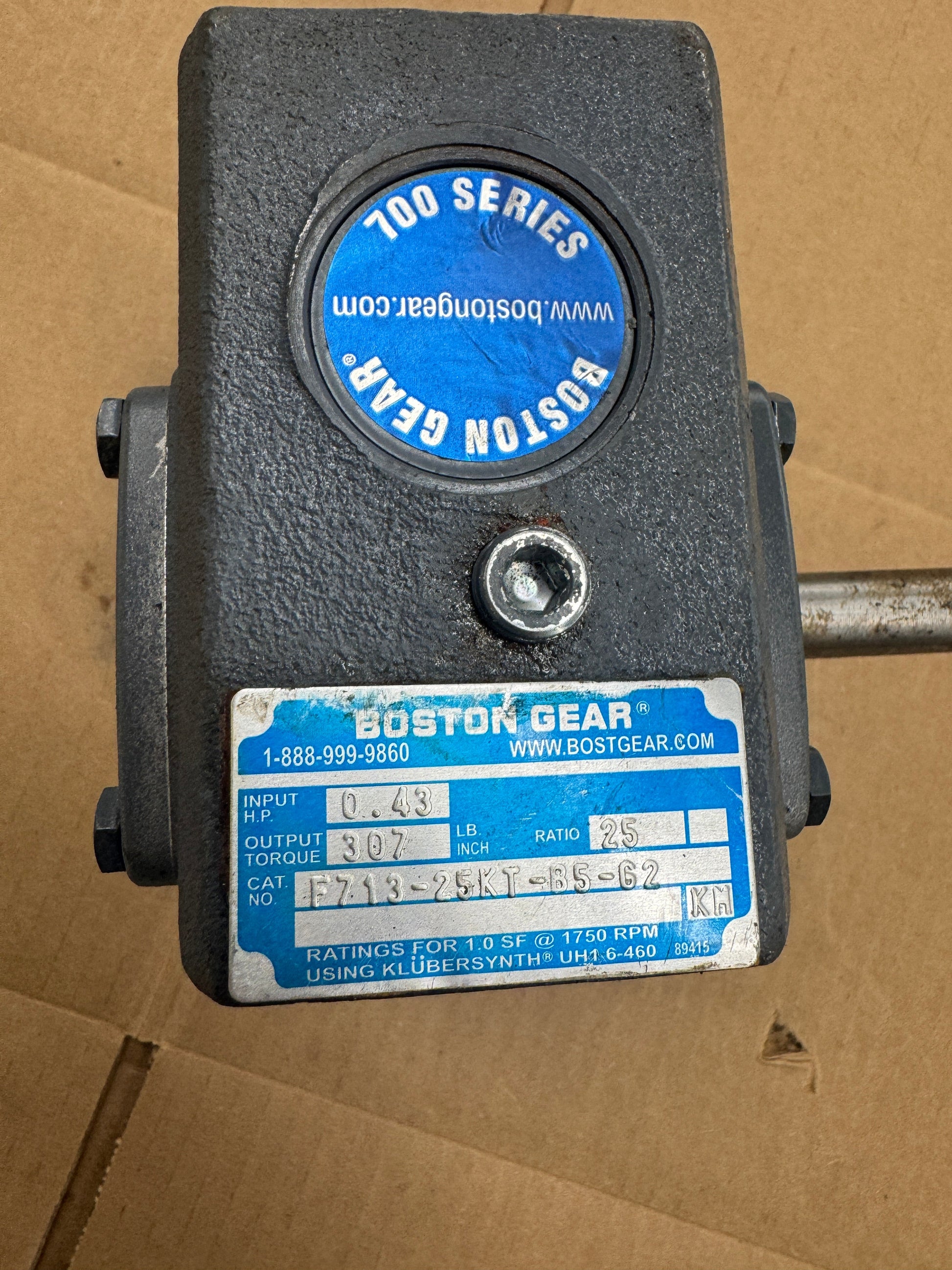

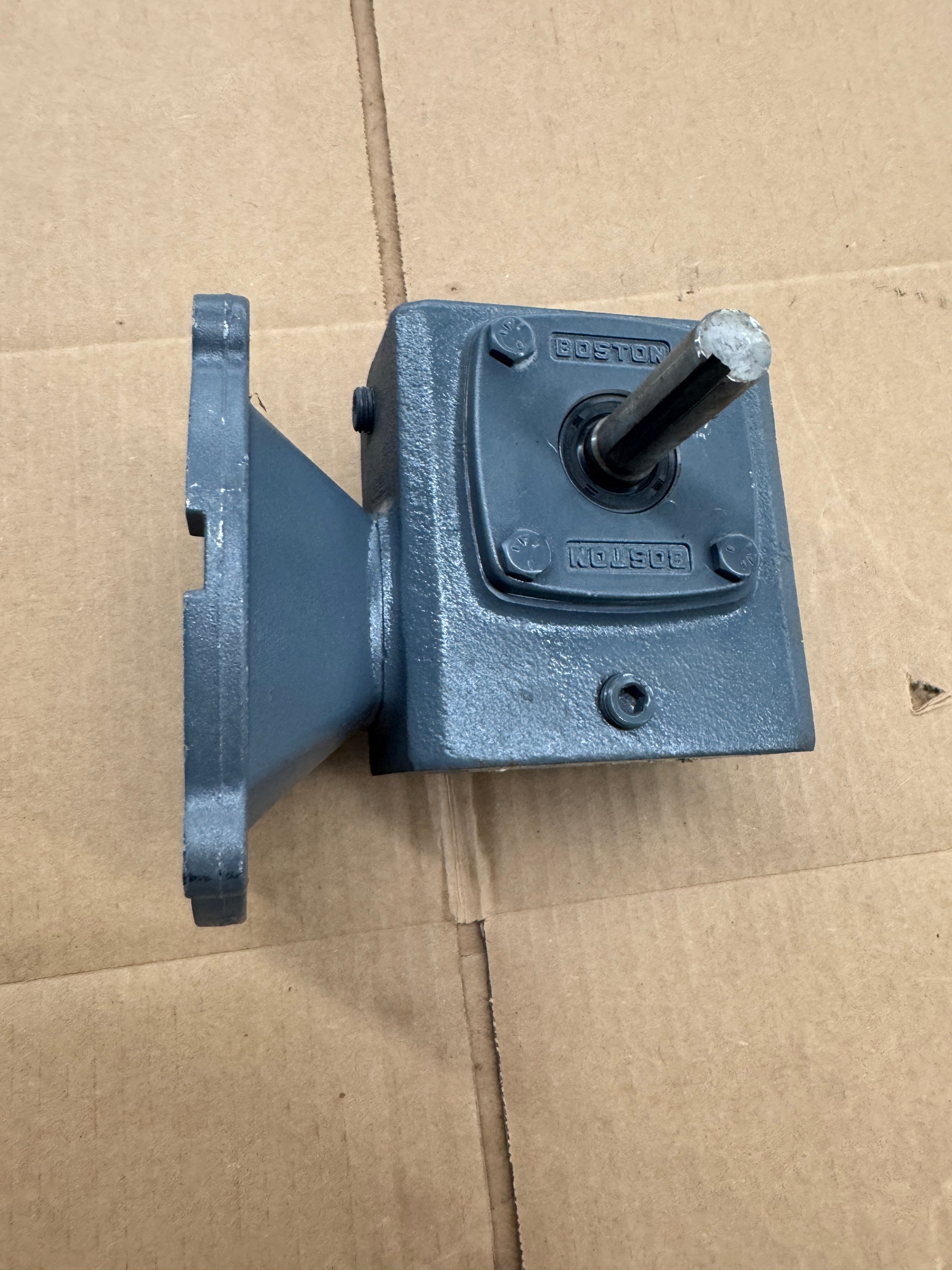

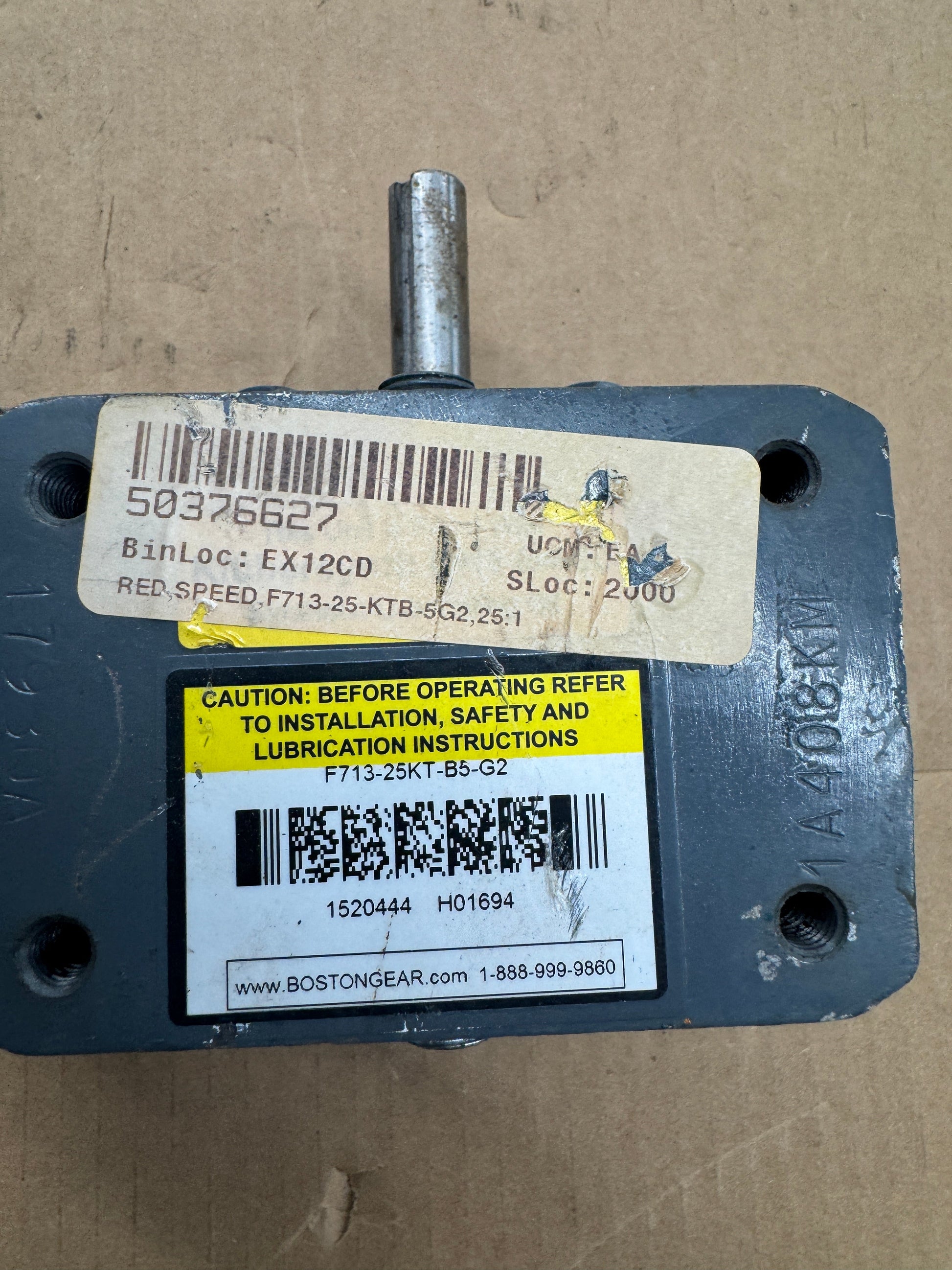

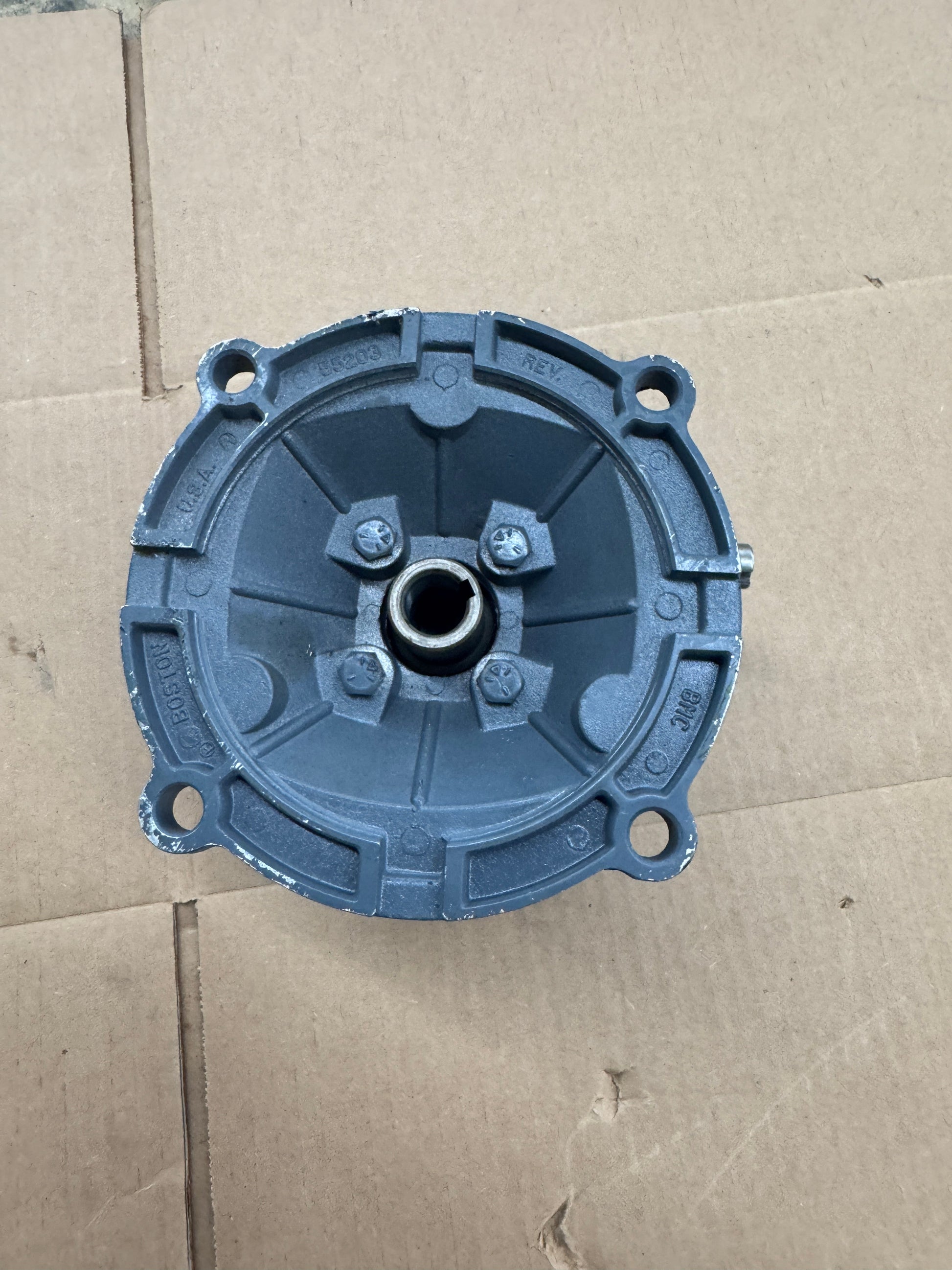

The Boston Gear F713-25KT-B5-G2 is a right angle worm gear speed reducer from the 700 Series product line, rated at 0.43 HP input with a 25:1 reduction ratio. Output torque is 307 lb-in at a nominal output speed of 70 RPM when driven at 1,750 RPM input. The unit accepts a 56C C-face motor flange via quill-style input and delivers power through a left-side solid output shaft. The KT designation indicates a stainless steel output shaft, making this variant suited for applications requiring corrosion resistance at the output connection. Center distance is 1.33 in. with a 5/8 in. output shaft diameter. The housing is fabricated from fine-grained, gear-quality cast iron and is straddle-milled top and bottom for precise alignment. Internal baffles provide positive, leak-free venting. Ratings are based on a 1.0 service factor at 1,750 RPM using Klubersynth UH1.6-460 lubricant, as indicated on the nameplate. The unit is manufactured in the USA, as cast into the housing. Boston Gear is a brand of Altra Industrial Motion. This is a single-reduction unit with multi-position mounting flexibility.
Stock # 0326-875
