B&R Automation Analog RTD Input Module X20AT4222 24 VDC
B&R Automation Analog RTD Input Module X20AT4222 24 VDC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

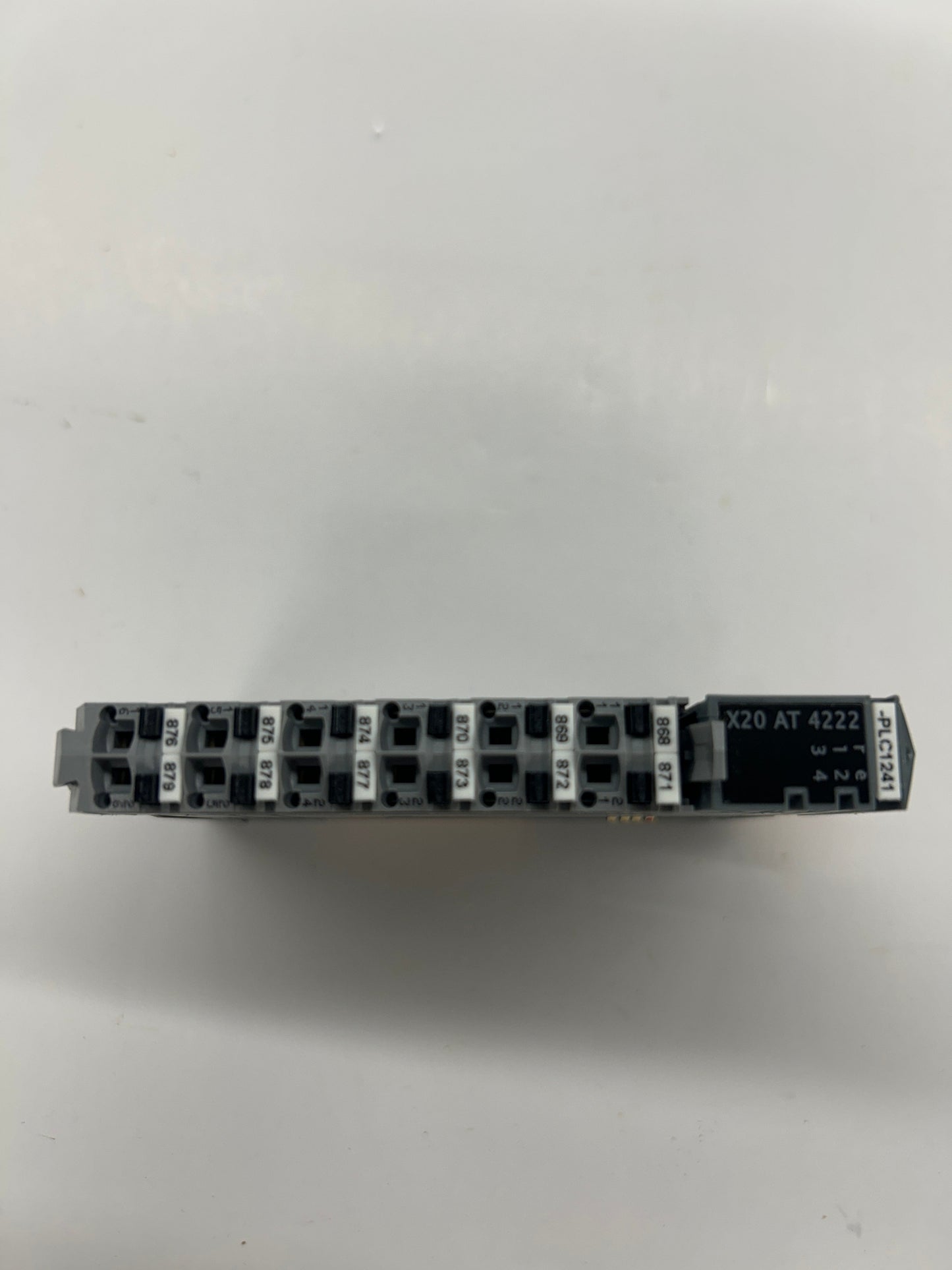

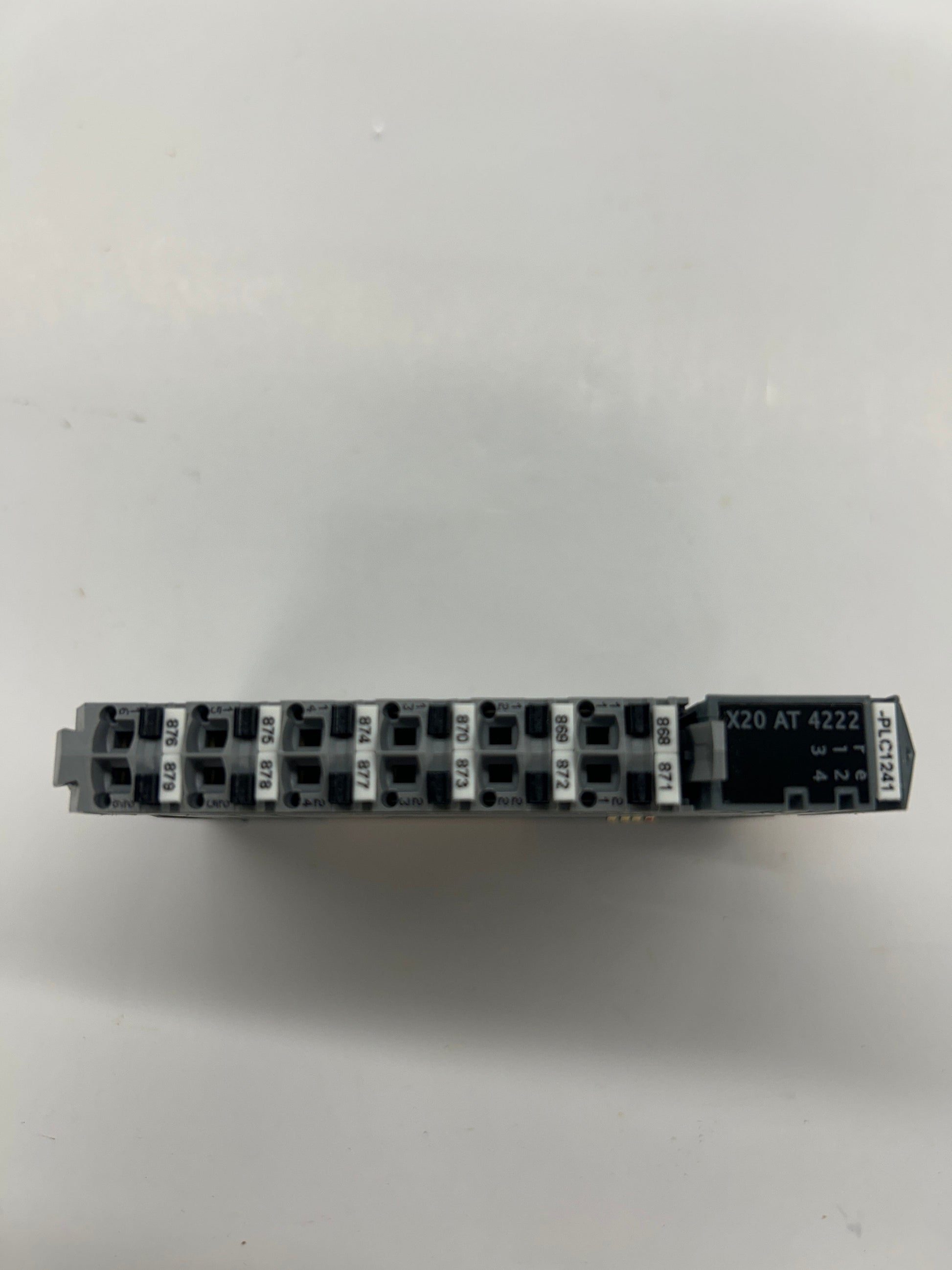

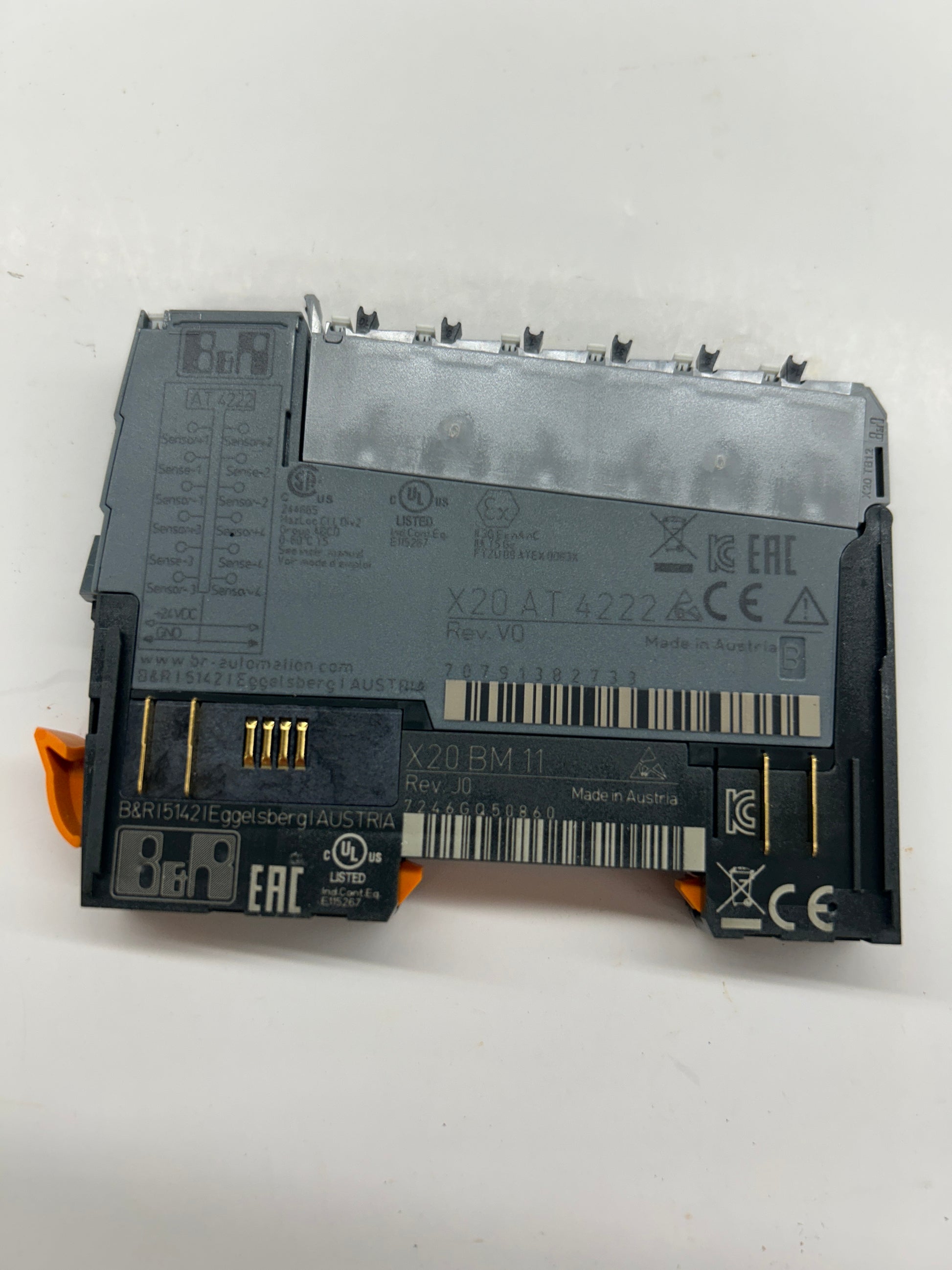

The B&R X20AT4222 is a 4-channel analog RTD temperature input module from the X20 series, designed for use in modular PLC and automation systems. It accepts Pt100 and Pt1000 resistance temperature detectors in 2-wire or 3-wire configurations, with a 16-bit resolution and selectable filter times of 20ms and 80ms per channel. Sensor type is configurable on a per-channel basis, and direct resistance measurement is also supported. The module operates on 24 VDC supply voltage and carries an IP20 ingress protection rating, suited for cabinet-mounted installations. Operating temperature range is confirmed at minus 25 to plus 60 degrees Celsius. The unit bears CE, cULus (E115267), cCSAus (244665), EAC, KC, and DNV GL certifications, and is ATEX compliant (II 3G Ex nA nC IIA T5 Gc FTZU 09 ATEX 0083X). Manufactured in Austria. The module shown is revision V0 and is mounted on a B&R X20BM11 bus module (Rev J0), which is included. Serial numbers are visible on both components. The X20AT4222 is an active part number in the B&R X20 product family, commonly deployed in temperature monitoring and process control applications across industrial manufacturing environments.
Stock # 0326-1033
