B&R Automation Angular Planetary Gearbox 8GA40-060-005S1J2
B&R Automation Angular Planetary Gearbox 8GA40-060-005S1J2
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

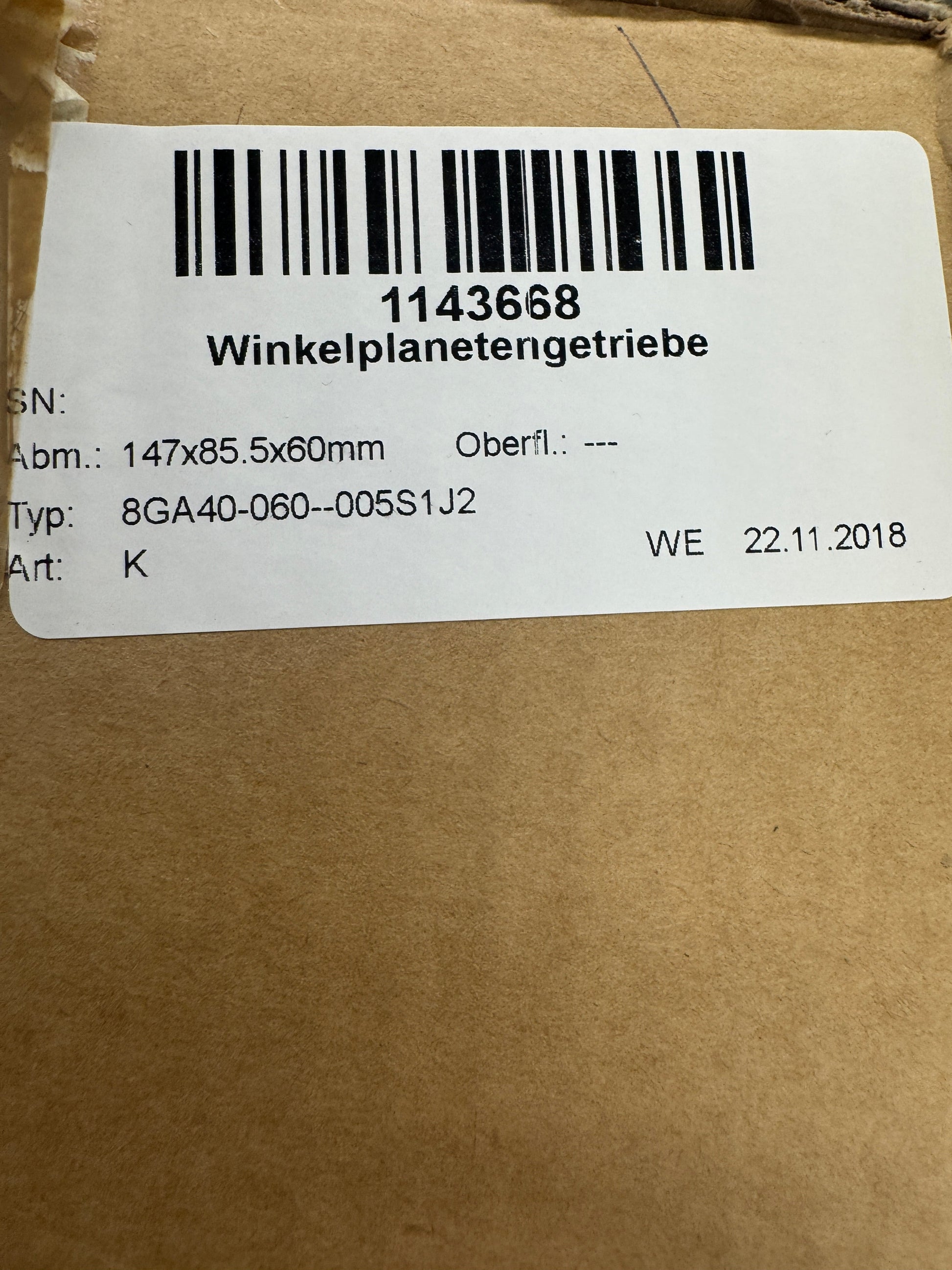

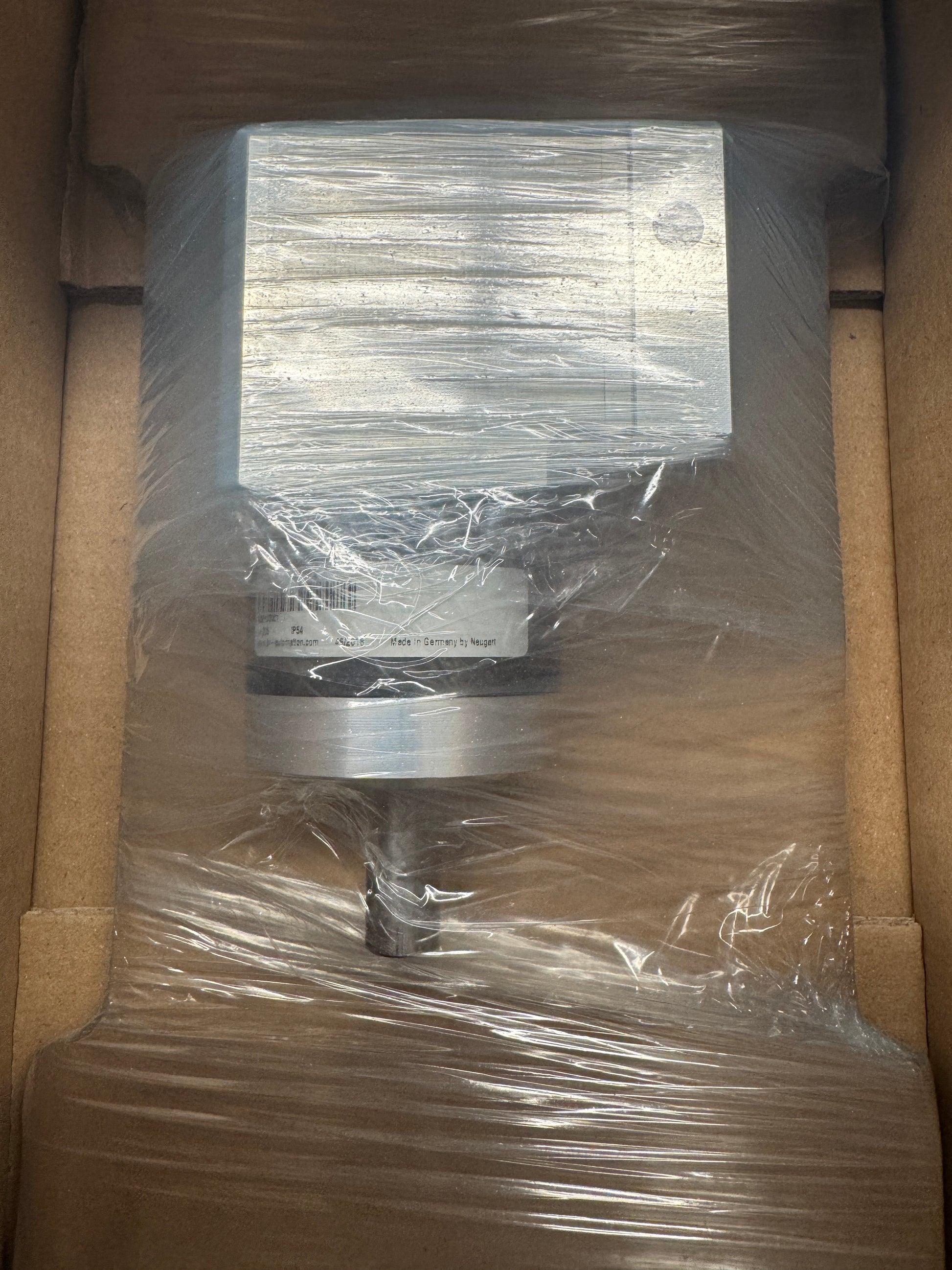

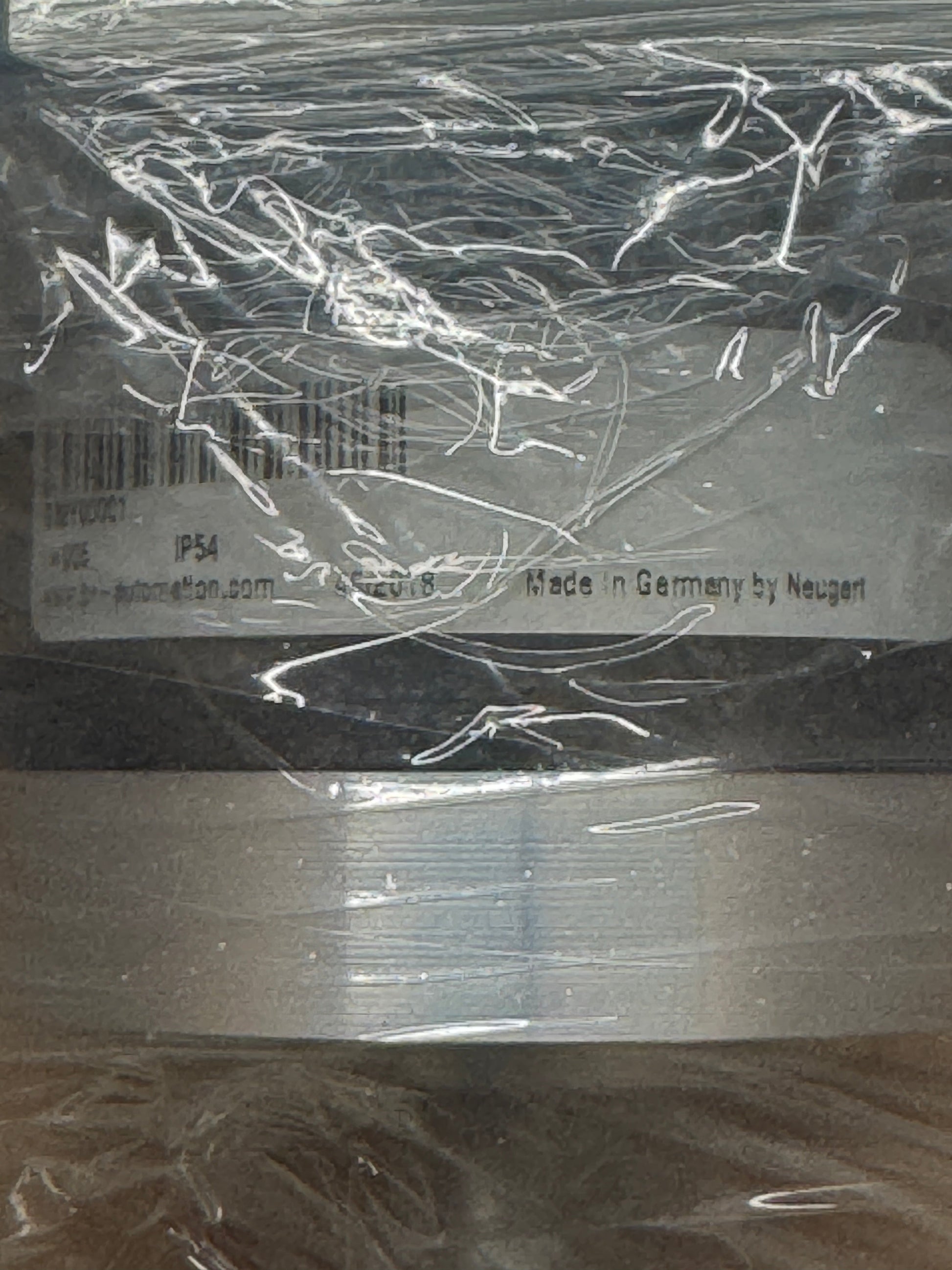

Used in precision servo drive systems and multi-axis automation, the B&R Automation 8GA40-060--005S1J2 is a single-stage angular (right angle 90-degree) planetary gearbox with a 5:1 gear ratio and 60mm frame size. Manufactured in Germany by Neugart under B&R article number 1143668, this unit carries an IP54 protection rating for resistance to dust and splash. The gearbox measures 147 x 85.5 x 60 mm per the factory shipping label and was date-coded 22.11.2018. The nameplate label visible through original plastic wrap confirms IP54 and the Neugart origin. This unit is new in original factory packaging with cardboard corner inserts, factory plastic wrap, and original corrugated outer box intact. The 8GA40 series from B&R is a standard-line angular planetary gearbox engineered for high input speeds and dynamic positioning applications including toothed belt drives, rack and pinion systems, and servo motor-coupled motion axes. Standard series 8GA gearboxes feature straight-toothed, fully hardened gearing with honed sun and planet gears for high output torque and precise positioning. Single-stage units in the 8GA40 series at ratio i=5 have backlash in the standard range of 8 to 15 arcmin. Country of manufacture: Germany.
Stock # 0326-1089
