B&R Automation Panel Link SDL Receiver 5DLSDL.1000-00 24 VDC

$299.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

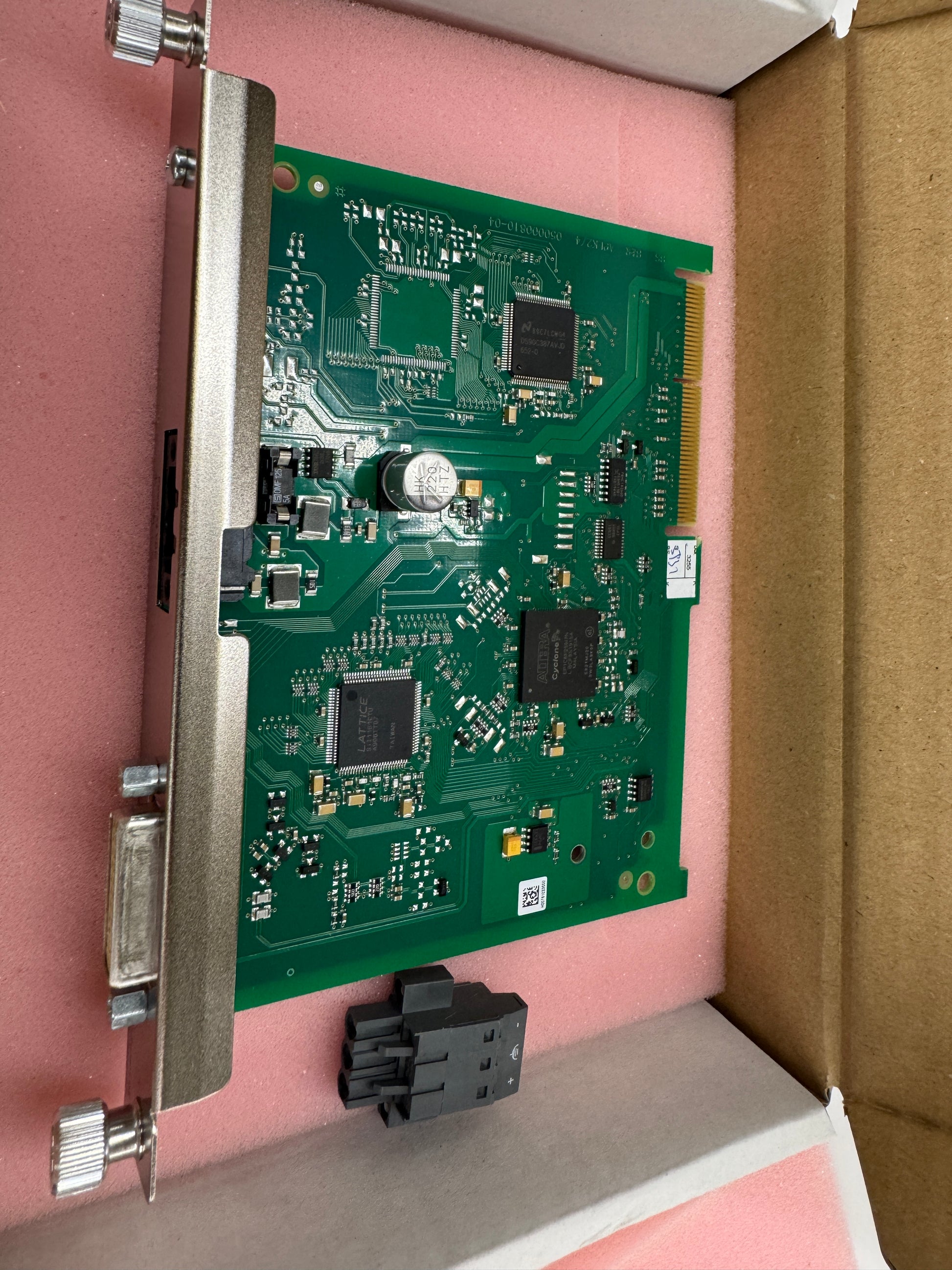

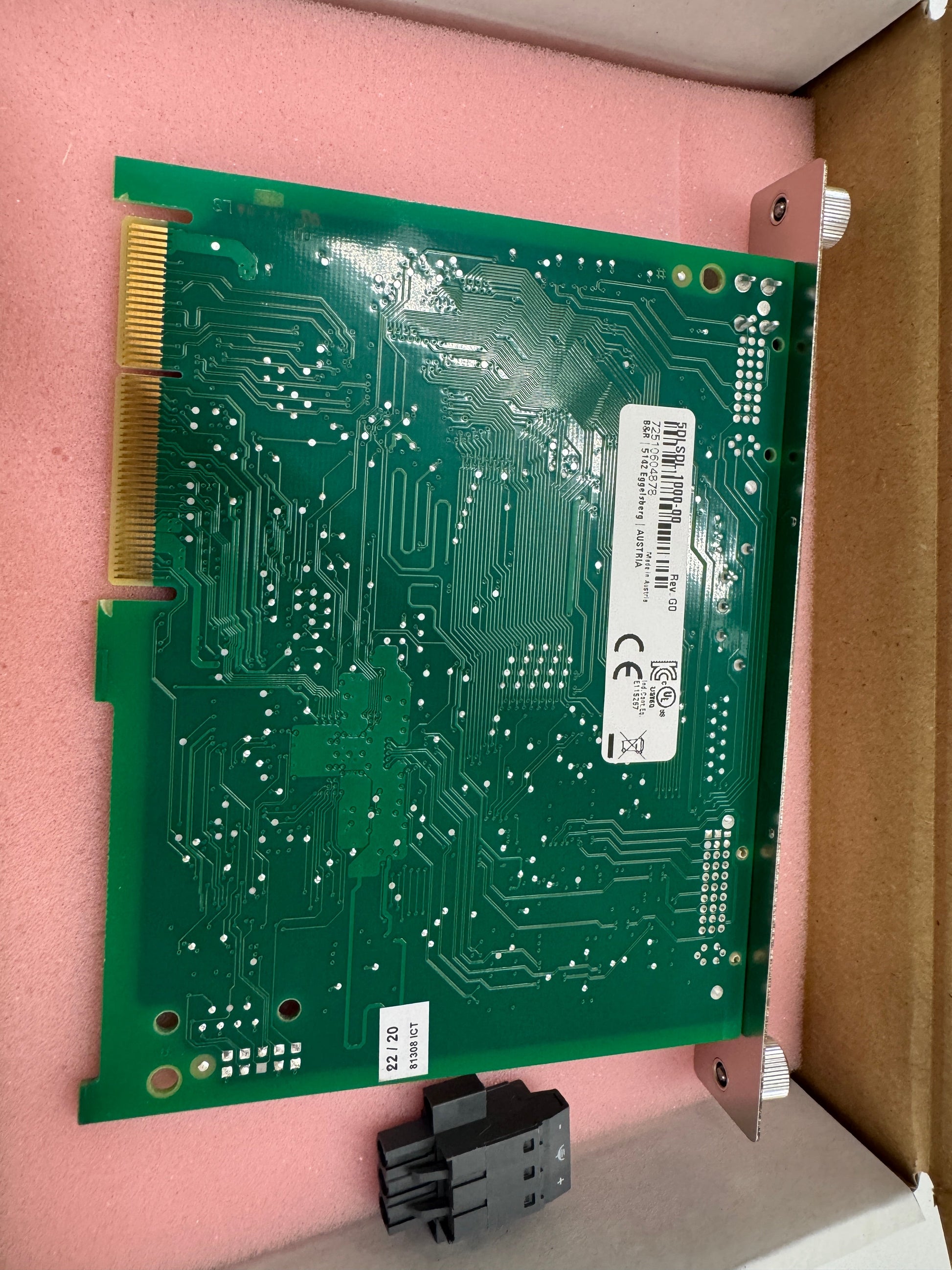

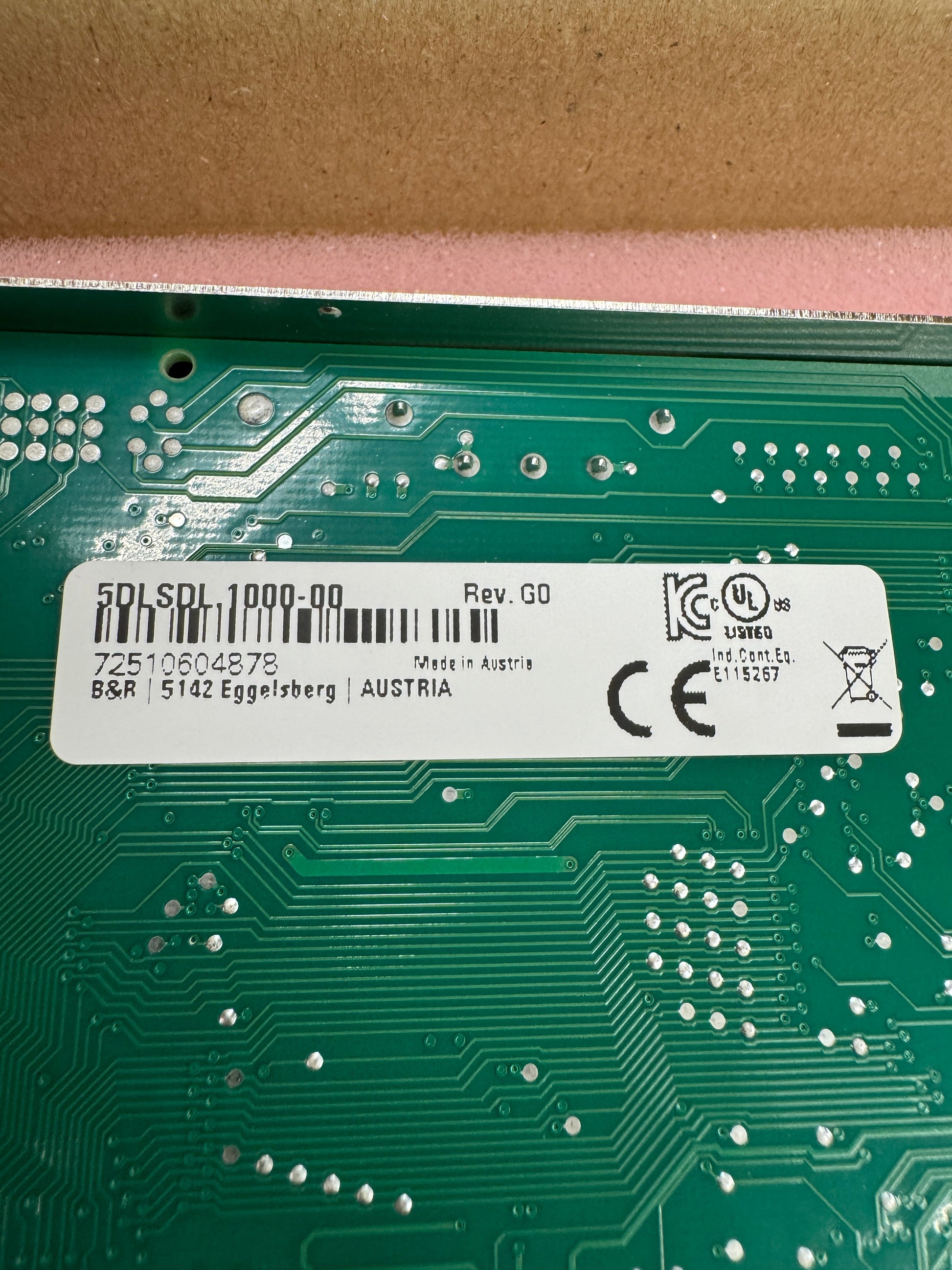

The B&R 5DLSDL.1000-00 is a Smart Display Link receiver module designed for use with B&R Automation Panel 900 series devices. SDL (Smart Display Link) technology consolidates all communication between a B&R Automation Panel and a B&R Industrial PC into a single cable connection, transmitting display data, touchscreen input, matrix key signals, LED status, and service data simultaneously. The module supports USB 1.1 integration over the SDL link, enabling panel installations up to 40 meters from the host industrial PC without additional external USB extender modules. A single panel can be operated on a line via this SDL receiver card. The unit is rated at 24 VDC supply voltage with a 4.2 A current draw and 3 W power consumption. This unit carries part number 5DLSDL.1000-00, serial number 72510604878, and Revision G0 as marked on the nameplate label. Certifications visible on the label include CE and cULus (E115267), listed as Industrial Control Equipment. Manufactured by B&R at 5142 Eggelsberg, Austria. The board ships with its original mating power connector as shown in the photos.

Stock # 0326-1120
