B&R Automation Servo Gearmotor Assembly 8JSA33.E9045D200-0 - Variable 4000 RPM

$3,499.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

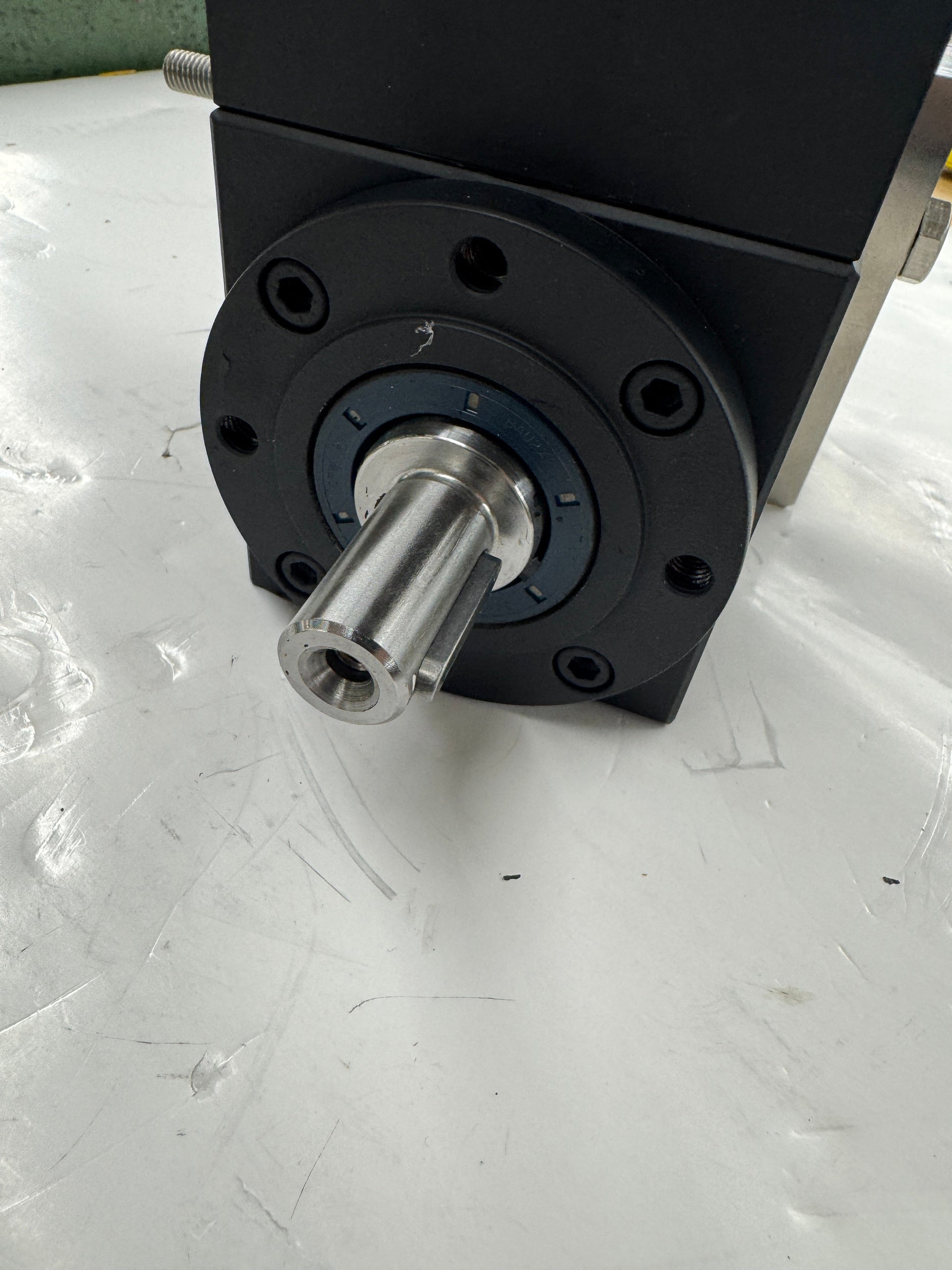

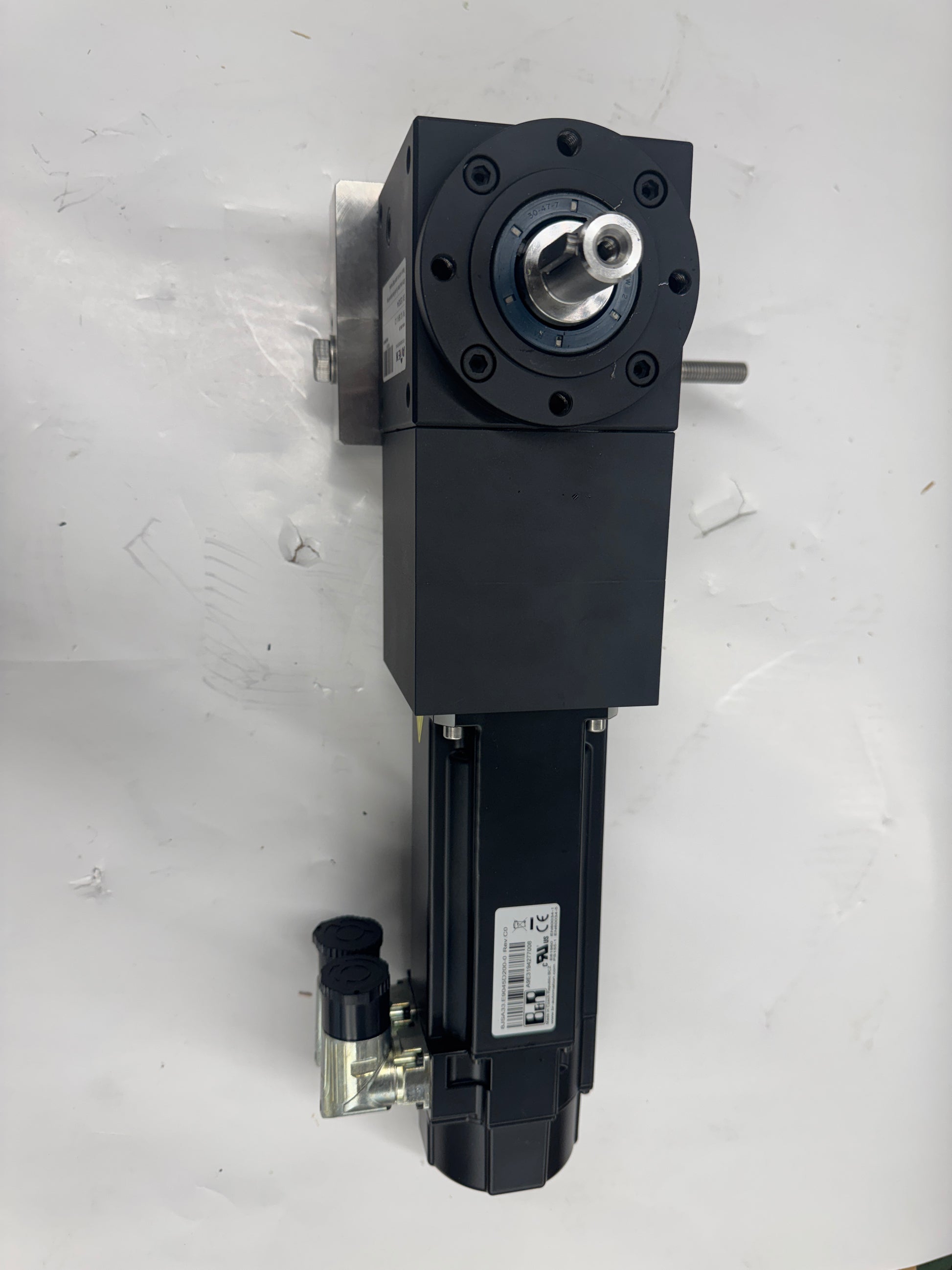

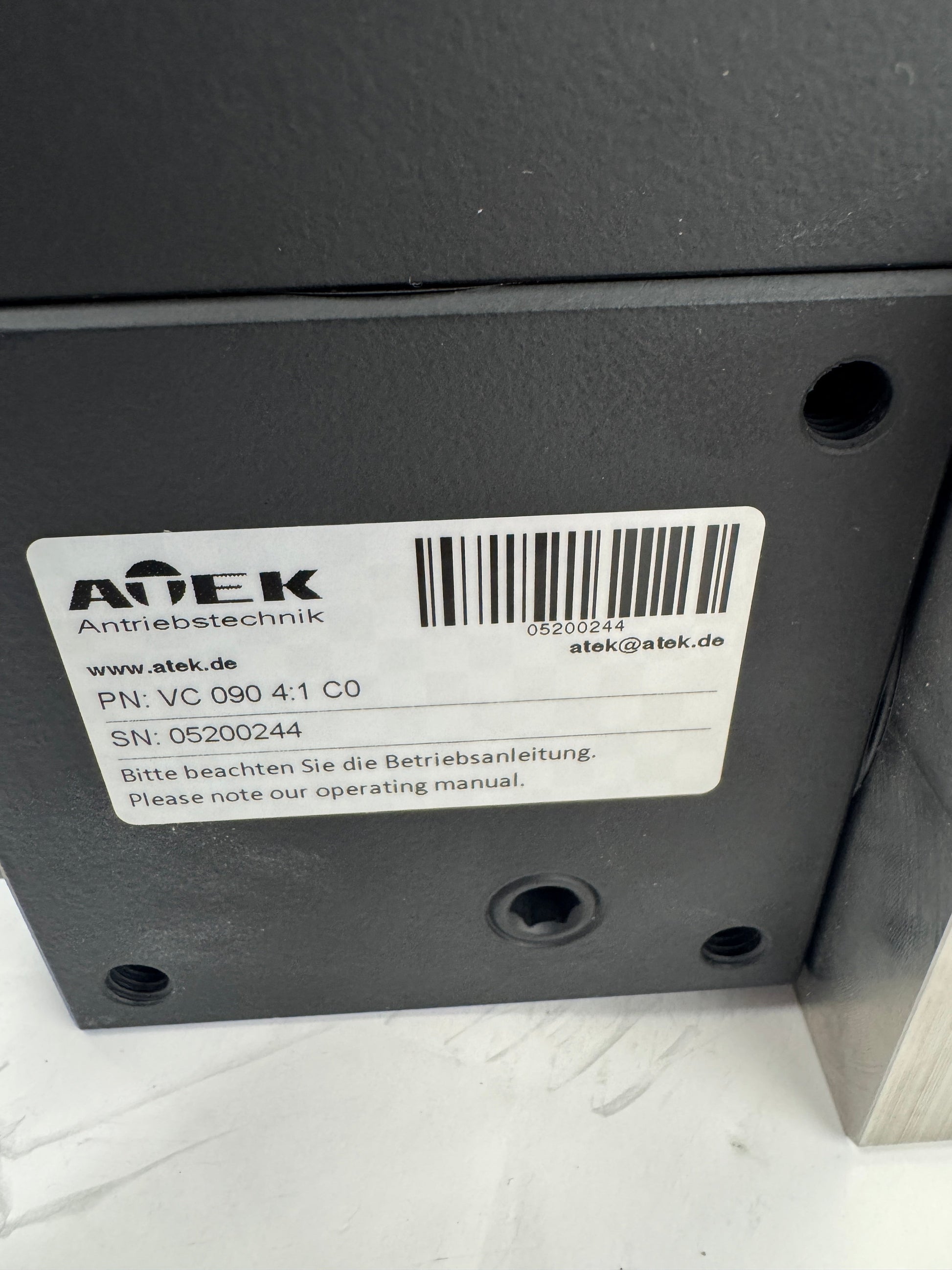

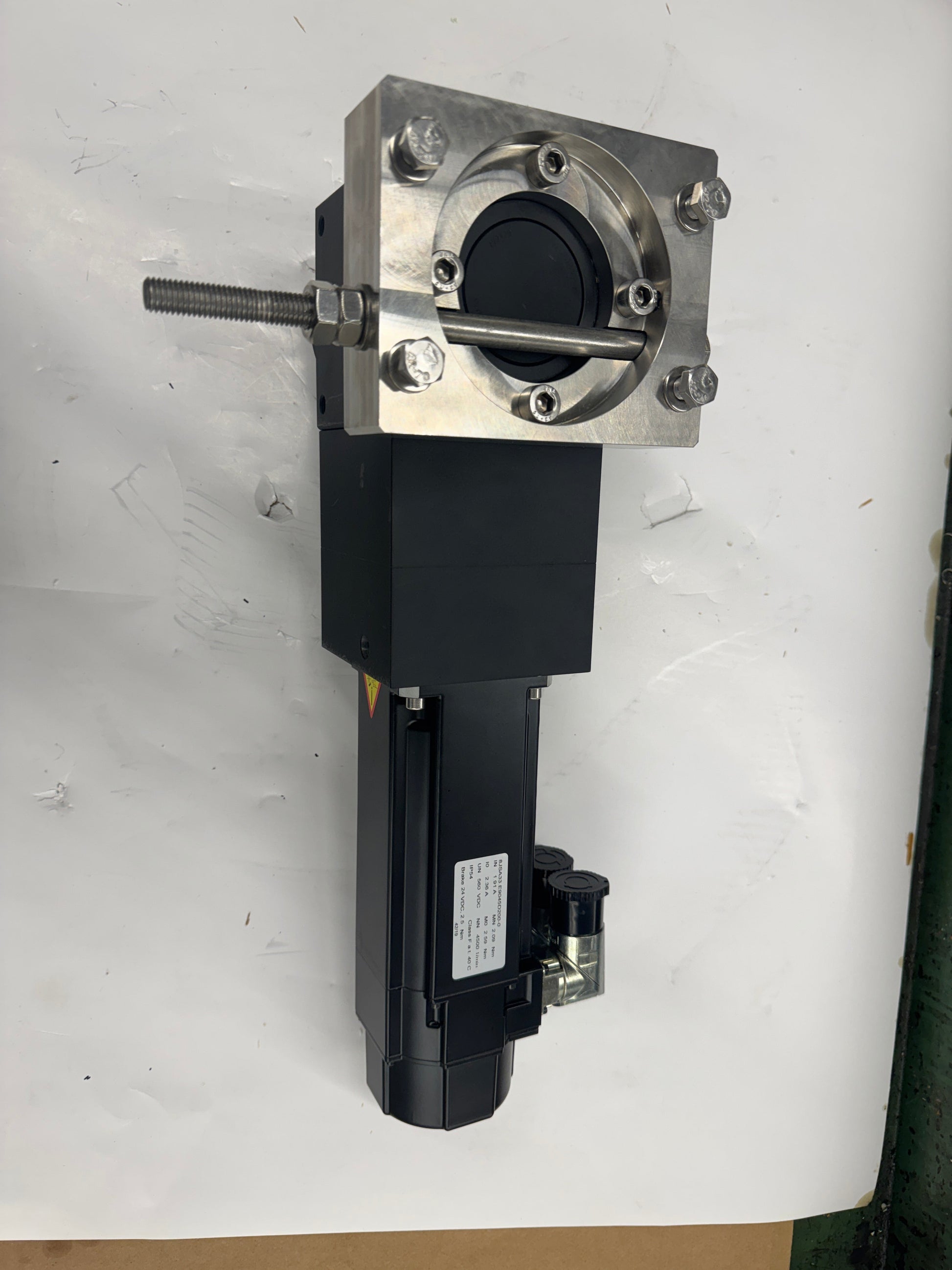

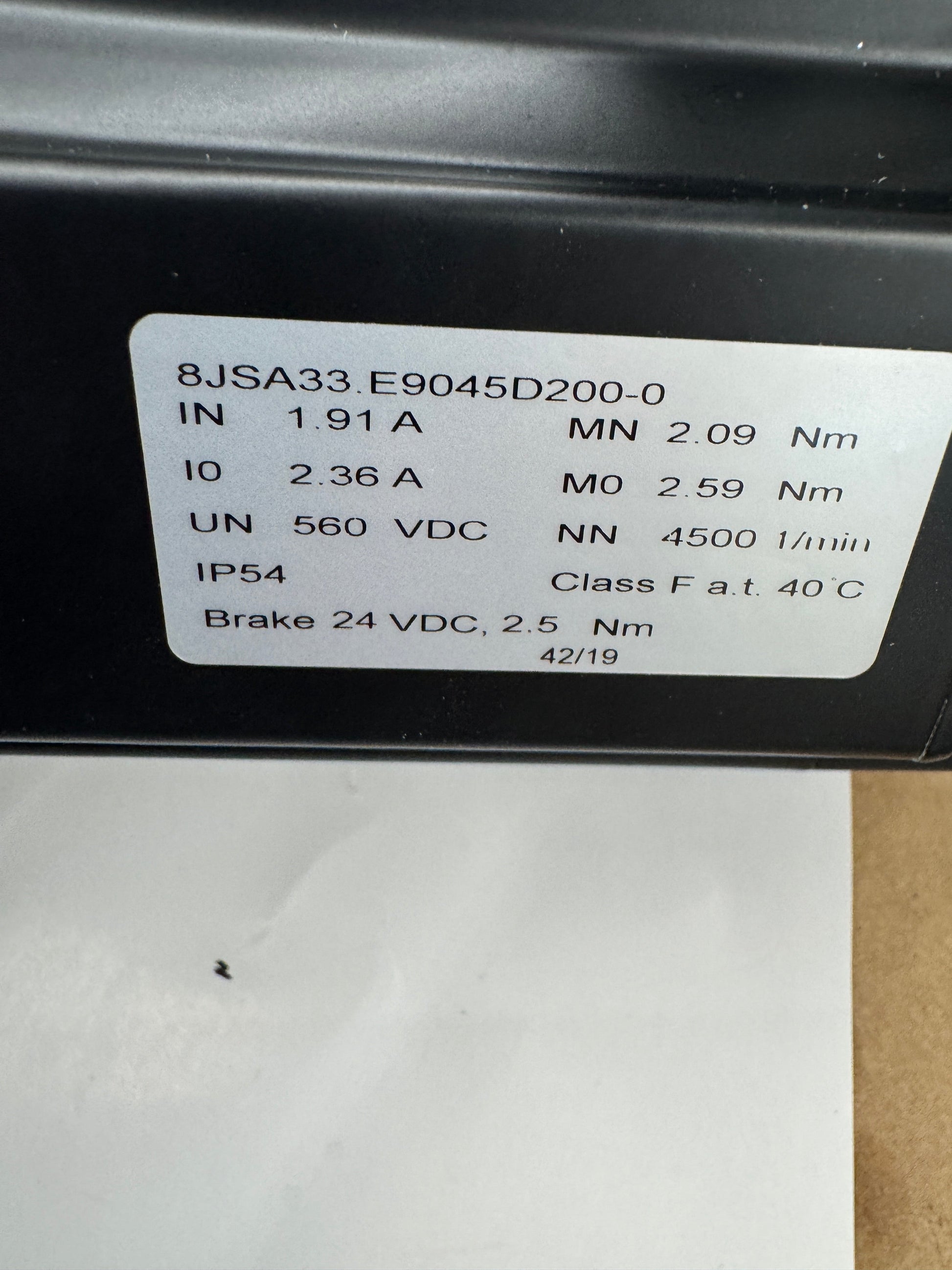

Used in servo-driven automation and packaging machine applications, this assembly pairs a B&R 8JSA33.E9045D200-0 stainless synchronous servo motor with an ATEK Antriebstechnik VC 090 4:1 C0 servo bevel gearbox. The B&R motor carries part number 8JSA33.E9045D200-0 and bears serial date code 42/19 (week 42, year 2019). Nameplate-confirmed specifications include a nominal current of 1.91 A, stall current of 2.36 A, bus voltage of 560 VDC, nominal torque of 2.09 Nm, stall torque of 2.59 Nm, and a rated speed of 4500 RPM. The motor is equipped with a 24 VDC holding brake rated at 2.5 Nm and features EnDat 2.2 encoder feedback (D200 suffix). Insulation class is F, rated at 40 degrees Celsius ambient, with IP54 protection. The ATEK VC 090 servo bevel gearbox carries part number VC 090 4:1 C0 and serial number 05200244. It provides a 4:1 reduction ratio through a right-angle bevel gear stage housed in a grey cast iron body sized at the 090 mm edge length frame. The output side features a flanged shaft and is fitted with a custom stainless steel mounting adapter plate of unknown OEM origin. The assembly is presented as a complete servo gearmotor unit. Country of origin for the motor: manufactured under B&R Automation (ABB Group), Austria. Country of origin for the gearbox: Germany (ATEK Antriebstechnik, www.atek.de).

Stock # 0326-1119
