B&R Automation Servo Motor 8JSA32.E9030D200-0 - Variable 3000 RPM

$1,100.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

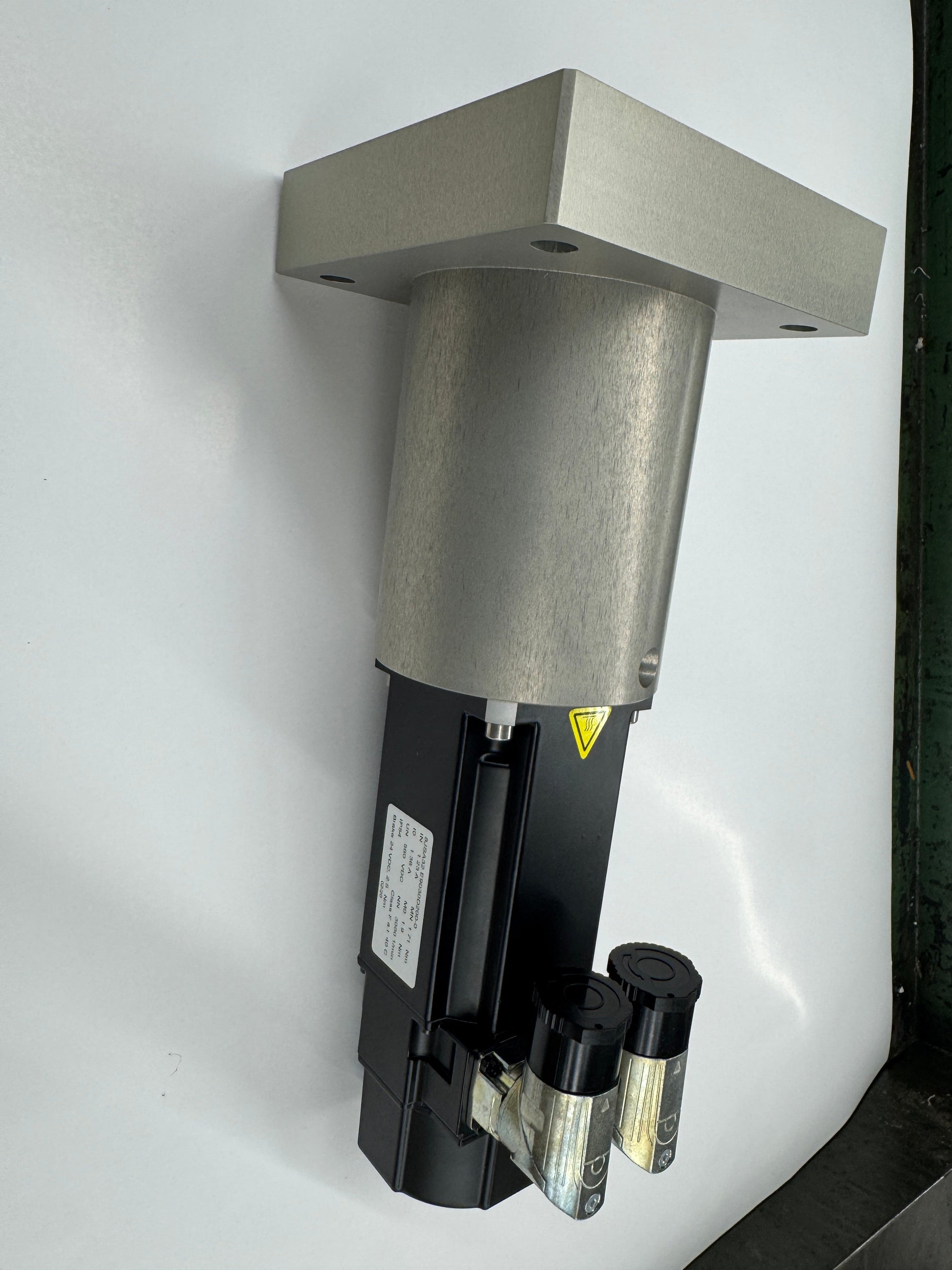

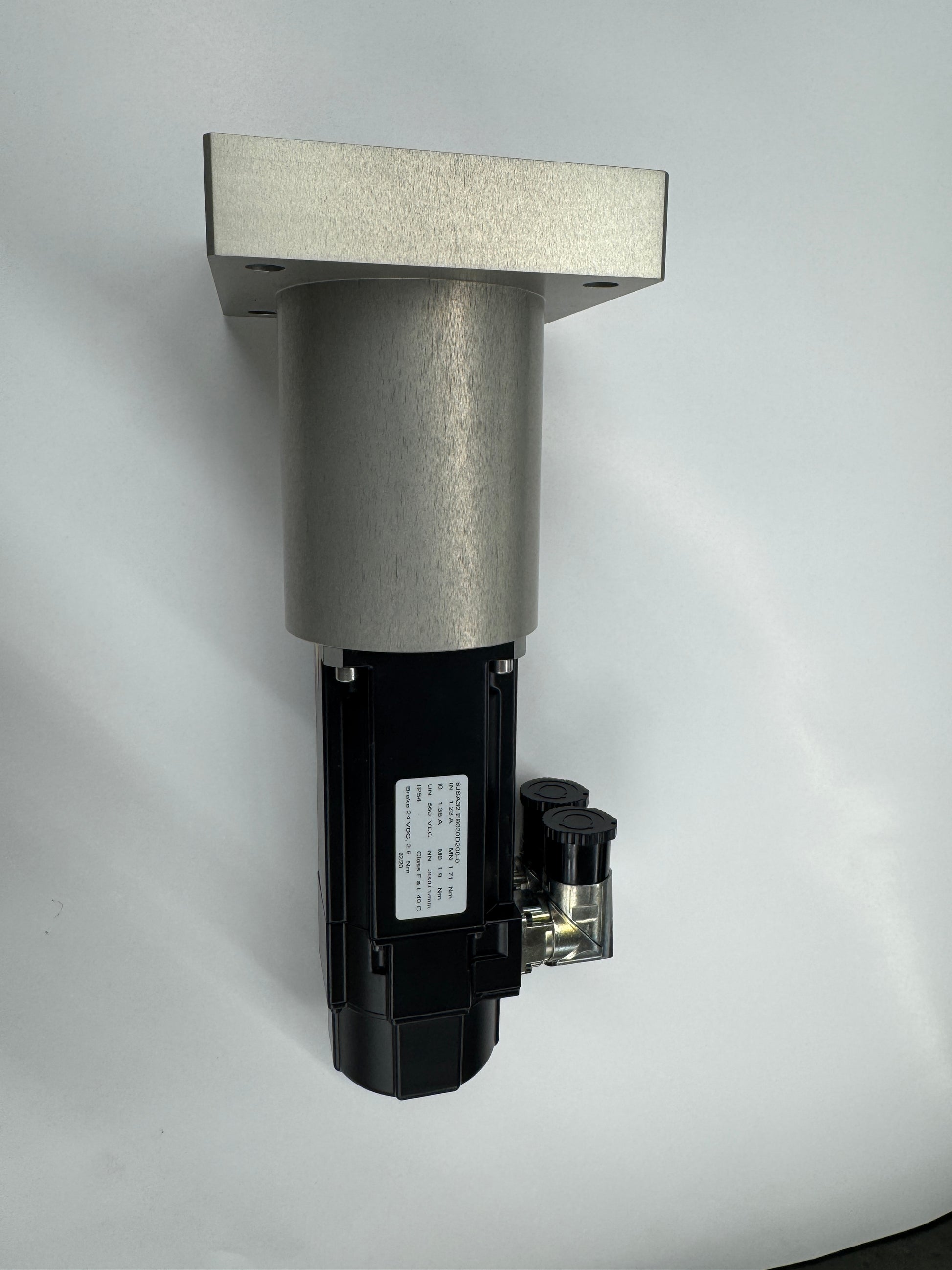

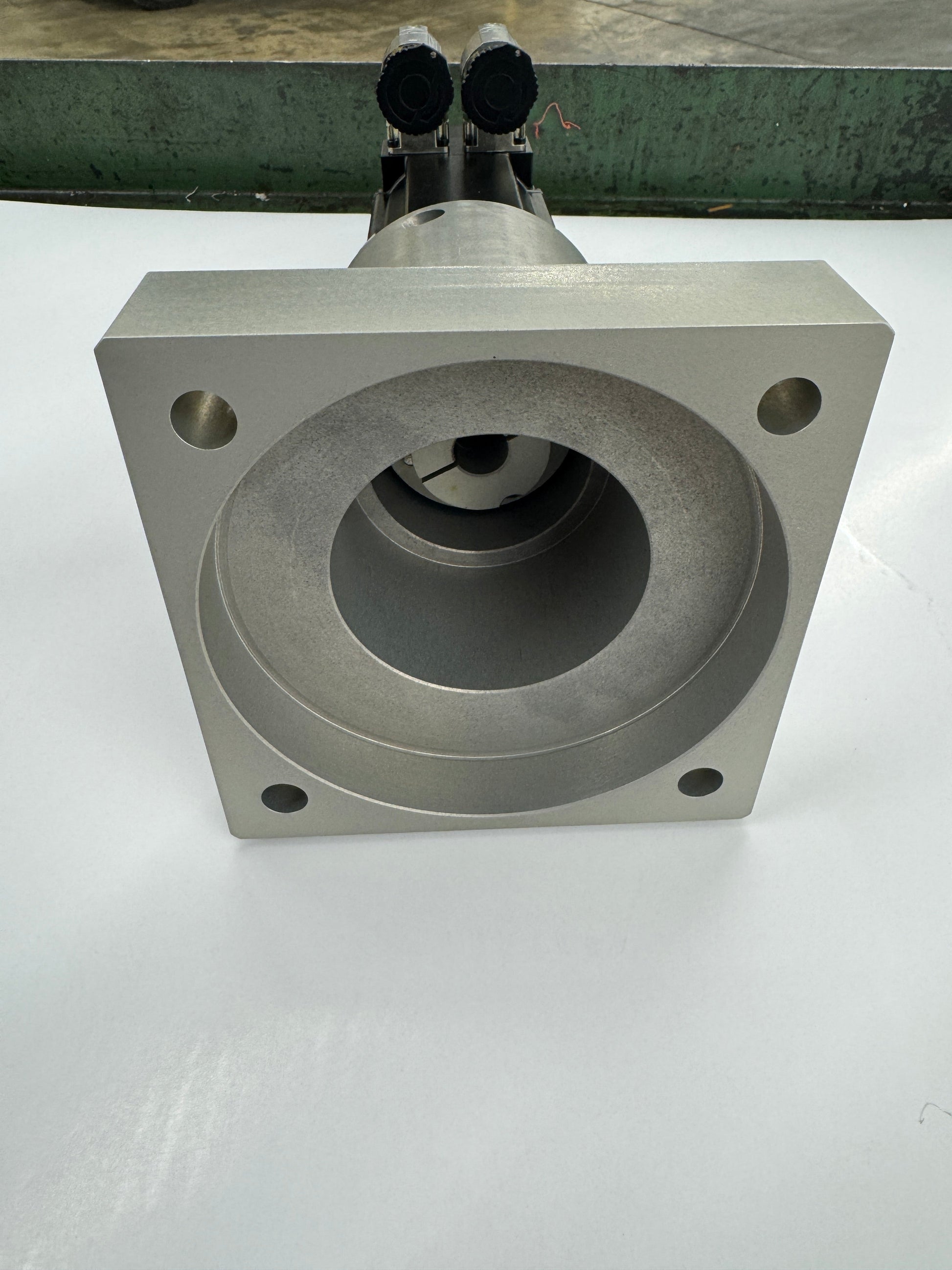

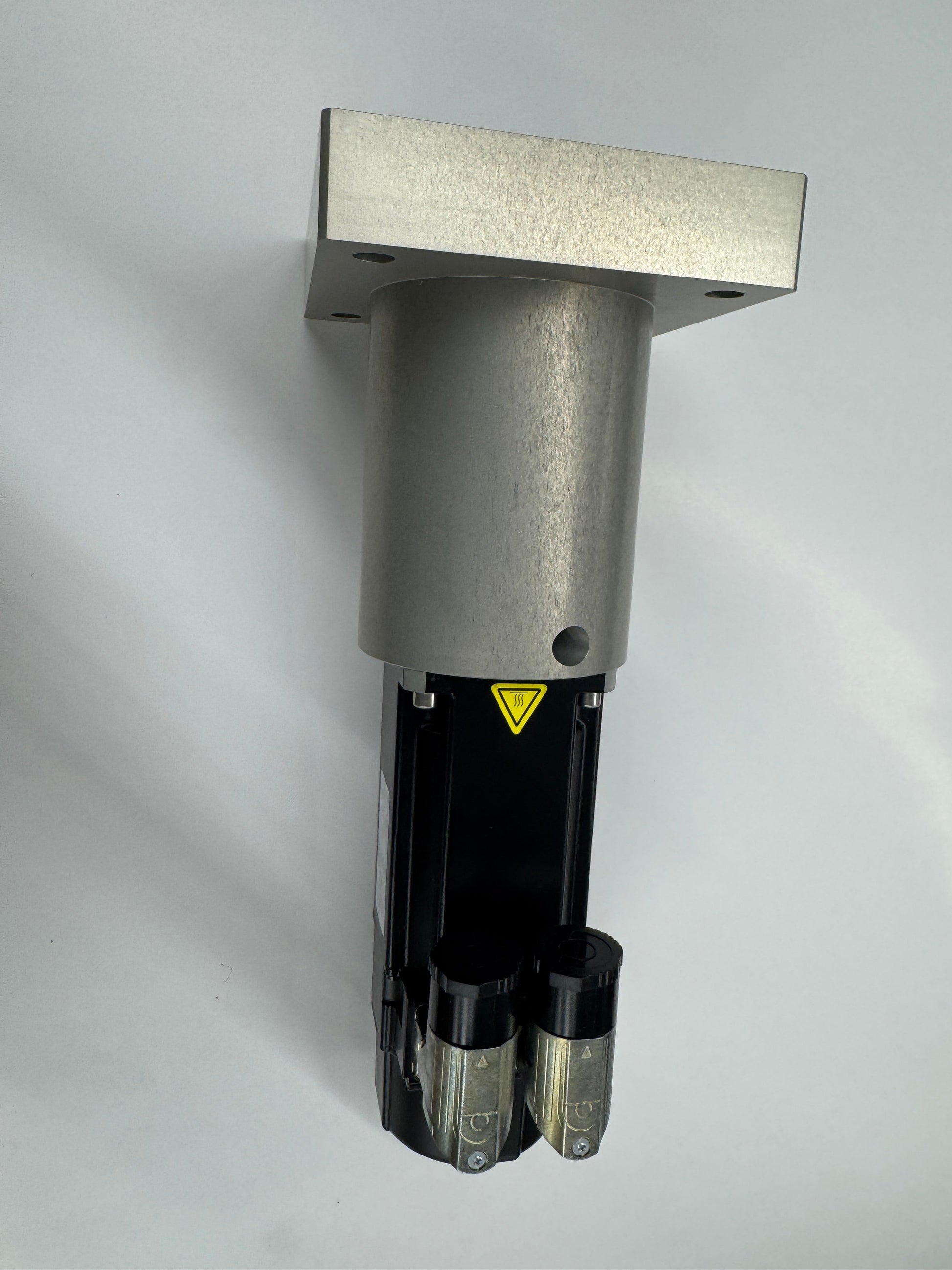

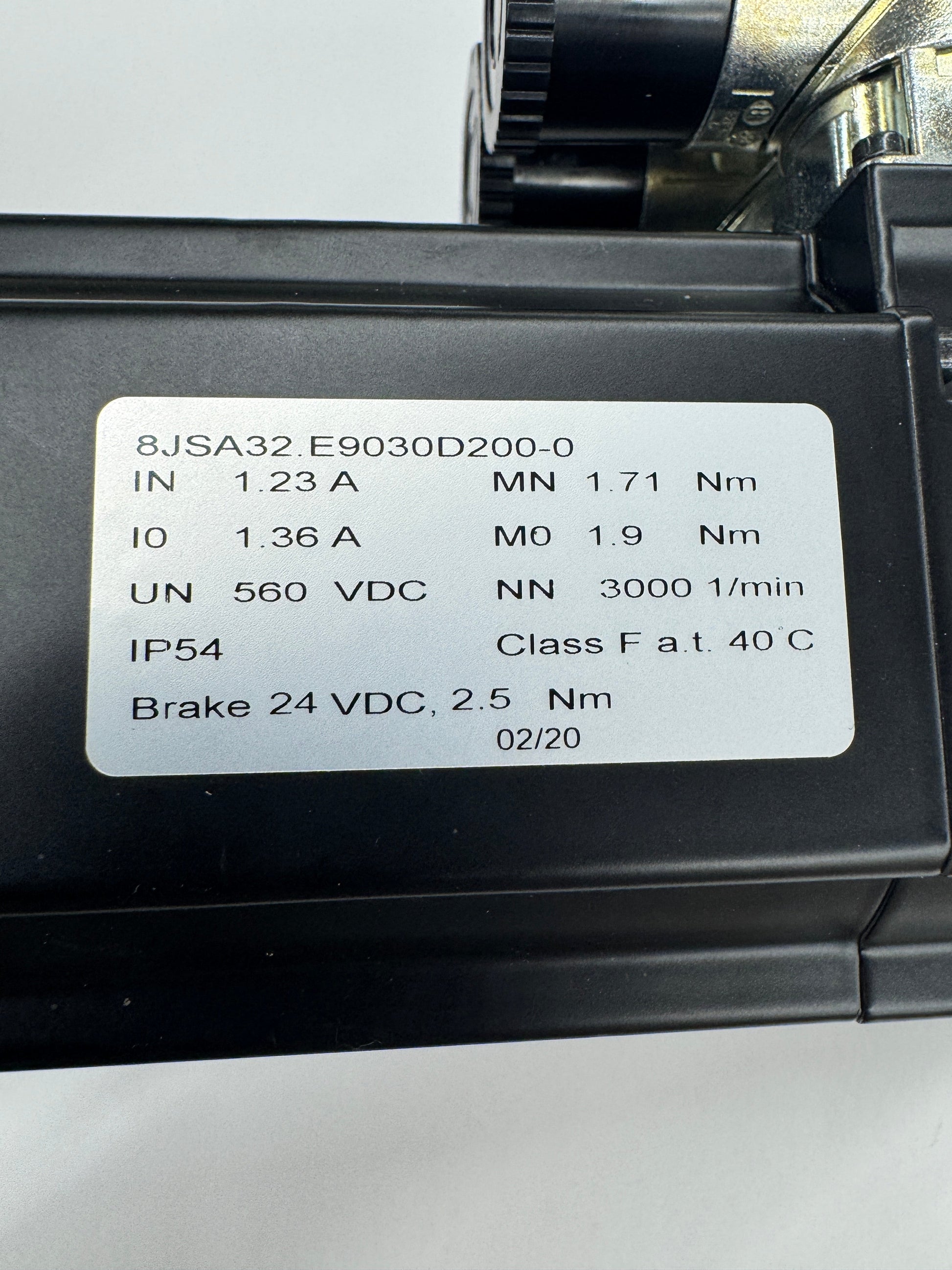

The B&R Automation 8JSA32.E9030D200-0 is a compact synchronous servo motor from the 8JSA stainless steel series, designed for precision motion control in pharmaceutical packaging, food processing, and other hygienically demanding automation environments. The nameplate confirms a rated current of 1.23 A, peak current of 1.36 A, and DC link voltage of 560 VDC. Rated torque is 1.71 Nm with a peak torque of 1.9 Nm at standstill. Nominal speed is 3000 RPM. The motor features IP54 protection, Class F insulation rated at 40 degrees C, and an integrated 24 VDC holding brake rated at 2.5 Nm. The encoder suffix E9 designates EnDat multi-turn encoder (older generation), enabling absolute position feedback. Date code visible on nameplate is 02/20. This unit is presented with a machined aluminum mounting flange attached to the motor body. Two circular cable connectors are fitted at the motor rear. The 8JSA series uses a smooth, easy-to-clean exterior profile and is designed to interface with B&R ACOPOSmulti and compatible ACOPOS servo drives. Part number 8JSA32.E9030D200-0.

Stock # 0326-1103
