B&R Automation Servo Motor 8JSA44.EB040D000-0 - Variable 4000 RPM

$2,499.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

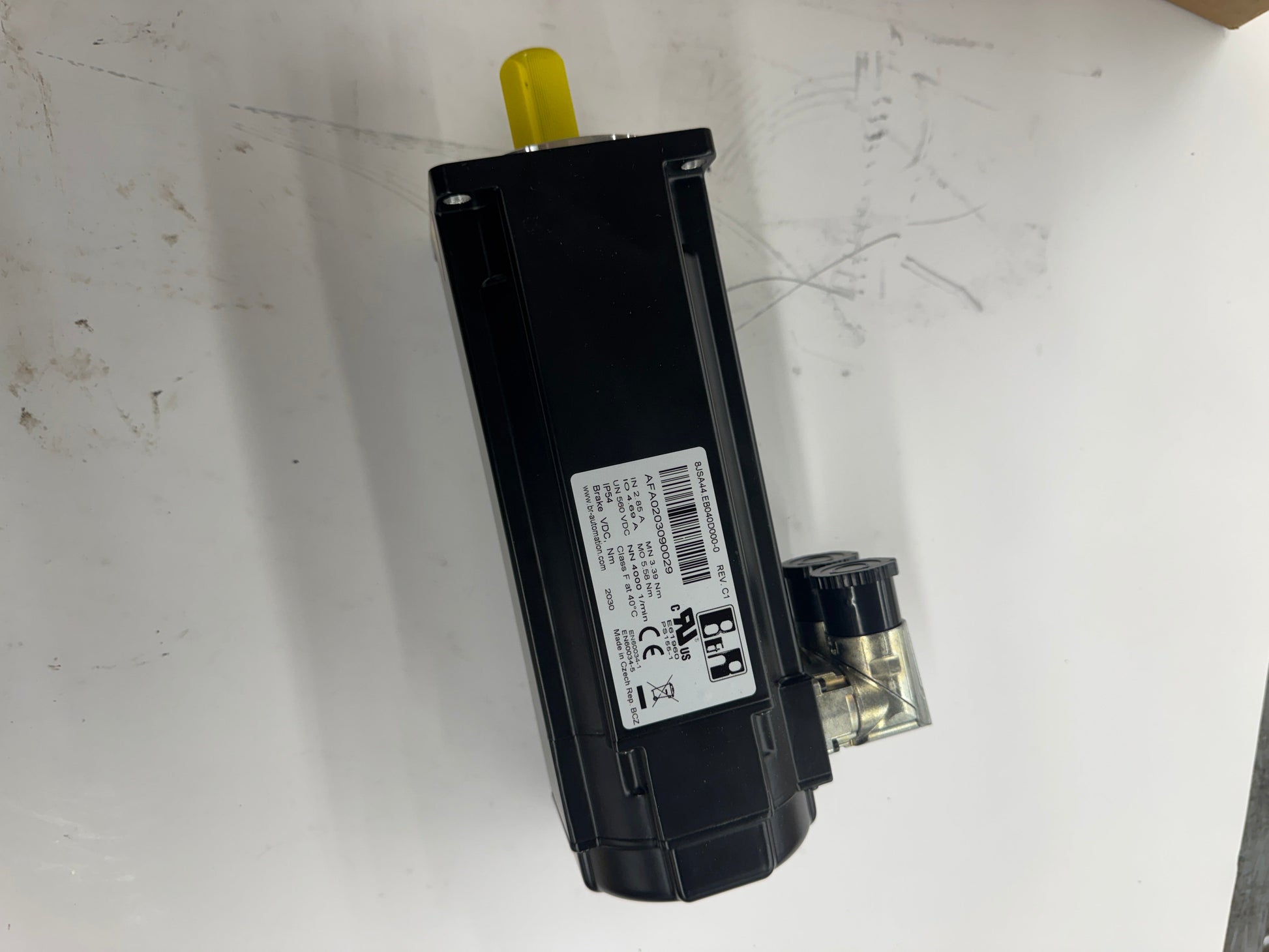

The B&R Automation 8JSA44.EB040D000-0 is a three-phase permanent-magnet synchronous servo motor from the 8JSA series, characterized by a compact flange design and high power density. Part number 8JSA44.EB040D000-0, Revision C1, serial number AFA0203090029, manufactured in 2030 in the Czech Republic.

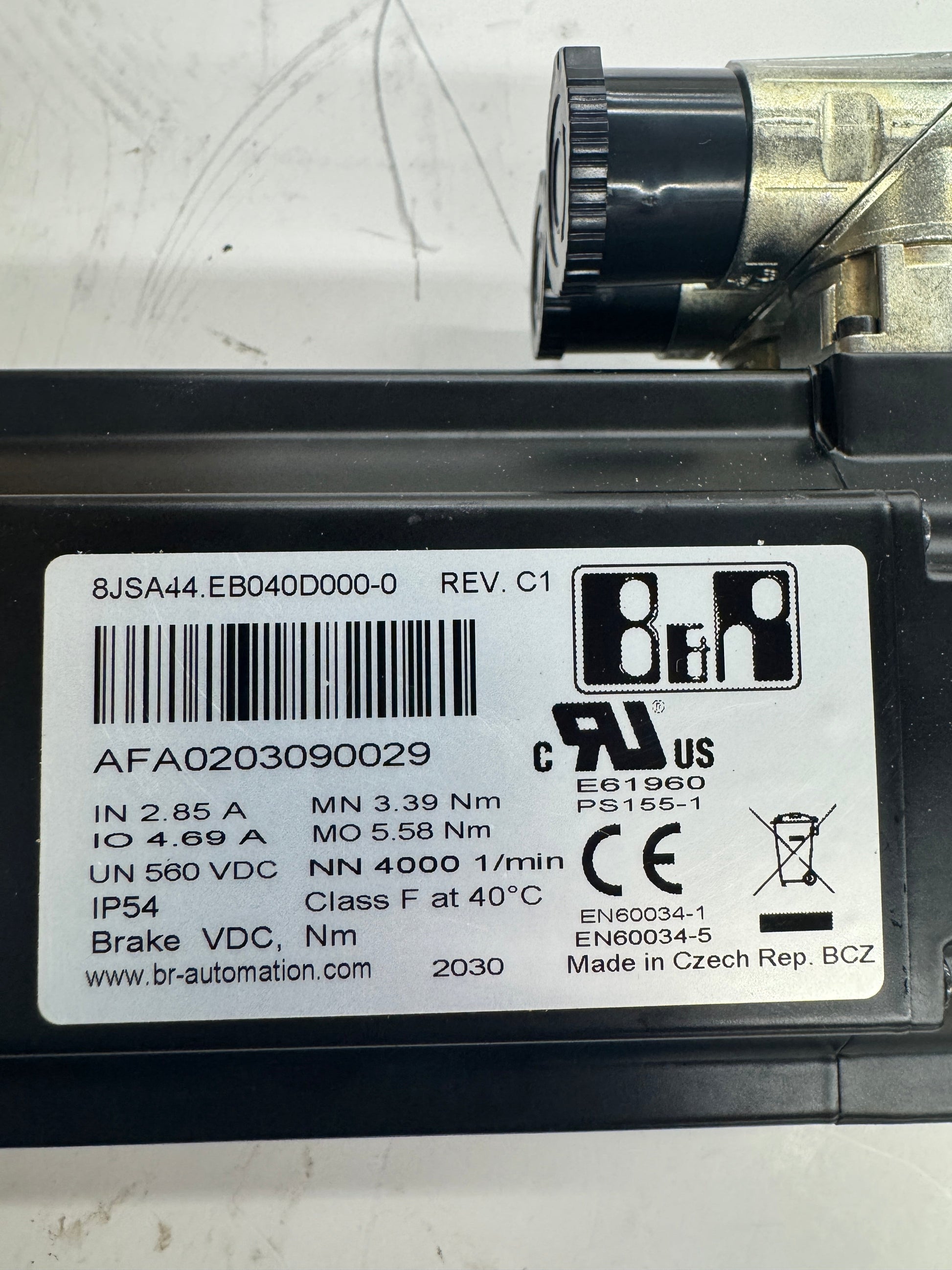

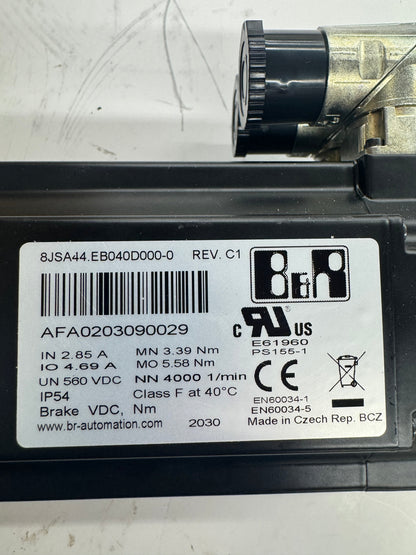

Nameplate-confirmed specifications include a nominal DC bus voltage of 560 VDC, nominal input current of 2.85 A, peak current of 4.69 A, nominal torque of 3.39 Nm, and a peak torque of 5.58 Nm. Rated speed is 4000 RPM. The motor carries IP54 ingress protection and insulation Class F rated at 40 degrees C. Certifications include cULus (E61960, PS155-1) and CE marking, with compliance to EN60034-1 and EN60034-5.

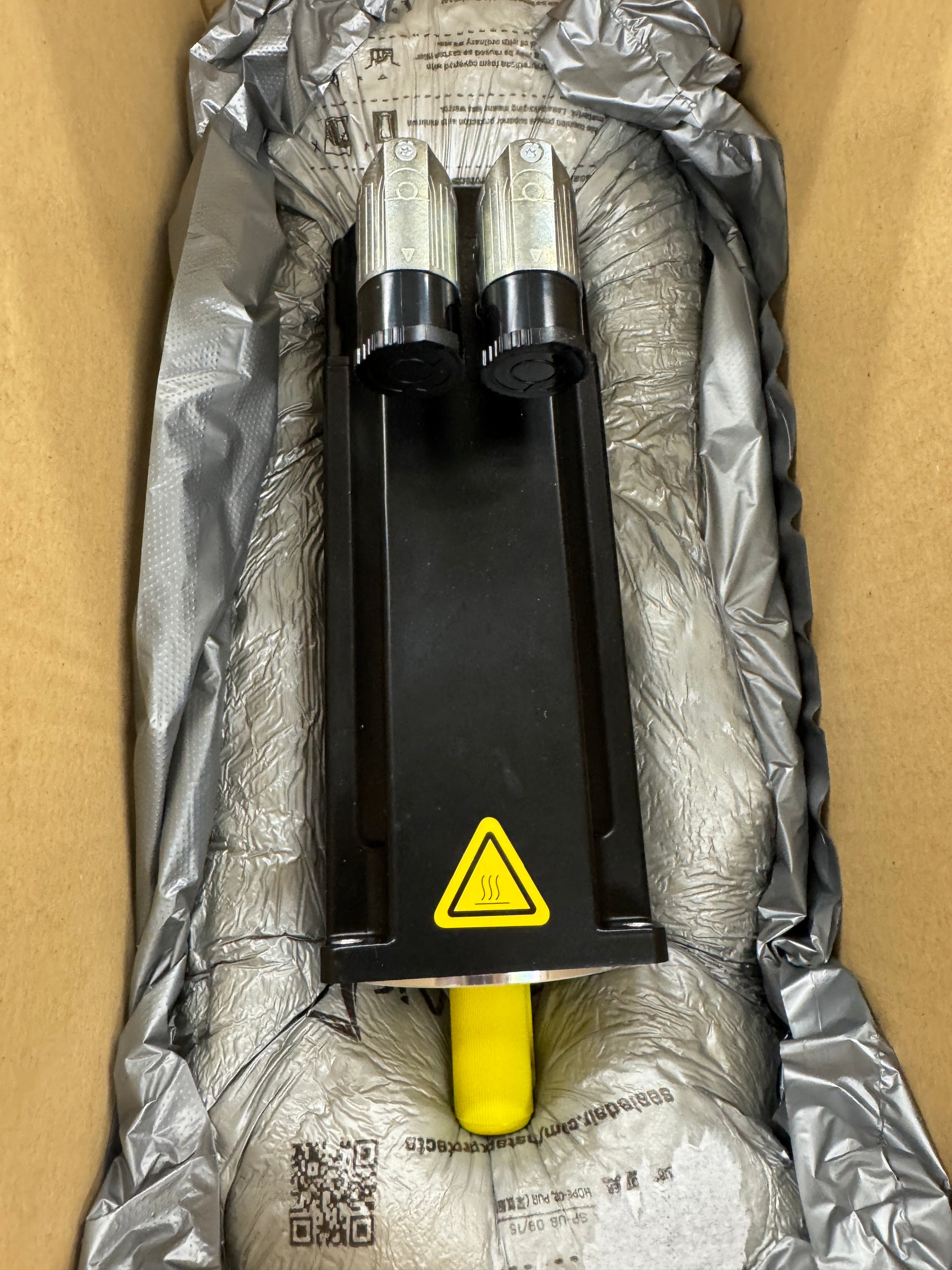

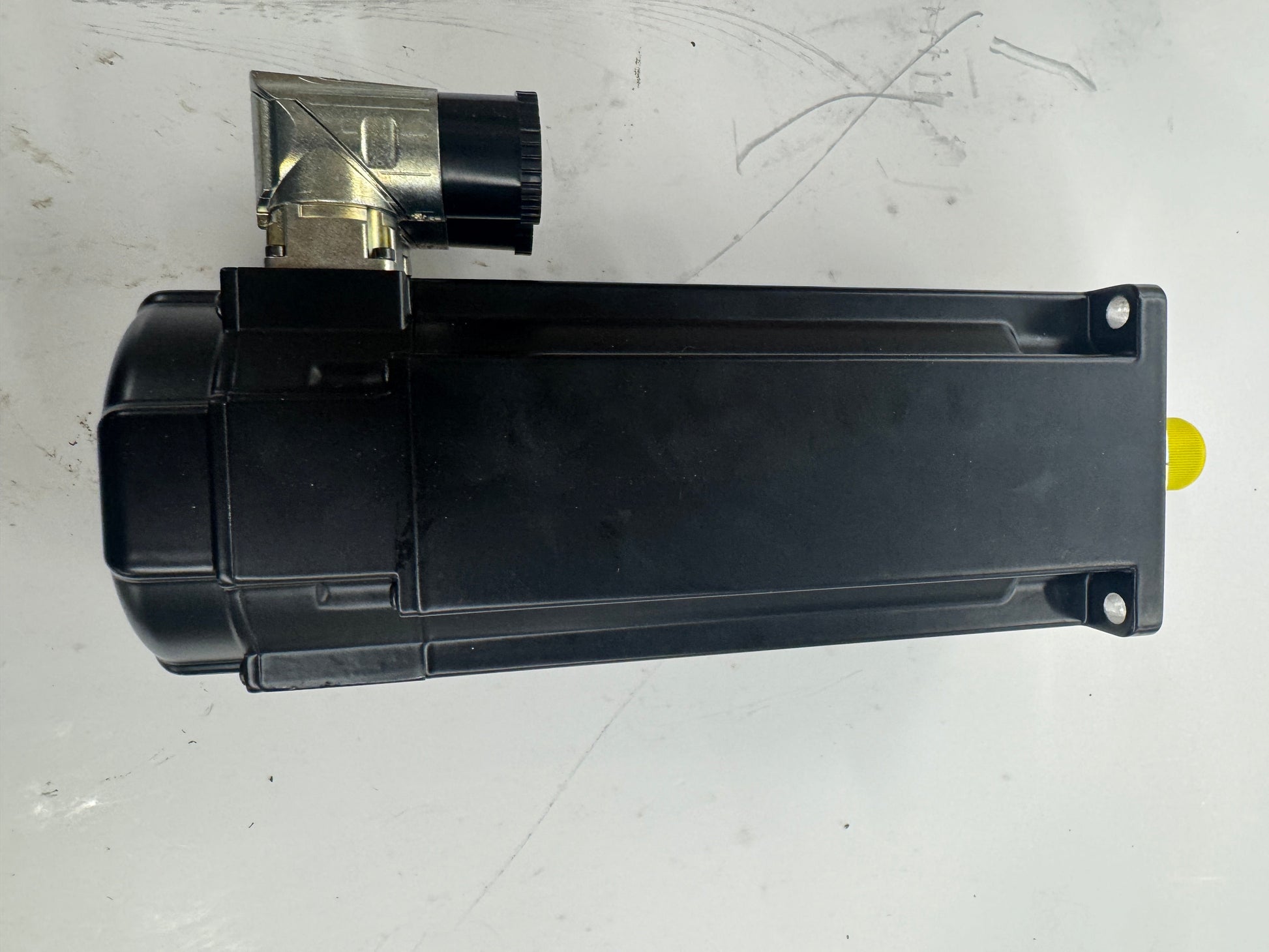

The motor features a dual-port feedback connector arrangement visible at the non-drive end, consistent with the EnDat encoder interface standard used in this series. A holding brake is present with VDC control. The motor includes a smooth shaft protected by a yellow shaft cap. This unit ships in original cushioned packaging.

The 8JSA series is designed for use with B&R ACOPOS servo drives in automation, packaging, and general motion control applications requiring compact form factor at high torque density. Encoder type and brake voltage are not fully confirmed from visible nameplate data and should be verified against B&R documentation for the EB encoder suffix and specific brake specifications.

Stock # 0326-1052
