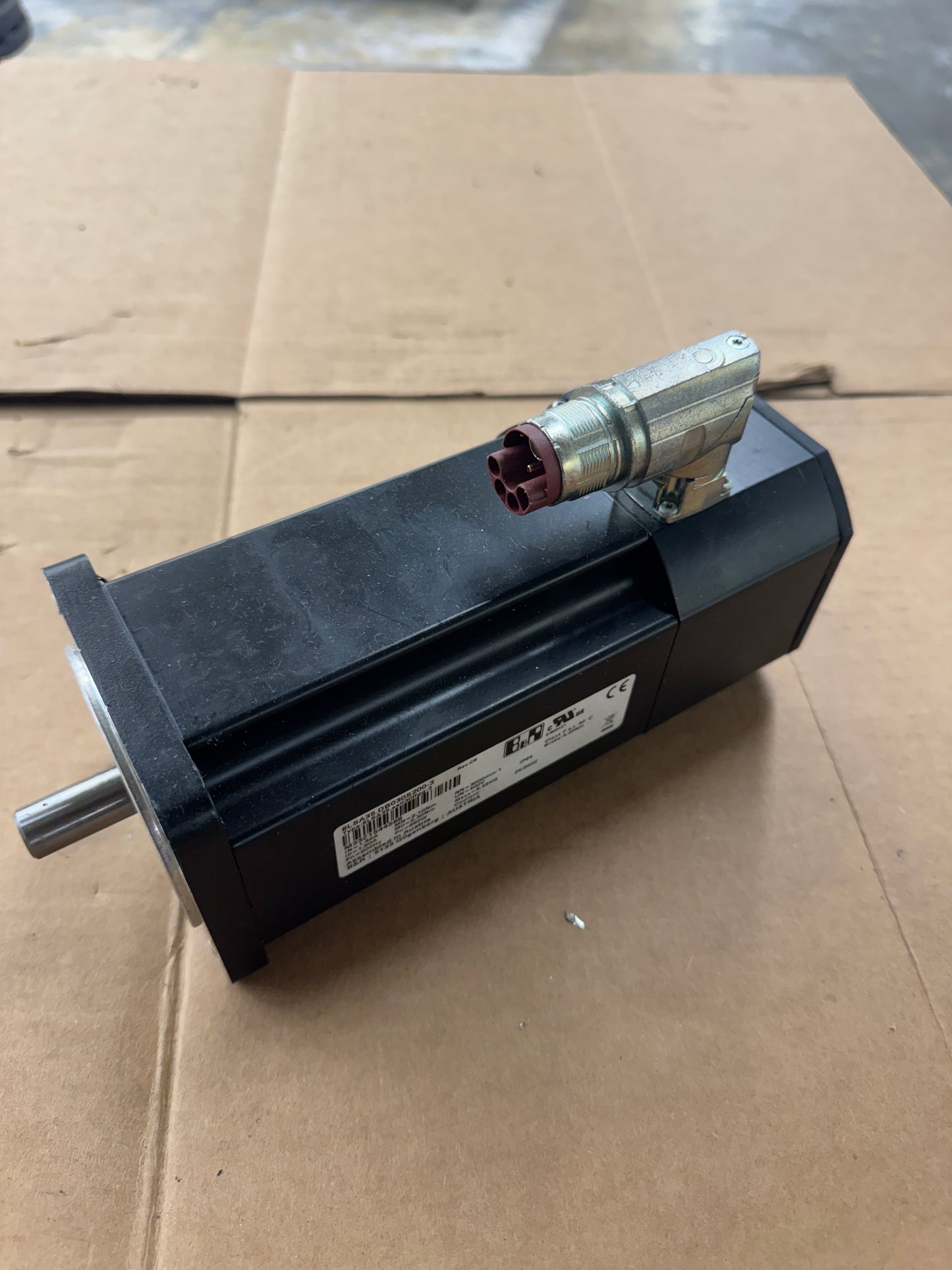

B&R Servo Motor 8LSA35.DB030S200-3 - 1 kW 3000 RPM
B&R Servo Motor 8LSA35.DB030S200-3 - 1 kW 3000 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

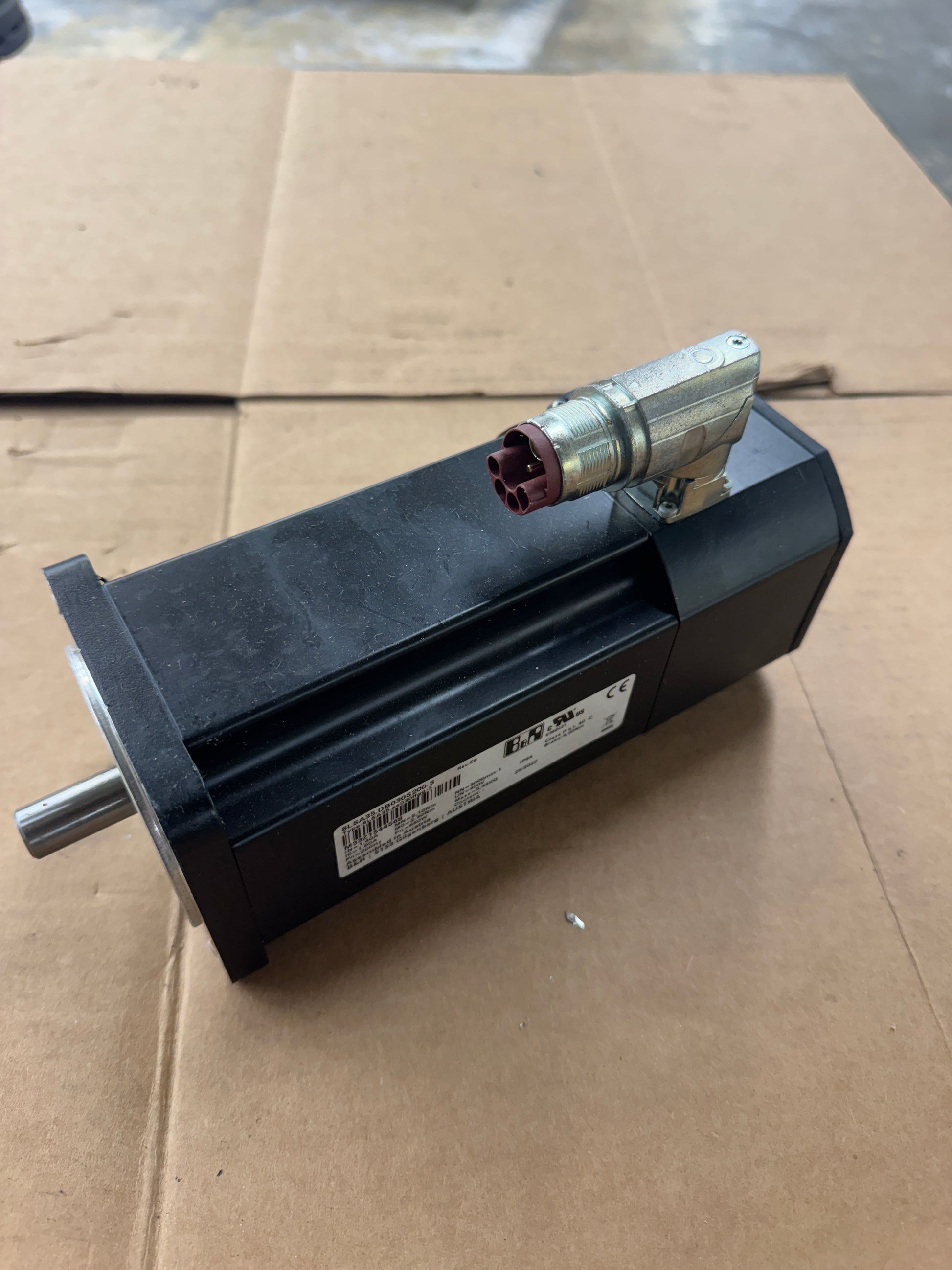

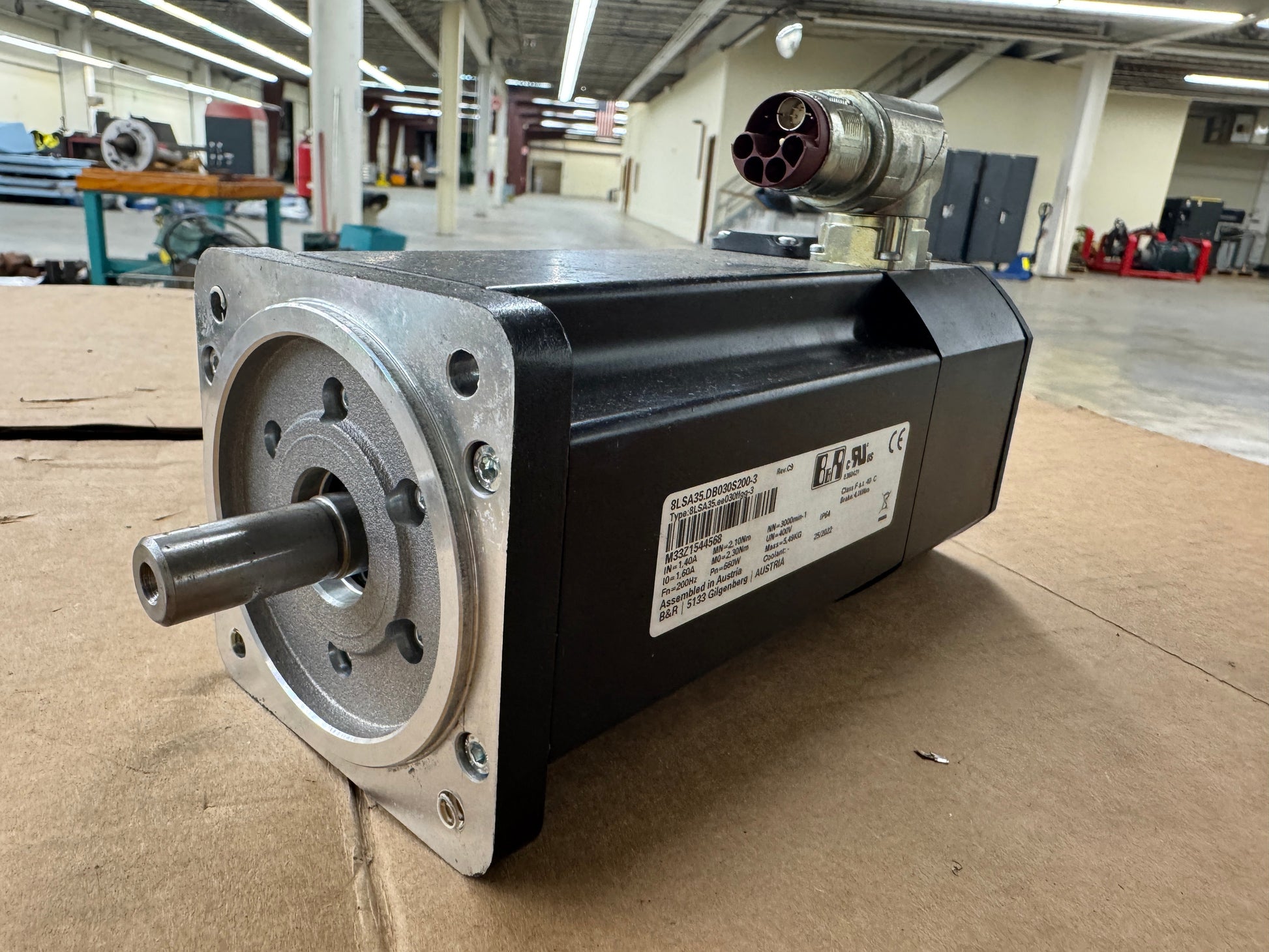

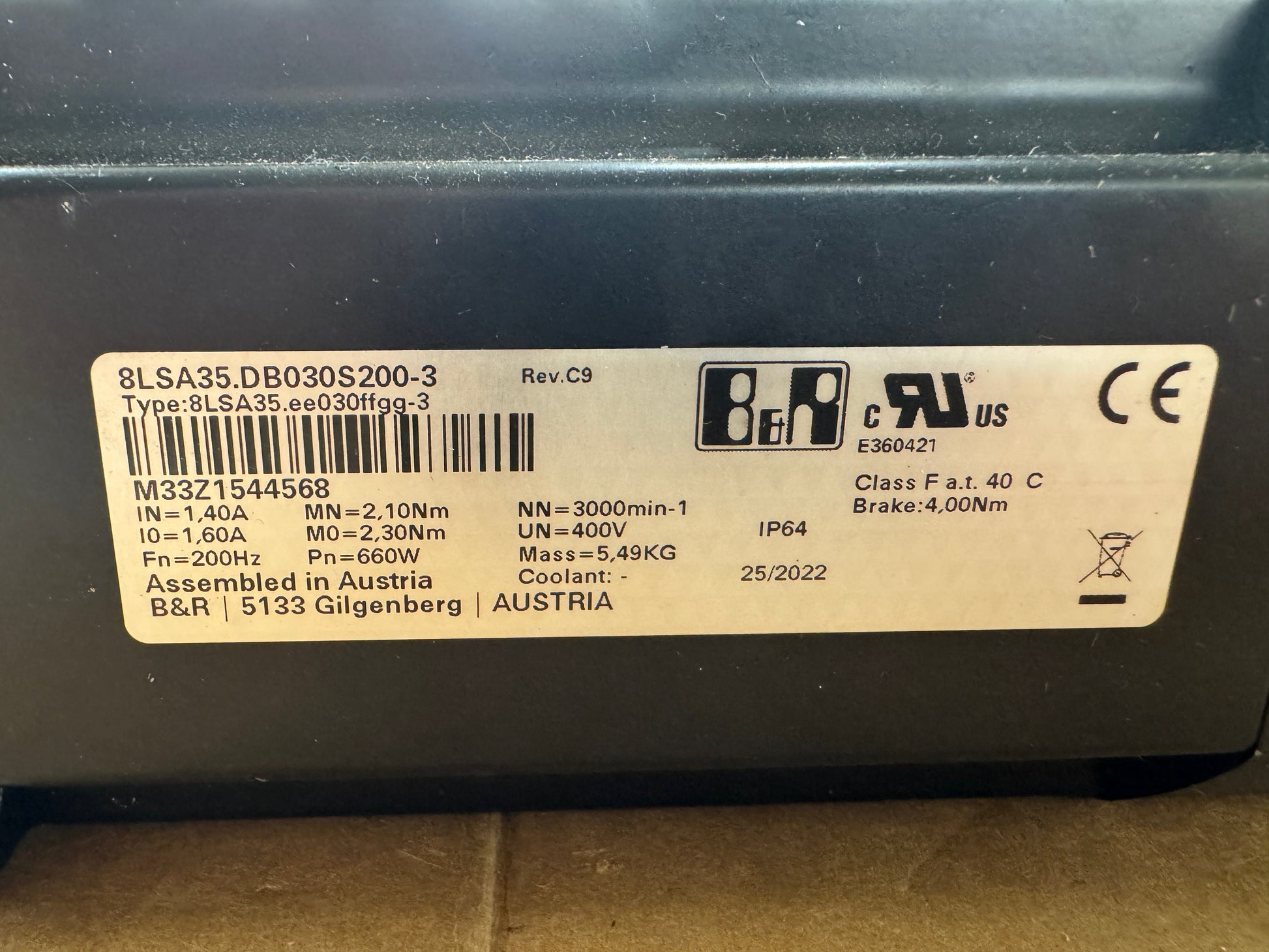

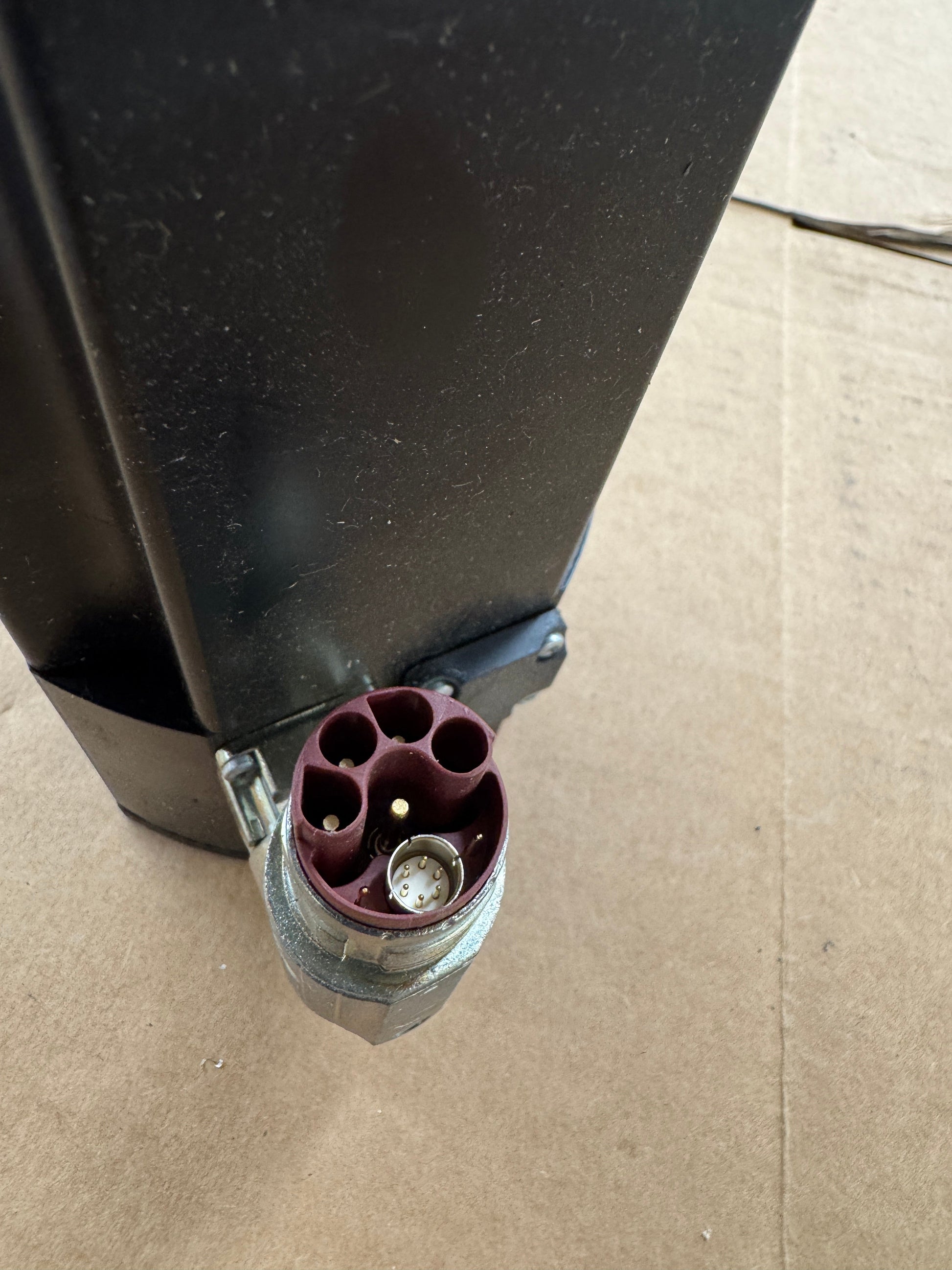

The B&R 8LSA35.DB030S200-3 is a compact synchronous servo motor rated at 660W continuous power output with a nominal speed of 3000 RPM. Part number 8LSA35.DB030S200-3, revision C9, carries the internal type designation 8LSA35.ee030ffgg-3. Nameplate data confirms a nominal voltage of 400V, nominal current of 1.40A, and overload current of 1.60A. Nominal torque is 2.10 Nm with a peak stall torque of 2.30 Nm. An integrated holding brake is rated at 4.00 Nm. The motor operates at a nominal frequency of 200Hz and carries an IP64 ingress protection rating, suitable for environments with limited dust and splash exposure. Insulation is Class F, rated for ambient temperatures up to 40 degrees C. Published mass per nameplate is 5.49 kg. The motor is assembled in Austria at the B&R facility in Gilgenberg and carries both UL and CE certifications. The feedback connector and mating cable connector are visible and intact in photos. The 8LSA35 series is designed for use with B&R ACOPOS servo drive systems in automation and motion control applications. MPN 8LSA35.DB030S200-3 is the market-recognized identifier for this configuration.
Stock # 0326-902
