Bridgeport Servo Control Board 501-04303-02
Bridgeport Servo Control Board 501-04303-02
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

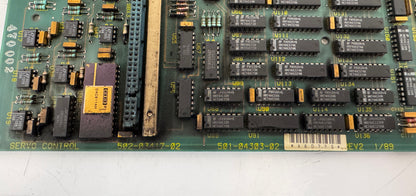

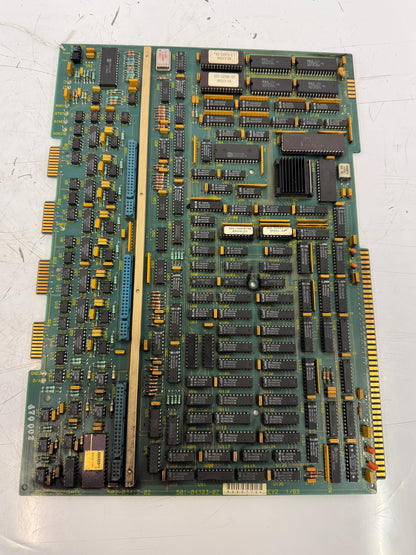

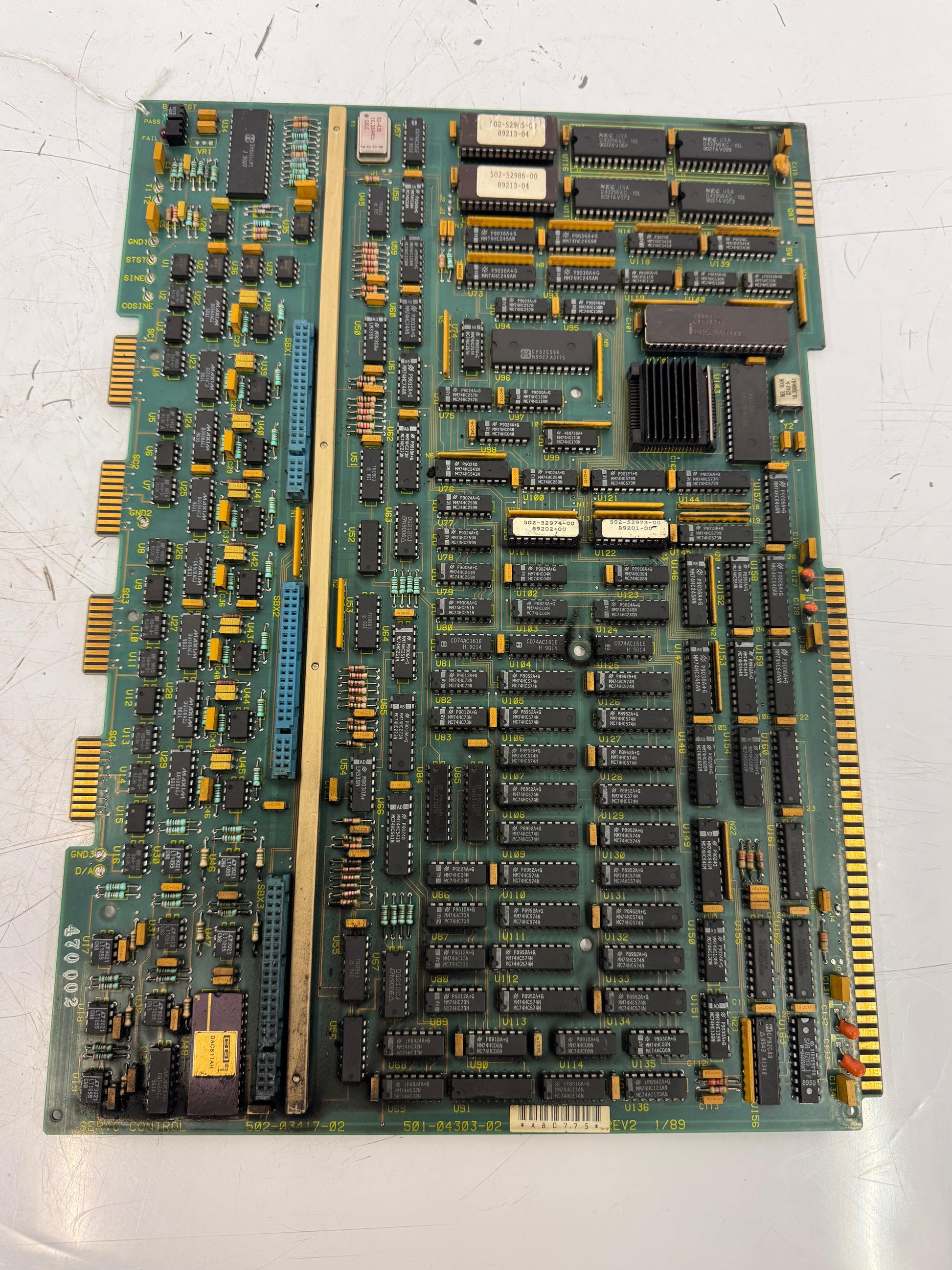

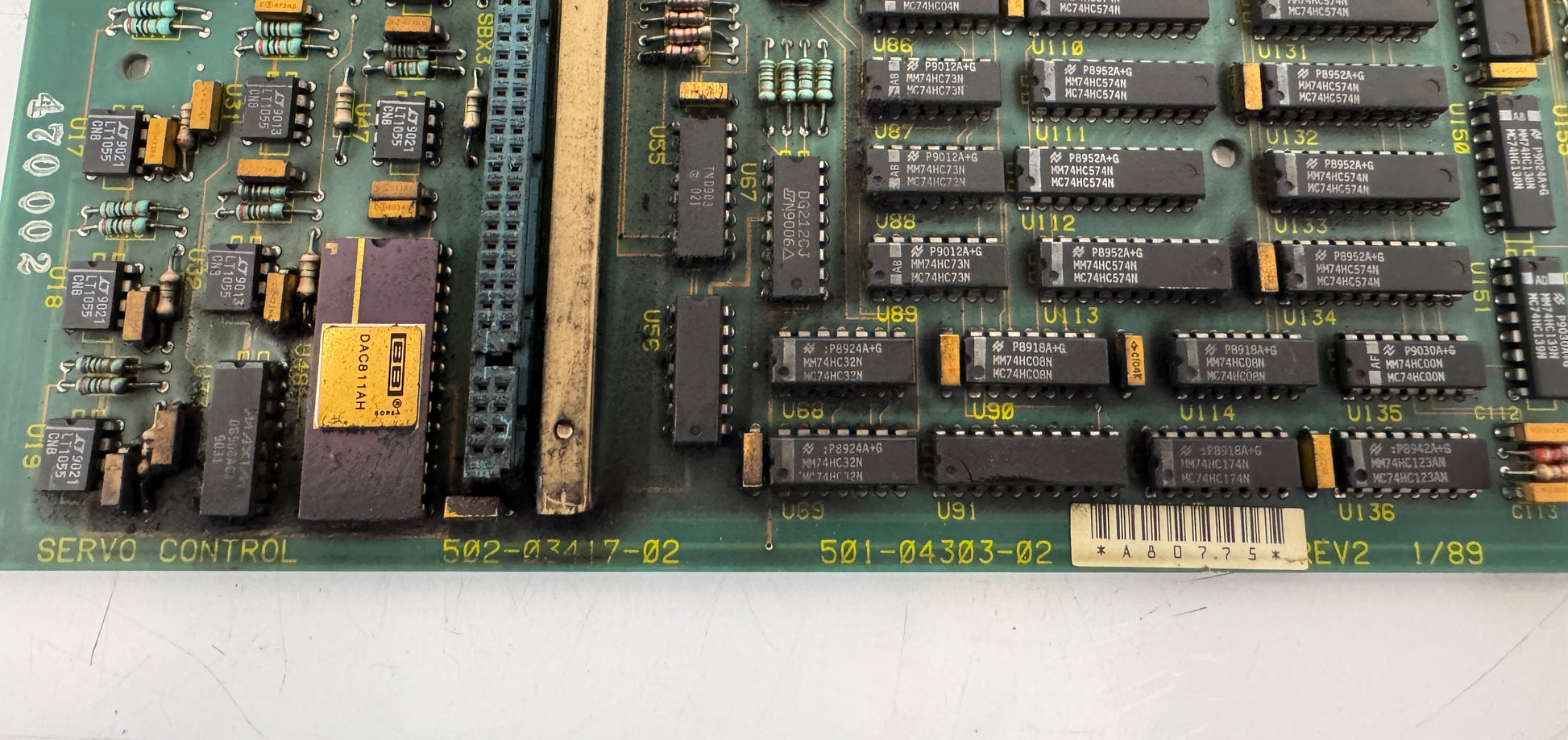

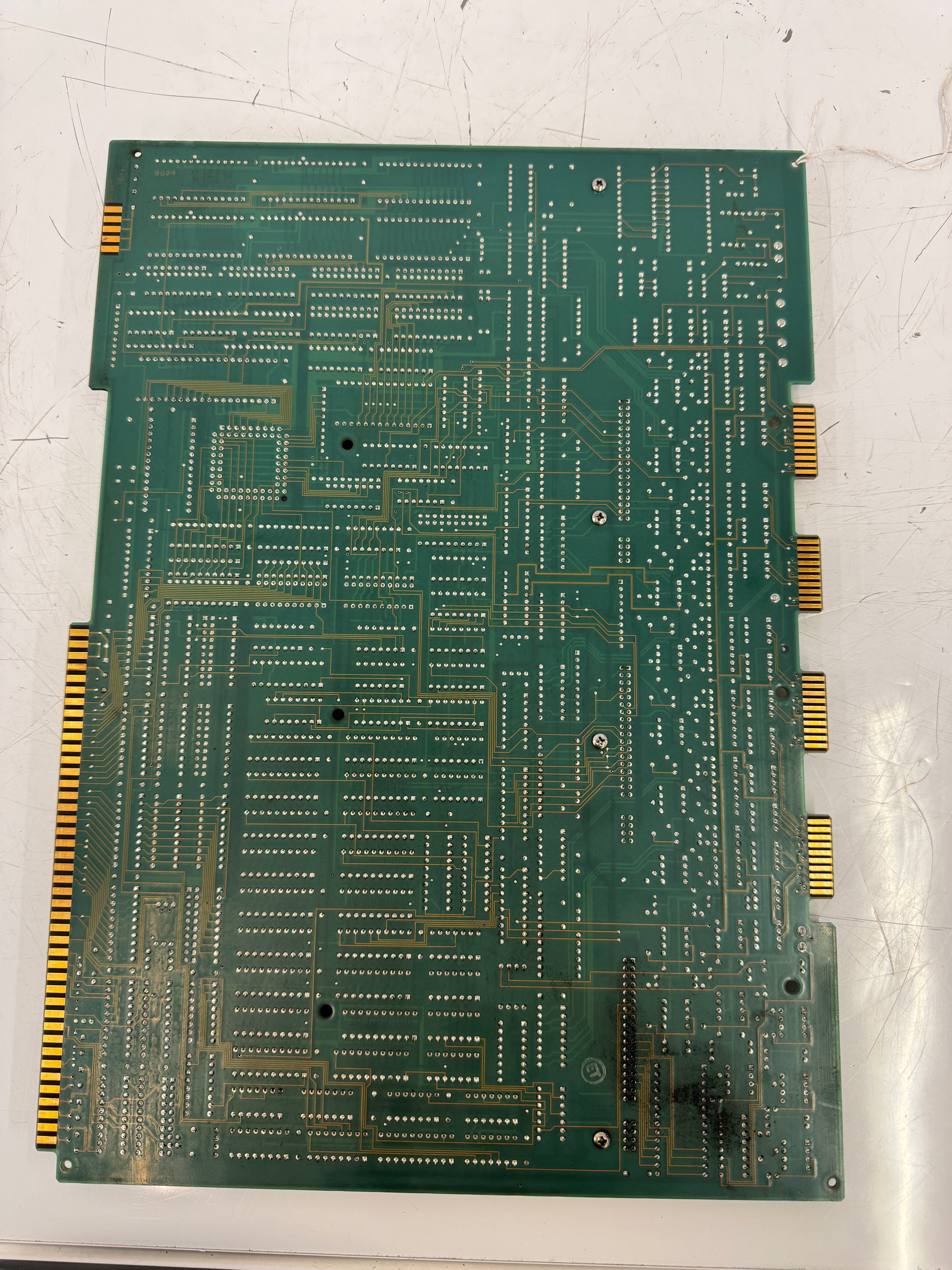

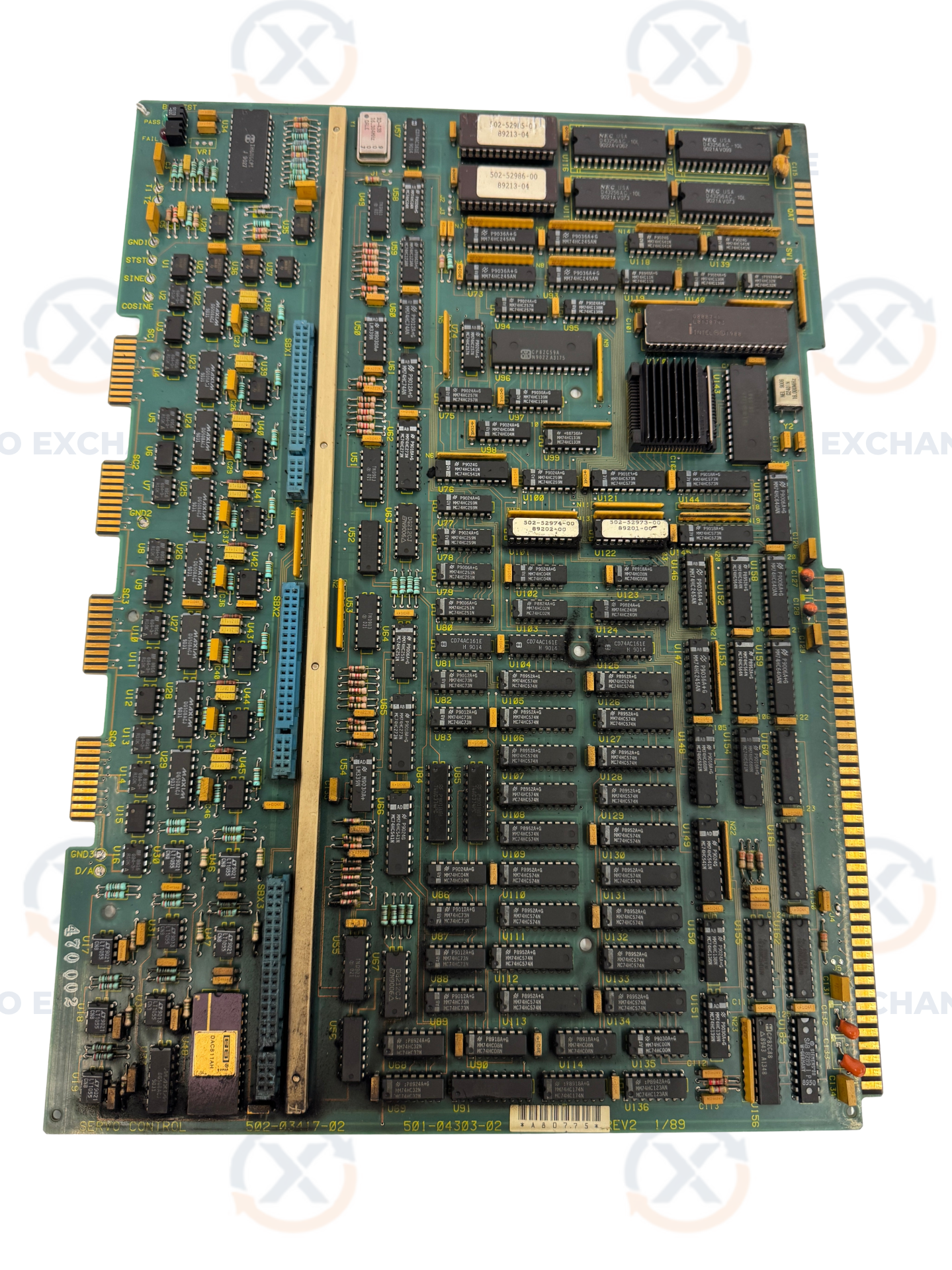

Used in Bridgeport Series II CNC milling machines, the Bridgeport Servo Control Board carries OEM part number 501-04303-02, with assembly reference 502-03417-02, REV2, dated 1/89. The board is labeled "SERVO CONTROL" directly on the PCB silkscreen and is associated with the SBX3 designation common to Bridgeport Interact platform controls. The board features a DAC811AH digital-to-analog converter, a dense population of HCMOS logic ICs including MM74HC and MC74HC series devices from multiple manufacturers, and NEC memory components visible on the component side. Multiple edge connectors are present along the bottom and right edges for integration into the machine control backplane. The reverse side shows a multilayer through-hole design with gold-plated edge fingers. This is a large-format board measuring approximately 14 by 10 inches. Serial number A80775 is visible on the barcode label. The board dates to January 1989 and is consistent with the Bridgeport Series II Interact CNC control architecture of that period. MPN 501-04303-02 is the primary OEM identifier. Compatible machine platforms and exact system requirements should be verified against Bridgeport Interact Series II service documentation prior to installation.
